High quality 40m depth High Air Pressure DTH and bit Ore Mining Deep Hole DTH drill rig
- Category: >>>
- Supplier: Quzhou Jugong Machinery Co. Ltd.
Share on (1600782467194):
Product Overview
Description
Products Description
The KG410 down the hole drill rig for open use is an improved device in compliance with national regulations in diesel-engine emissions. Equipped with Yuchai four-cylinder engine (China 3), the drill rig meets national standards for emissions and environment. The folding frame track, four-wheel drive and tramming motor of plunger piston improve the working pressure and climbing capacity, the expanded pith and lifting-arm hydraulic cylinder enable it to meet the requirements on extreme position.
The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are
expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its
level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
The double-motor rotation increases the rotary torque and revolving speed; and the lifting hydraulic cylinder and chain are
expanded to promote the lifting force and reliability. The thickened profile folder is used for the housing, thus improving its
level of intensity and rigidity, and the additional ring makes handling and lifting convenient.
Model | KG410 | KG410H | |
Size of drill machine | 6000X2100X2000mm | 6000x2350x2000mm | |
Weight | 4700kg | ||
Rock rigidity | f=6-20 | ||
Diameter of hole | Φ90-115mm | ||
Optium drilling depth | 25m | ||
Rotation speed | 0-120r/min | ||
Rotation torque | 1800N·m | ||
Lift power | 40000N | ||
Feed way | oil cylinder-chain | ||
Feed distance | 3980mm | ||
Walk speed | 0-2.5Km/h | ||
Gradeability | 30° | ||
Ground clearance | 280mm | ||
Sliding carriage pitch angle | Blow 135°,elevation50°, total 185° | ||
Sliding carriage swing angle | Left100°,right45°,total 145° | ||
Drill boom pitch angle | Blow 50°,elevation25°, total 75° | ||
Drill boom pitch swing angle | Left44°, right45°, total 89° | ||
Sliding carriage suppling length | 900mm | ||
Power | YC4DKC4G2-80 (58KW/2200r/min) | ||
Drill pipe | Φ64x3000mm / 76X3000mm | ||
Air consumption | 10-17m³/min | ||
Max height of horizontal hole | 2840mm | ||
Min height of horizontal hole | 350mm | ||

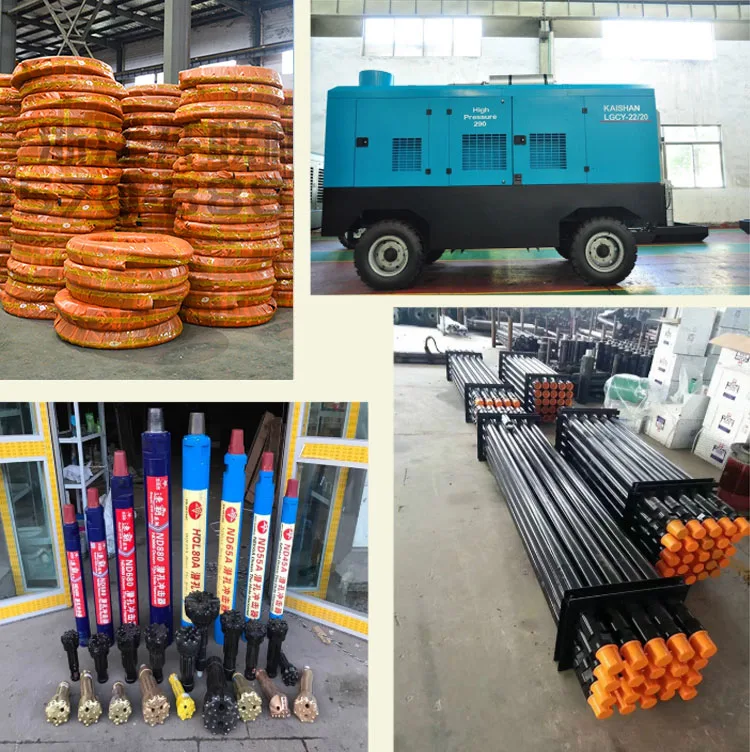

Spare parts
Recommend Screw Air Compressor for KG920B dth borewell drilling machine | ||||
MODEL | Air capacity | Working pressure | ||
LGCY13-13 | 13m3/min | 1.3mpa | ||
LGCY15-13 | 15m3/min | 1.3mpa | ||
LGCY13-17 | 13m3/min | 1.7mpa | ||
Recommend Drilling tools for KG920B borewell drilling machine | ||||||
Drill Bit Dia. | 90mm | 105mm | 115mm | |||
Drill pipe Dia*L | 64*3000mm | 64*3000mm | 76*3000mm | |||
Drill hammer | CW930 | HD45S | HD45A | |||
Company Profile
About us
Quzhou Jugong Machinery Co.,Ltd.specialized in manufacture and export machines for industrial,mining and construction.
Based on integrity, responsibility and cooperation,our company have professional R&D and sales team, providing one-stop service for customers.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Based on integrity, responsibility and cooperation,our company have professional R&D and sales team, providing one-stop service for customers.
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
About Kai Shan Group:
1- Established in 1956 ,Specialized in Portable crawler drill machine line more than 50 years.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
2- National Free-inspection Product.
3-Have advanced machining centers, automatic production line shape and heat treatment equipment setc 500 sets from the United
Kingdom,United States,Japan,Germany etc.
4-Exported to Asia/South America/Mongolia/ Russia/ South-Africa etc . Have global customers.
5-Has got ISO900:2008 and many quality system certificates.
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in JNo.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
Q7: How long will you take to arrange production?
A7: 380V 50HZ we can delivery the goods within 7-15 days. Other electricity or other color we will delivery within 25-30 days.
Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.
Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
If you are interested in our products, please feel free to contact us!
