Waterproof Micro Switch SPDT 5A 250VAC Super Long Level Microswitch with Wire

Share on:

Price:$2.30 - $2.80
Price in USD:Details


Product Overview





Product Name

SPDT Wire Type Super Long Lever Micro Switch 5A 250VAC


5A 250VAC

Connect Forms

SPDT  waterproof micro switch

Terminal Type

Wire Type

Contact Resistance


Insulation Resistance

≥100MΩ (500VDC)

Dielectric strength

1500VAC 1 minute

Mechanical Life

≥ 1,000,000 Cyclesd



This is a waterproof micro switch which have a variety of actuator, like pin plunger, lever, and roller lever.

The micro switch terminal styles include PCB through hole, quick connect, screw and solder.

Mounting options include vertical, right angle, PCB and snap-in mounting.

They are widely used in Home appliance, like test Euqipment, Automotive, Arcade games, Medical Devices and so on.

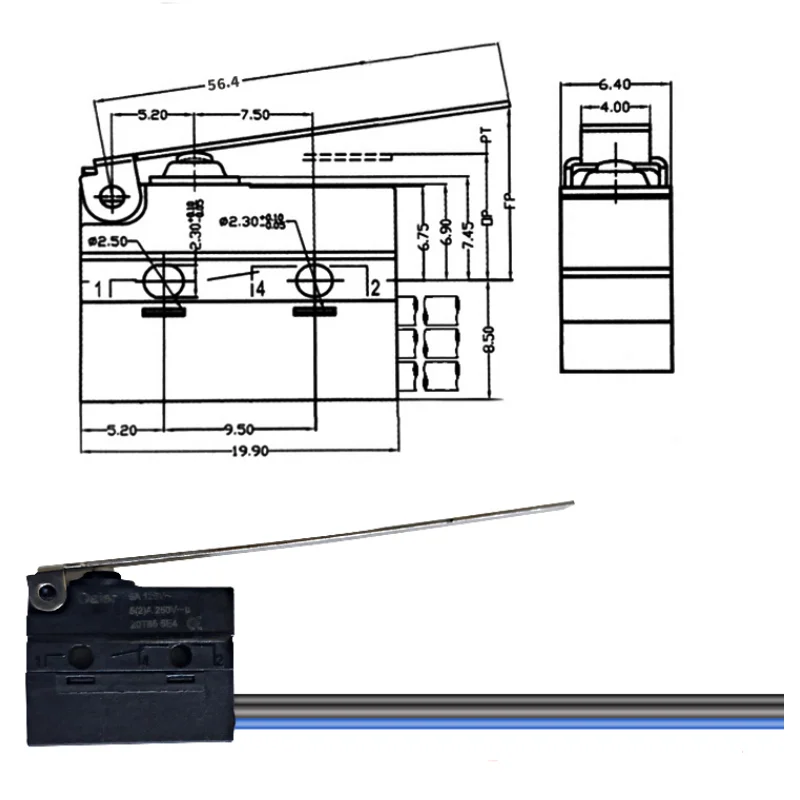

the size is for referance only , it may be not accurately  , there is some measure errors , thanks
