Product Overview
Description
Products Description

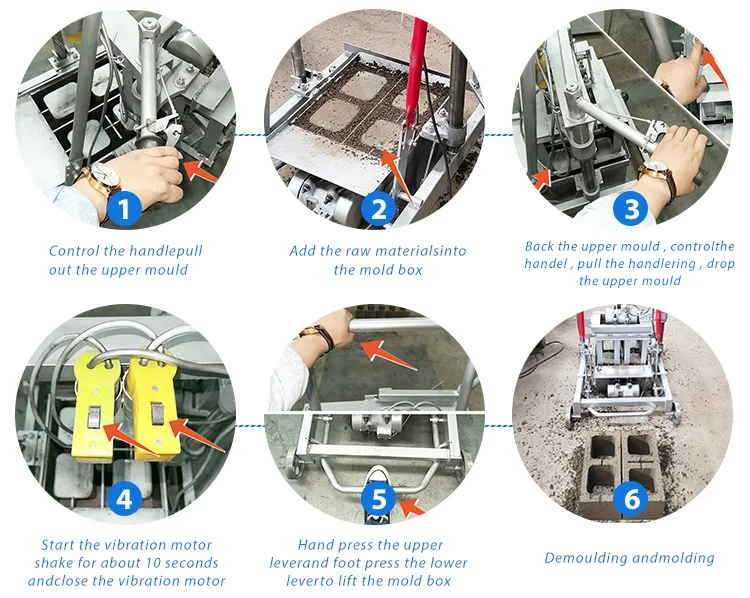

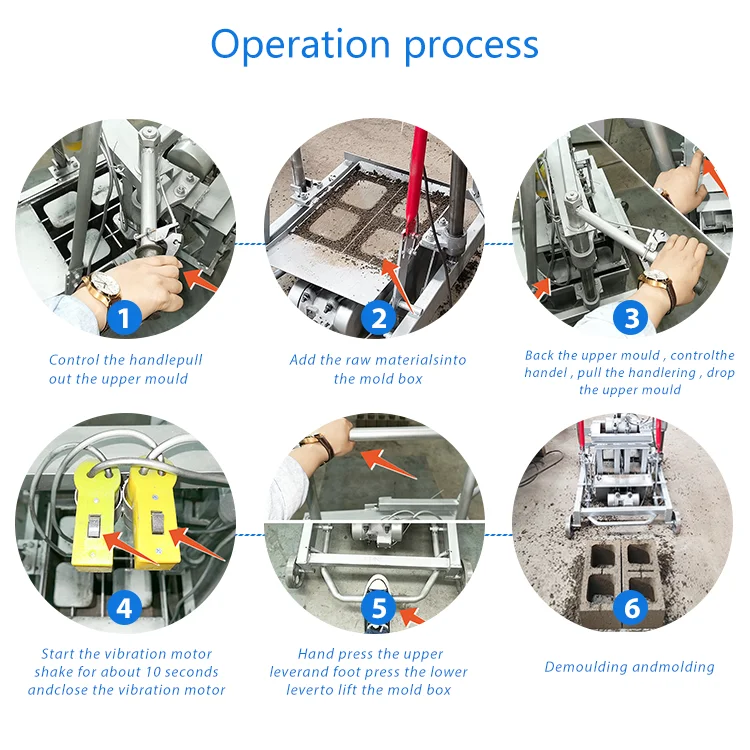

machine is controlled by button on control box, you can discharge material ,press blocks,and block out by button,after that,use manual trolley to carry out .
Technical Parameter(Block Making Machine) | Detailed Data | ||||
Overall Dimension | 2060×1730×2500(mm) | ||||
Main Vibration Form | Platform Vibration | ||||
Cycle Time | 26 seconds | ||||
Vibration | 100KN | ||||
Vibrating Frequency | 2800-4500 rolls/minute | ||||
Motors Power | 14.25KW | ||||
Pallet Size | 880*480(mm) | ||||
1.This block machine is one of our newly designed block making machine. With less power.
2.It adopts full automatic spiral material laying method, so the material in the mould is well-distributed. With easy operation and high productivity, when producing hollow blocks, it has an advantage over the large hydraulic block machines.
3.It uses Mode 350 speed reducer to raise、and lower the mold, so it greatly increases the usage life of the speed reducer.
4.It combines pressure and super vibration. The lower vibration adopts two 3 KW vibrators and the upper vibration adopts two 1.5 KW vibrators, so the blocks made by this machine has high strength and accurate size.Its performance and product quality are comparable to the large equipment.
block making machine Raw material
1. 8-10% cement, 30-40% sand , 50-60% crushed stone.
2.8-10% cement, 30% flyash, 60% sand or stone powder

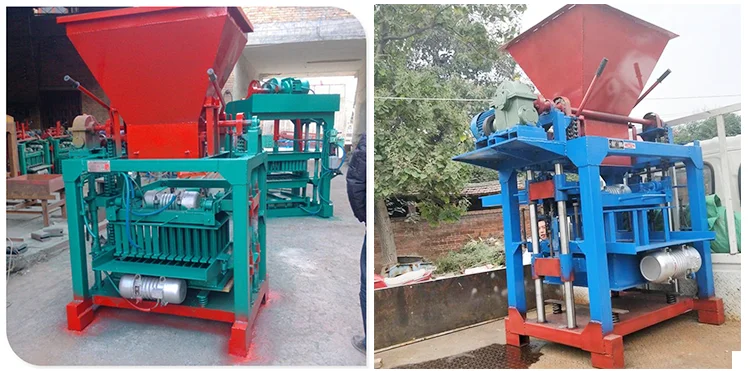

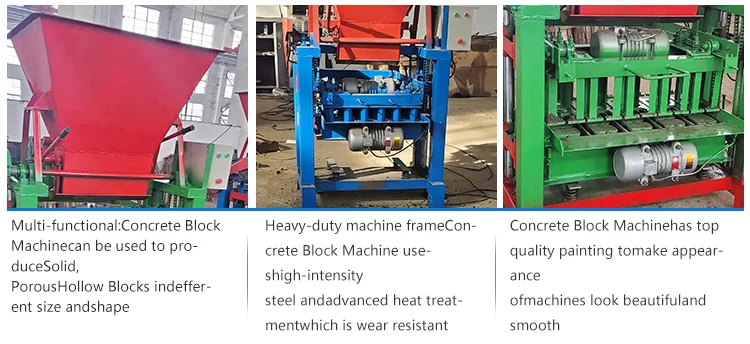

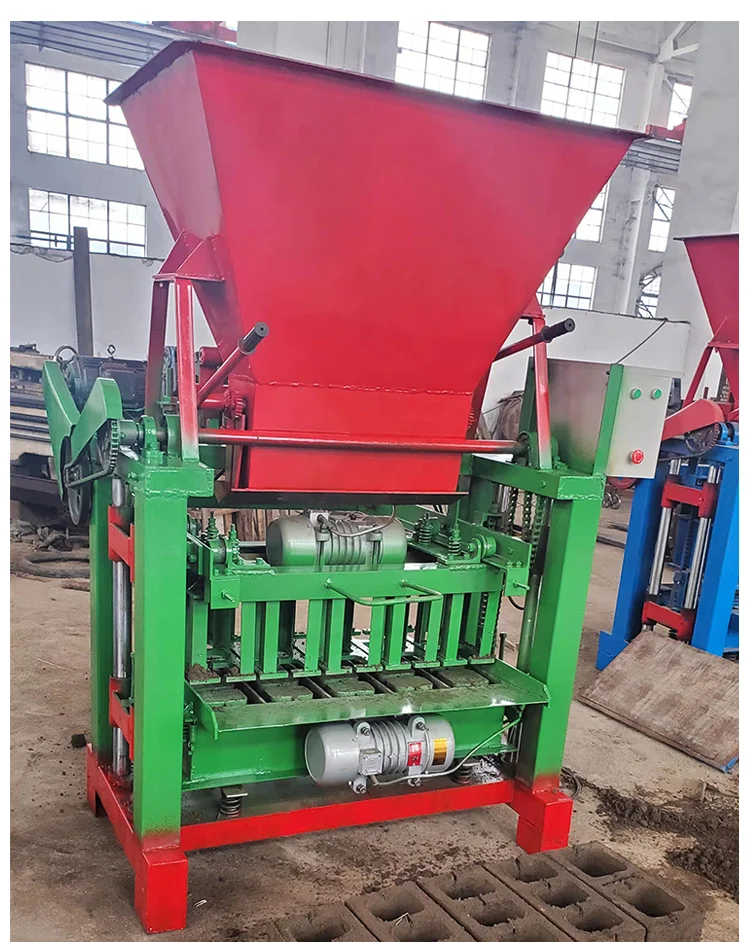

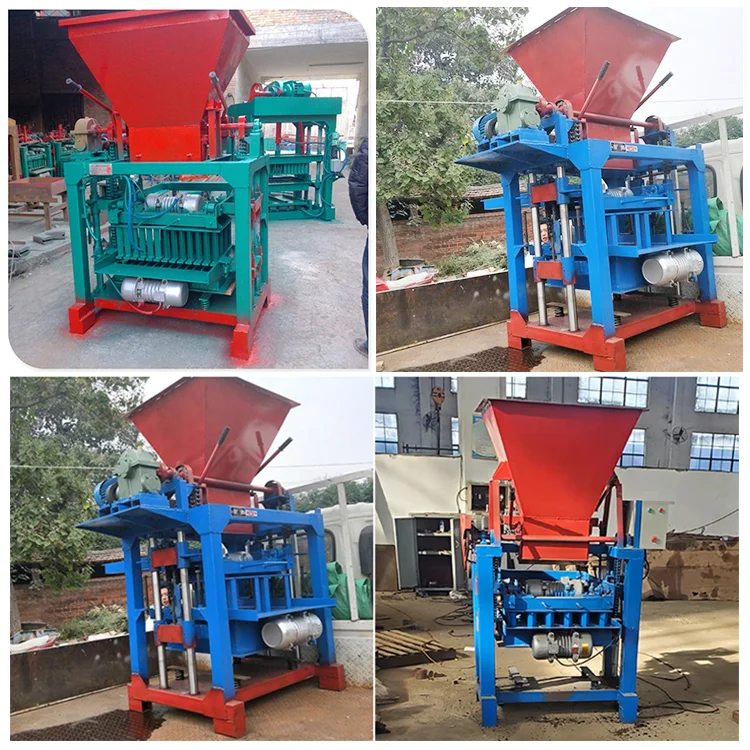

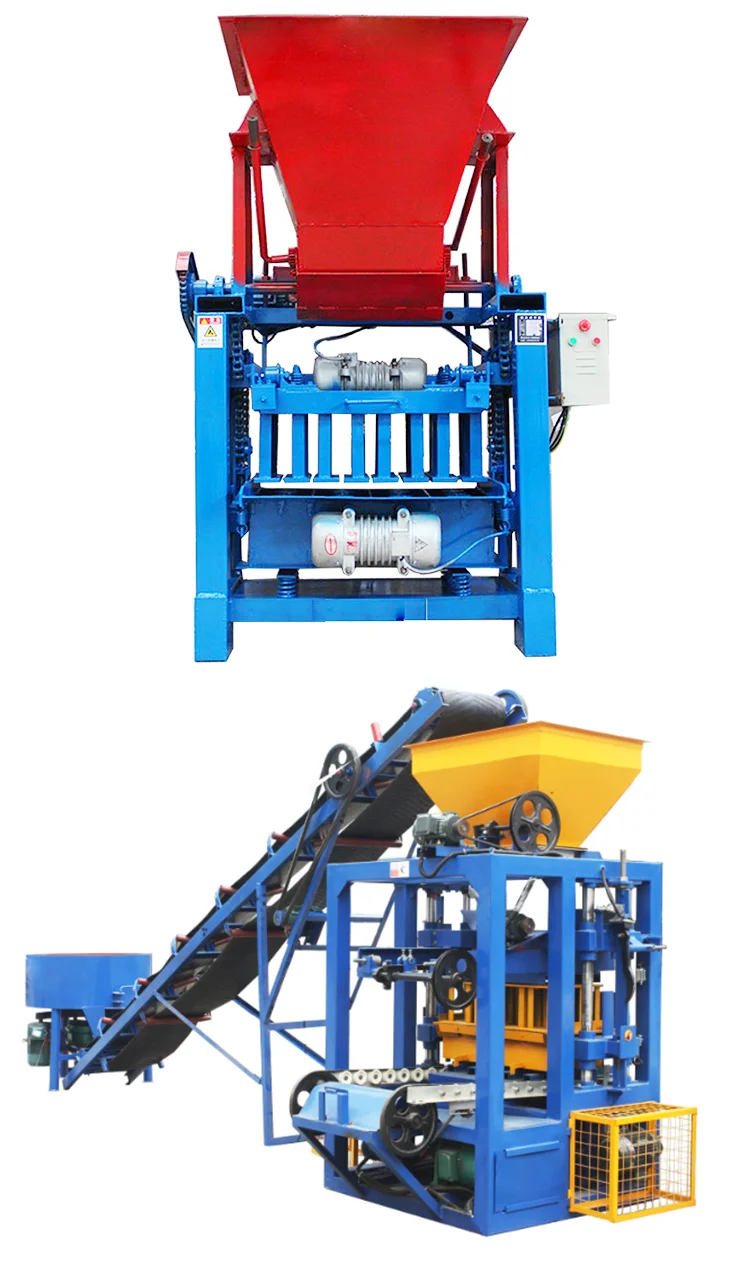

Details Images

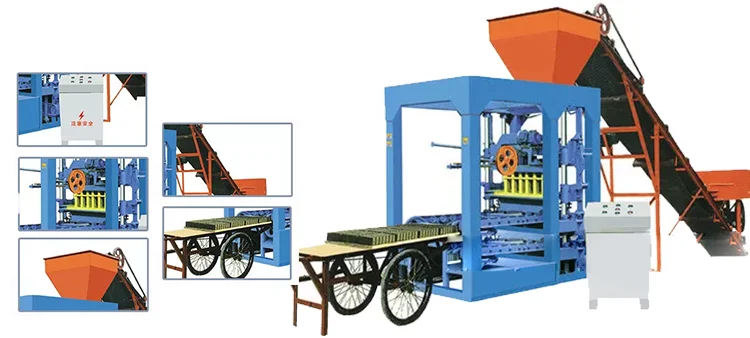

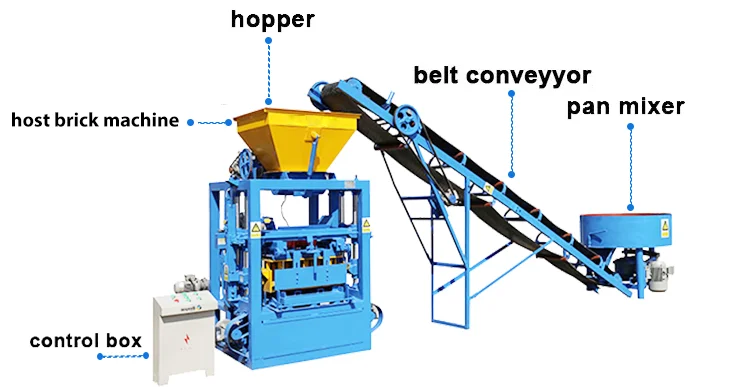

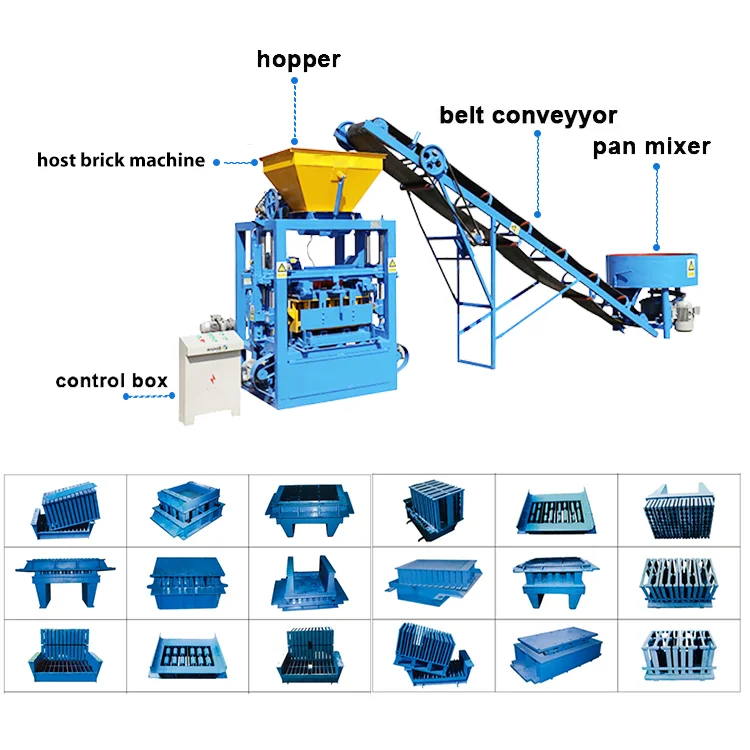

semi-automatic hopper brick machine, 380V voltage, can realize semi-automatic production line through the cooperation of conveyor belt and mixer, which greatly improves the output and saves labor. The utility model has the advantages of simple operation, one machine with multiple functions, and can replace various molds to produce cement products of various specifications

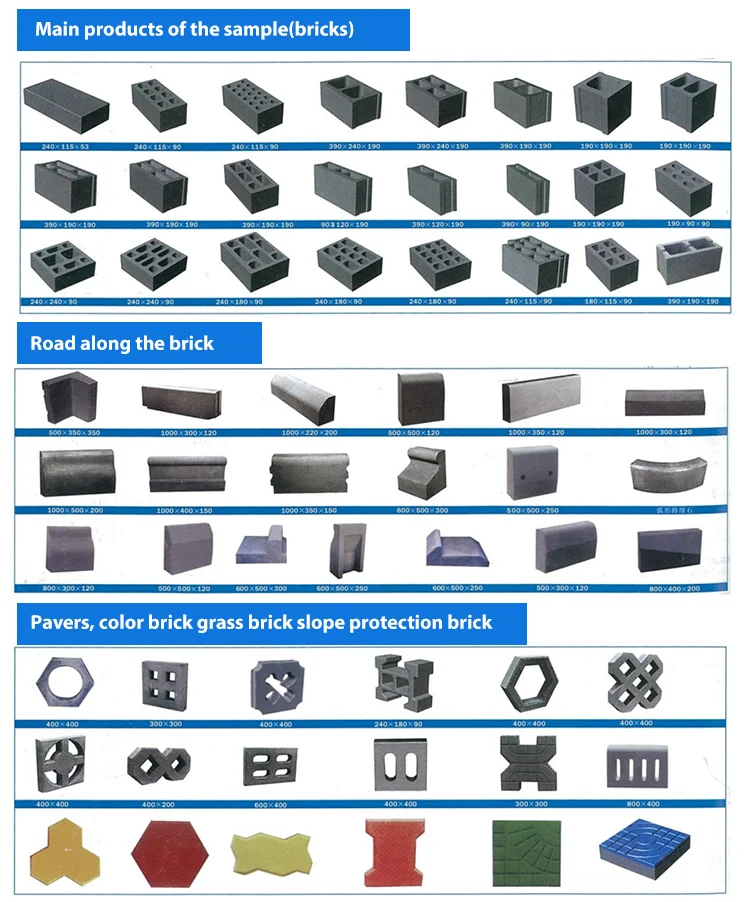

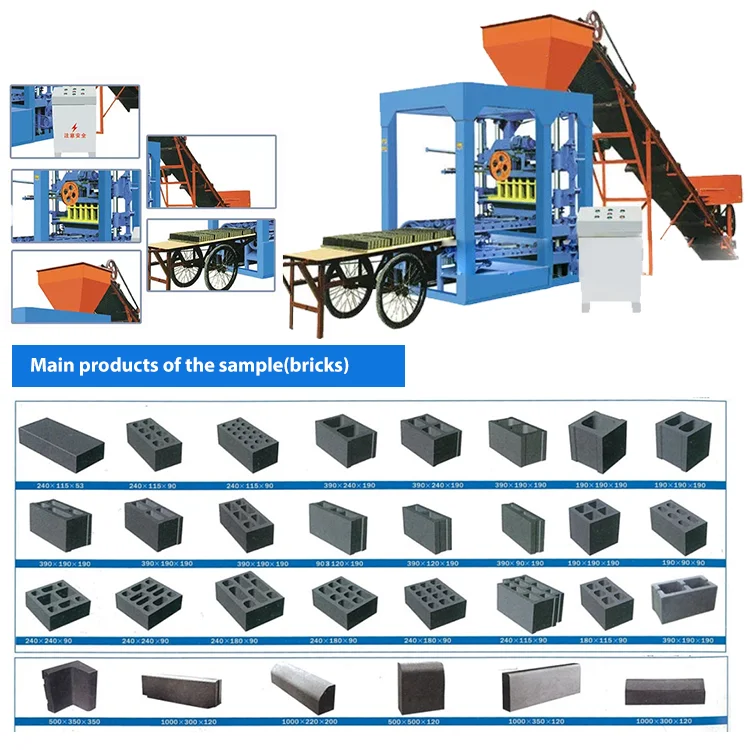

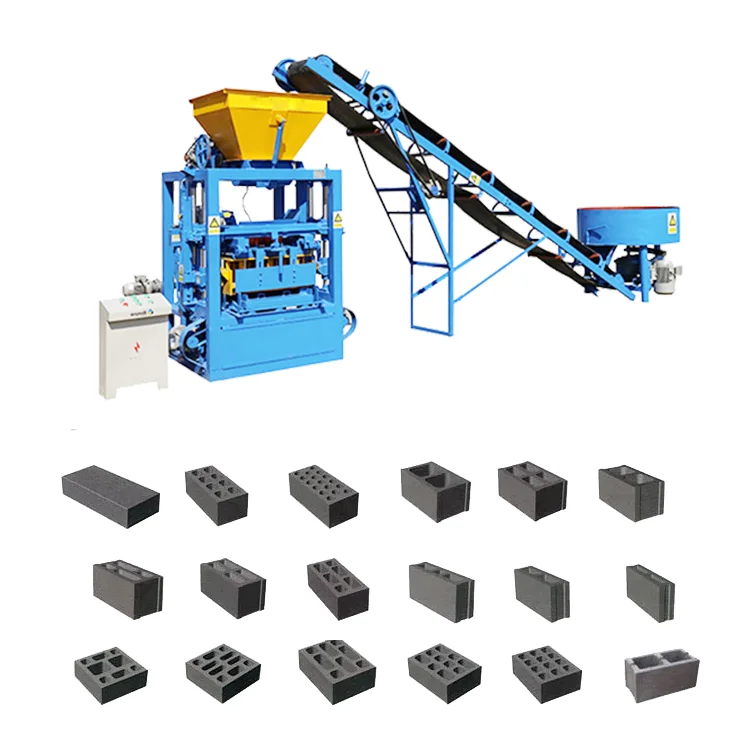

Product Display
Company Profile
FAQ
1.Q : When will make delivery
A : Delivery Time
Sample Order : 1-3 days after receipt of the full payment .
Stock Order : 3-7days after receipt of the full payment-
OEM Order : 12-20days after receipt of the deposit .
Sample Order : 1-3 days after receipt of the full payment .
Stock Order : 3-7days after receipt of the full payment-
OEM Order : 12-20days after receipt of the deposit .
2.After-sales Service
1 year waranty for all kinds of products
If you find any defective accessories first time , we will give you the new parts for free to replace in the next order , as an experienced manufacturer , you can rest assured of the quality andafter-sales service
3.Payment
T / T Western Union , Moneygram , Esaow
