High Quality Industrial Water conductivity meter pH electrode probe EC DO ORP pH sensor RS485 for laboratory
- Category: >>>
- Supplier: Shaanxi Hybono Electronic Technology Co. Ltd.
Share on (1600783134029):
Product Overview
Description
Product Description
Conductivity Sensor
Double salt bridge design, double layer seepage interface, resistant to medium reverse seepage.
The ceramic pore parameter electrode oozes out of the interface and is not easy to be blocked, which is suitable for monitoring of common water quality environmental media.
The ceramic pore parameter electrode oozes out of the interface and is not easy to be blocked, which is suitable for monitoring of common water quality environmental media.
Features
1.Using PTFE large ring diaphragm to ensure the durability of the electrode;
2.Can be used under 6 bar pressure;
3.Long service life;
4.Optional for high alkali/high acid process glass;
5.Optional internal NTC temperature sensor for precise temperature compensation;
6.TOP 68 insertion system for reliable measurement of transmission;
7.Only one electrode installation position and one connecting cable are required;
8.Continuous and accurate ORP measurement system with temperature compensation.
2.Can be used under 6 bar pressure;
3.Long service life;
4.Optional for high alkali/high acid process glass;
5.Optional internal NTC temperature sensor for precise temperature compensation;
6.TOP 68 insertion system for reliable measurement of transmission;
7.Only one electrode installation position and one connecting cable are required;
8.Continuous and accurate ORP measurement system with temperature compensation.
Specification
Model No. | HY-CS2733D |
Power/Outlet | 12VDC/RS485 MODBUS RTU |
Measure material | Glass+pt |
Housing material | PP |
Waterproof grade | IP68 |
Measurement range | ±1000mV |
Accuracy | ±3mV |
Pressure resistance | ≤0.6Mpa |
Temperature compensation | NTC10K |
Temperature range | 0-80ºC |
Measuring/Storage Temperature | 0-45ºC |
Calibration | Sample calibration, standard liquid calibration |
Connection methods | 4 core cable |
Cable length | Standard 10m cable, can be extended to 100m |
Installation thread | NPT3/4'' |
Application | General application, industrial water, sewage, river, lake and soon. |

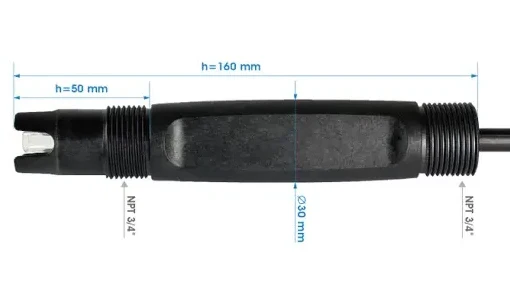

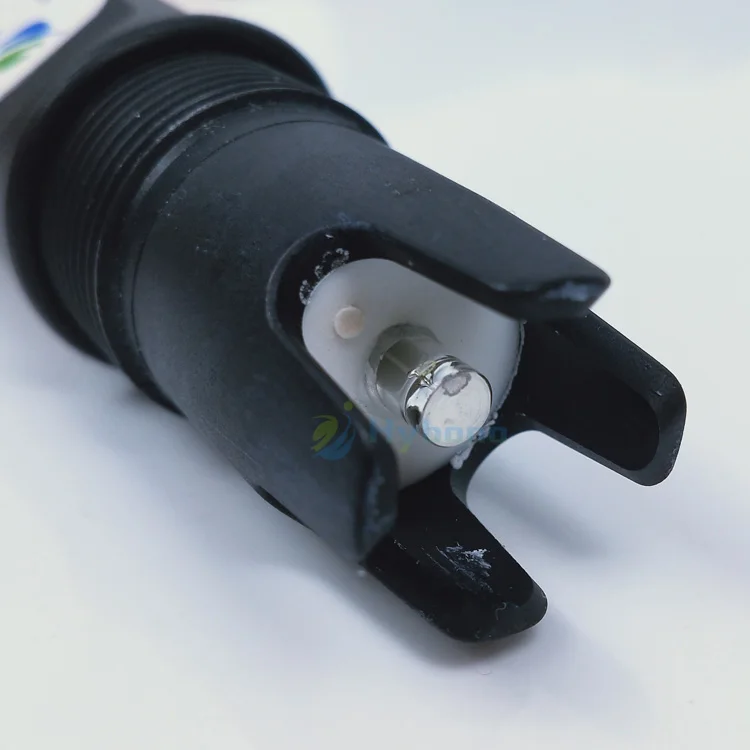

Detail Display
Application

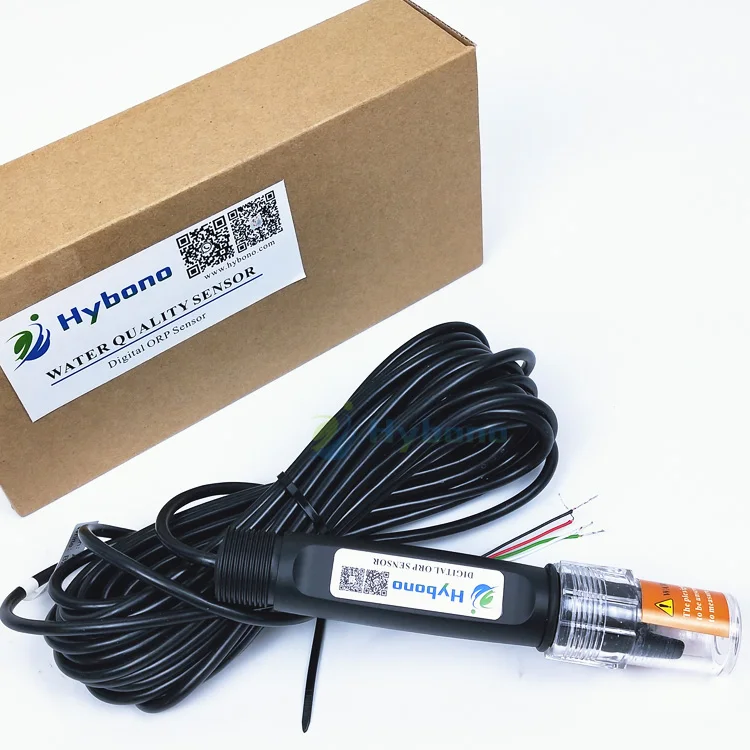

Packing & Delivery
Company Profile
Company profile
Headquartered in xian, China, Hybono Mainly engaged in designs and manufactures water quality monitoring equipment. Combining optical sensing and mobile internet technologies, Hybono brings innovative and cost competitive solutions to global water quality monitoring market. Hybono provides smart dissolved oxygen sensors based on state of art luminescent lifetime technologies. With different configurations intended for both field and laboratory uses, our products are ideal for measuring dissolved oxygen in wastewater, drinking water, aquaculture and general water quality applications.
Hybono focuses on smart sensor development with complete product offerings include turbidity, pH, conductivity, multi-parameter probes and more. Our smart meters and online controllers support wireless communications such as Bluetooth, Zigbee and GPRS. Together with cloud data services, we bring innovative IoT (Internet of Things) solutions to water quality monitoring market.
Hybono in strict accordance with the ISO9001 standard management of product development and production. Since its establishment, it has applied for more than 30 soft books and patents. We are based on technological innovation, to "quality first, technological innovation, customer satisfaction" is our principle, adhere to the development of reliable sensors, to provide customers with high quality services.
Hybono focuses on smart sensor development with complete product offerings include turbidity, pH, conductivity, multi-parameter probes and more. Our smart meters and online controllers support wireless communications such as Bluetooth, Zigbee and GPRS. Together with cloud data services, we bring innovative IoT (Internet of Things) solutions to water quality monitoring market.
Hybono in strict accordance with the ISO9001 standard management of product development and production. Since its establishment, it has applied for more than 30 soft books and patents. We are based on technological innovation, to "quality first, technological innovation, customer satisfaction" is our principle, adhere to the development of reliable sensors, to provide customers with high quality services.
FAQ
Q: How can I get the quotation?
A: You can send the inquiry on Alibaba or the below contact information, you will get the reply at once.
Q: What's the main characteristics of the sensor?
A: This product adopts high-sensitivity gas detection probe,stable signal, high precision, fast response and long service life. It has the characteristics of wide measuring range, good linearity, convenient use, easy installation and long transmission distance.
Q:Could I get samples?
A:Yes,we have materials in stock to help you to get the samples as soon as we can.
Q: What is the output signal?
A: A: Multi-parameter sensors can output a variety of signals. Wired output signals include RS485 signals and 0-5V/0-10V voltage output and 4-20mA current signals; wireless outputs include LoRa, WIFI, GPRS, 4G, NB-lOT, LoRa and LoRaWAN.
Q: Can you supply the matched server and software?
A: Yes, we can supply the matched cloud server and software with our wireless modules and you can see the real time data in software in the PC end and we can also have the matched data logger to store the data in excel type.
Q: May I know your warranty?
A: Yes, usually it’s 1 year.
Q:What’s the delivery time?
A: Usually, the goods will be delivery in 7-10 working days after receiving your payment. But it depends on your quantity.
Q: What are your terms of payment?
A: We could accept T/T, Paypal, Western Union, Credit Assurance. Generally.
