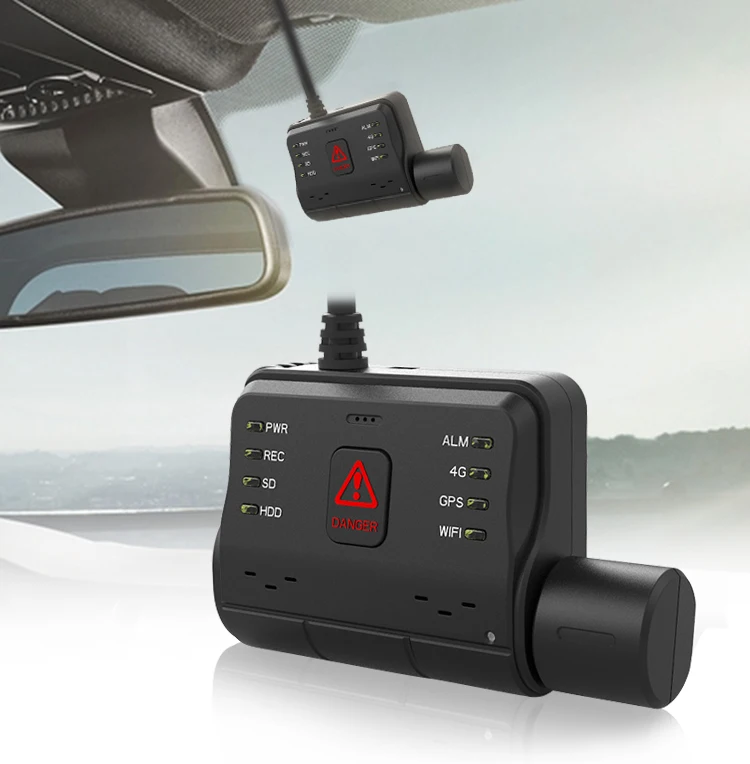

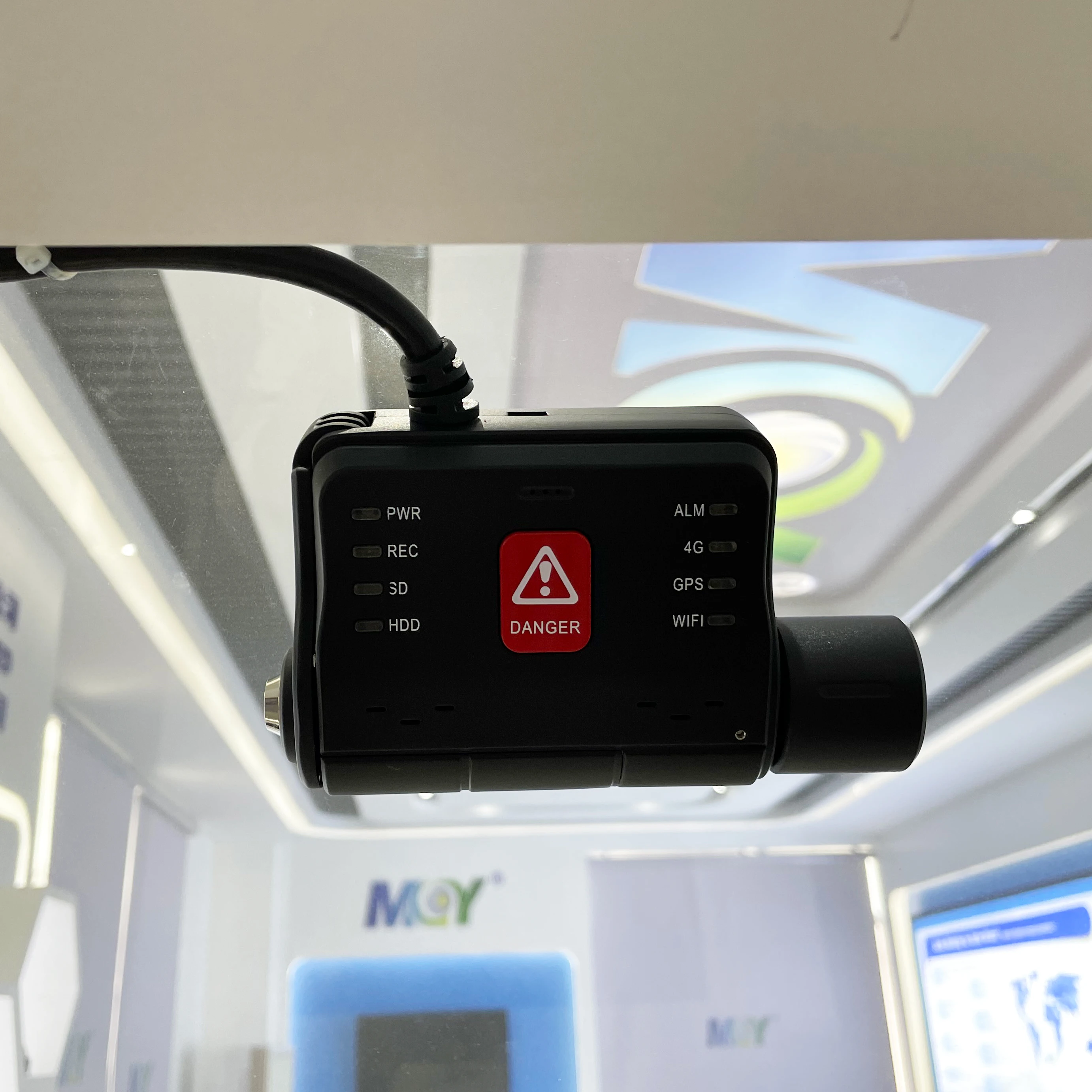

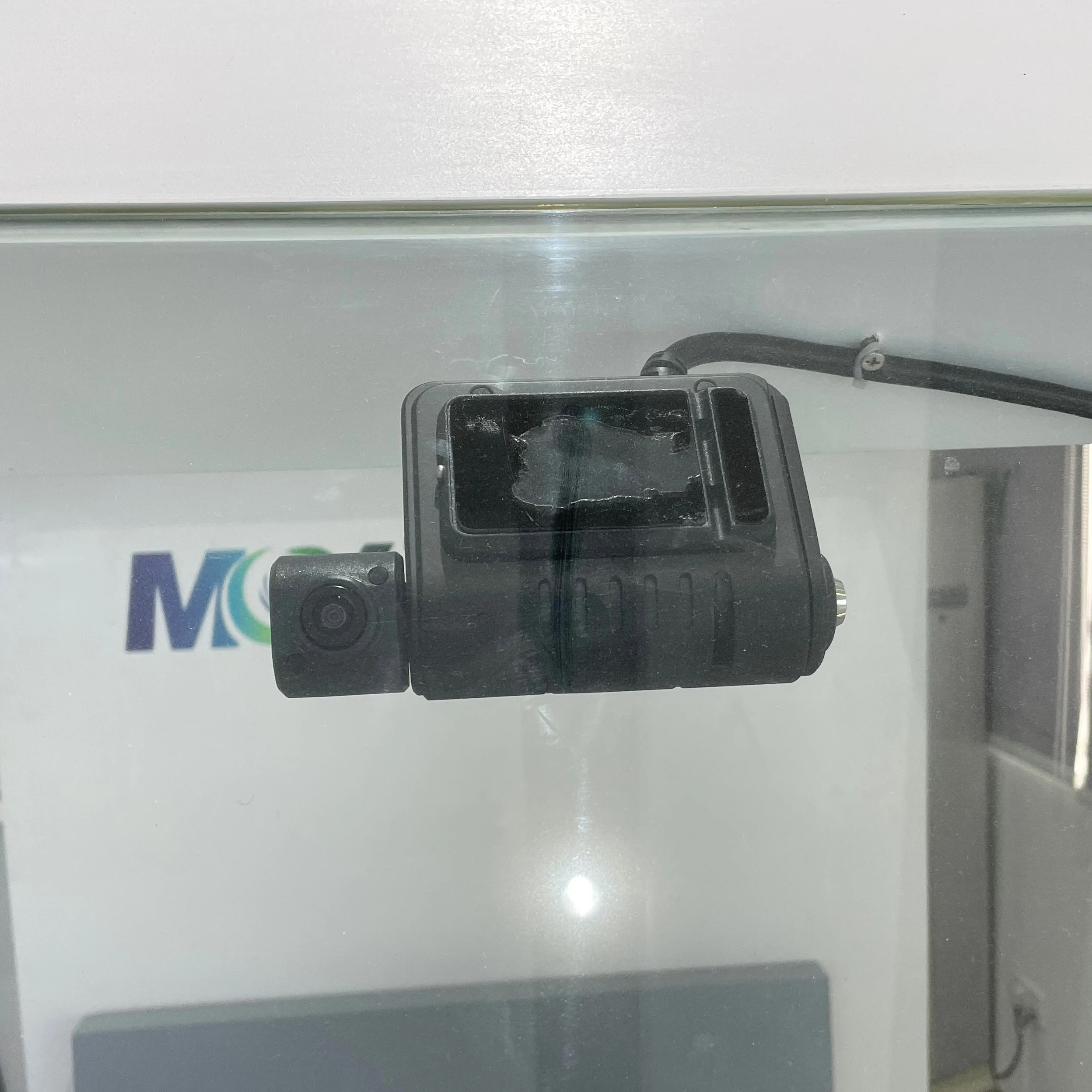

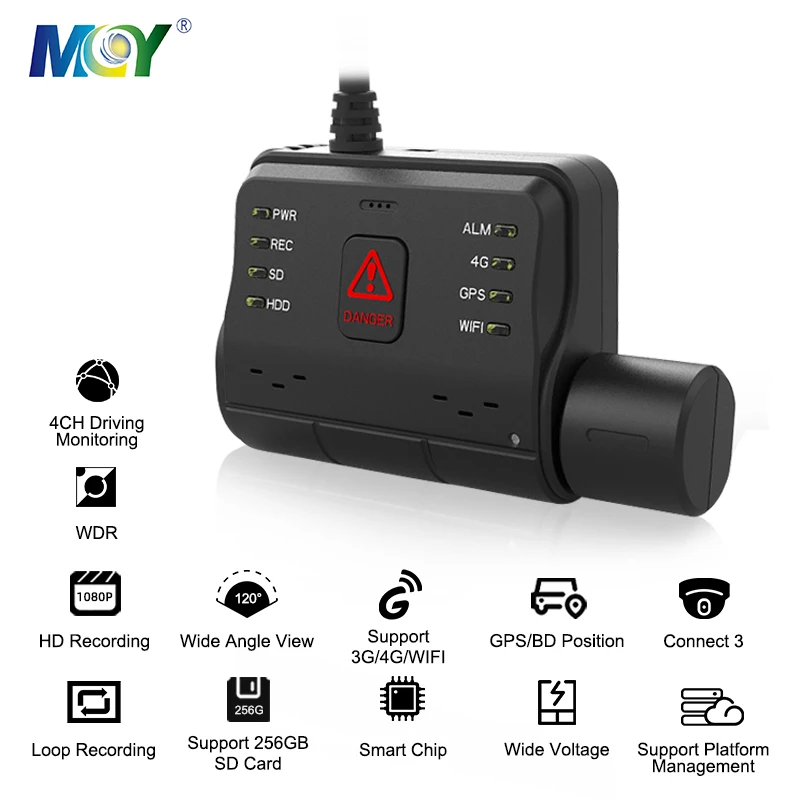

MCY Oem 1080 Hd Live Camera Wifi Gps 4Pin Taxi Semi Truck Dash Cam
- Category: >>>
- Supplier: MCY Technology Limited
Share on (1600783771073):
Product Overview
Description
Related Products
Product Description
Technical Specifications
PARAMETER | ||||
Item | Device Parameter | Performance | ||
System | Main Processor | Hi3521A | ||
Operating System | Embedded Linux OS | |||
Operating language | Chinese/English | |||
Operating Interface | Graphical menu interface, support mouse operation | |||
Password Security | User password/Admin password | |||
Video&Audio | TV System | PAL/NTSC | ||
Video Compression | H.264 | |||
Image Resolution | 1080P/720P /960H/D1/CIF | |||
Playback Quality | 1080P/720P /960H/D1/CIF | |||
Decoding Quality | Support 4ch 1080P real time, but 1ch 1080P for standard configuration | |||
Recording Quality | Class 1-6 optional | |||
Image Display | Support 1, 2, 3, 4 display (for optional) | |||
Audio Compression | G.726 | |||
Audio Recording | Video & Audio synchronized recording | |||

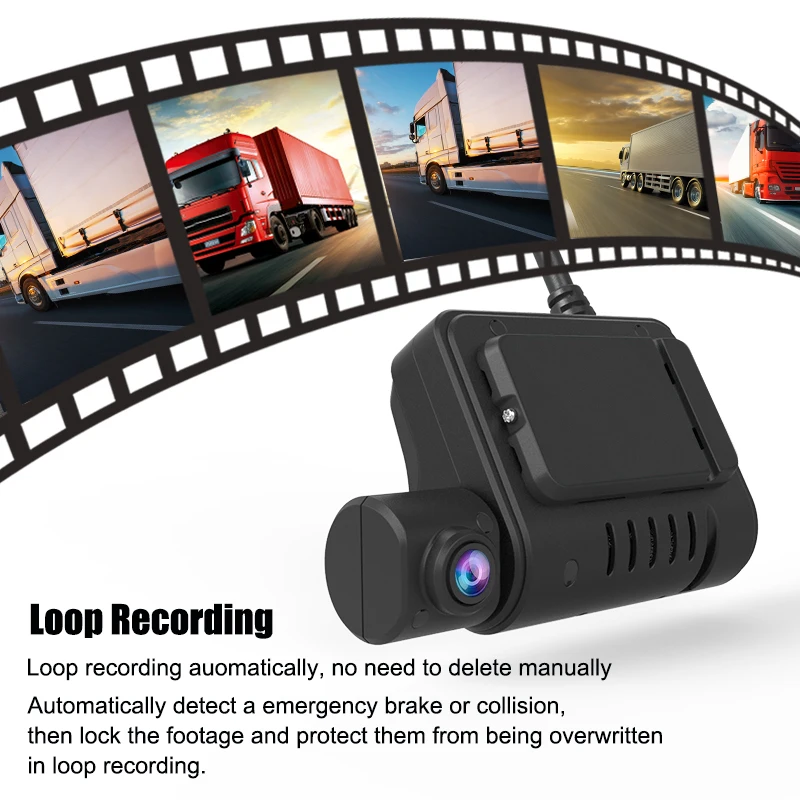

Recording & Playback | Recording Mode | Auto recording/alarm recording/alarm recording lock | ||
Video Bit Rate | Full frame 4096Mbps,6 classes image quality optional | |||
Audio Bit Rate | 8KB/s | |||
Storage Media | SD card | |||
Video Inquiry | Inquiry via channel. Recording type or alarm type | |||
Local Playback | Signal channel playback as time | |||
Software Upgrading | Upgrading Mode | Manual/Auto/Remote Upgrading | ||
Upgrading Method | USB interface/Wireless network/SD card | |||
Interface | AV Input | 1 channel 1080P AHD camera; 3 channel aviation AV input (for optional) | ||
AV Output | 1channel aviation AV output, video format: CVBS | |||
Alarm Input | 4 digital inputs | |||
SD card | 2 * SDXC high speed card (max 256G) | |||
USB interface | 1 MiniUSB (support mouse operation, USB plug-in SSD) | |||
Ignition Input | 1 ACC Signal | |||
UART | 1 TTL Level | |||
LED Indication | PWR/REC/SD/HDD/ALM/4G/GPS/WIFI | |||
Disk Locker | 1 | |||

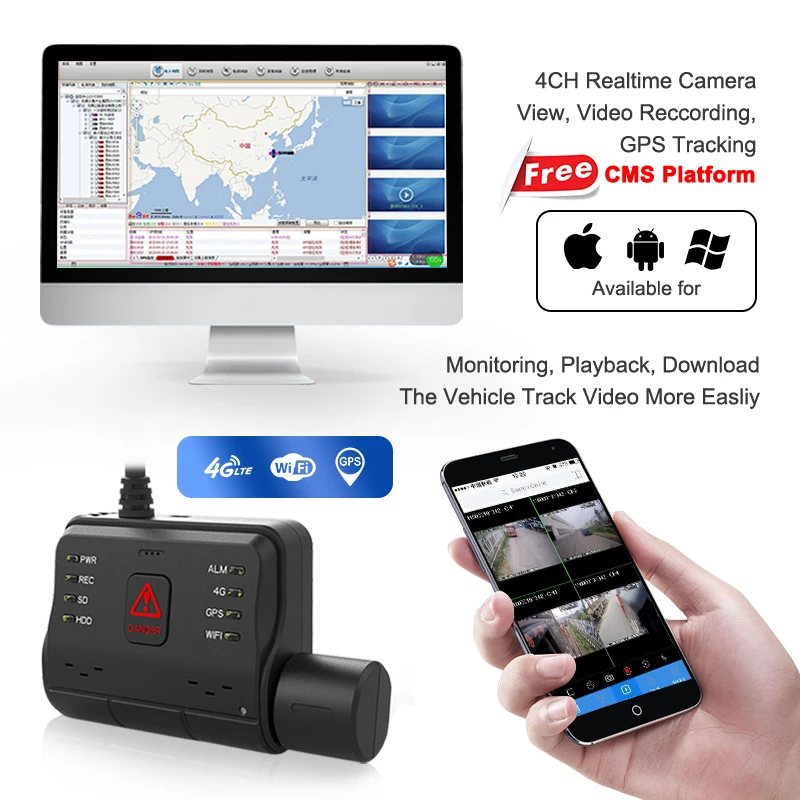

Extended Function | GPS | Support detecting antenna Plug in/Unplug/Short circuit | ||
2G/3G/4G | Support CDMA/EVDO/GPRS/WCDMA/FDD LTE/TDD LTE | |||
WIFI | 802.11b/g/n, 2.4GHz | |||
Others | Power Input | DC:8V~36V | ||
Power Consumption | Standby 3mA Max power consumption 18W @12V 1.5A @24V 0.75A | |||
Working temperature | -20 - 70℃ | |||
Storage | 1080P 1.8G/H/Channel 960H 750M/H/ Channel | |||
Dimension (L*W*H) | 141.5mm*83mm*45mm | |||
Welcome Brand Customization
OEM/ODM Manufacturing orders welcome: Features, View Angle, Connector, Color, Package, Label, Housing... We can supply Brand Customization Services based on your requirements. Please do not hesitate to SEND INQUIRY.
Features Optional

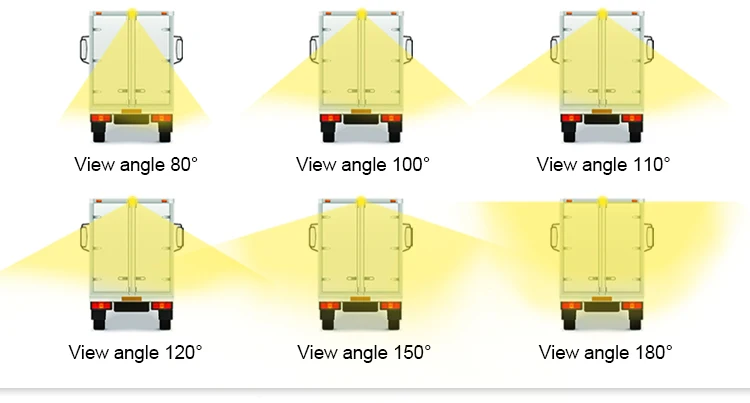

View Angle Optional
Available in different camera view angle to meet your project demands, please SEND INQUIRY and talk in detail.

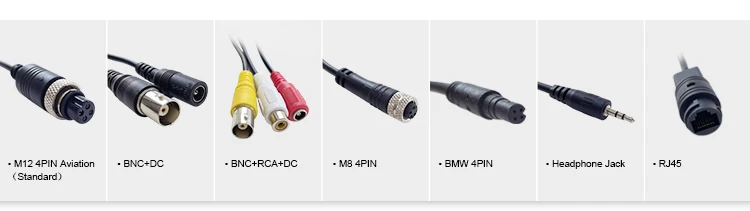

Connector Optional
Standard connector is M12 4PIN aviation female connector. Available in other connectors to compatible with your device, please SEND INQUIRY and talk in detail.

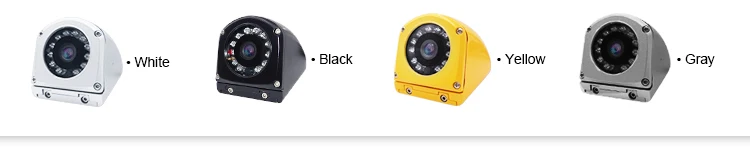

Colour Optional
Standard housing colour is black. Available in other colours to match your vehicle body colour, please SEND INQUIRY and talk in detail.
Brand Customization
MCY provides professional OEM/ODM service to build your own brand, please SEND INQUIRY and talk in detail.
Company Introduction
YEAR ESTABLISHED
MCY Technology Limited, established in 2012, is a high-tech enterprise devoted to providing professional and innovative Vehicle Surveillance Solutions for global customers.
MAIN PRODUCT SERIES
MCY offers a variety vehicle surveillance products, such as HD mobile camera, mobile monitor, mobile DVR, dash camera, IP camera, 2.4GHZ wireless camera system, 12.3inch E-side mirror, BSD detection system, AI facial recognition system, 360 degree SVM system, driver status system (DSM), GPS fleet management system, etc.
MAIN MARKET
Mainly exported to the North America, Europe, Australia, Southeast Asia, Middle East and other countries and regions, widely used in public transport, logistic transport, engineering vehicle, agricultural vehicle...
PRODUCTION CAPACITY
MCY manufactures in 5 production lines, over 3,000sqm factory in Zhongshan, China, employing over 100 staff to maintain a monthly production capacity of over 30,000 pieces.
R&D CAPACITY
MCY has more than 20 engineers and technicians with over 10 years of professional vehicle surveillance development experience.
PRODUCTION CAPACITY
MCY manufactures in 5 production lines, over 3,000sqm factory in Zhongshan, China, employing over 100 staff to maintain a monthly production capacity of over 30,000 pieces.
R&D CAPACITY
MCY has more than 20 engineers and technicians with over 10 years of professional vehicle surveillance development experience.

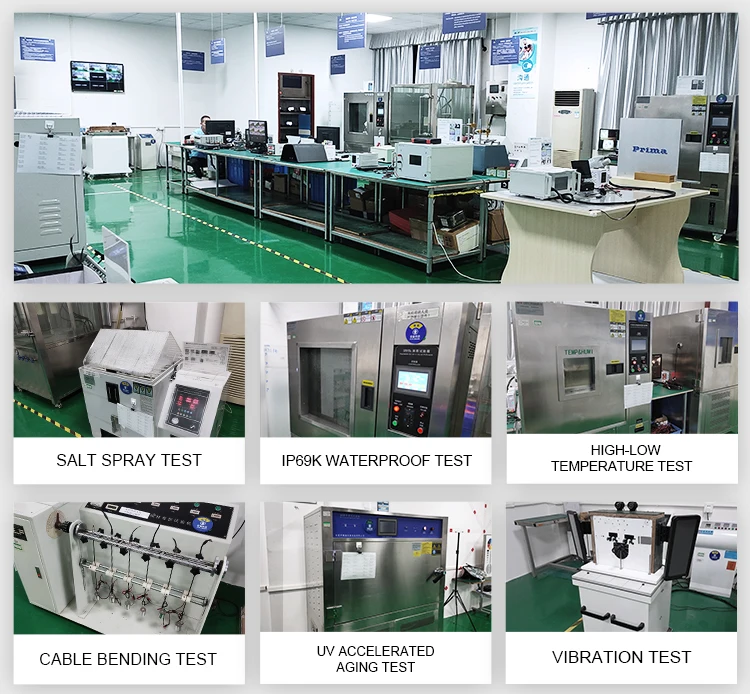

QUALITY CONTROL
All new products request a series of reliable performance tests from raw material to finished product before mass production, such as Salt Spray Test, Cable Bending Test, ESD Test, High/low Temperature Test, Voltage Withstand Test, Vandalproof Test, Wire and Cable Combustion Test, UV Accelerated Aging Test, Vibration Test, Abrasion Test, IP67/IP68/IP69K Waterproof Test, and etc.
CERTIFICATIONS
MCY has passed IATF16949:2016 quality management system. Design patents of camera, monitor, DVR have been obtained and most of products has certified with CE, UKCA, FCC, E-mark, R118, R46, R10, CE-RED, RoHS, IP69K certificate for compliance with international standards. Our mission is to provide our customers with HIGHEST QUALITY commercial vehicle monitoring solutions at a COMPETITIVE PRICE.
EXHIBITIONS
MCY attends many trade shows for commercial vehicle to exhibit our products and services all round the world every year, such as CES, AUTOMOTIVE WORLD JAPAN, CV SHOW, INTERSEC, IAA TRANSPORTATION, EURO BUS EXPO, SEMA, BUSWORLD EUROPE and etc.
FAQ
Q1. What is your terms of packing?
Re: Packing goods in neutral white boxes and brown cartons. We can do OEM package for you. Welcome send your requirements in detail, we can design the package for you.
Q2. How about your lead time?
Re: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
Re: We offer samples (no MOQ requirements for regular products), with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
Re: T/T(Bank transfer), PayPal, Western Union.
Q5. How to get the best price?
Re: The order price can be negotiated. We will quote the latest best price according to your final purchase list. SEND INQUIRY and talk in detail.
Re: Packing goods in neutral white boxes and brown cartons. We can do OEM package for you. Welcome send your requirements in detail, we can design the package for you.
Q2. How about your lead time?
Re: 5 to 21 working days upon receipt of your payment. The specific lead time depends on the items and the quantity of your order.
Q3. What is your sample policy?
Re: We offer samples (no MOQ requirements for regular products), with sample costs, shipping and taxes paid by the buyer.
Q4. What is your payment terms?
Re: T/T(Bank transfer), PayPal, Western Union.
Q5. How to get the best price?
Re: The order price can be negotiated. We will quote the latest best price according to your final purchase list. SEND INQUIRY and talk in detail.
If anything else you want to know, please send your message to us in below !
