Industrial packaging tray making machine paper pulp egg tray molding machine equipment

Share on:

Price:$7,800.00 - $9,800.00
Price in USD:Details


Product Overview

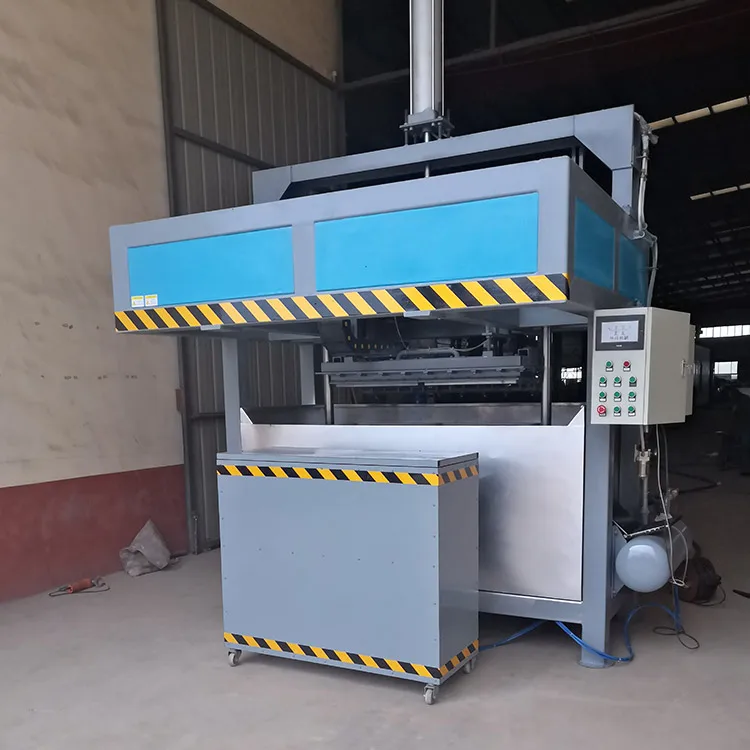

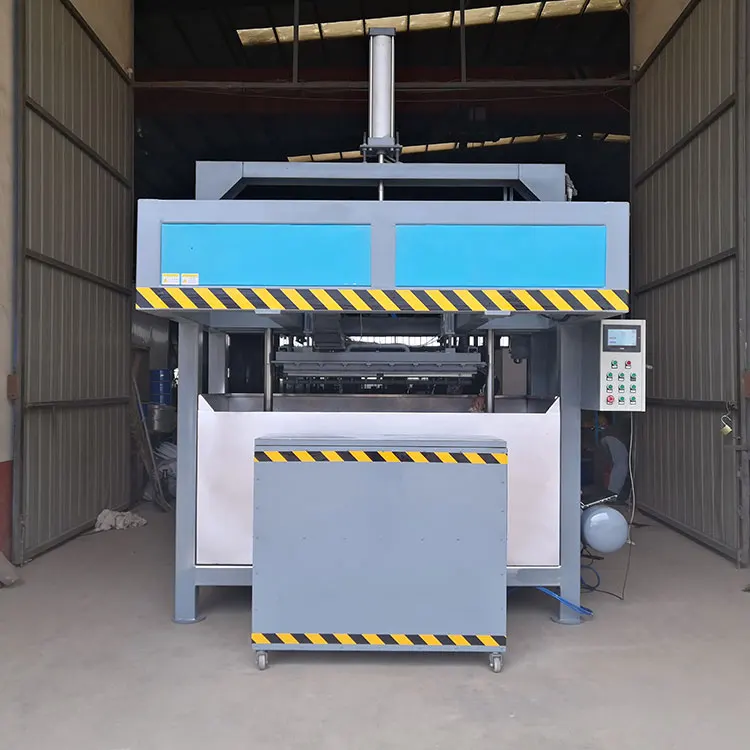

Semi automatic paper pulp egg tray molding machine medical tray shoe tray making machine

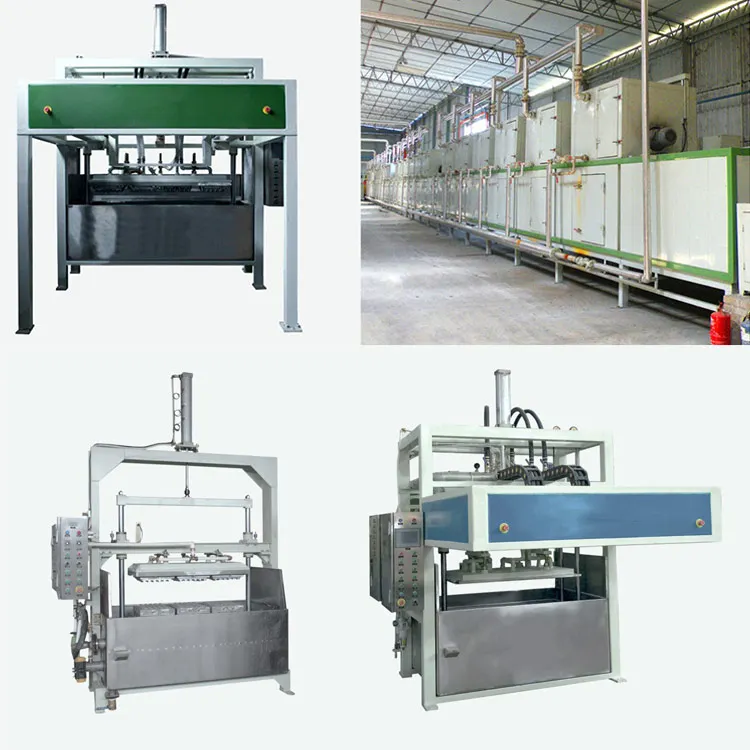

Fully or semi-automatic reciprocating forming machine is suitable for making single or diversified product. You can change the moulds to make egg trays,egg cartons,fruit trays,cup carriers,medical trays,craftworks or inner package of industrial products;The machine can manufacture multiple different products at the same time.

Machine Model
Mould Platen Size
Suggest Factory Size
Length≥15m Width≥10m
Length≥20m Width≥10m
Length≥20m Width≥12m
Length≥30m Width≥12m

Main Features:
- Save initial capital investment
- Lower cost of matching with molds
- Simple and flexible operation and maintenance
- Natural drying or single layer dryer as optional

1. Pulping system
(1) Put the raw material into the pulper and add an appropriate amount of water for a long time to stir the waste paper into pulp
and store it in the storage tank.
(2) Put the pulp in the slurry tank into the pulping tank, adjust the pulp concentration in the pulping tank, and further stir through
the homogenizer through the white water of the return pool and the thick slurry of the storage tank. After adjusting to the
applicable pulp, put it into the feeding pool to be used in the molding system. Equipment used: pulping machine, homogenizer,
slurry pump, vibrating screen, pulp disintegrator.

2. Forming system
(1) The pulp in the supply tank is supplied into the molding machine, and is adsorbed by the vacuum system, and the pulp is
left on the mold by the mold on the equipment to be formed, and the white water is sucked and transported back into the pool
through the vacuum pump.
(2) After the mold is adsorbed, the transfer mold is blown out by the positive pressure of the air compressor, and the molded
product is blown from the molding die to the rotary mold, and is sent out by the transfer mold. Equipment used: molding
machine,mold, vacuum pump, vacuum tank, pump, air compressor, mold cleaning machine.

3. Drying system
(1) Natural drying method:The product is dried directly by weather and natural wind.
(2) Traditional drying: brick tunnel kiln, heat source can choose natural gas, diesel, coal, dry wood,A heat source such as
liquefied petroleum gas.
(3) New multi-layer drying line: 6-layer metal drying line can save more than 30% energy compared to transmission drying.
The main heat source is clean energy such as natural gas, diesel oil, liquefied petroleum gas and methanol.

4. Finished product auxiliary packaging
(1) Automatic stacking machine
(2) Baler
(3) Transfer conveyor

1. Fixed all the movable parts with plastic films.
2. Polystyrene foam plate wrapped around.
3. Wrapped with tighted plastic films several circles.
4. Fixed machine on the fumigated plywood pallet with iron wire.
5. Wrapped with wooden board around and nailed on.
1. Sea transportation is from Qingdao port or other ports.
2. The delivery time is decided by your needed machines or machine parts. But it also follows your needs.

After Sales Service
1. Fast Safe Delivery.
2.Training the first-line operators one site.
3. Dispatching engineers to install and debug equipments.
4. Assisting our clients for foundation construction of equipments.
5. One year warranty, we provide free machine parts within one year.
6.Highly inspecting equipments in every working procedure, quality comes first.

Henan Fuyuan Machinery Manufacturing Co., Ltd located in Zhengzhou City, Henan Province. Our factory is founded in 1984 with rich experience in paper making machine and egg tray making machinery. Our main products include: pulping machine, toilet paper machine, cultural paper making machine, Kraft paper machine, corrugated medium paper machine, different capacity egg tray making production line and other grouped equipment. After nealy 40 years of development, our company has developed into a large
enterprise integrating scientific research, production and trading, our factory covers an area more than 33,000 square meters,
construction area more than 16,000 square meters, existing staff more than 200 workers, including 5 senior engineers, 22 engineers, and more than 38 technical staff. We are committed to provide customers with a complete solution for paper making
project and paper egg tray making production line,welcome the friends to visit us over the world.

1. How to choose a suitable egg tray making machine and production lines?
Just need tell us your requirement. We will make a good production plan according to your requirements.

2. Do you provide sample service?
We can send you paper samples, which is produced by our machine. You also can send us the paper sample that you
want to produce by DHL, etc. We will design according to your paper samples.

3. What is the raw material of egg tray making machine?
Waste paper, Cardboard, Magazine, Newspaper, ect.

4. Can you offer technician aboard for training workers?
Yes, we have team for installation guidance aboard, technicians will be sent for installation guidance and training

5. What's the guarantee for the egg tray machine and equipment?
Usually the forming machine guarantee is one year, and motors guarantee is half of an year.

6. Where is your company located?
It is located in Zhengzhou city, Henan, China.
