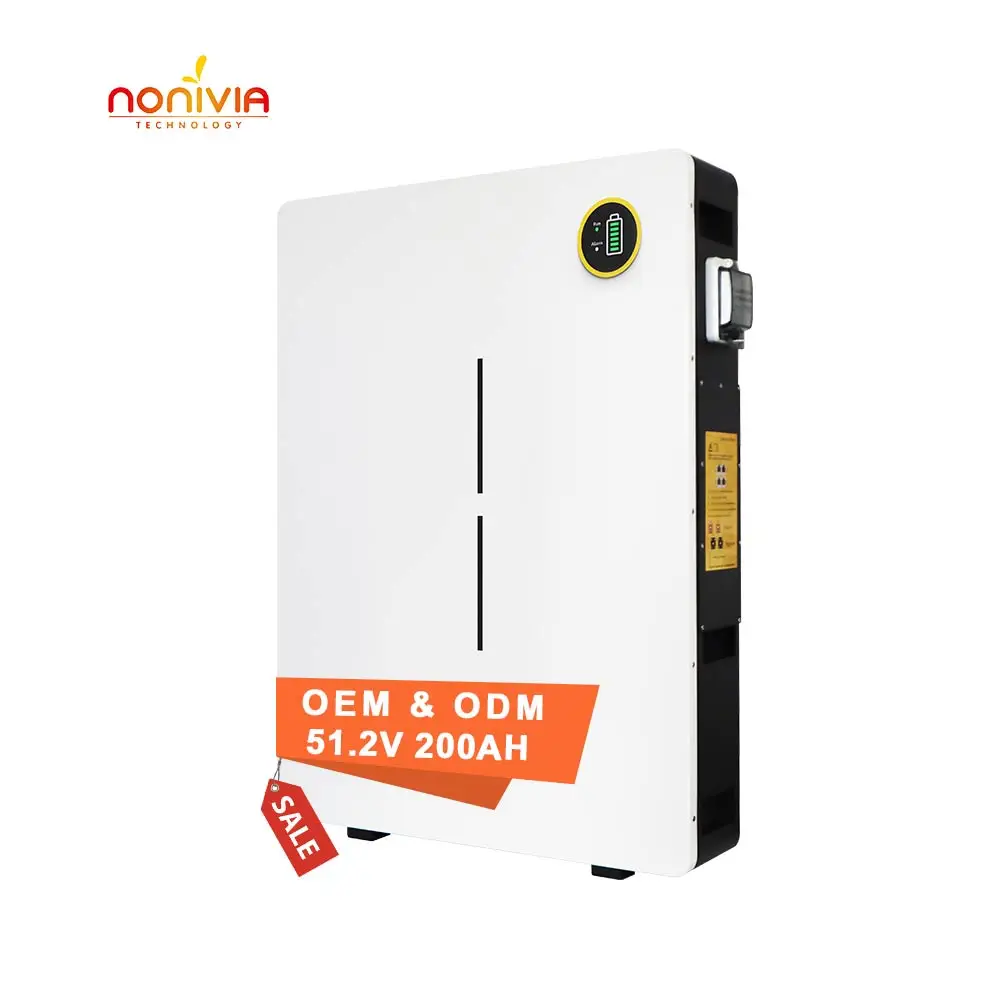

48v 51v 200ah 200 amp 200a 5kva 7.5kw 8kw 8kwh 9.6kwh 20kva energy storage lithium ion photovoltaic lifepo4 solar battery
- Category: >>>
- Supplier: Nonivia Technology Co. Ltd.
Share on (1600783936282):
Product Overview
Description
Product Description
Model | LV- BAT-W10.24Ac |
Nominal Voltage | 51.2V |
Rated Capacity | 200Ah |
Energy | 10240Wh |
Battery Impedance | ≤ 50 mΩ |
Charging Cut-off Voltage | 56. 16 V |
Discharge Cut-off Voltage | 45.6 V |
Recommend Charge Current | 0.2 C 40 A |
Max Charge Current | 0°C ~ 15°C: 40A; 15°C ~ 45°C: 100A; |
Max Continue Discharge Current | 200 A, -20°C~60°C ; 65± 20% RH |
Operating Temperature Range | –20~60C |
Storage Environment (50% state of charge) | 20°C ~ 45°C in three months; 25±3°C over three months; Humidity:65±20% RH |
Indoor | |
Installation | Wall mounted/F loor stand |
Cell Technology | Lithium-iron phosphate ( Li FePO4) |
Life Cycle | 6000 times @80% DOD |
Cooling | Natural convection |
Protection Rating | IP65 |
Certificates | CB , UN38.3, MSDS, CE EMC, UL1973, UL9540A |

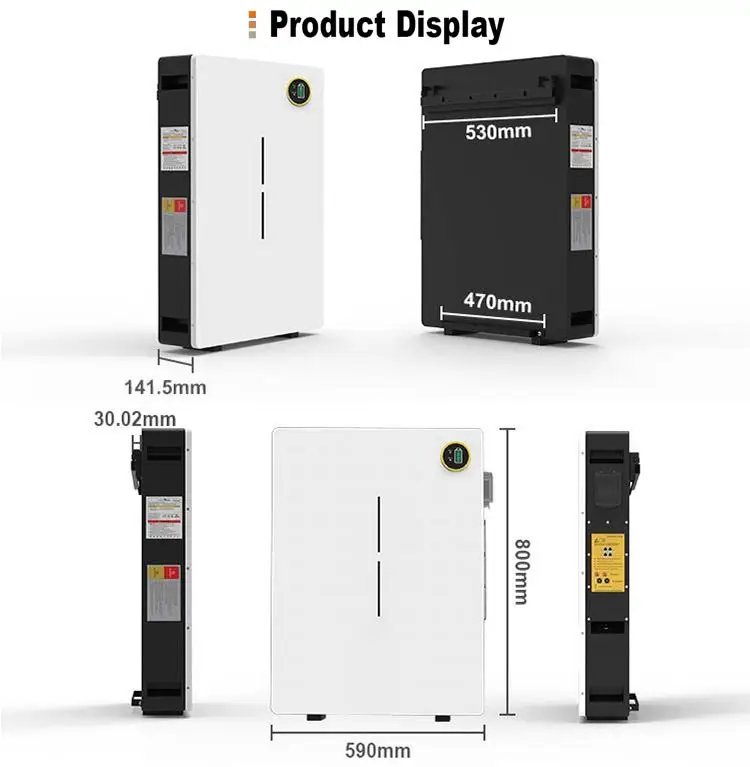

Dimension | 800*590*142mm |
Battery Net Weight (Approx.) | 96.5KG |

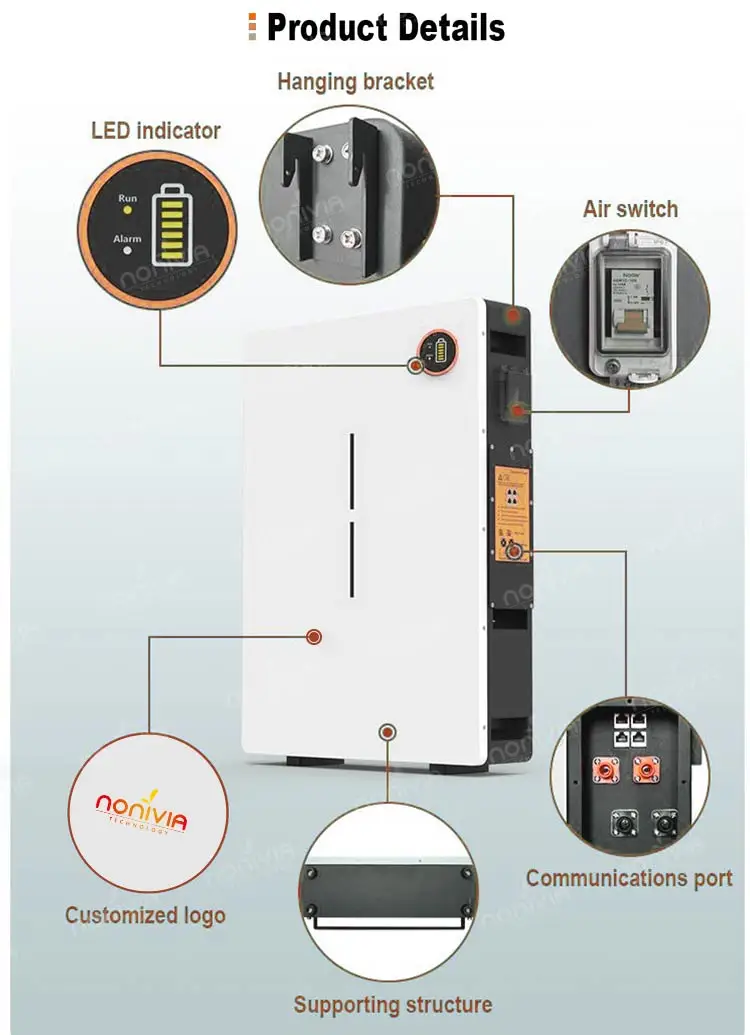

Product Details

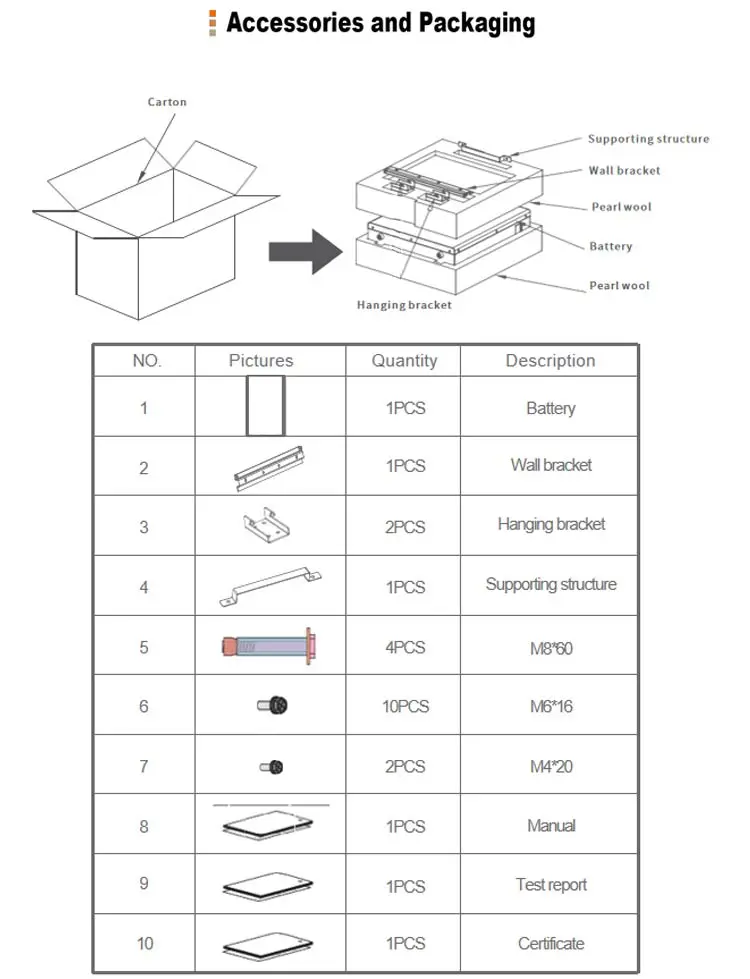

Packing & Delivery
