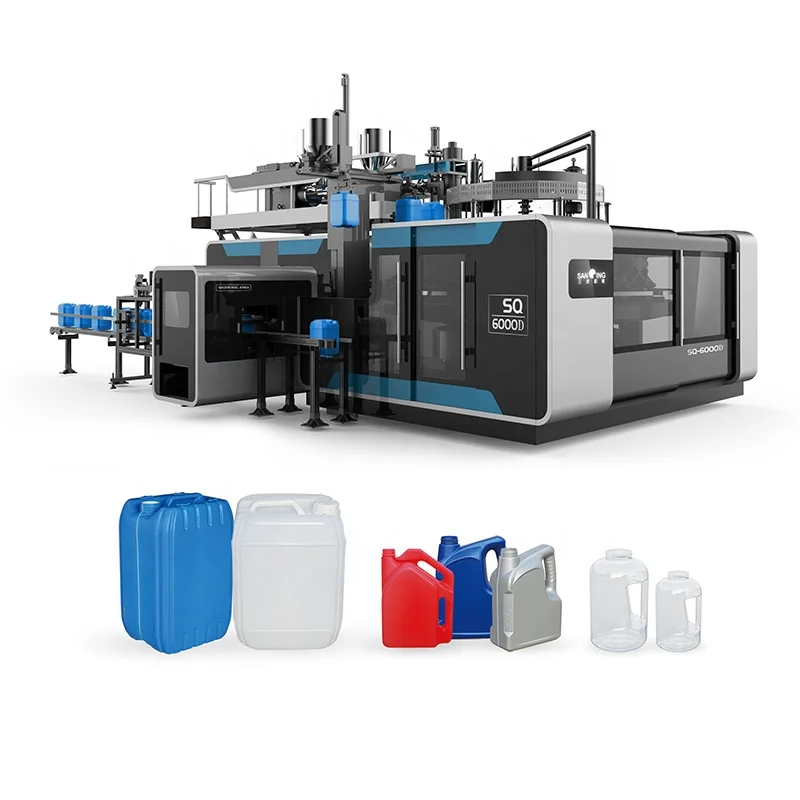

Сервомотор энергосберегающий полностью автоматический 20 л, экструзионная машина для выдувного формования пластиковых бутылок HDPE

Сервомотор энергосберегающий полностью автоматический 20 л, экструзионная машина для выдувного формования пластиковых бутылок HDPE

Category: Plastic & Rubber Processing Machinery >>>
Supplier: Hebei,Sanqing,Machinery,Manufacture,Co.,Ltd.

Price:

Price in USD:Details

Quantity:

Product Overview

Description

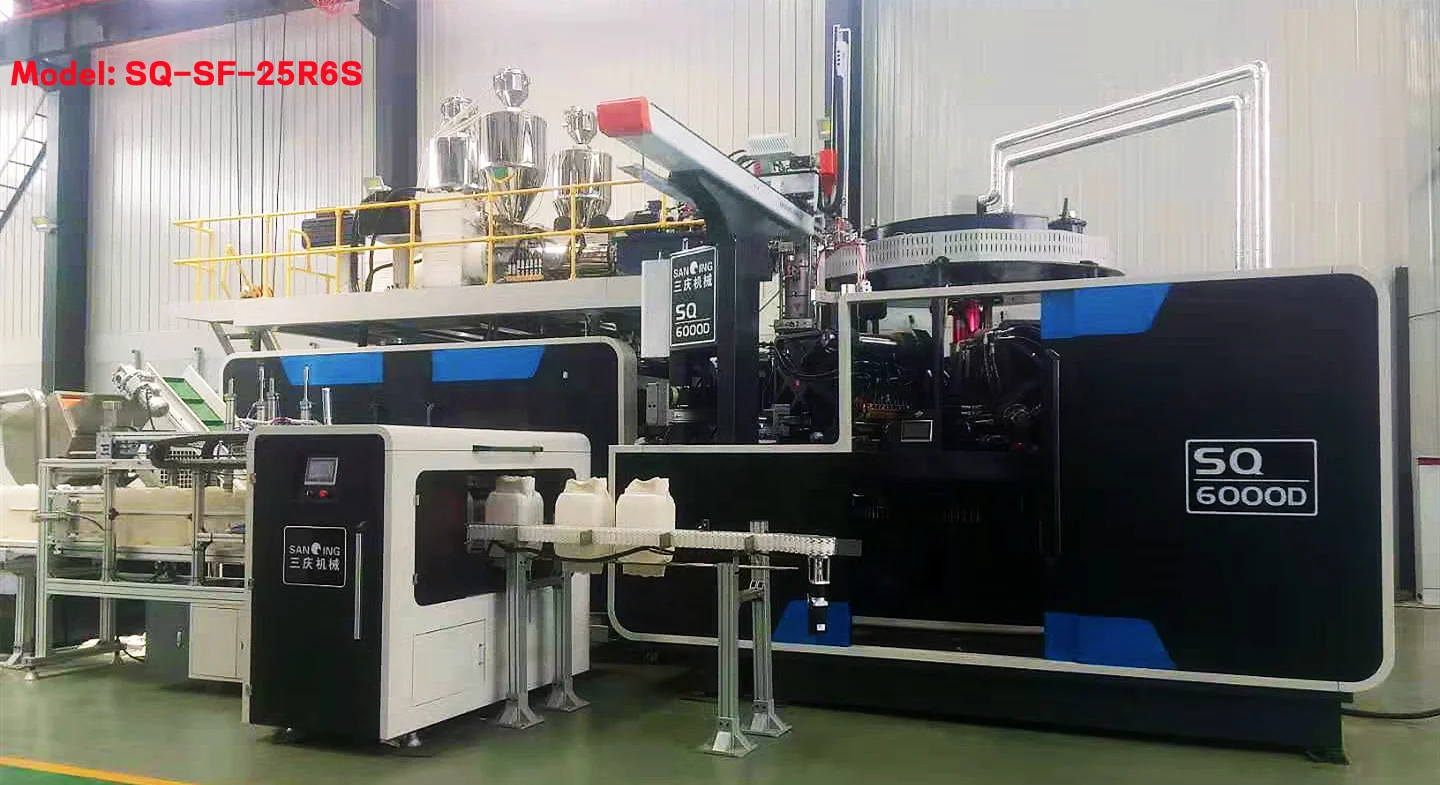

OVERVIEW

This model of machine has 6 patents, which is the first invention in China. It is suitable for blowing 3L-12L barrels and pots. Six rotational stations, single or double die head to blow the bottles automatically. The output is about 700 pieces per hour (take 5 L bottle as example). The whole servo system saves 400-600 yuan per day. Achieve real high efficiency and energy saving.It is the substitute of traditional hydraulic machine.

FEATURES:

(1)Energy Saving: manpower saving: every year save around 200,000 RMB. Full servo system without oil pump motor, total power 10KW (excluding extrusion part)
(2)High Production: every machine could achieve 1-3 times higher production than normal hydraulic machine. High Output: take 3L washing liquid bottle as an example, the output is about 17000 in 34 hours

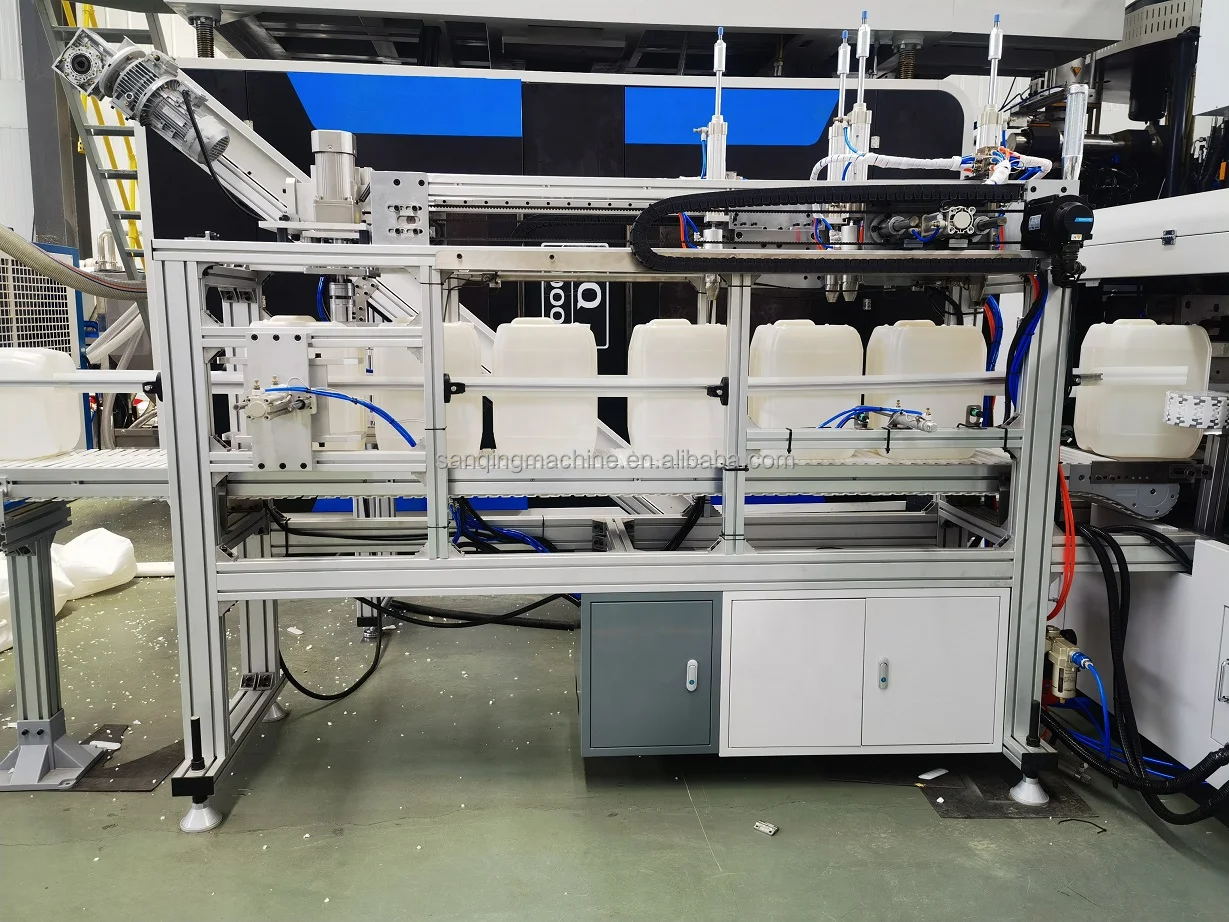

(3)Mold Cost Low : the single deflashing device is only at last step of the line, so it is not necessary to make deflashing devices each moldcompare with the same end product hydraulic machine, save mold cost around 50%; the internal part of the mold adopts high speed cooling system
(4)High Technology Remote Control System: which could achieve checking and maintain machines from far distance
(5)The single parison is easy to adjust and operate
(6)Small products can be used as single and double die heads
(7)The patented of this machine is the first in China, and is the ideal replacement product of the double station multi-mode head hydraulic machines

MAIN TECHNICAL PARAMETERS

Max. Product volume	L	3	10	25
Production Capacity(Empy Load）	PCS/H	650-4000	650-4000	650-4000
Screw Diameter	MM	90	100+75	120+80+80
Screw L/D Ratio	L/D	25/1	25/1	28/1
Screw Motor Power	kW	45	77	158
Screw Heating Power	kW	40	65	96
Plasticizing Capacity(HDPE)	KG/H	140	280	380
Clamping Force	kN	60	85	200
Max.Mold Size(W*H)	MM	338*330	430*450	490*650
Machine Size	MM	700031003200	850038003800	940049004500
Machine Weight	T	13T	18T	32T

ABOUT US

SANQING MACHINERY

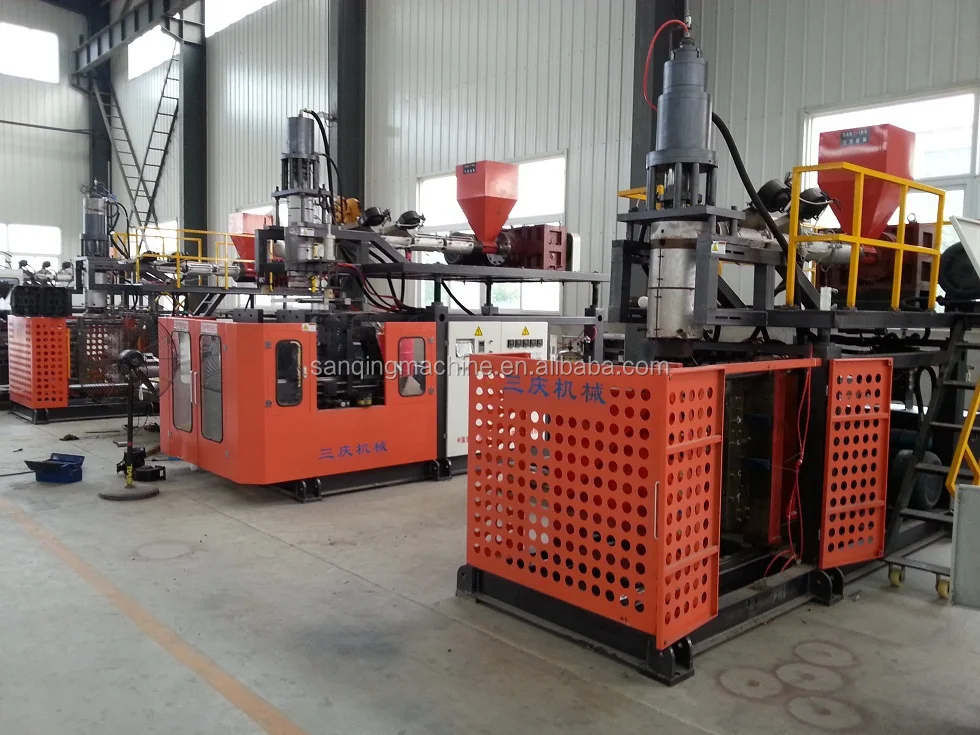

Sanqing company was founded in the 1990s. Sanqing Machinery is a professional manufacturer of hollow blow molding equipment. It has the most professional R & D team and first-class innovation capabilities in China. After years of hard work and innovative development, it has now become a company with more than 80 models in 24 series. China's leading professional blow molding machine manufacturer.

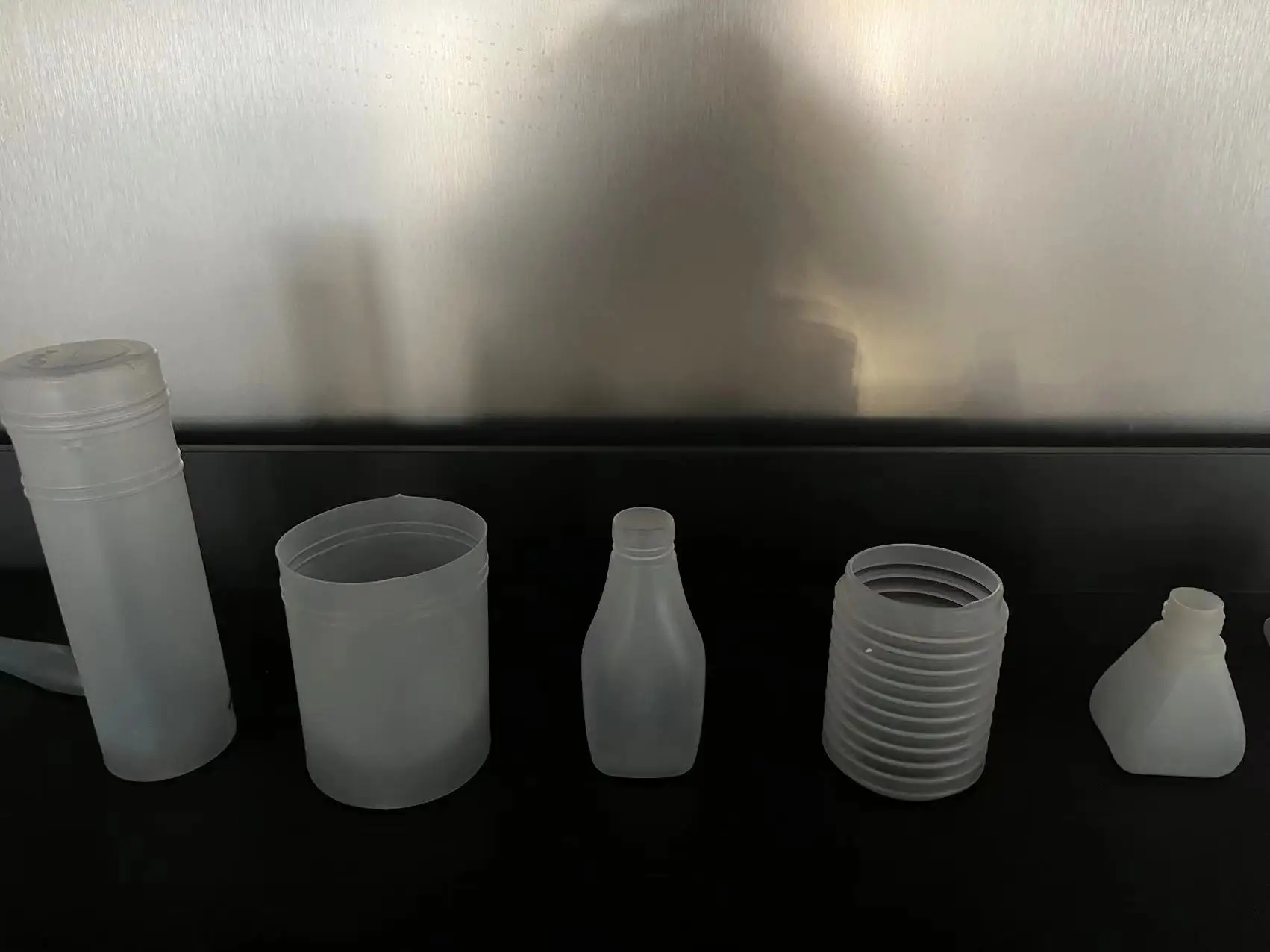

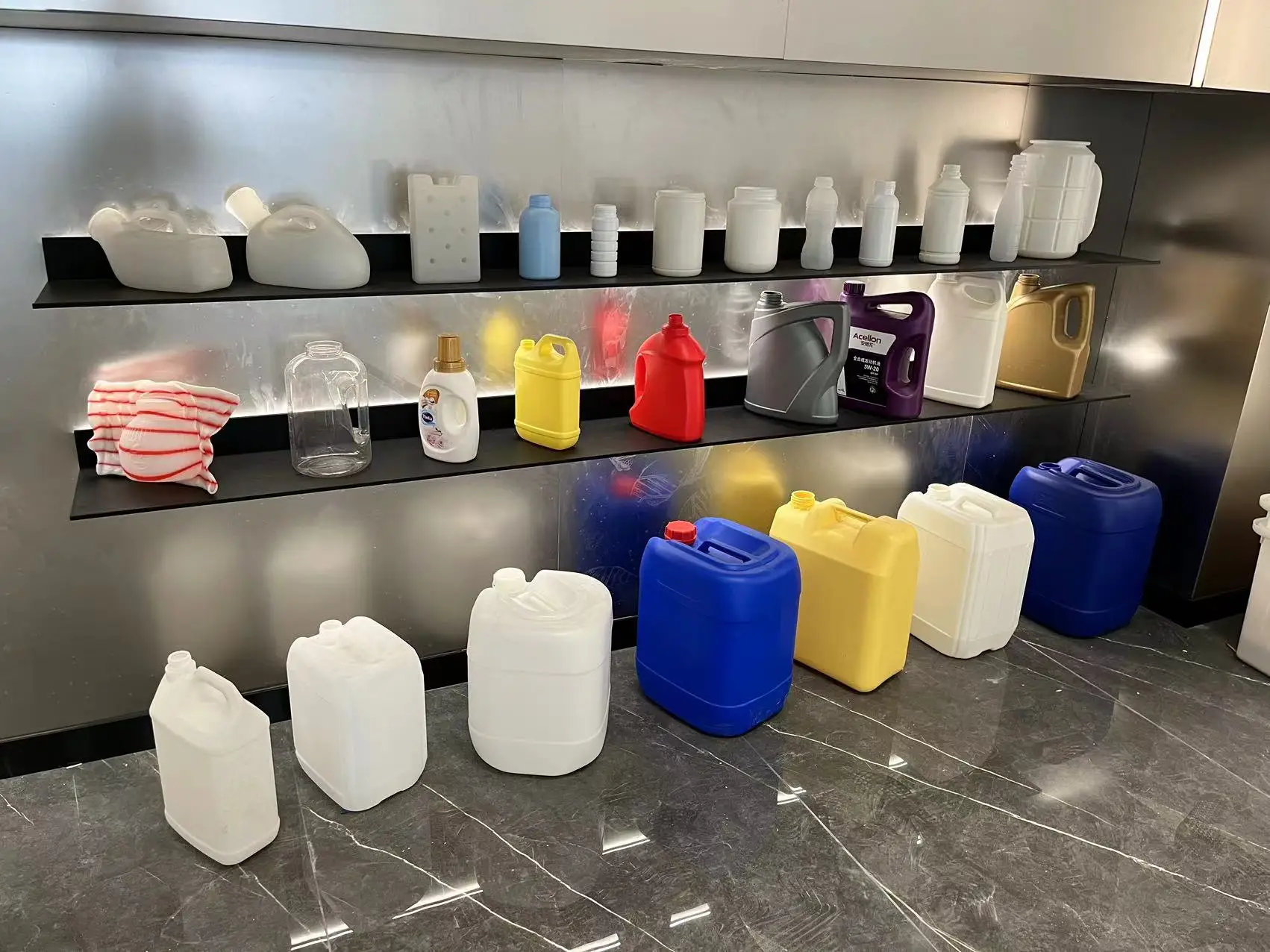

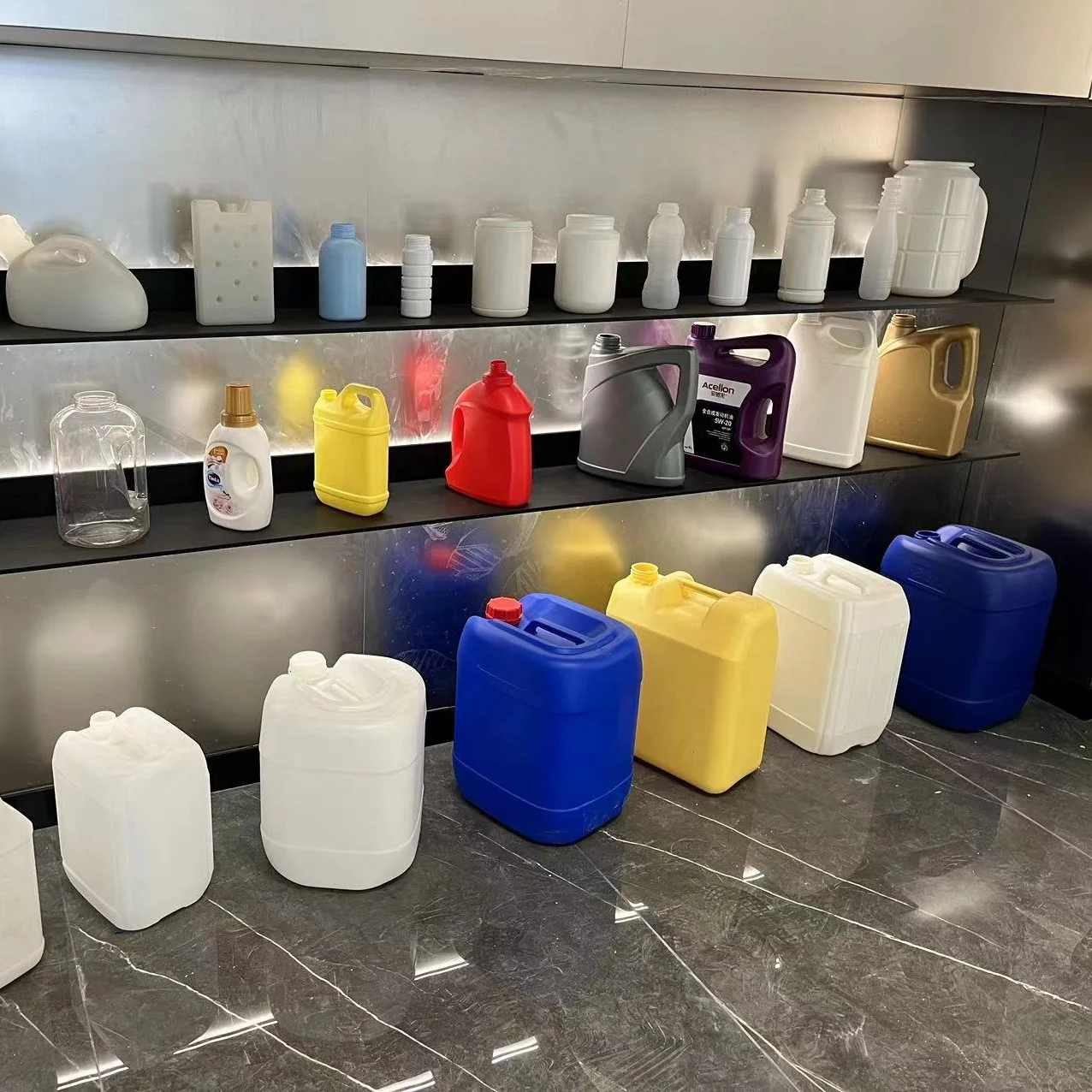

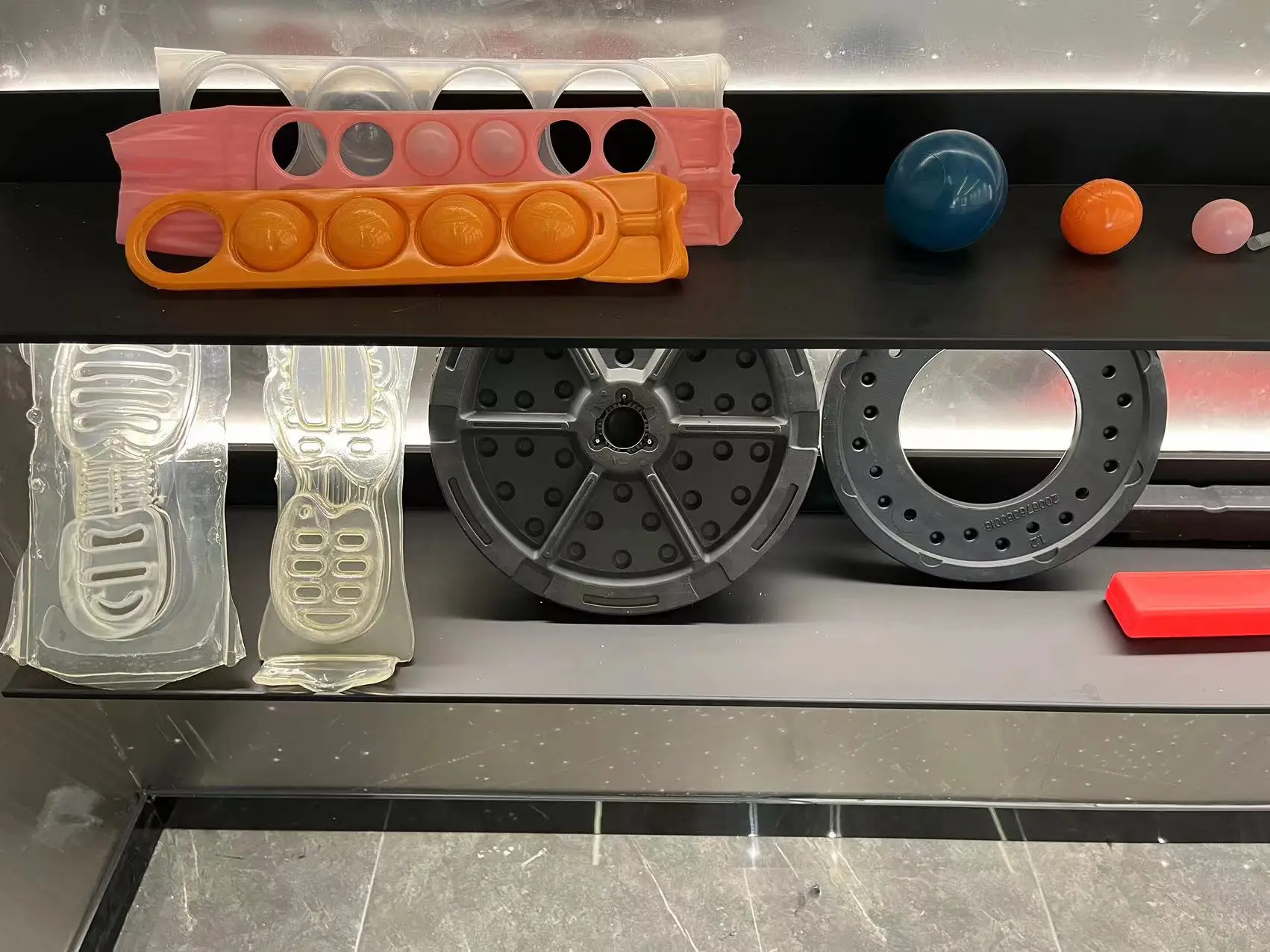

APPLICATIONS

EXHIBITION AND CERTIFICATION

Sanqing also provides perfect equipment assembly solutions tailored for customers. Complete testing equipment and thoughtful after-sales service will completely solve the customer's worries.

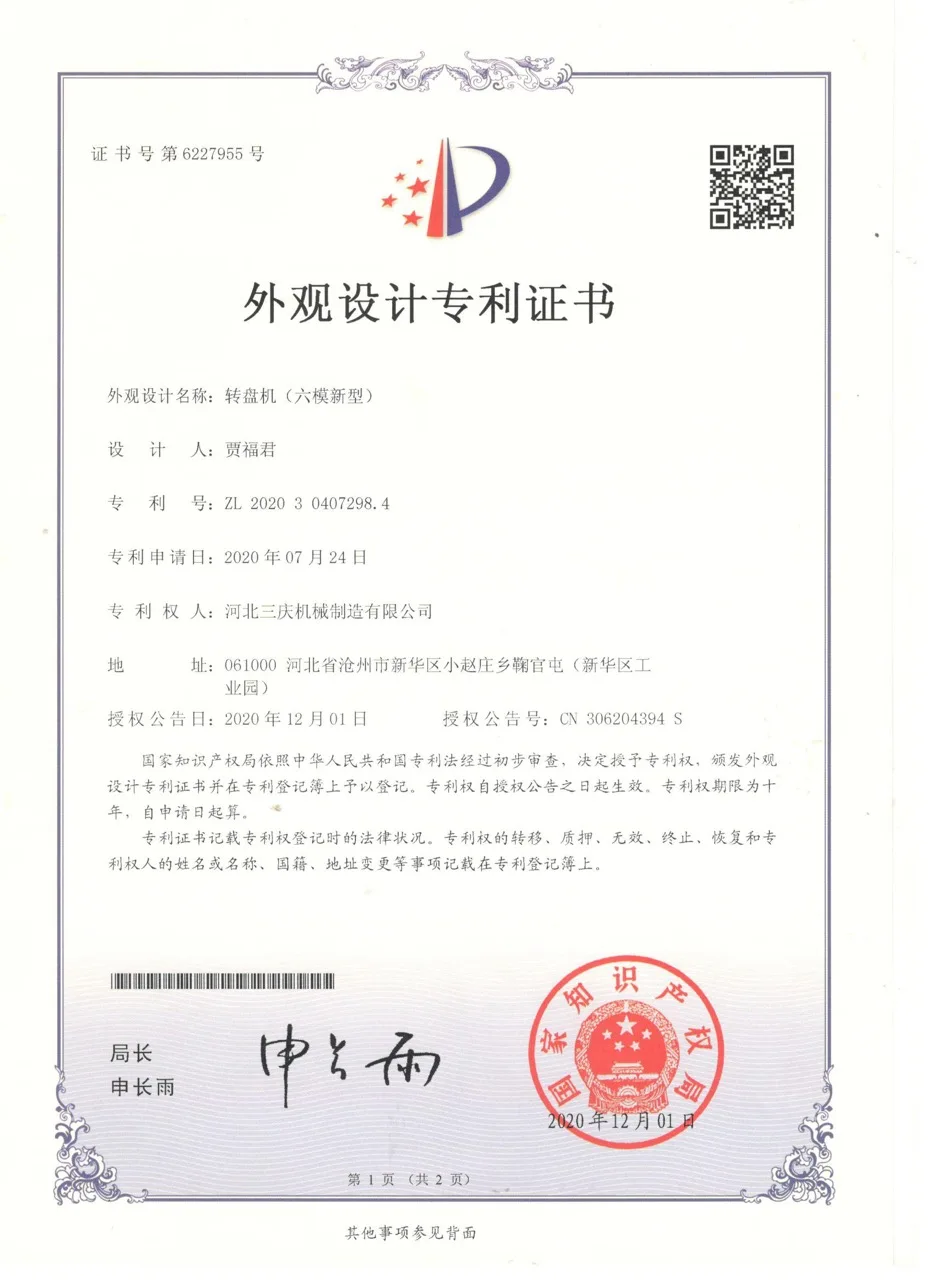

Our company has passed ISO9001 quality system certification, CE certification, and obtained a number of national patents. The equipment is suitable for producing 5ml-200L hollow plastic products with PE, PP, EVA, TPU and other raw materials. At the same time, the company can provide users with projects design, technical process design, standard and customized product design and production.
