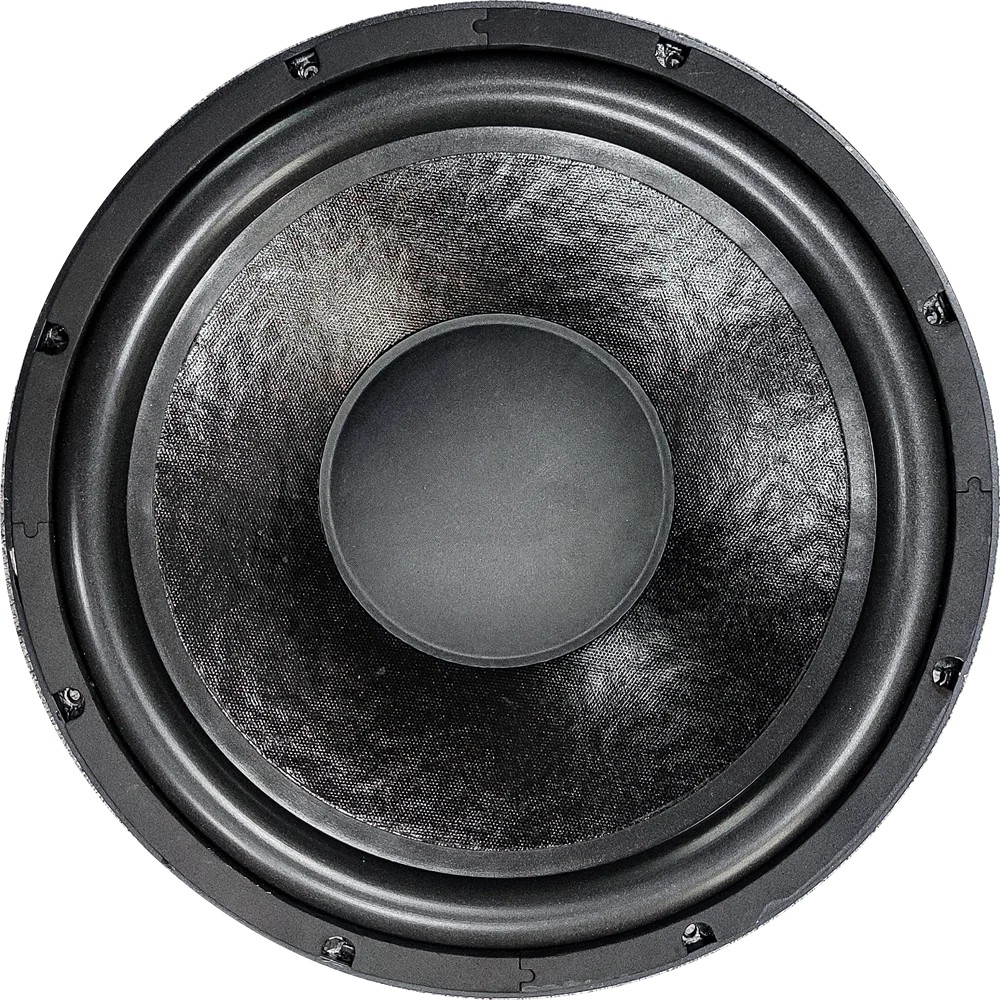

15 inch aluminum frame 190 magnetic 75 cores subwoofer speaker replacement
- Category: >>>
- Supplier: Guangzhou Merry Audio Intelligent Technology Co. Ltd.
Share on (1600784517366):
Product Overview
Description
Products Description
Specification | ||||
Model: MR15H60C-A 15 inch aluminum frame 190 magnetic 75 cores | ||||
General Specifications | ||||
Nominal Diameter | 390mm/15inch | |||
Nominal Impedance | 4Ω | |||
AES Power Handing | 300W (AES) | |||
Maximum Power | 600W | |||
Sensitivity 1W/1M | 84dB | |||
Frequency Range | 34-2kHZ | |||
Voice Coil Diameter | 75.5mm/3 inch | |||
Windinig Material | Copper | |||
Former Material | Aluminum | |||
Winding Depth | 26mm | |||
surround material | Rubber | |||
surround Design | R-roll | |||
Magnet | Φ190 | Ferrite Ring | ||
Thiele & Small Parameters | ||||
Resonance Frequency | Fs | 33.8Hz | ||
DC Resistance | Re | 3.84Ω | ||
Mechanical Factor | Qms | 6.23 | ||
Electrical Factor | Qes | 0.41 | ||
Total Factor | Qts | 0.39 | ||
BL Factor | BL | 23.5T.m | ||
Effective Moving Mass | Mms | 284.64g | ||
Compliance | Cms | 78uM/N | ||
Equivalent Cas Air Load | Vas | 76.08L | ||
Effettive Piston Area | Sd | 829.58cm² | ||
η(Eta Zero) | η0 | 0.67% | ||
Mountiong & Shipping Information | ||||
Overall Diameter | 390mm | |||
Bolt circle diameter | 370mm | |||
Baffle Cutout Diameter | 353mm | |||
Depth | 176mm | |||
Net Weight | 8.25KG | |||
Shipping Weight | 8.45KG | |||
Shipping Box(Single) | /cm | |||
