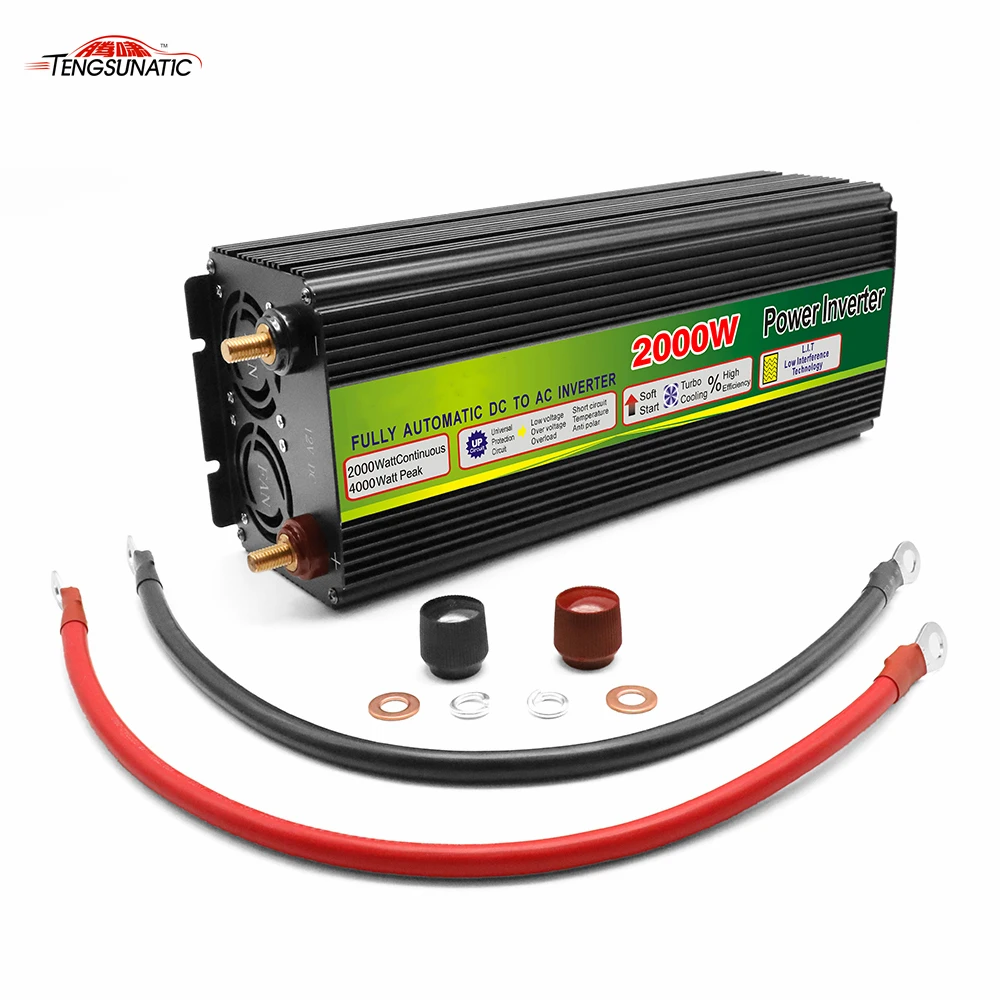

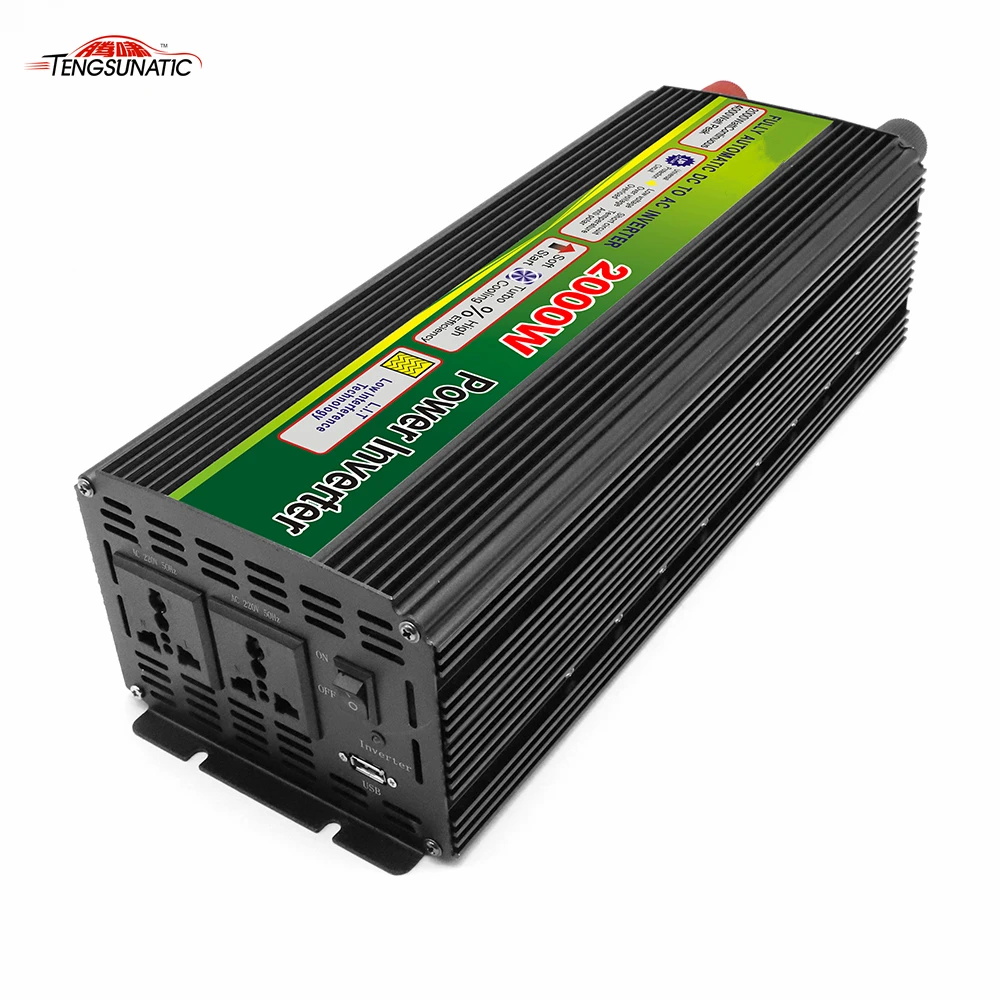

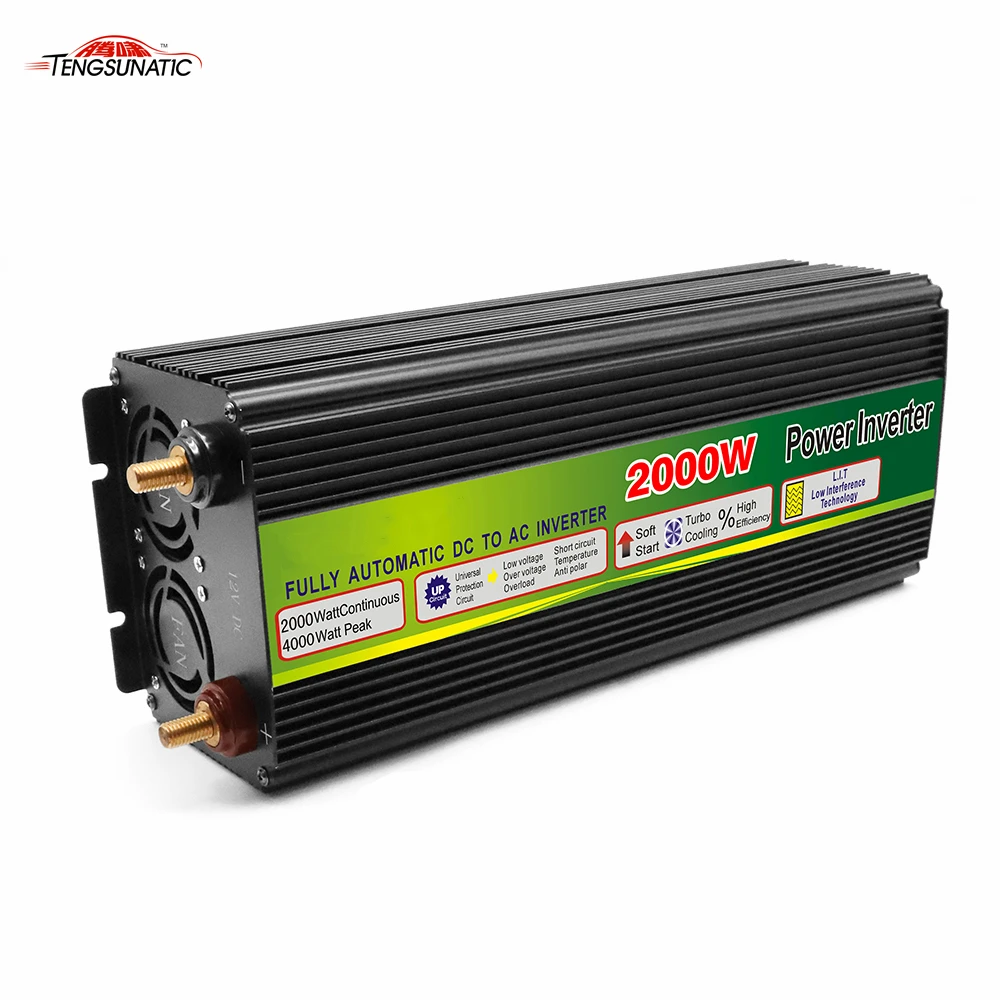

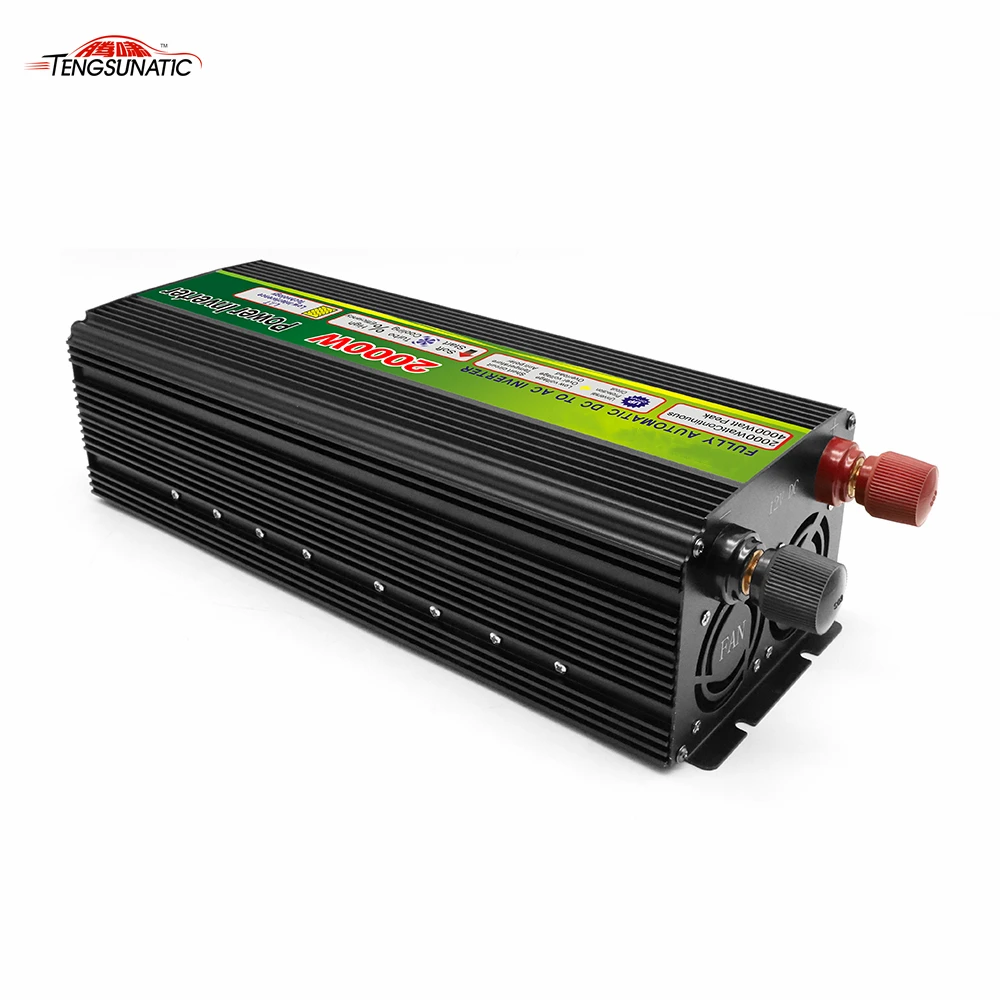

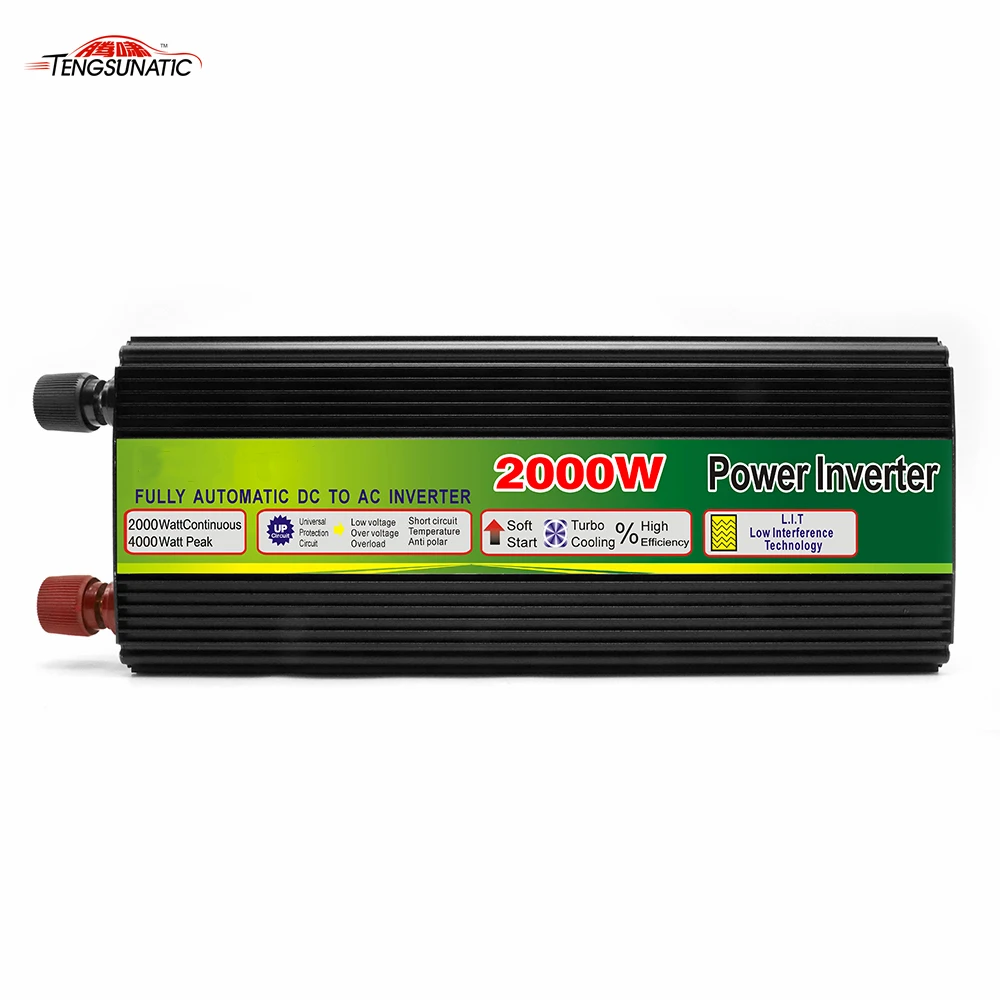

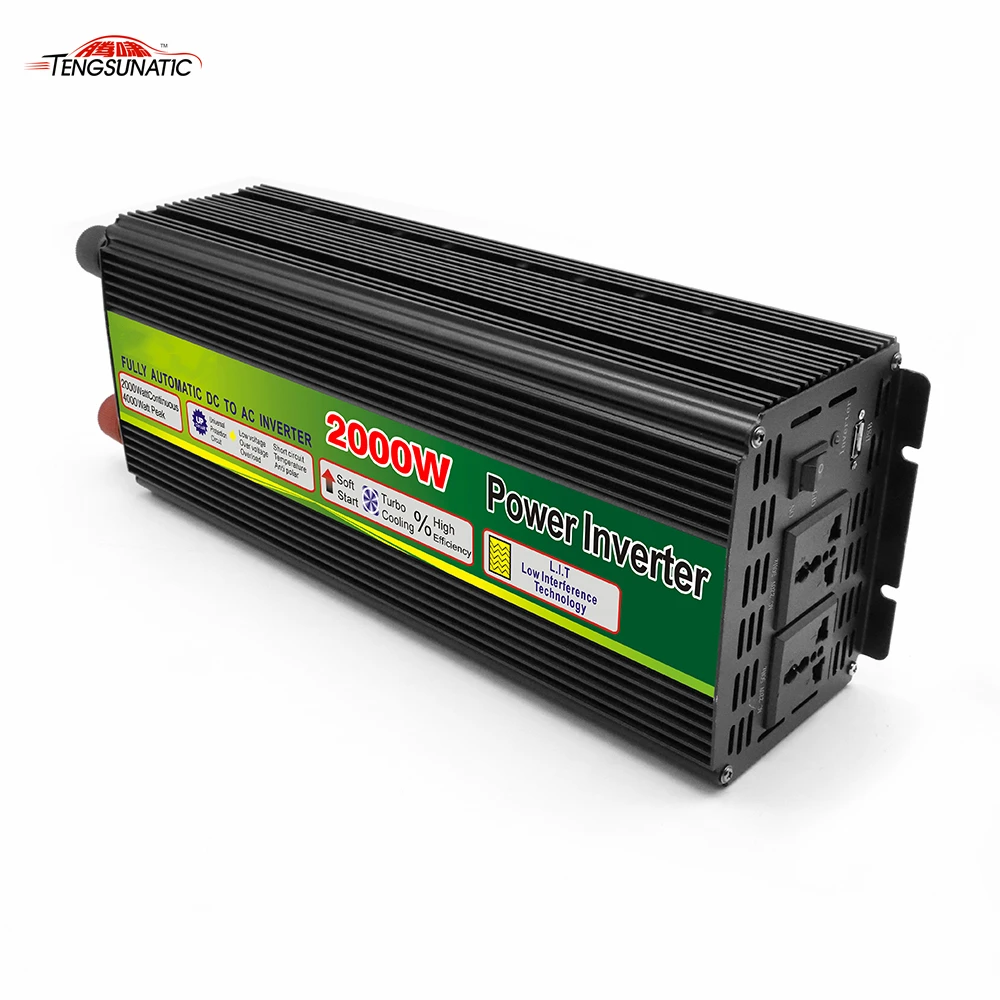

2023 Top Promotion TENGSUNATIC hot sales customized Modified Sine Wave Inverter for car
- Category: Vehicle Parts & Accessories >>>
- Supplier: Nanjing Tengsunatic Technology Co. Ltd.
Share on (1600785177823):
Product Overview
Description
Product Overview
Modified Sine Wave Power Inverter
Modified sine wave inverters is one of the most popular power inverter series since the beginning.
* USB output port : 12V/24V/48V/60V (optional )
* ON/OFF switch control the inverter by hand
* Compact , light weight and easy to operate.
* Equipped with numerous protection features to guarantee safe and trouble-free.
* USB output port : 12V/24V/48V/60V (optional )
* ON/OFF switch control the inverter by hand
* Compact , light weight and easy to operate.
* Equipped with numerous protection features to guarantee safe and trouble-free.
FEATURES AT A GLANCE
TENGSUNATIC
12V 24V DC to 110V 220V 230V AC 1000W modified sine wave off-grid solar inverter for solar power system
1.Big power modified sine wave output to meet most loads.
2.Using special intelligent circuit and high power field effect tube.
3.Adopting sofe start function elimilating the failure of cool start.
4.Full mental shell ,novel design,excellent heat dissipation characteristics.
5.Advanced anti-jamming technology and fully function protection.
6.Protection:high temp,overload,low voltage,short circuit,over current,reversal polarity connection.
2.Using special intelligent circuit and high power field effect tube.
3.Adopting sofe start function elimilating the failure of cool start.
4.Full mental shell ,novel design,excellent heat dissipation characteristics.
5.Advanced anti-jamming technology and fully function protection.
6.Protection:high temp,overload,low voltage,short circuit,over current,reversal polarity connection.
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Model NO. | TX-BEM2000L | ||
2 | Brand Name | TENGSUNATIC | ||
3 | Type | DC/AC Inverters | ||
4 | Volt | 12v | ||
5 | Dimension | 427*150*107mm | ||
6 | GW(KG) | 2.03 | ||
7 | Output Type | Single Output | ||
8 | Output waveform | Midified Sine Wave | ||
9 | Rated power | 4000w | ||
10 | Display | LCD+LED Display | ||
11 | Frequency | 50/60 HZ | ||
12 | Color | Black | ||
PRODUCT CONFIGURATION
BEM2000L
BEM5000L
BEM3000L
Similar Products | ||||||||||
*Model | TX-BEM1000L | TX-BEM15000L | TX-BEM2000L | TX-BEM3000L | TX-BEM5000L | |||||
*Max Continous Power | 1000W | 1500W | 2000W | 3000W | 5000W | |||||
*Peak Power | 2000W | 3000W | 4000W | 6000W | 10000W | |||||
*Output Waveform | Modified Sine Wave | |||||||||
*Input Voltage | 12v/24v/48v(optional) | |||||||||
*Input Voltage Range | 10v-15.5v(12v)/20v-31v(24v) | |||||||||
*No-load Loss Current | 0.3A | |||||||||
*ShutdownStaticCurrent | 14mA(12V)/26mA(24V) | |||||||||
*Output Voltage | 110V/120V/220V230V/240V(optional) | |||||||||
*Output Frequency | 50HZ/60HZ | |||||||||
*Transfer Efficiency | >90% | |||||||||
*Battery Type | Lead-acid Battery | |||||||||
*Low Voltage Alarm | 10.5v(12v)/21v(24v) | |||||||||
*Low Voltage Protection | 10v(12v)/20v(24v) | |||||||||
*High VoltageProtection | 15.5v(12v)/31v(24v) | |||||||||
*High Temp Protection | Case Temp 65℃ | |||||||||
*ShortCircuitProtection | Yes | |||||||||
*Overload Protection | Yes | |||||||||
*AC Socket | 1*5V 2.1A | |||||||||
*USB Interface | 1*Multi-function Socket | 2*Multi-function Sockets | ||||||||
*Cooling | 1*Smart Fan | 2*Smart Fans | ||||||||
*Working Temperature | 0-40℃ | |||||||||
*Working Humidity | 20-90%RH | |||||||||
*Restore Temp.&Hum. | -20℃~60℃ 10-95%RH | |||||||||
*Product Size(mm) | 262*150*76 | 327*150*76 | 427*150*107 | 454*181*142 | 600*180*163 | |||||
*N.W.(g) | 1580 | 1800 | 3320 | 4800 | 7500 | |||||
*Package Size(mm) | 300*200*130 | 390*200*130 | 470*210*163 | 490*245*205 | 672*251*236 | |||||
*G.W.(g) | 2030 | 2300 | 4090 | 6000 | 9400 | |||||
*Remark | All Specification are measured at Conventional Voltage and Ambient Temp of 25℃. | |||||||||
SALES AND SERVICE NETWORK
Successful Project
Product applications

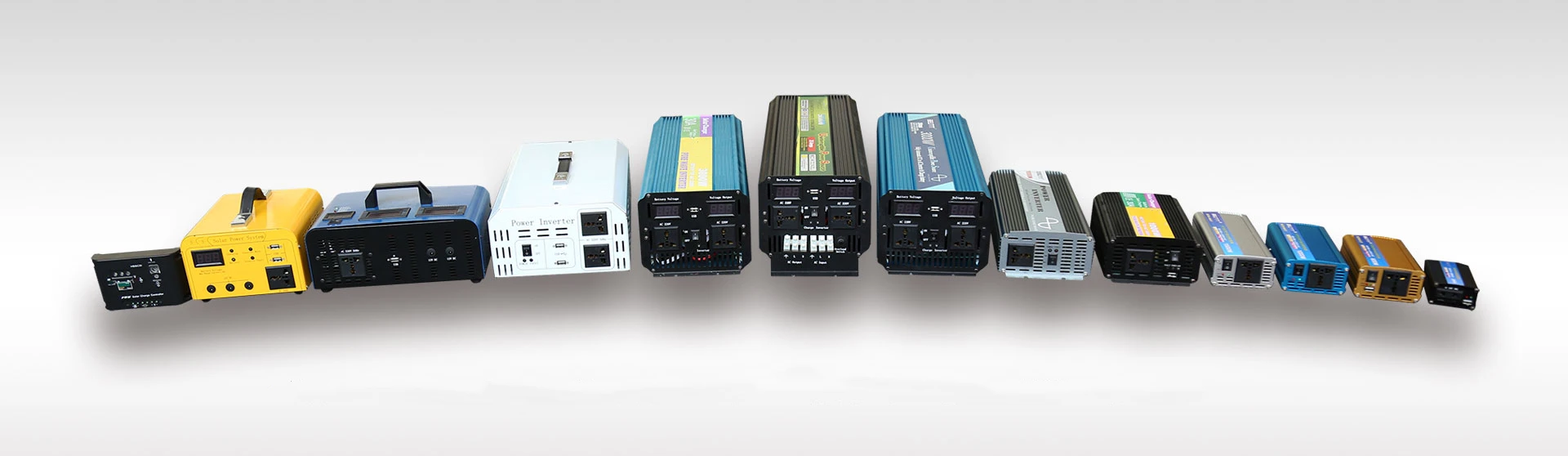

SIMILAR PRODUCTS
Nanjing Tengsunatic Technology Co., Ltd.
FAQ
1.What is the MOQ?
A:Accept small quantity if the parts are ready stock.MOQ:1000SETS
2.How about the delivery time?
A.5-7working days for ready stocks,20-30working days for producting items.The order quantity is decided to the leadtime, if the shipment is urgent, please contact with us , we will try our best to support you.
3.Can you offer free samples?
A:Sorry,you need to pay the sample fee,after confirming the order, we will refund the sample fee. In addition, buyers need to pay freight.
4.Can you help to ship the goods?
Yes. We can help to ship the goods through customer forwarder or our forwarder.
Notice:If you have any questions or need our help,you can contact me !
Telephone number:0086-18351969674
9.: What is a resistive load appliance?
A:Mobile phones ,computers,LCD TVs,incandescents,electric fans,video broadcast,small printers,rice cooker,electric mahjong machine,etc. Our modified sine wave inverter can drive these applicances successfully.
A:Accept small quantity if the parts are ready stock.MOQ:1000SETS
2.How about the delivery time?
A.5-7working days for ready stocks,20-30working days for producting items.The order quantity is decided to the leadtime, if the shipment is urgent, please contact with us , we will try our best to support you.
3.Can you offer free samples?
A:Sorry,you need to pay the sample fee,after confirming the order, we will refund the sample fee. In addition, buyers need to pay freight.
4.Can you help to ship the goods?
Yes. We can help to ship the goods through customer forwarder or our forwarder.
Notice:If you have any questions or need our help,you can contact me !
Telephone number:0086-18351969674
Whatsapp:+86 18351969674
tiffany@tengsunatic.com
5.How to choose a right inverter?
A:According to the power and the type of your equipment,the pure sine wave inverter will be used in all kinds of equipments,but the modified sine wave inverter will be only used in resistive equipment .if you have motor,battery charger,etc.you'd better choose pure sine wave inverter.
A:According to the power and the type of your equipment,the pure sine wave inverter will be used in all kinds of equipments,but the modified sine wave inverter will be only used in resistive equipment .if you have motor,battery charger,etc.you'd better choose pure sine wave inverter.
6:What's the difference between a power inverter and a solar inverter?
A:The normal inverter only accepted battery or DC power(except solar).Like switch power source.But solar inverter only accepted the power as above but also accepted the PV input. There is a solar charger inside.And there is a pair of electrodes which connect with solar PV.The normal inverter has no one.
A:The normal inverter only accepted battery or DC power(except solar).Like switch power source.But solar inverter only accepted the power as above but also accepted the PV input. There is a solar charger inside.And there is a pair of electrodes which connect with solar PV.The normal inverter has no one.
7.How many sorts of inverter are there?
A:There are three sorts of inverters according to the output waveform:square wave ,modified sine wave ,pure sine wave.The first one may not exit now due to the bad performance.The second one is pretty popular because of the good price. The third one has more good performance and larger application field.And it can be used in all loads including inductive and capacitive loads.
A:There are three sorts of inverters according to the output waveform:square wave ,modified sine wave ,pure sine wave.The first one may not exit now due to the bad performance.The second one is pretty popular because of the good price. The third one has more good performance and larger application field.And it can be used in all loads including inductive and capacitive loads.
8.:What is a inductive load applliance?
A:The applicance which is based on the priciple of electromagnetic induction is inductive load,such as,motor ,air
conditioner,washing machine,refrigerator,induction cooker,swithing power supply,wedding machine,etc.This applicance need 3-7times than their rated power.
A:The applicance which is based on the priciple of electromagnetic induction is inductive load,such as,motor ,air
conditioner,washing machine,refrigerator,induction cooker,swithing power supply,wedding machine,etc.This applicance need 3-7times than their rated power.
9.: What is a resistive load appliance?
A:Mobile phones ,computers,LCD TVs,incandescents,electric fans,video broadcast,small printers,rice cooker,electric mahjong machine,etc. Our modified sine wave inverter can drive these applicances successfully.
