Lipped Drop in Anchor
US $0.04-$0.10
Fasteners Factory wholesale Yellow zinc plated Carbon steel 10x80 Hex bolt type Sleeve Anchor bolt
- Category: Anchors >>>
- Supplier: Hebei,Yuetong,Fasteners,Manufacturing,Co.,Ltd.
Share on:
Product Overview
Description
Product Description

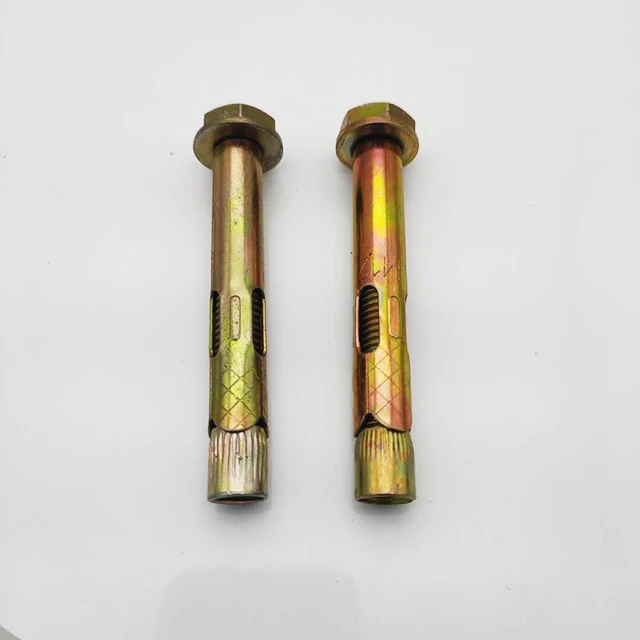

Sleeve Anchor is combined by head bolt, expansion tube, flat washer, expansion nut and hex nut. An anchor with eye bolt is used to attach objects or structures to concrete. Anchor bolts are extensively used on all types of projects, from standard buildings to dams and nuclear power plants. They can also be used to firmly affix embed plates to a concrete foundation when used with a structural steel element.
Application
Principle Expansion of the screw fixed principle: the expansion screw fixed but the use of pull-shaped gradient to promote
expansion of the friction grip force, to a fixed effect. Screw is a thread, a vertebral end. Outside the package of a tin, iron
cylinders have a number of incision, thaw into the wall with them thrown into the hole, and then lock the nut, nut pull the screw,the vertebral pull into the iron cylinder, iron cylinder was up Open, so tightly fixed to the wall, generally used for fences,awnings, air conditioning and other materials in the cement, brick and other fastening. But its fixed is not very reliable, if the load has a large vibration, may occur loose, it is not recommended for the installation of ceiling fans.
Expansion bolt is the principle of expansion bolts hit the ground or wall hole, the bolt with a wrench to tighten the expansion, bolts go out, while the outside of the metal sleeve does not move, so the bulk of the bolt under the put The metal sleeve opens up to fill the hole, and the expansion bolt does not come out.
Principle Expansion of the screw fixed principle: the expansion screw fixed but the use of pull-shaped gradient to promote
expansion of the friction grip force, to a fixed effect. Screw is a thread, a vertebral end. Outside the package of a tin, iron
cylinders have a number of incision, thaw into the wall with them thrown into the hole, and then lock the nut, nut pull the screw,the vertebral pull into the iron cylinder, iron cylinder was up Open, so tightly fixed to the wall, generally used for fences,awnings, air conditioning and other materials in the cement, brick and other fastening. But its fixed is not very reliable, if the load has a large vibration, may occur loose, it is not recommended for the installation of ceiling fans.
Expansion bolt is the principle of expansion bolts hit the ground or wall hole, the bolt with a wrench to tighten the expansion, bolts go out, while the outside of the metal sleeve does not move, so the bulk of the bolt under the put The metal sleeve opens up to fill the hole, and the expansion bolt does not come out.
Specification
item | value |
Color | yellow |
Finish | Bright(Uncoated) |
System of Measurement | Metric |
Place of Origin | China |
Hebei | |
Brand Name | Yuetong |
Model Number | Hex Head Sleeve Anchor Bolts |
Steel | |
Diameter | 12mm |
Strong | |
GB | |
Product name | Hex Head Sleeve Anchor Bolts |
Material | carbon steel |
Surface treatment | Zn- Plated |
Grade | 4.8/ 6.8/ 8.8 |
Size | M6-M24 |
Packing | Carton+pallet |
Delivery time | 15-30days |
MOQ | 1Ton |
Sample | Availabe |
Port | Tianjin Port |
Packing & Delivery
Company Profile
FAQ
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Denerally it is 5-10days if the goods are in stock, or it is 15-25days if the goods need be produced, it is according to
quantity you want.
Q: What is your terms of payment?
A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
A: We are manufacturer.
Q: How long is your delivery time?
A: Denerally it is 5-10days if the goods are in stock, or it is 15-25days if the goods need be produced, it is according to
quantity you want.
Q: What is your terms of payment?
A: Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment.
