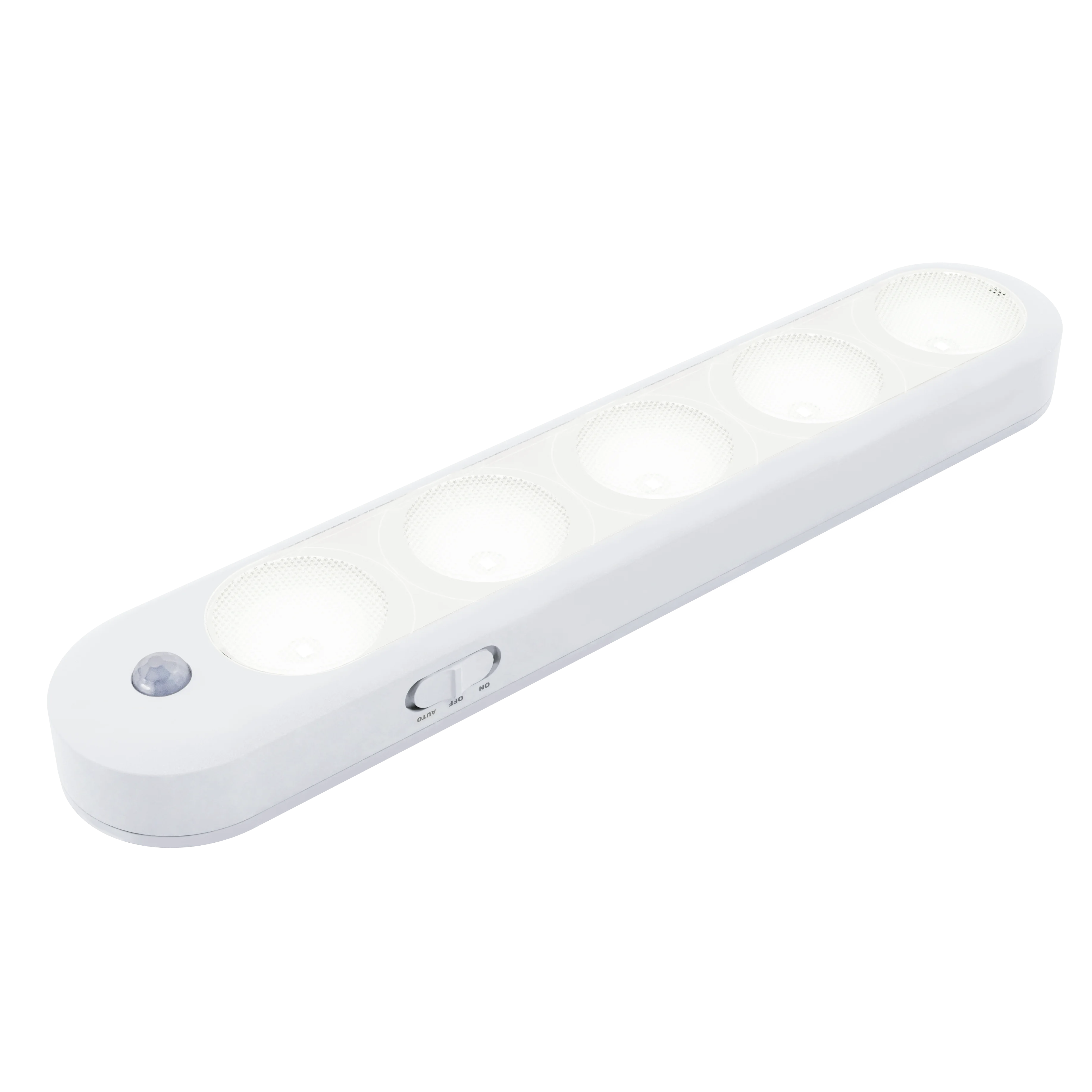

PIR led cabinet light Motion Sensor Activated work with lithium battery
- Category: LED Sensor Lights >>>
- Supplier: Shenzhen,Banq,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Product functions and features
■Elegant design, fish scale PC cover
■ Free choice between constant light and auto sensing mode
■ Integrated dual sensing of PIR sensor and light sensor
■ Auto light up when people come close it, intelligent control, no need manual operation
■ Auto light off 20s after no human movement was detected
■ Adopt high CRI LEDs as light source, deliver soft and uniform light

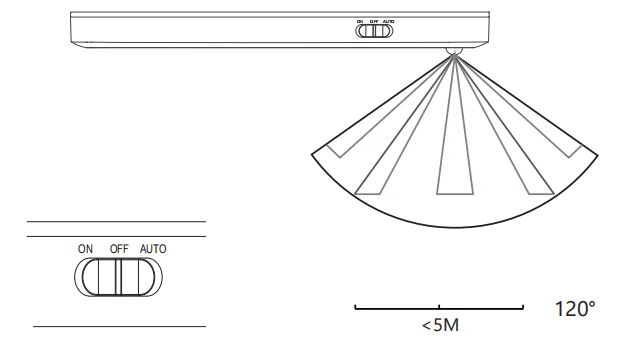

■ High precision Fresnel lens, 5 meters sensing distance within 120 degrees of angle
■ Adopt common AA batteries, energy saving and long working hours
■ The battery cover slides up and down for easy installation and removal
■ Plug and play, no need any wiring, widely applications
■ Free choice between constant light and auto sensing mode
■ Integrated dual sensing of PIR sensor and light sensor
■ Auto light up when people come close it, intelligent control, no need manual operation
■ Auto light off 20s after no human movement was detected
■ Adopt high CRI LEDs as light source, deliver soft and uniform light
■ High precision Fresnel lens, 5 meters sensing distance within 120 degrees of angle
■ Adopt common AA batteries, energy saving and long working hours
■ The battery cover slides up and down for easy installation and removal
■ Plug and play, no need any wiring, widely applications
Working modes
ON: Always on mode
OFF: Turn off
AUTO: Auto mode
OFF: Turn off
AUTO: Auto mode
Installation
1: Take out the products, push as per the direction of the arrow, then take it out upward.
2: Two ways to fix the base
(1) Take out the adhesive tape and paste it on the position as shown in figure, then rip out the back film of the tape
and stick it in the fixed position.
(2) Align the position of the screw holes of the base, tighten the screws, (the buckle opening, and the small head of
the screw baffle) face the human activity area, and then hang the base up.
and stick it in the fixed position.
(2) Align the position of the screw holes of the base, tighten the screws, (the buckle opening, and the small head of
the screw baffle) face the human activity area, and then hang the base up.
3: Load the AA batteries (3pcs or 6pcs) according to the indicated in the battery compartment.
4: Align the hole of the lamp body with the buckle of the base, stick it on, push it in the direction of the arrow,
(the switch is facing the area where people move), and you will hear a crisp sound, and the installation is complete.
(the switch is facing the area where people move), and you will hear a crisp sound, and the installation is complete.
Specification
item | Under Cabinet Lamp |
Color Rendering Index(Ra) | 80 |
Lighting solutions service | Lighting and circuitry design, Project Installation |
Lifespan (hours) | 50000 |
Working Time (hours) | 50000 |
Product Weight（kg） | 0.5 |
Type | IP20 |
Wattage | 5w |
Working Temperature(℃) | -20~50 |
Color Temperature(CCT) | cool white |
Lamp Luminous Flux(lm) | 120 |
Lamp Luminous Efficiency(lm/w) | 50 |
Working Lifetime(Hour) | 50000 |
Beam Angle(°) | 120 |
Warranty(Year) | 1-Year |
Input Voltage(V) | 5V |
CRI (Ra>) | 80 |
IP Rating | IP20 |
Application | Residential |
Support Dimmer | NO |
LED Chip Brand | NONE |
Light Source | LED |
Product Name | PIR Sensor LED cabinet light |
Surface processing technology | White material with fine lines |
Dimension | 294x55x20mm |
Working voltage | 4.5V |
Rated power | 266mA |
Battery type | 3 AA dry batteries or 6 AA dry batteries |
Working mode | OFF,Steady light,Auto sensor |
LEDs type | 2835 |
CCT | 4000K |
Optical lens | Fresnel lens 14mm |
Packing & Delivery

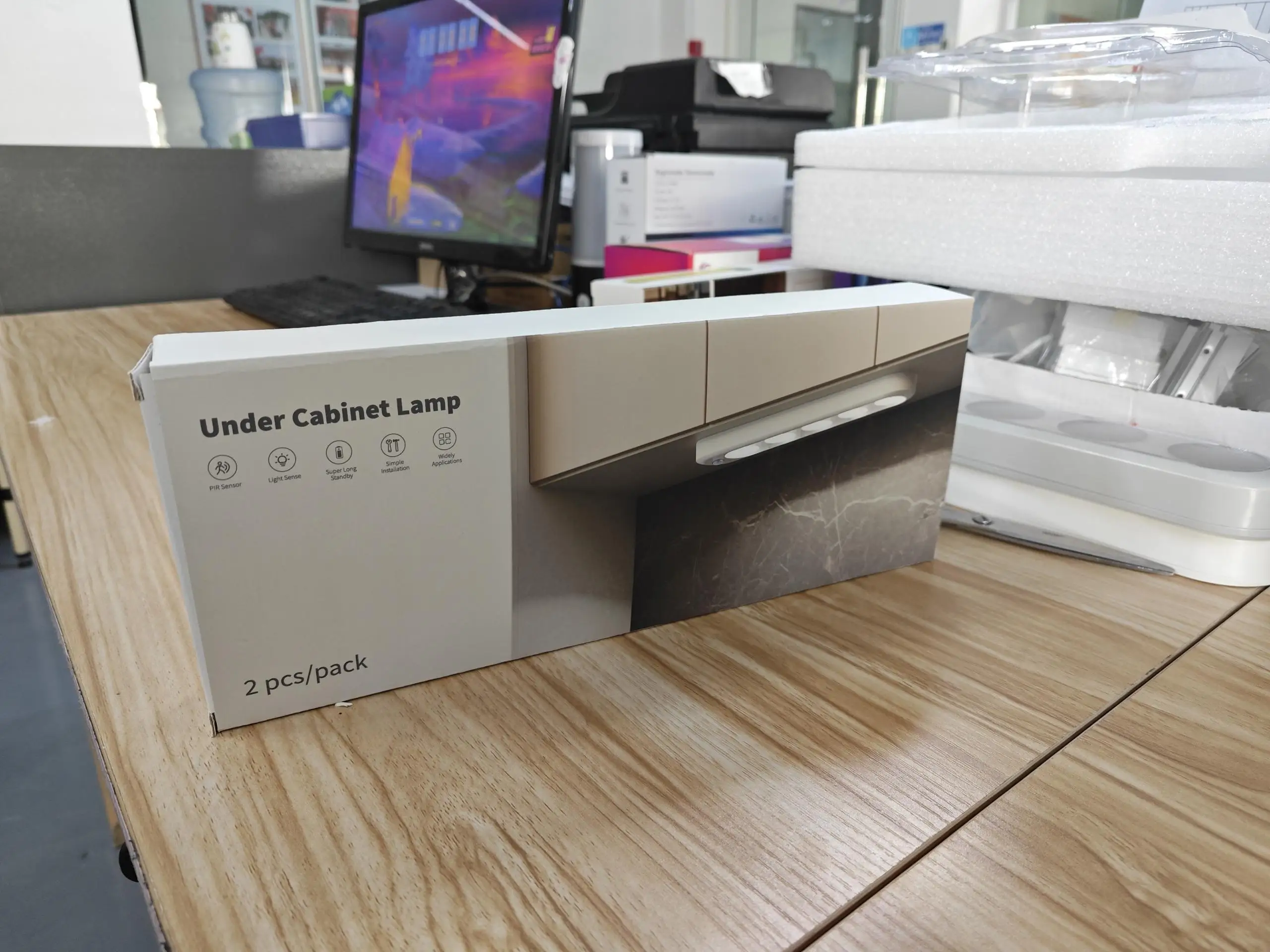

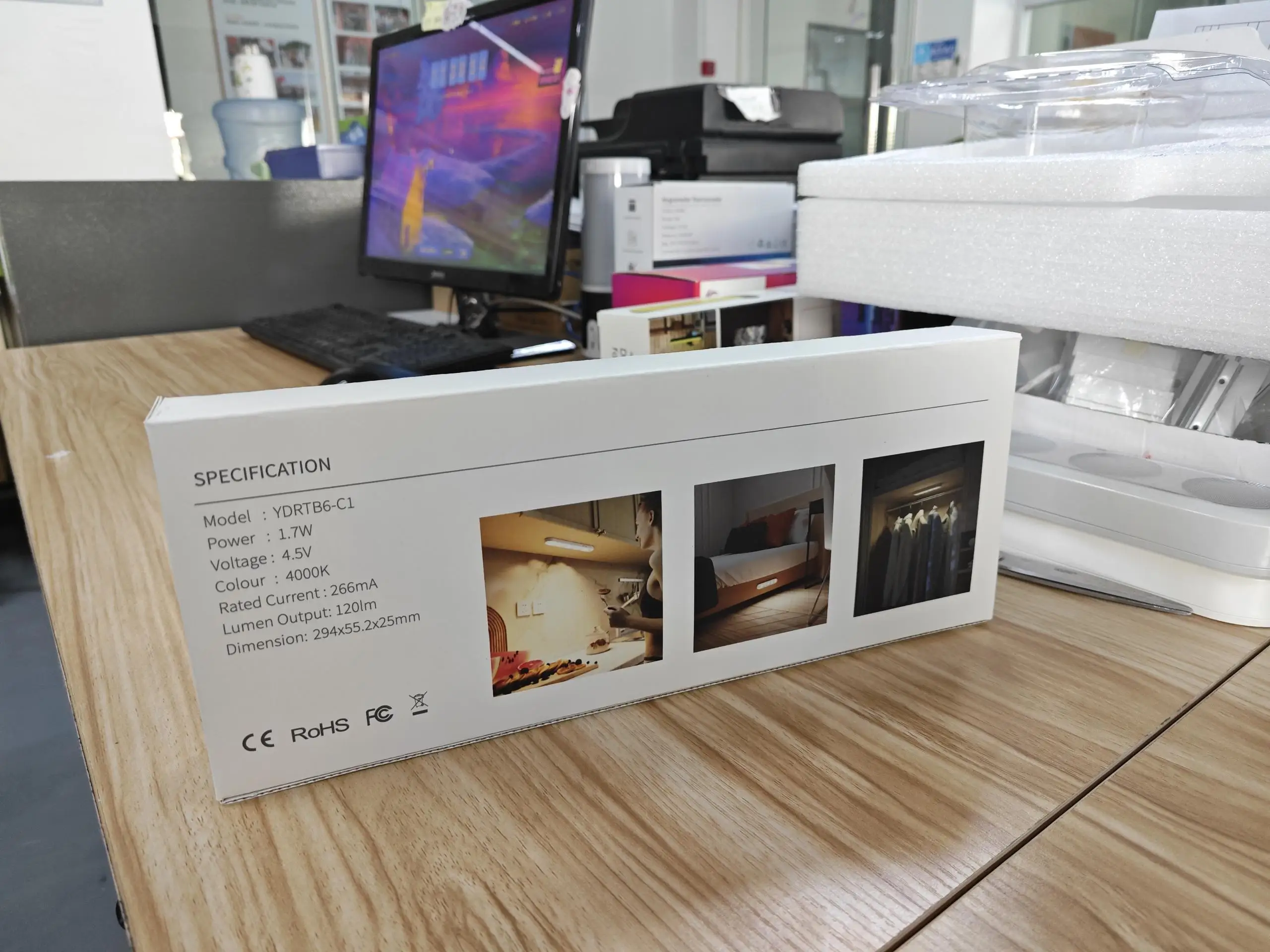

With Neutral white box packing /Color box packing/Customerd packing
