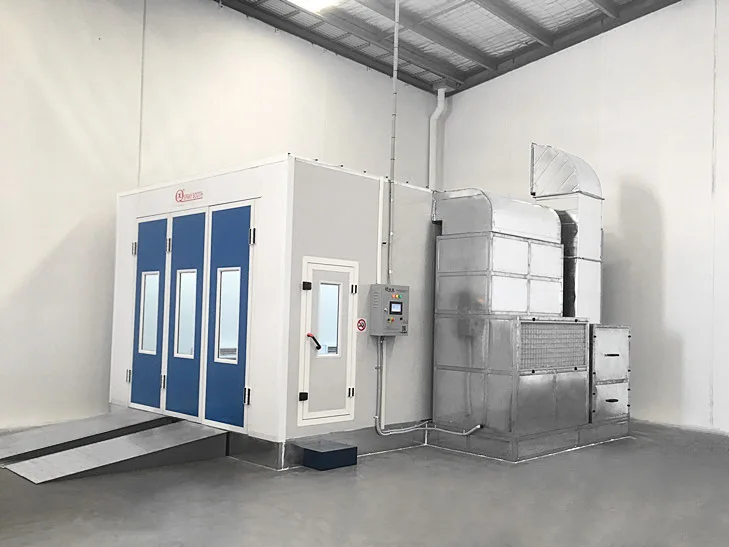

High Quanlity Car Paint Oven Spray Booth Powder Coating Spray Booth Car Baking Oven For Sale
- Category: Spray Booths >>>
- Supplier: Yantai,Delilai,Automobile,Calibration,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Brand name | DELILAI | |
Product name | spray booth | |
External size | 7050mmX4050mmX3500mm | |
Internal szie | 6900mmX3900mmX2800mm | |
front door dimension | 3000mmX2700mm | |
Noise | ≤75db(A) | |
wind speed | 0.25-0.3m/s | |
Voltage | 415v/3phase/50HZ | |
Wall panel | 75mm foam plate steel sealing strip, 0.5mm iron sheet, 10kg, no lower difference, the outer side of wallboard shall be covered with film, and sheet metal door.The color of the wall panel is all dark red, the side box is white, and the rest are all dark red | |
Base | Five layers of steel grating, no downward deviation allowed | |
Loading platform | two loading platforms, 1.8m * 0.75m | |
Box | left box, 0.8mm iron sheet, 4 * 4mm square tube frame, with isolation, 2.4m long * 1.2m wide. | |
Inlet fan | 2 sets of 4kw national standard copper core fans | |
Exhaust fan | 1 set of 5.5kw national standard copper core fans | |
Filter cotton | Primary filter cotton, 600g top cotton, bottom cotton | |
Heating system | oil heating: 1 set of G20 combustion engine in Riyadh, Italy, with a stainless steel heat exchanger with back burning protection, 304 steel, argon arc welding, paint spraying, and paint baking converters. 20N electric damper, Belimo NMU 230. | |
Lighting system | ceiling lamp: 8x4 pieces=32Pcs * 16W LED | |
Waist lamp | sets * 4 pieces=24pcs * 16W LED Foshan lighting | |
light box | The light box is beautiful, without leakage of thread ends, and is sprayed with plastic. It is fixed with plastic screws and sprayed with plastic, without dents and unevenness | |
Electric control cabinet | The internal relay shall be of Delixi brand, and the font printing requirements shall be in English. Winner electric control cabinet | |
Others: | slot boxes, iron sheet beams, filter cotton frames, light boxes, and other spray molded materials should all be pure white | |

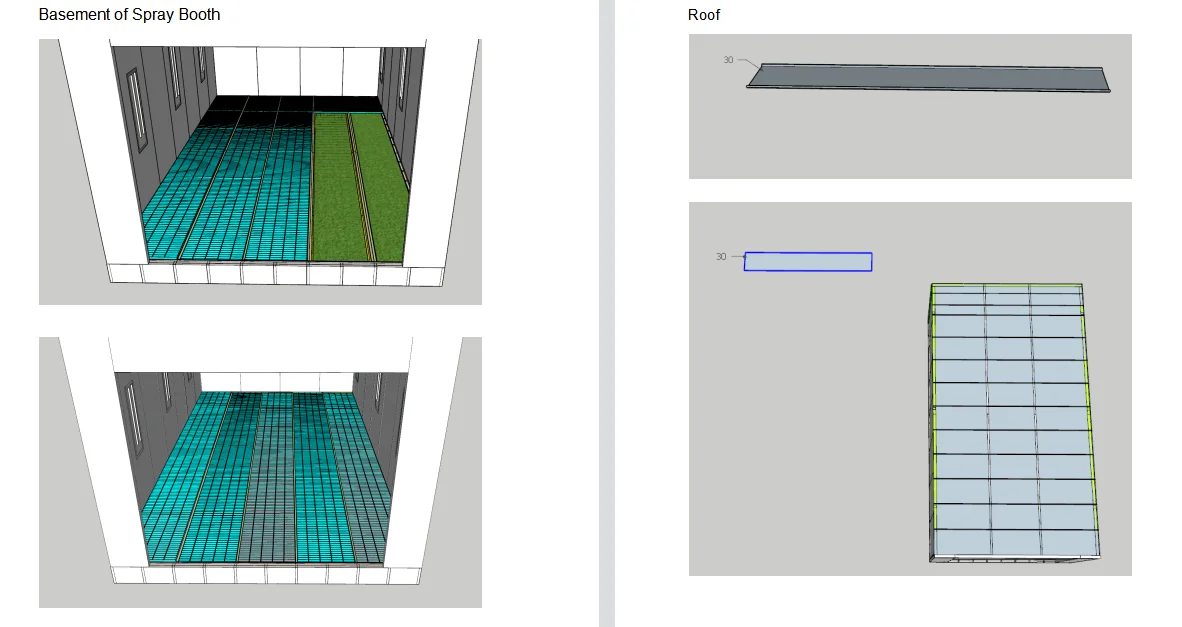

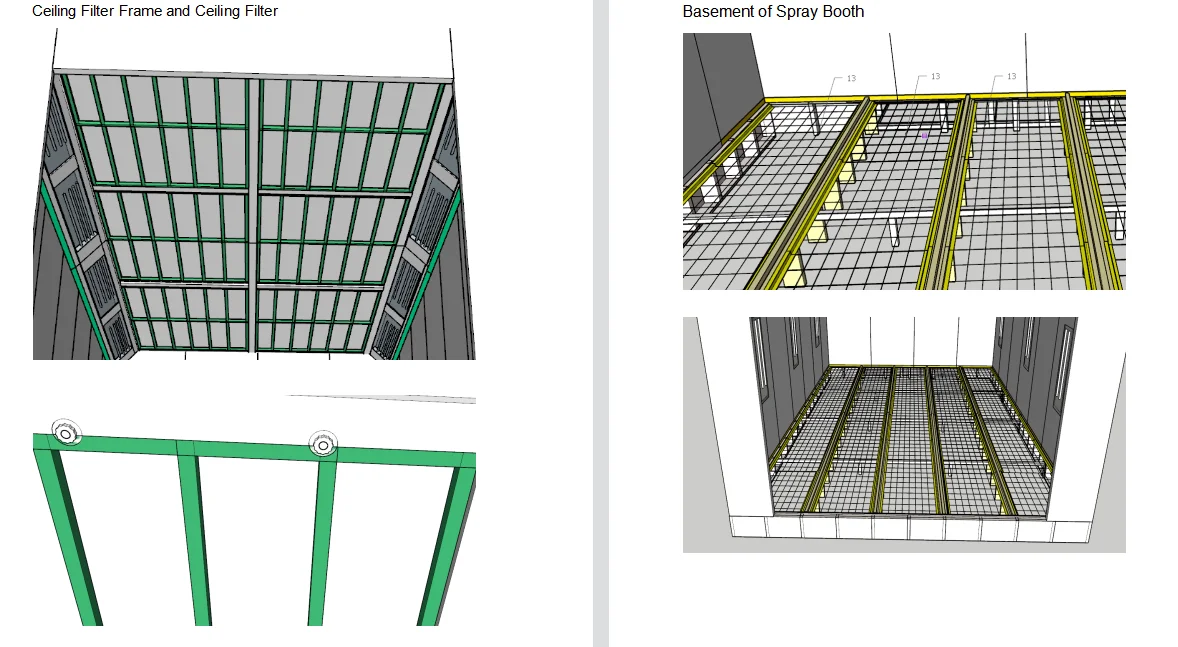

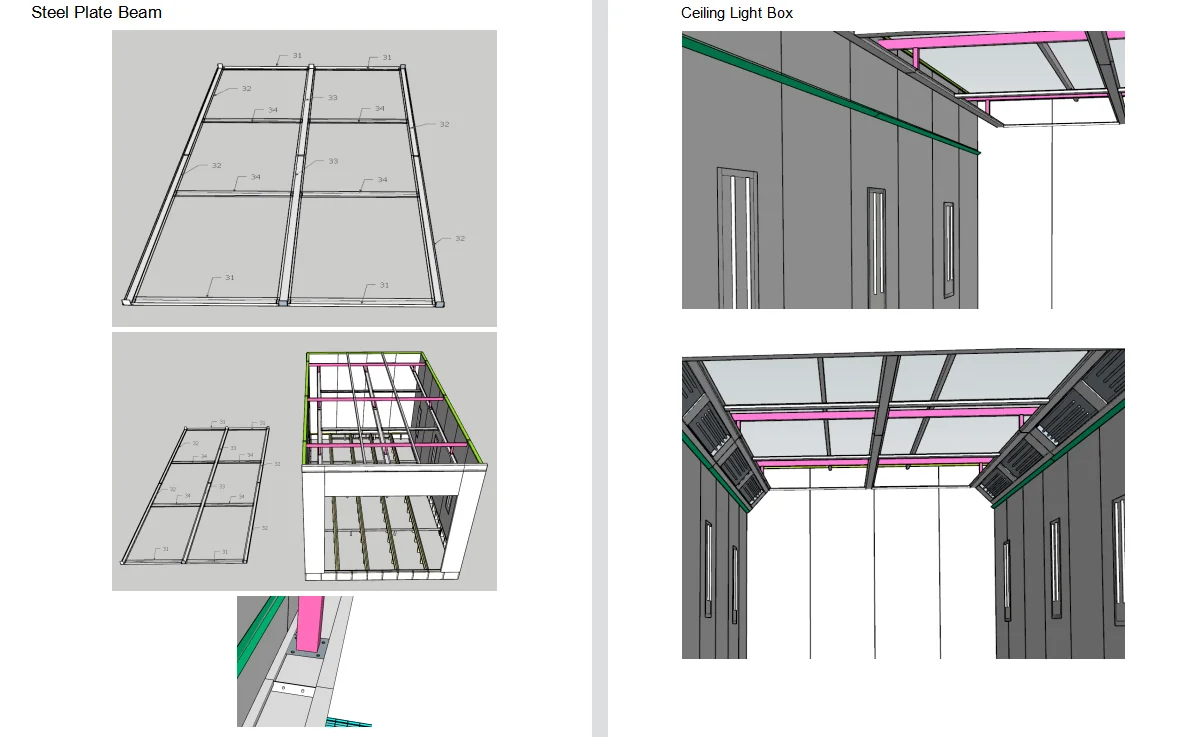

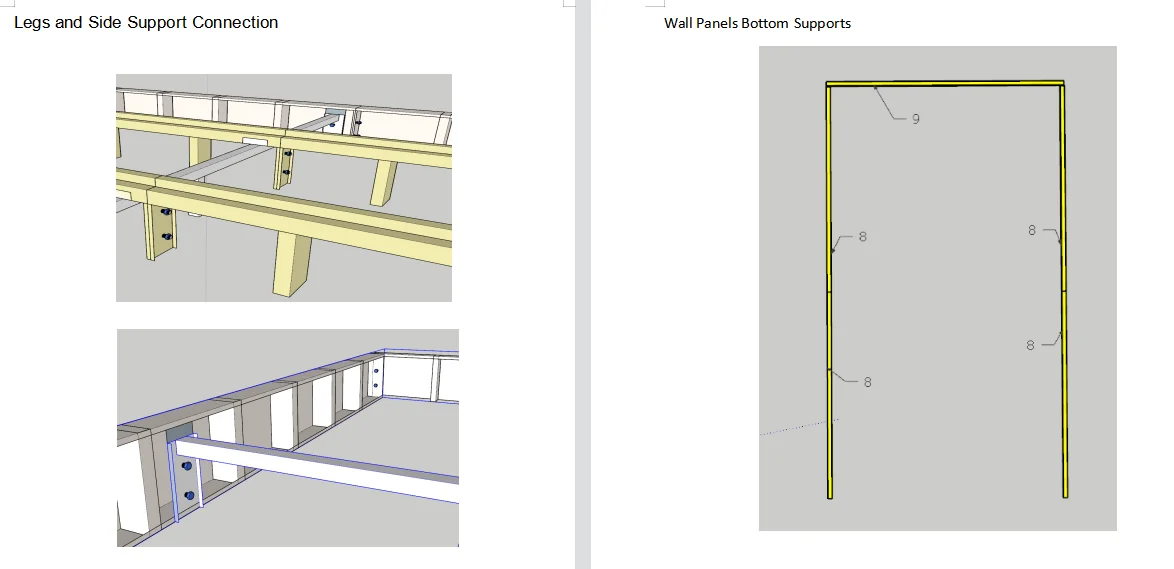

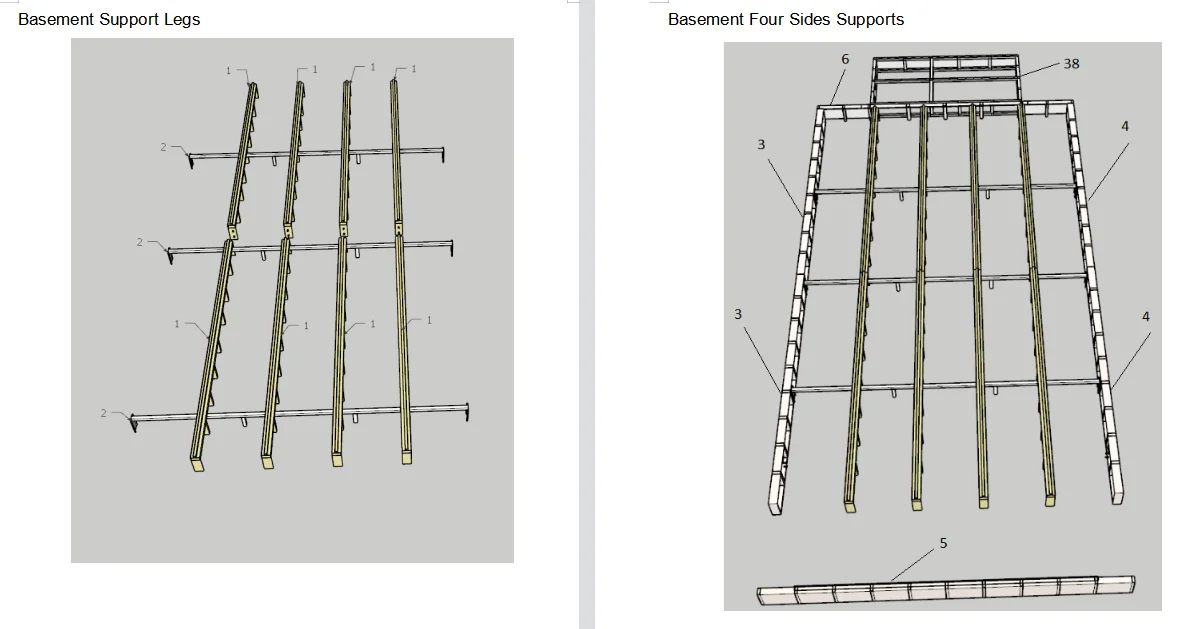

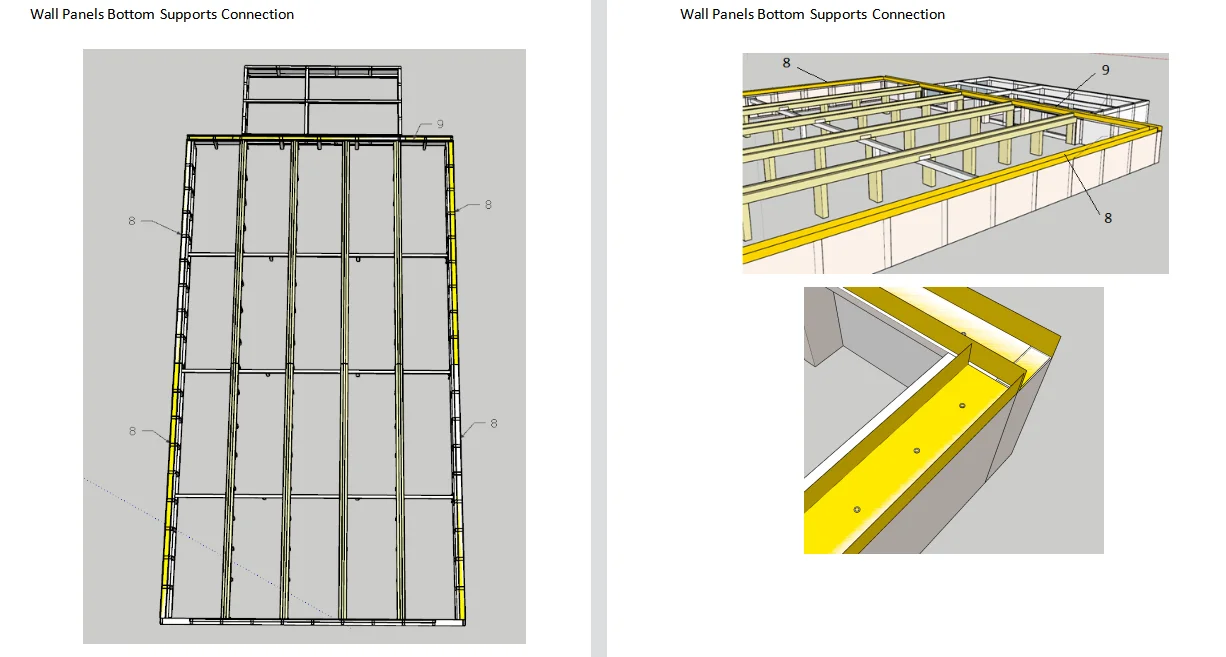

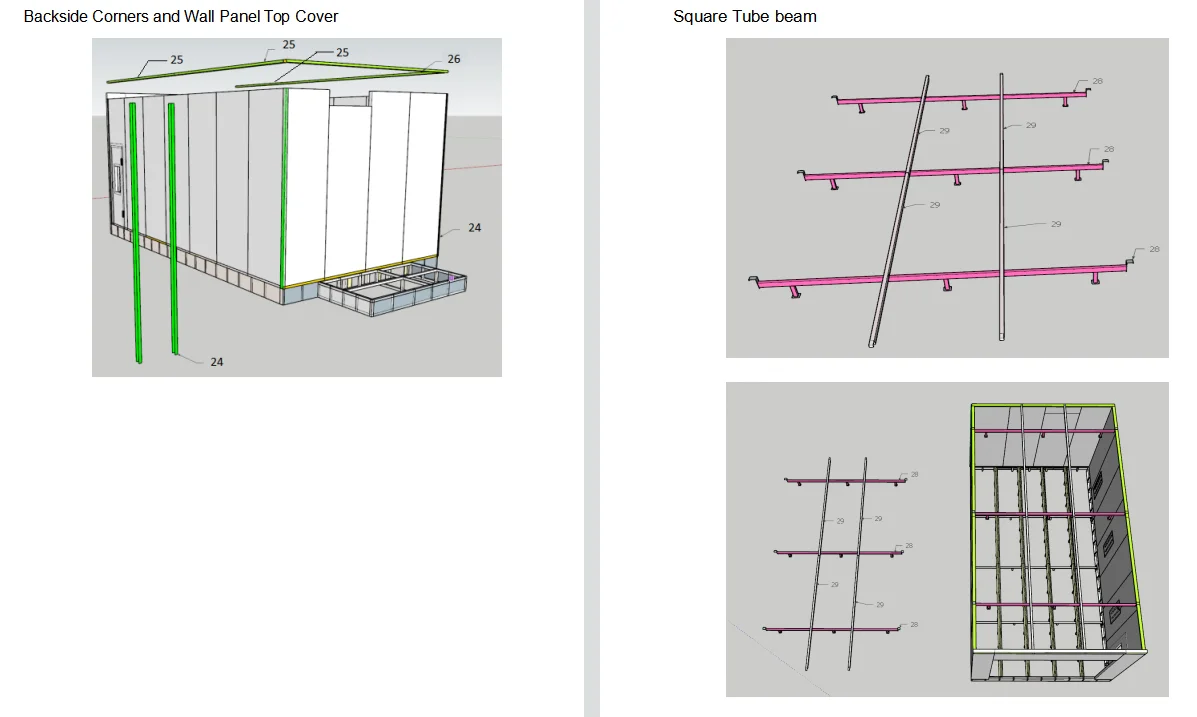

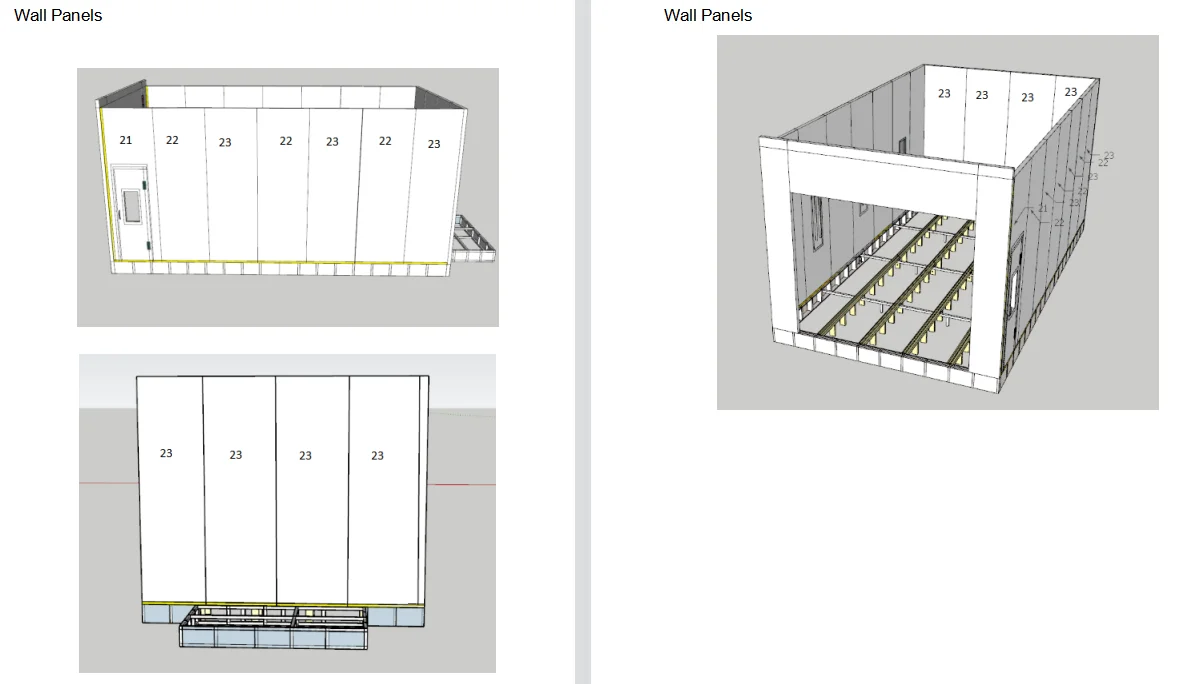

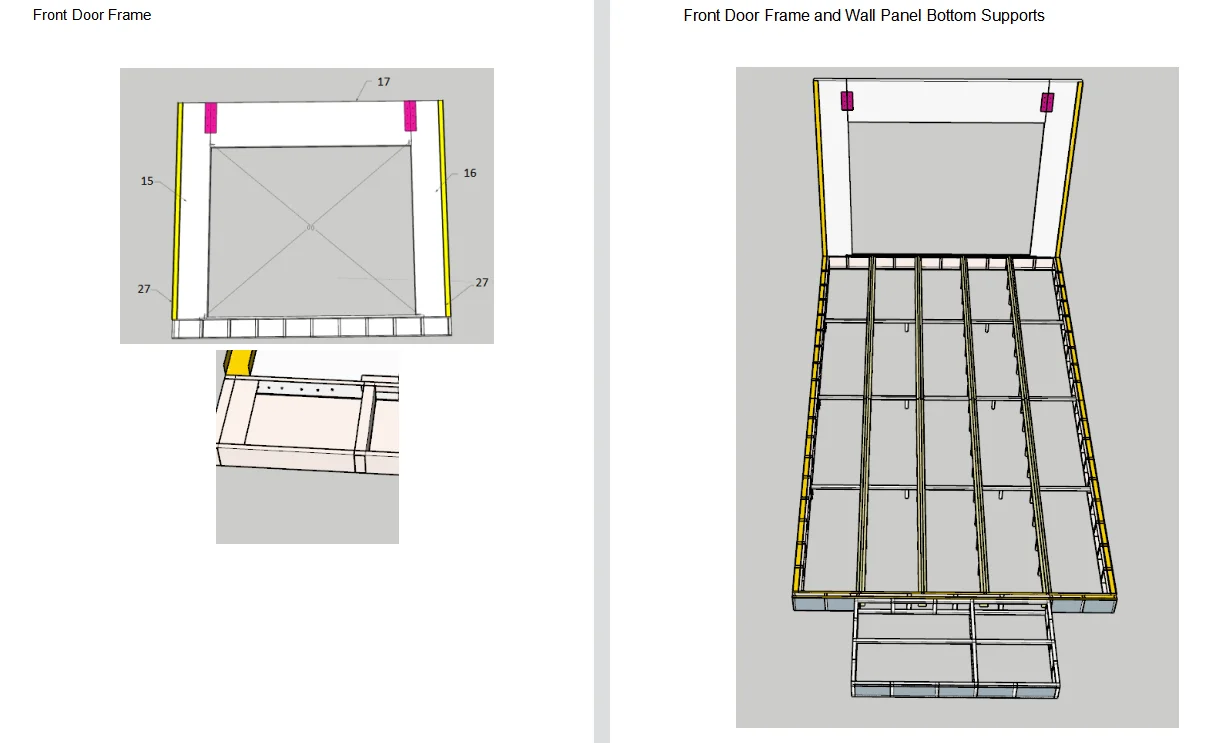

Paint Booth Installation

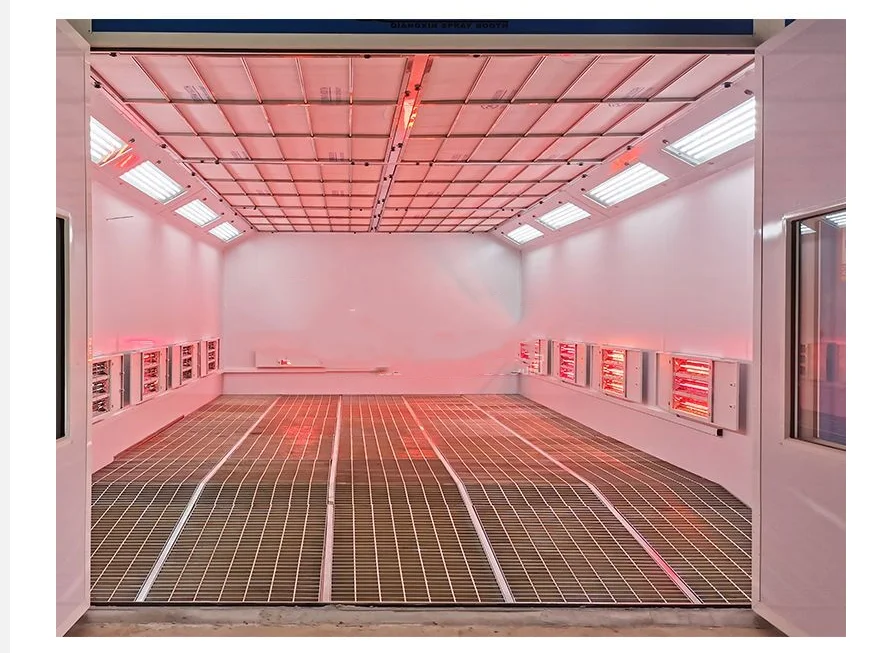

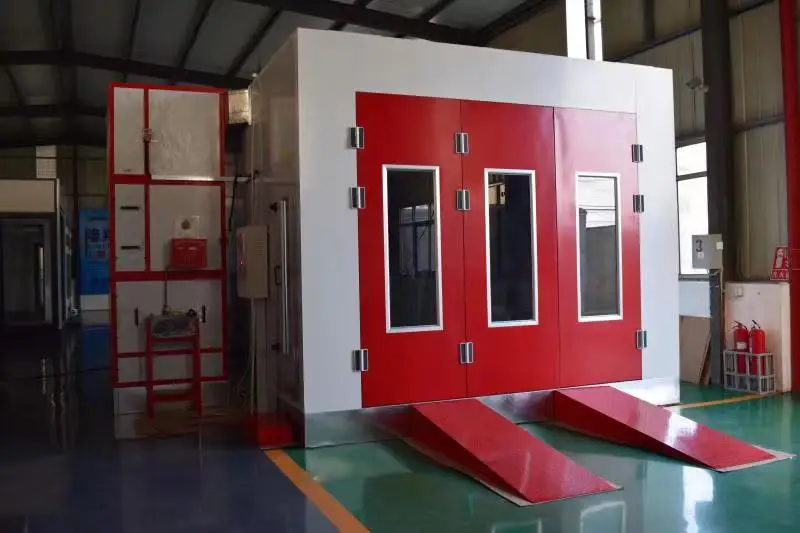

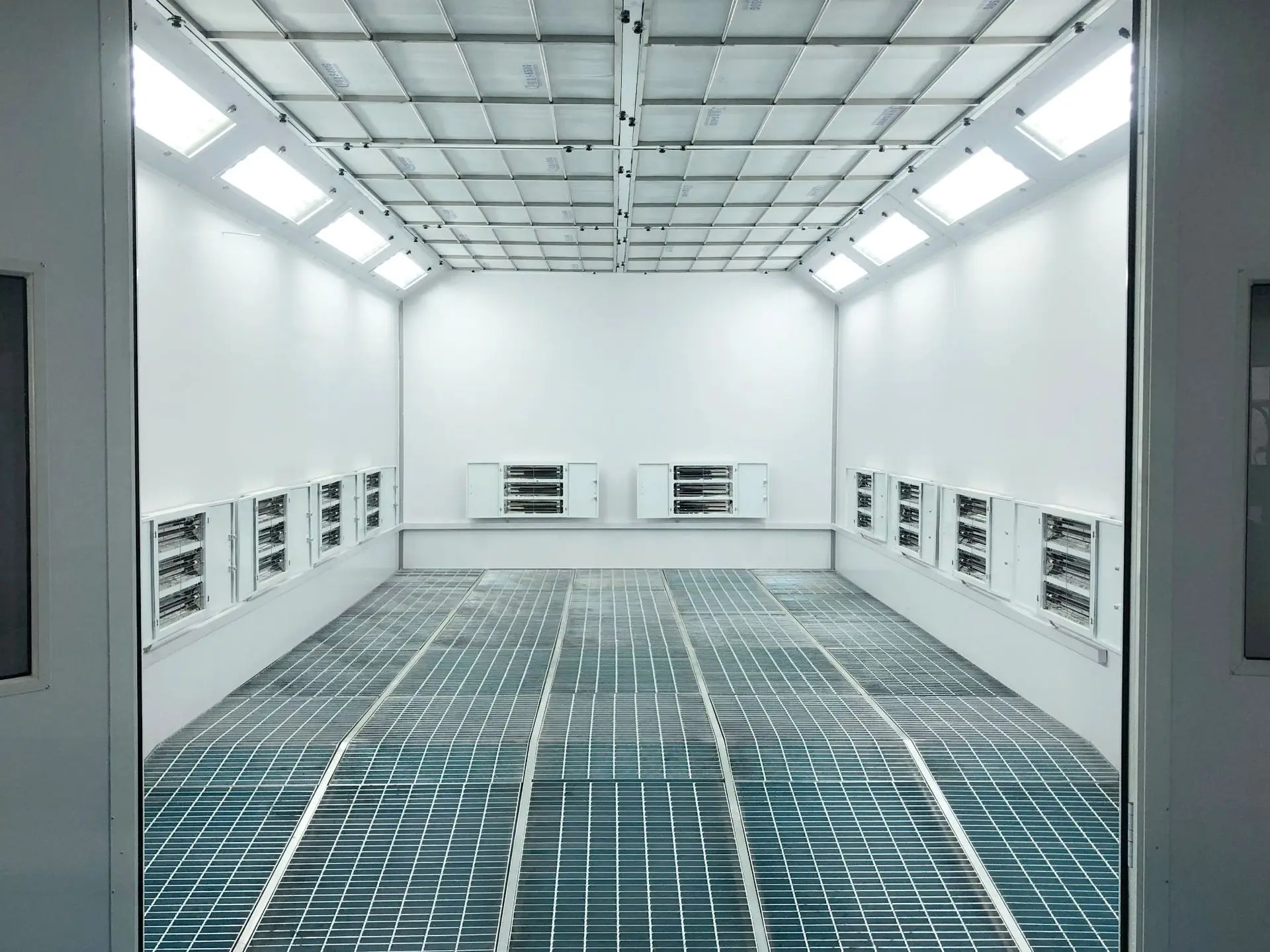

Details Images
Packing & Delivery
Exhibition
Company Profile

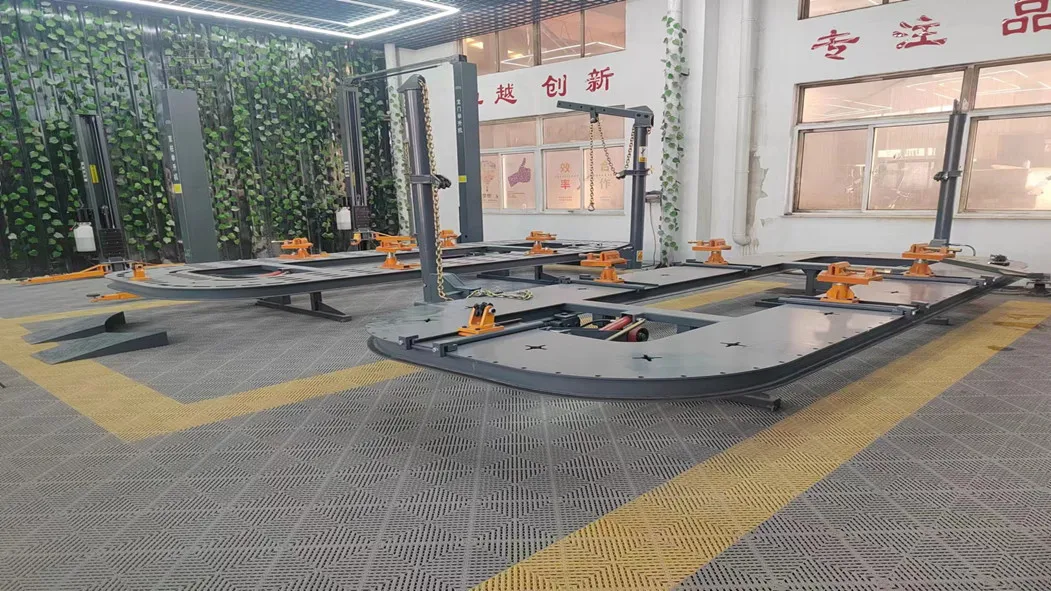

Yantai Delilai Automobile Calibration Equipment Co.Ltd is a professional car testing manafacture and exptorter.Located in Yantaicity,Shandong province with convennient transportation access .We specialize in the desgin ,developement and production of autorepair and maintenance euipment,such as auto body frame machine,spray booth,auto lift,,wheel balancer,kings of tools ,wheel alignment and related products .
All of our products comply with international quanlity standards and are greatly appreciated in a variety of different marktets
throughout the world .We have ISO certificate ,CE certificate,SGS certificate etc. So our well-euipped facilities and excellent
quanlity control throughout all stages of production enables us to guarantee toal customer satisfaction .
Now our products are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. Besides we also have outstanding customer service. Hope you are the next cooperative partner with us.
throughout the world .We have ISO certificate ,CE certificate,SGS certificate etc. So our well-euipped facilities and excellent
quanlity control throughout all stages of production enables us to guarantee toal customer satisfaction .
Now our products are widely used in various domestic and foreign repair shops and 4S vehicle maintenance stations. Besides we also have outstanding customer service. Hope you are the next cooperative partner with us.
FAQ
Q. What is your terms of payment?
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: What is the regular color? May I order a special color I like?
A:The regular color is Blue, Orange, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A:Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q. How about your delivery time?
A:Generally, it will take 30 to 60 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q: What is the regular color? May I order a special color I like?
A:The regular color is Blue, Orange, Red. Also we can do customize one for you.
Q: Can you supply OEM service?
A:Yes, we can, some customers prefer that use their Logo, their color. And we are glad to help them open their market.
Q: What is the warranty time?
A: Warranty time is 12 months. Parts have free replacement when damaged during this time.
