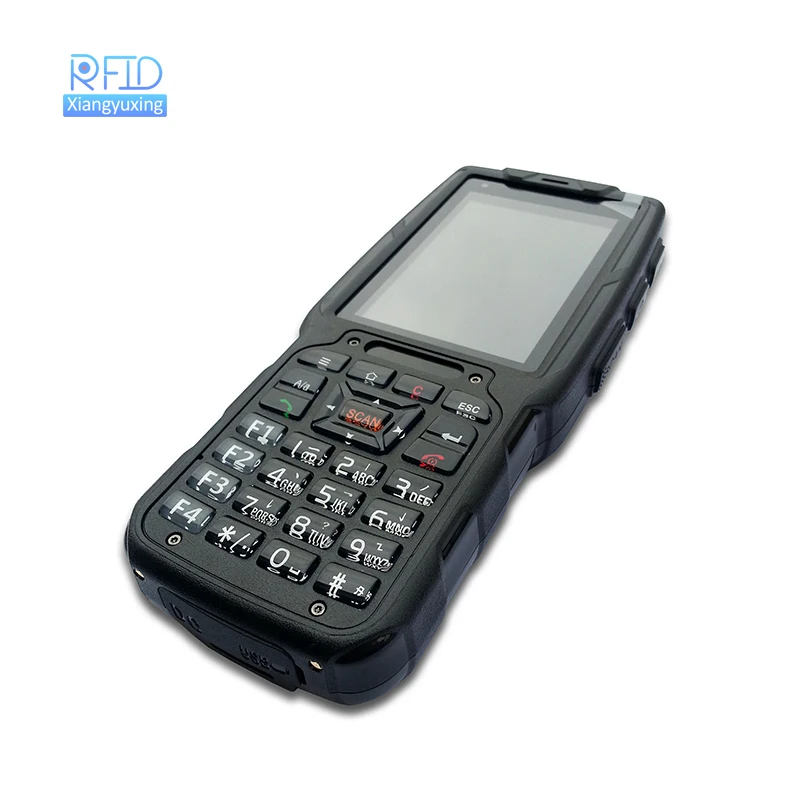

Factory Rugged Android Handheld Mobile Terminal Pda 1d 2d Qr Barcode Scanner With WiFi 4G Camera Keyboard Pdas
- Category: PDAs >>>
- Supplier: Shenzhen,Xiangyuxing,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Specification
Structural Parameter | ||
Dimensions | 162mm(L) X 58mm(W) X 22.7mm(D) | |
Weight | <300g | |
Display Screen | 3.2-inch display, 320*480 | |
Expand Port | Nano-SIM Card, SD (TF) Card | |
Interfaces | Type-C,OTG,extended thimble | |
Touch Screen | Industrial grade touch screen (supports gloved touch) | |
Battery Capacity | Rechargeable Li-polymer Battery 4.35V 5200mAh | |
Speaker | Support | |
Key | 29-key keyboard with side 6 keys | |
Performance Parameter | ||
OS | Android 8.1/6.0 | |
CPU | Quad core ARM Cortex-A53 1.3 GHZ | |
RAM+ROM | 1GB +8GB/ 2GB +16GB(optional) | |
Expansion | SD/TF port (Max up to 32G) | |
Data Communication | ||
WI-FI | Support 802.11 a/b/g/n/ | |
FDD/TDD-LTE 4G | 2G:GSM(850/900/1800/1900Mhz) 3G:WCDMA(850/900/1900/2100Mhz) CDMA EVDO:BCO 4G: (B1/B3/B5/B7/B8/B20/B38/B39/B40/B41) | |
WCDMA 3G | ||
GSM 2G | ||
Blue tooth | Blue tooth 4.0 | |
Standard Modules | ||
Camera | 5MP autofocus with LED fill flash | |
GPS | GPS/AGPS,BeiDou | |
Operating Environment | ||
Operating | -20°C to 50°C | |
Storage Temperature | -20°C to 60°C | |
Environment Humidity | 5%RH-95%RH(no condensation) | |
Drop Specifications | 6 sides can bear impact from 1.5m drop to cement floor in the range of operating temperature | |
Roll Specifications | 500 times/0.5m, roll on 6 sides contact area | |
Sealed Environment | IP65 | |
Barcode Scanning (OPTIONAL) | ||
2D SCANNER | Minde660 | |
1D Symbologies | UPC-E,EAN-13,EAN-839code ,Cross 25 code ,Matrix 25 code,codebar128UCC/EAN 128(GS1-128)SBT 128 93code ,China Post,China Finance ,GS1DataBar,GS1 DataBar Truncated 3,GSDataBar Limited ,GS1 DataBar Expanded | |
2D Symbologies | PDF417,MicroPDF417,QRMicroQR,Data Matrix,Hanxin code,Aztec,GS1 Com-posite | |
NFC Reader (Optional) | ||
Frequency | 13.56MHz | |
Protocol | ISO14443A/B,ISO15693,NFC-IP1,NFC-IP2,etc. | |
Range | 2-5cm | |
LF Reader(Optional) | ||
Frequency | 125k/134.2k | |
Protocol | ISO11784/ISO11785; ISO18000-2(FDX-B ) | |
Chips | EM4100、4200、TK4100、T5567/T5577、HI TAG2、EM4305、 | |
Range | 2-5cm | |
Accessories | Battery, power adapter, USB charge cable, wrist strap. Stand charger (optional) | |
