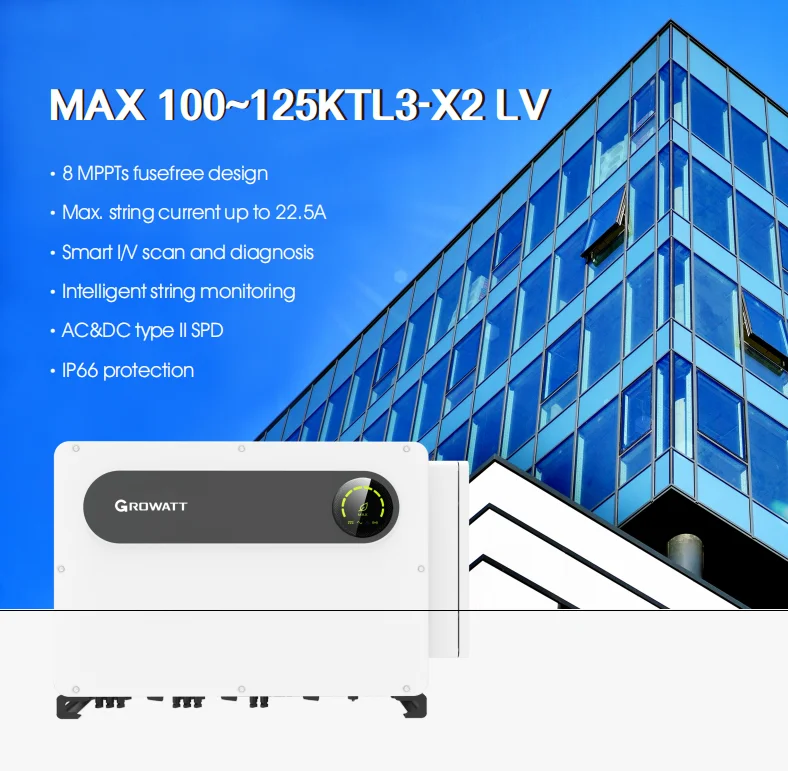

Growatt MAX 125 KTL3 X LV on grid solar inverter DC AC 125kw smart energy controller
- Category: >>>
- Supplier: Hefei Pinergy Solar Technology Co. Ltd.Hefei Ltd.
Share on (1600785830091):
Product Overview
Description
Products Description
Item | MAX 100KTL3-X LV | MAX 110KTL3-X LV |
Input data (DC) | ||
Maximum DC input voltage | 1100V | 1100V |
Rated input voltage | 600V | 600V |
MPPT operating voltage range/rated input voltage | 550V-850V | 550V-850V |
Maximum input current for each set | 32A | 32A |
Number of MPPT / MPPT groups per route | 10/2 | 10/2 |
Output data (AC) | ||
Rated AC output power | 100KW | 110KW |
Maximum AC output power | 110KVA | 121KVA |
Maximum AC output current | 158.8A | 174.6A |
Rated output voltage/range | 230V/400V | 230V/400V |
Rated grid frequency/range | 45~55Hz/55-65 Hz | 45~55Hz/55-65 Hz |
Power factor | >0.99 | >0.99 |
Power factor regulation range | 0.8 lead -0.8 lag | 0.8 lead -0.8 lag |
THDi | <3% | <3% |
Efficiency | ||
Maximum efficiency | 98.7% | 98.7% |
European weighted efficiency | 98.4% | 98.4% |
MPPT efficiency | 99.9% | 99.9% |
General data | ||
Dimensions (wide/high/thick) mm | 970/640/345 | 970/640/345 |
Weight | 84kg | 84kg |
Operating temperature range | -30°C ... +60°C | -30°C ... +60°C |
Maximum altitude | 3000m | 3000m |
Electricity consumption at night | < 1 W | < 1 W |

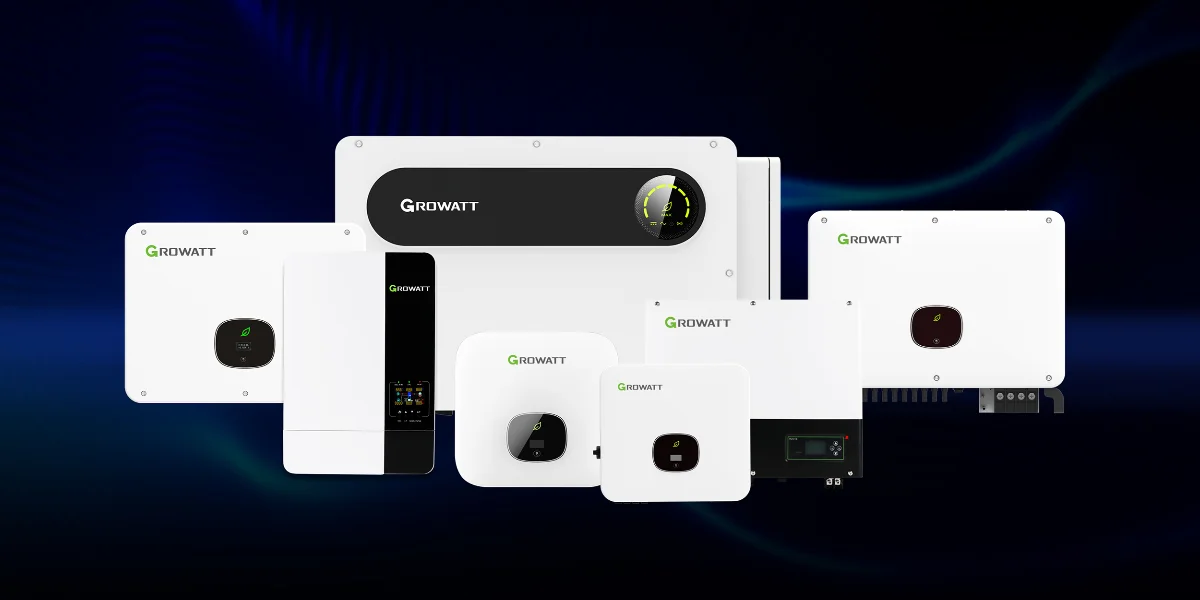

Growatt is a new energy enterprise dedicated to the R&D and manufacturing of PV inverters including on-grid, off-grid and storage inverters, and user side smart energy management solutions as well. The power capacity of Growatt on-grid inverters ranges from 1 kW to 100 kW, meanwhile its off-grid and storage inverters cover a power range from 1 kW to 630 kW. Growatt inverters are extensively used worldwide for applications in residential, commercial, PV poverty alleviation, utility-scale scenarios as well as other storage power station projects.

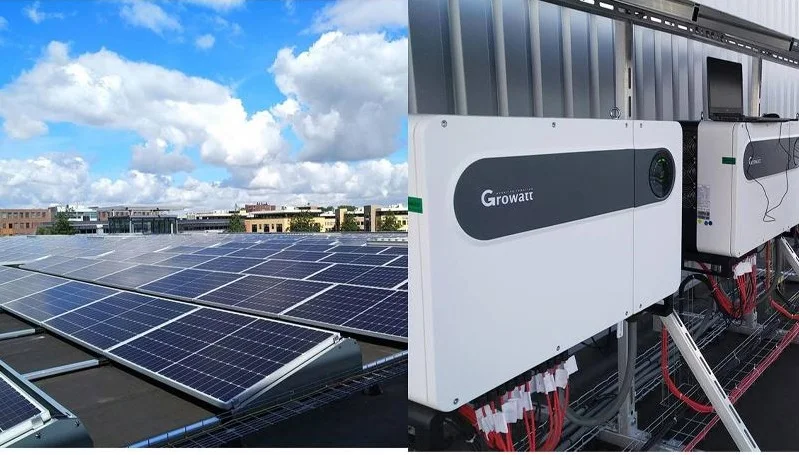

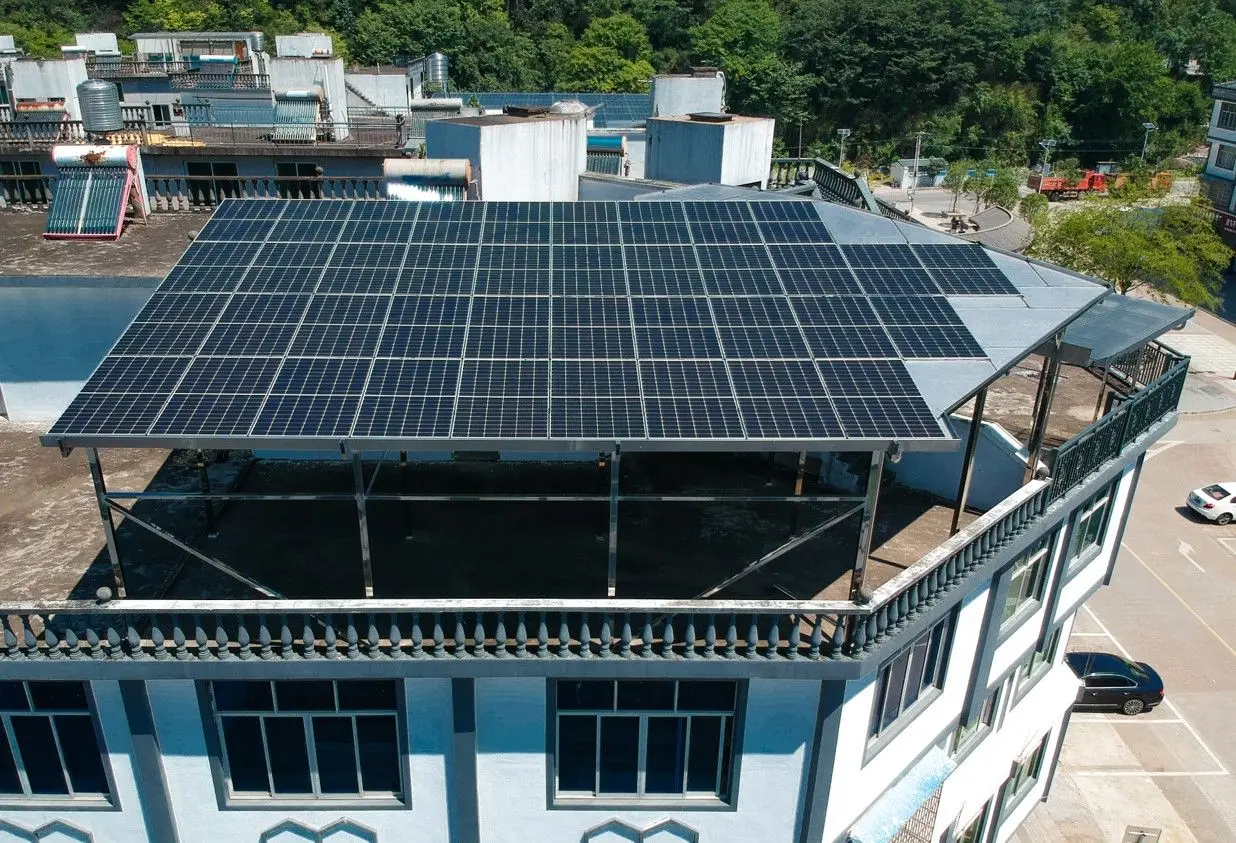

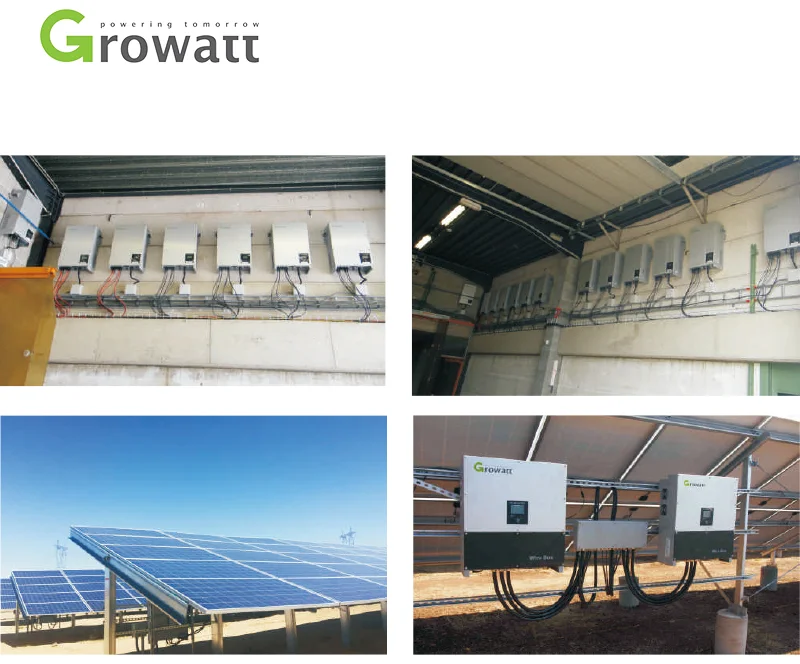

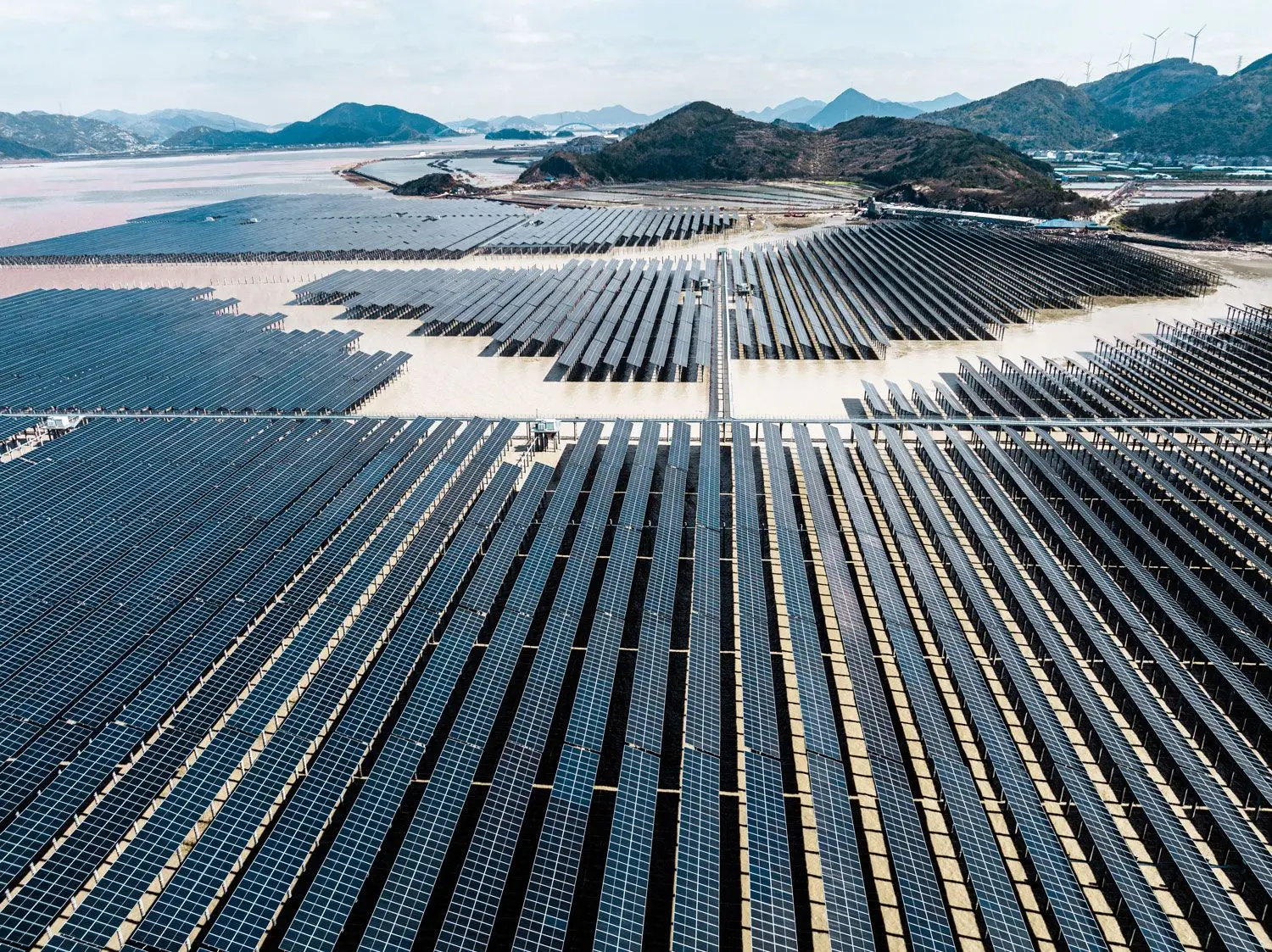

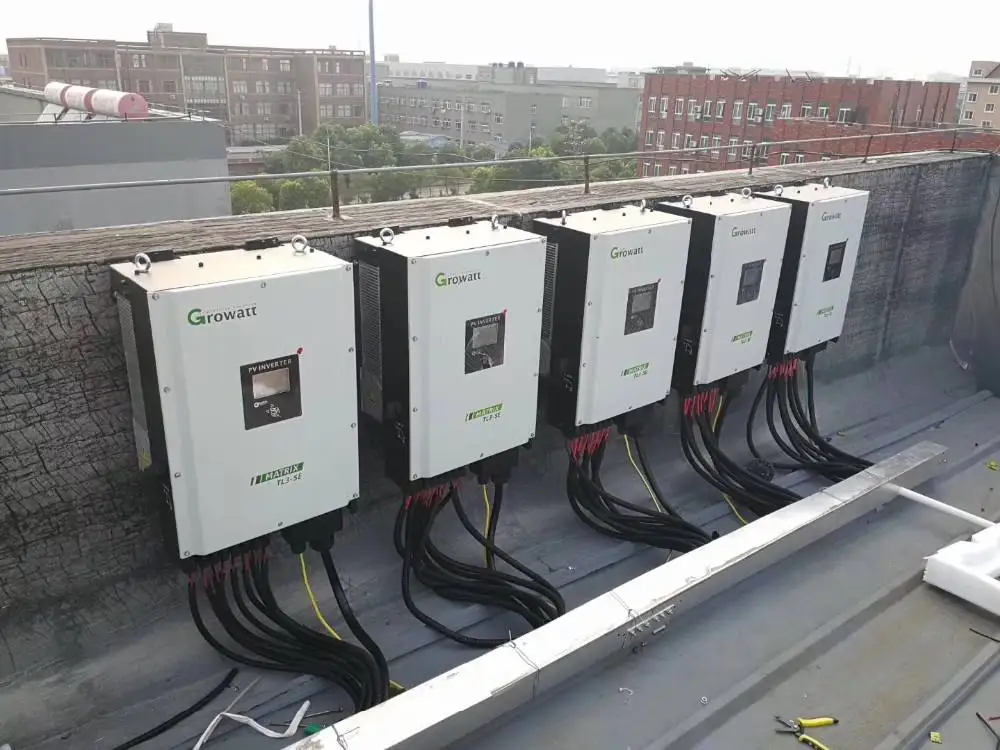

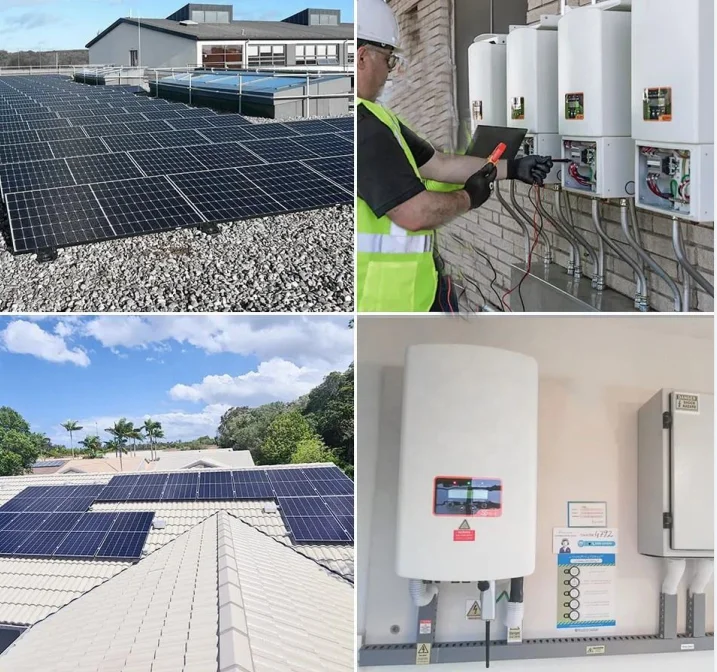

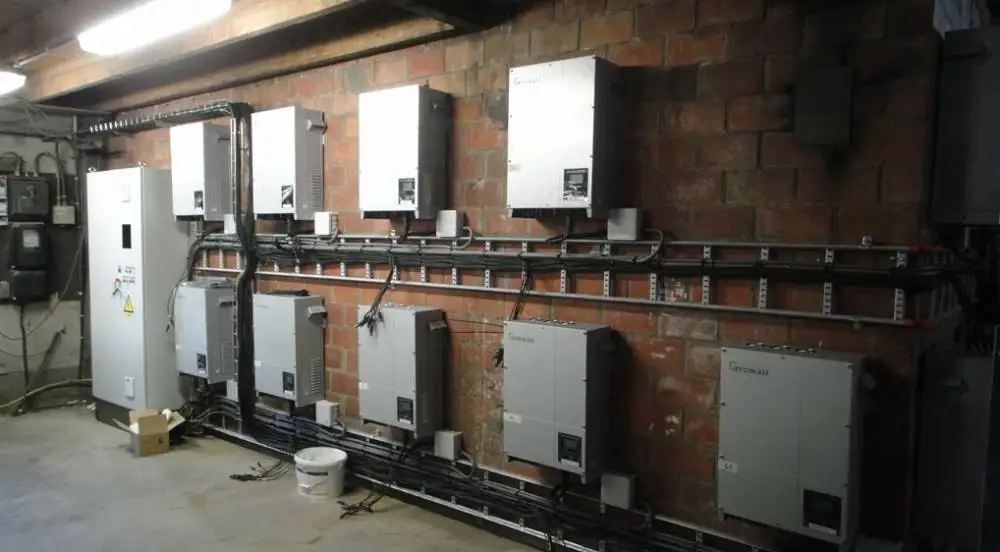

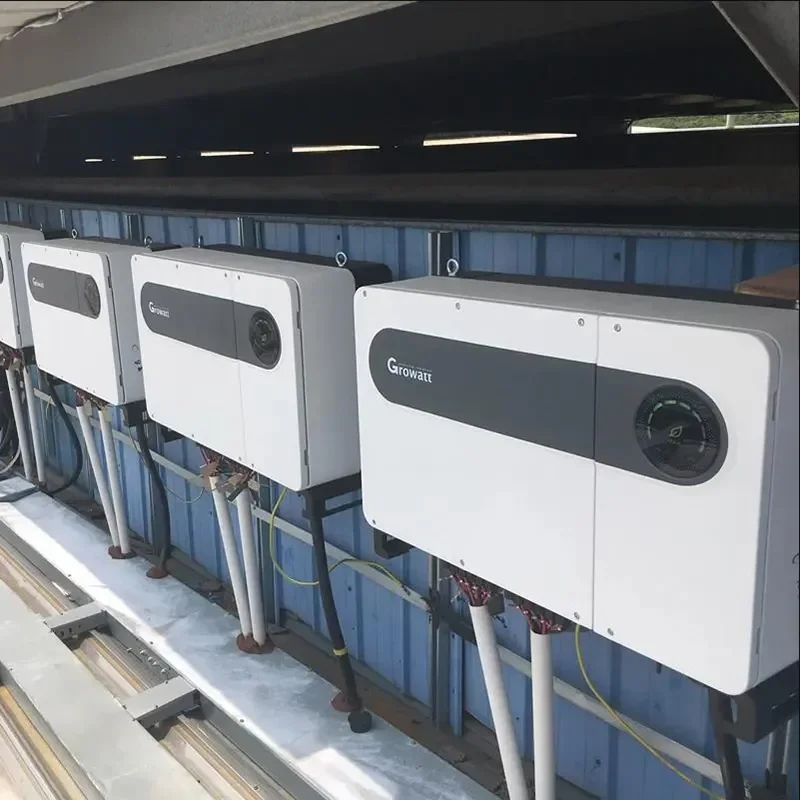

Successful Project

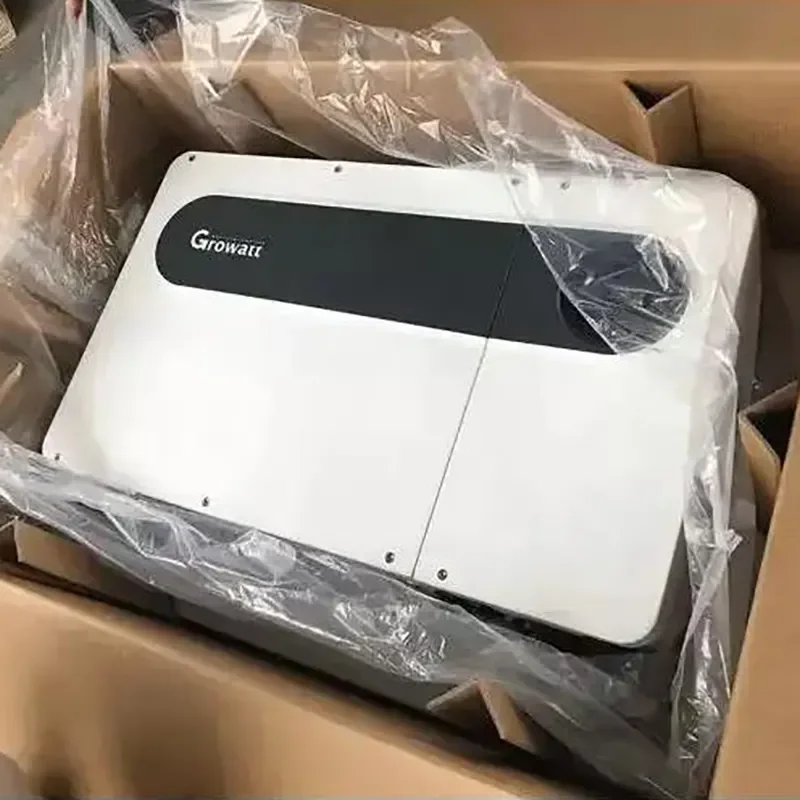

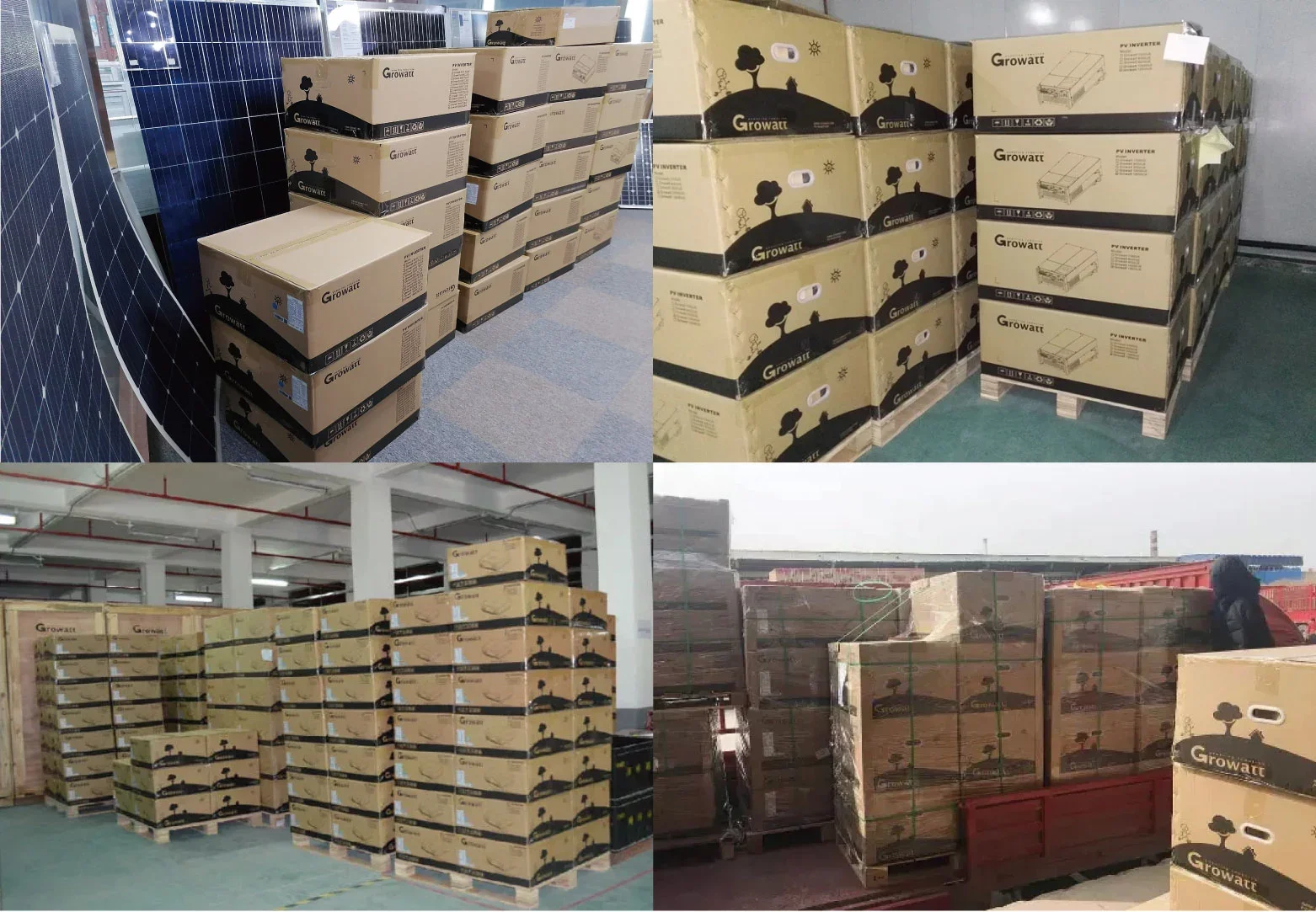

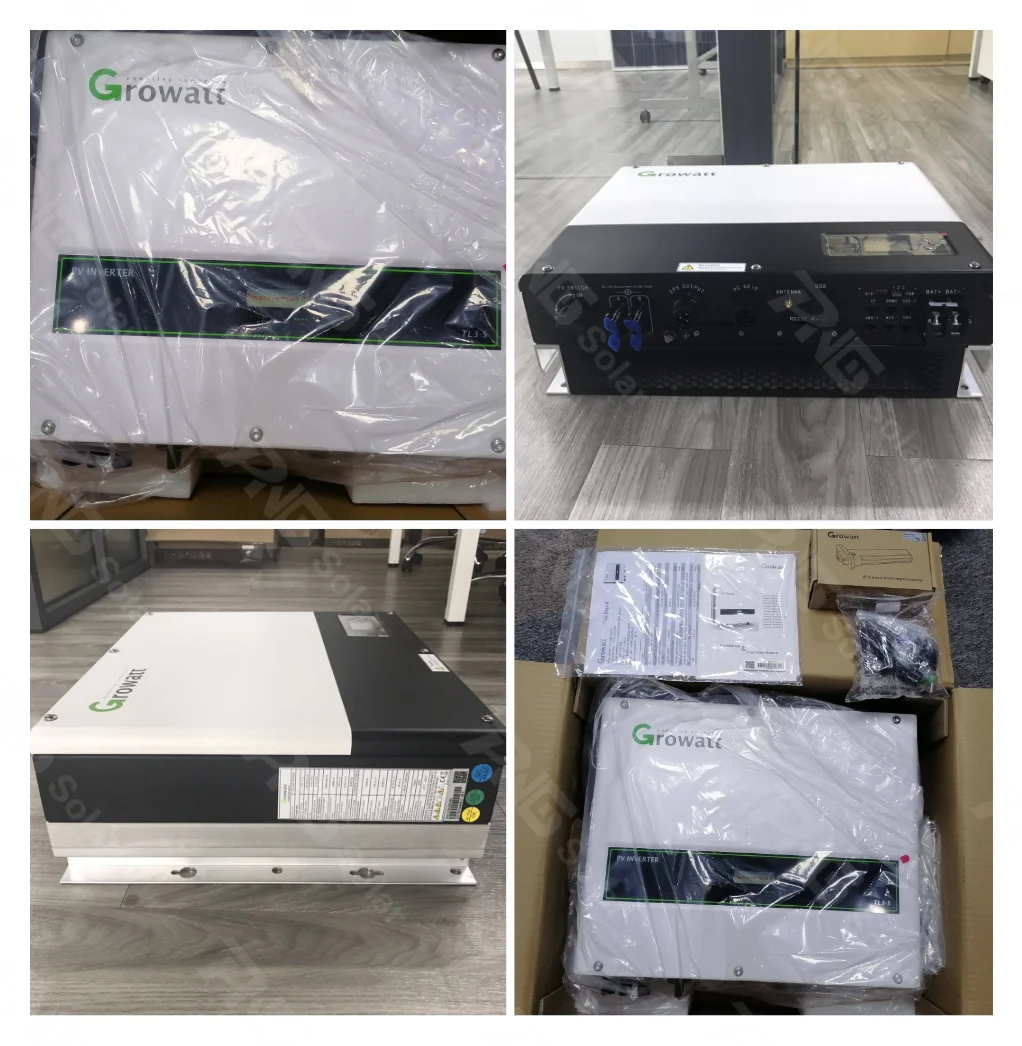

Packing & Delivery

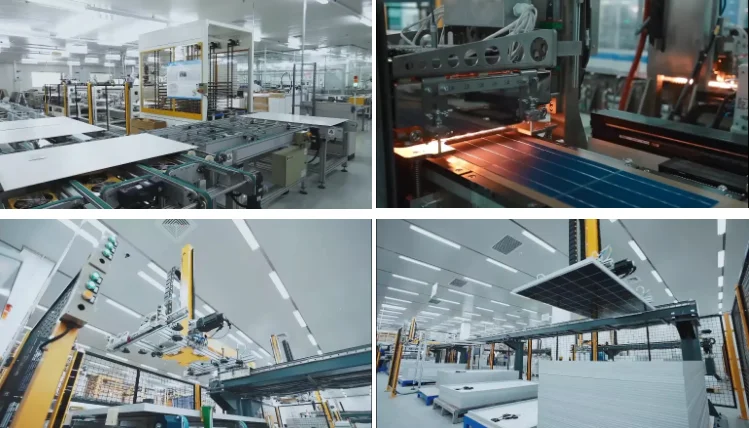

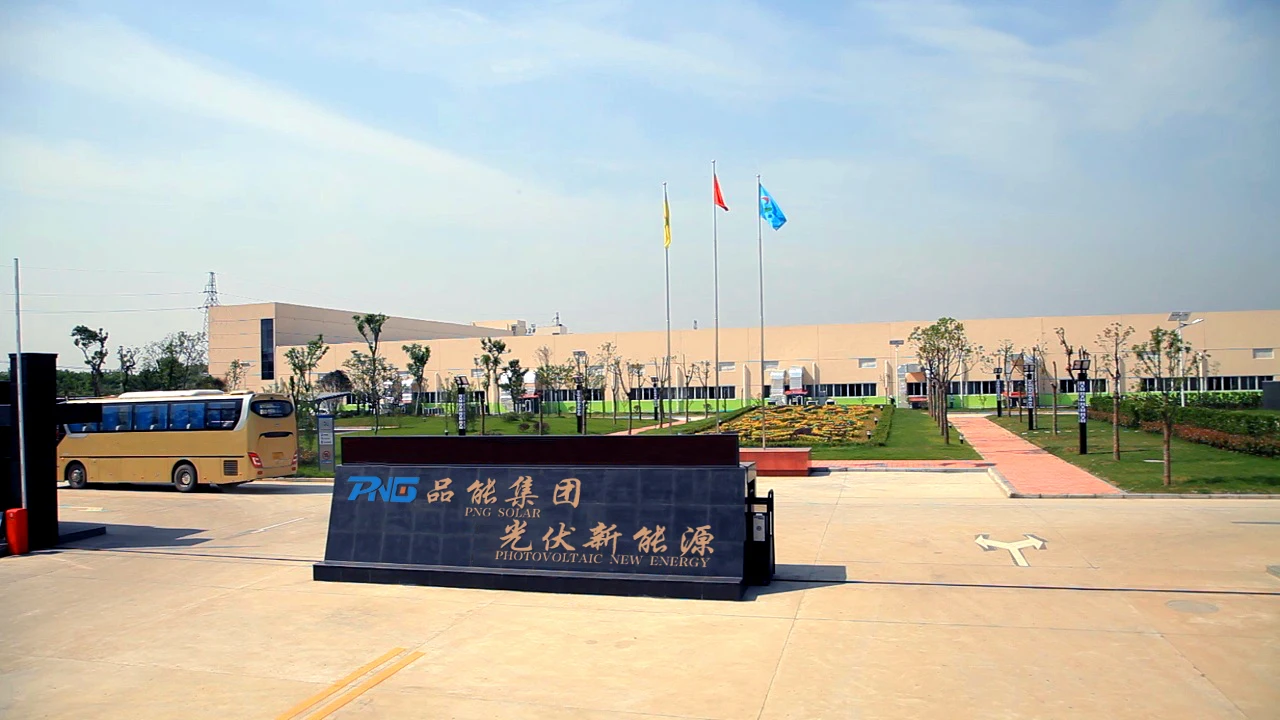

Company Profile
Hefei Pinergy Solar Technology Co.,Ltd is a global clean energy solution service provider and high-tech photovoltaic module manufacturer. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world.
FAQ
1. Q: Do you have your own factory?
A: Yes, we do. Our loctation is in Luan city, Anhui province.
2. Q: How can I visit your factory? A: Please let us know bofore you go there. We will arrange time to pick you up and show you around.
3. Q: Do you provide free sample?
A: Usually we do not provide free sample.
4. Q: Could you print our company LOGO on the nameplate and package? A:
Yes, we can.
5. Q: Do you accept custom design on size?
A: Yes, if the size is feasible.
6. Q: Do you have solar project engineer who can guide me to install system?
A: Yes, we have a professional engineer team. They can teach you how to install a solar system.
