Product Overview
Description
Application
Hydroseeding machine application
GHS Series hydroseeding machine and hydroseeder technology is more and more applied in road greening, expressway slope greening, erosion control, landfill cover, mine reclamation, dust control, landscaping, etc. projects and also involves in planting permanent vegetation, spraying slurry, slope protection, grassing and erosion prevention.
Product Description

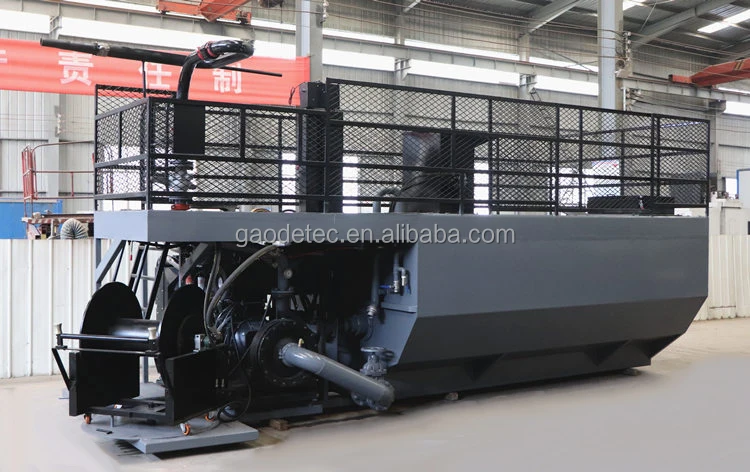

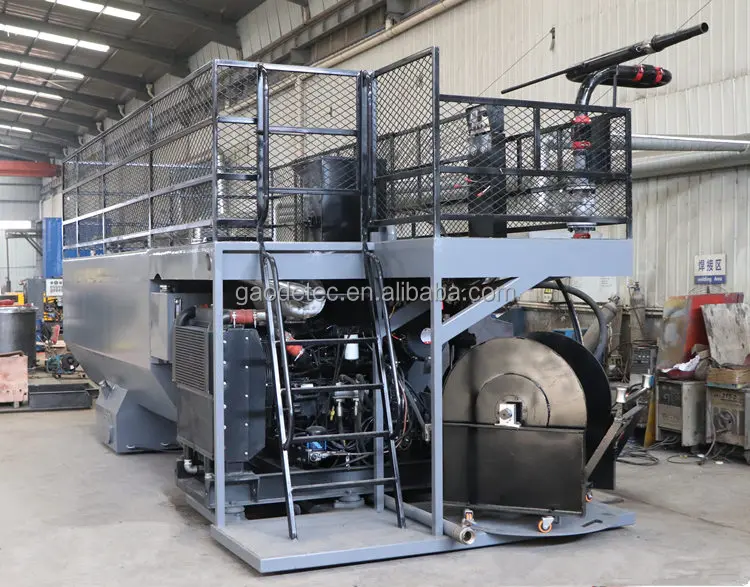

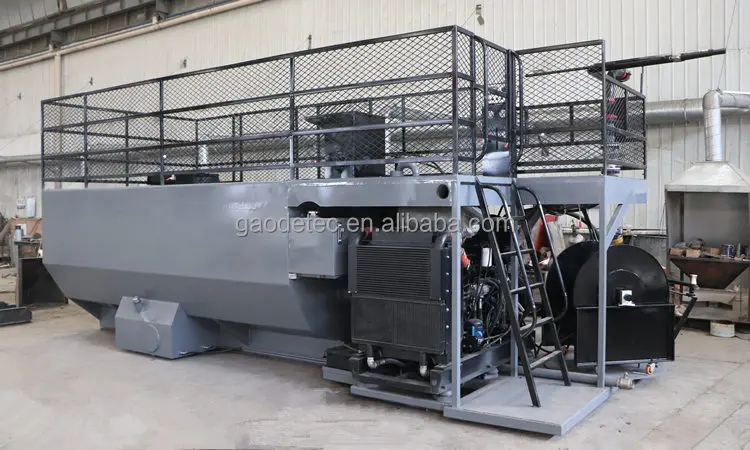

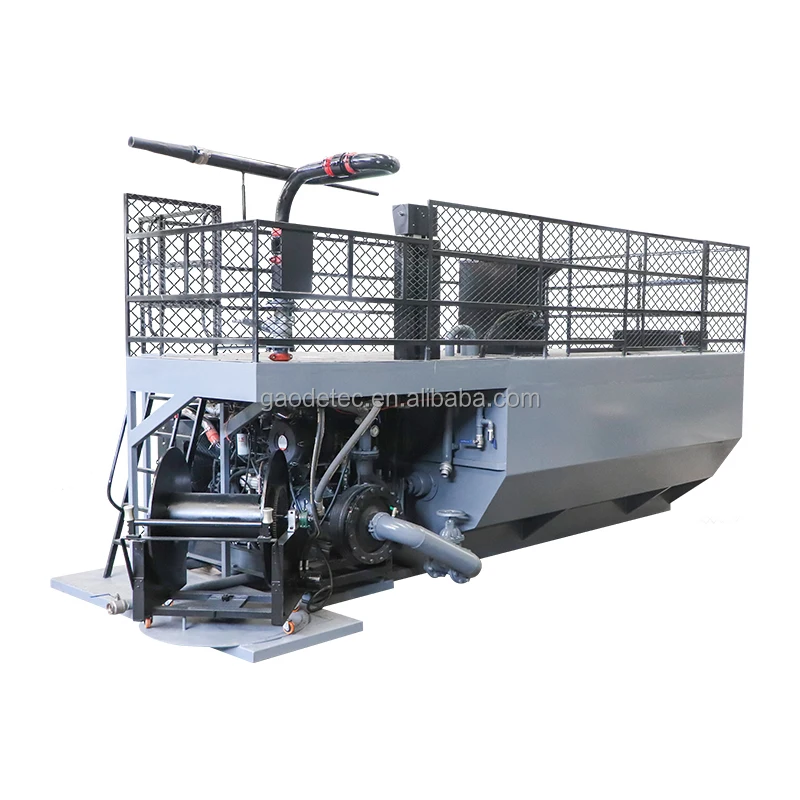

Description of Hydroseeder machine
GHS13190 hydroseeder machine is 13000L tank capacity. It is big capacity, wide applicability, simple operation and maintenance hydroseeder.
GHS13190 hydroseeding machine with following outstanding features:
1. More horsepower with high efficiency: 190kw Cummins diesel engine, Industrial grade Air-controlled large torque clutch;
2. Specially design centrifugal pump: 6''x3'', capacity 120m3/h;
3. Spraying distance of up to 85m from cannon;
4. Dual cannons design for spraying on both sides of the machine for hard-to reach areas;
5. Swivelable hydraulic hose reel with reel in and reel out functionality;
6. Twin mechanical agitators with helical paddle orientation and liquid recirculation;
7. Removable hoppers for mulch hatch and normal fill well;
8. Centralized electronic control to improve work efficiency;
9. Wireless remote control make operate more easily during work.
2. Specially design centrifugal pump: 6''x3'', capacity 120m3/h;
3. Spraying distance of up to 85m from cannon;
4. Dual cannons design for spraying on both sides of the machine for hard-to reach areas;
5. Swivelable hydraulic hose reel with reel in and reel out functionality;
6. Twin mechanical agitators with helical paddle orientation and liquid recirculation;
7. Removable hoppers for mulch hatch and normal fill well;
8. Centralized electronic control to improve work efficiency;
9. Wireless remote control make operate more easily during work.
Model | GHS15190 | GHS13190 | |
Power | 190KW, Cummins engine, water-cooled | ||
Tank Size | Liquid capacity: 15000L (4000Gallon) | Liquid capacity: 13000L (3450Gallon) | |
Working capacity: 13500L (3560Gallon) | Working capacity: 11700L (3100Gallon) | ||
Pump | Centrifugal pump: 6’’x3’’ (15.2X7.6cm), 120m3/h@14bar, 32mm solid clearance | ||
Agitation | Twin mechanical agitators with helical paddle orientation and liquid recirculation | ||
Rotating speed of mixer shaft | 0-130rpm | ||
Maximum horizontal conveying distance | 85m | ||
Spraying guns type | fixed standing gun and pipe gun | ||
Height of fence | 1100mm | ||
Options | Stainless steel material for whole unit, Hose Reel with hose, Remote control unit, Trailer | ||
Product Display
Related Products
Packing & Delivery
Company Profile
Contact Us
In order to confirm which type hydroseeder machine suitable for your job, could you please help us to confirm the following information:
1. What's the project you will use the machine do? for slope greening or playground greening or other?
2. What's the mixing tank capacity you need? 1000L, 2000L, 3000L, 5000L, 6000L, 8000L, 10000L, 13000L, 15000L or bigger or smaller?
3. About the engine, do you need Chinese brand engine or Cummins engine?
4. May I know your Telephone number or other online talking way? So we could talk about the goods more freely!
