25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water
25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water
25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water
25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water
25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water
25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water
25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water

25 Tubes Manufacture Solar Kaymark Approved High Performance Evacuated Tube Heat Pipe Solar Thermal Collector for Hot Water

Share on:


Price:$166.00 - $259.00
Price in USD:Details

Quantity:


Product Overview

Description





Products Description


Sunrain Solar Keymark Certificated Heat Pipe Solar Collector
1). Optional 1.8 to 2.2mm thickness vacuum tubes;
2). Easy Plug-in Installation and Transport;
3). Suitable for both Pitch Roof and Flat roof;
4). Suitable for both Thermosiphon Recycle System and Pump Recycle System;
5). Max. working pressure 0.6MPa;
6). 15-20 Years Lifetime Design and 5 Years Guarantee;
7). Hail resistance: 25mm;
8). Stable and Reliable Performance, Well Wind Resistance;
9). Cold Resistance -45℃；
10). Low pressure drop;
11). It can Meet Domestic/school/hotel/commercial hot water demand;
12). Accept OEM and ODM;




Specification


Model No.
TZ58/1800-25R5
Manifold (interior)
Red Copper
Manifold (exterior)
Aluminum Alloy

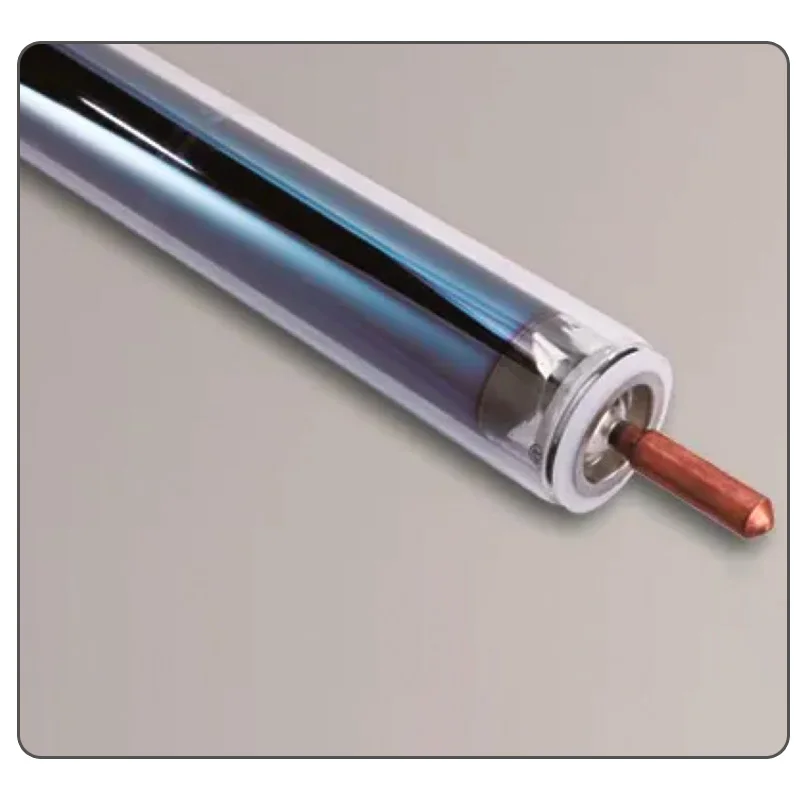

Tube
58*1800mm Three Target Vacuum Tube With Heat Pipe and Aluminum Fin
Thickness of cover tube
1.8 to 2.2mm Optional Choices  (2.2mm thickness for Hail resistance: 25mm)
Transmission of cover tube
91%
Absorber
ALN/SS-ALN-CU,  94% Absorptance,  7% Emittance
Gross Area
3.95 SQM
Empty Collector Weight
95 KG
Volume of Liquid
1.42 L
Max. operation pressure
0.6 Mpa
Max. testing pressure
1.2 MPa
Diameter of heat pipe condenser
14 mm
Stagnation temperature
225 ℃
Frame
Aluminum Alloy
Insulation
Glass Fiber
Installation
Pitch Roof,  Flat Roof

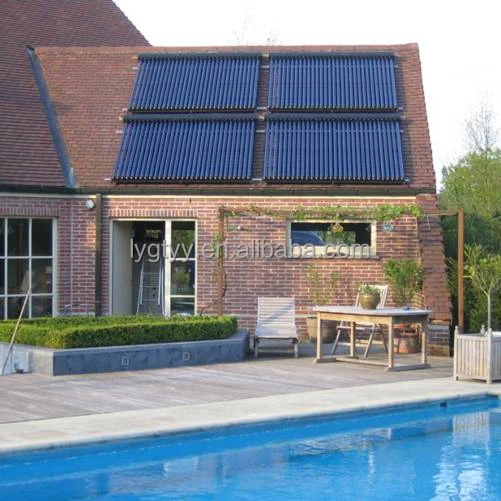

Wide Application


Solar collector can be widely installed to household, school, hotel and other commercial projects;




FAQ


1. Is your company a trading company or factory?
We are the top1 manufacture of vacuum tubes solar collector, flat panels, air to water heat pump in China, you are welcome to visit our factory.

2. What is your Delivery Time?
LCL order/Sample vacuum tubes solar collector order: 7days.
Full container vacuum tubes solar collector orders: 10days.

3. What is your MOQ?
No MOQ limited for vacuum tubes solar collector order;
