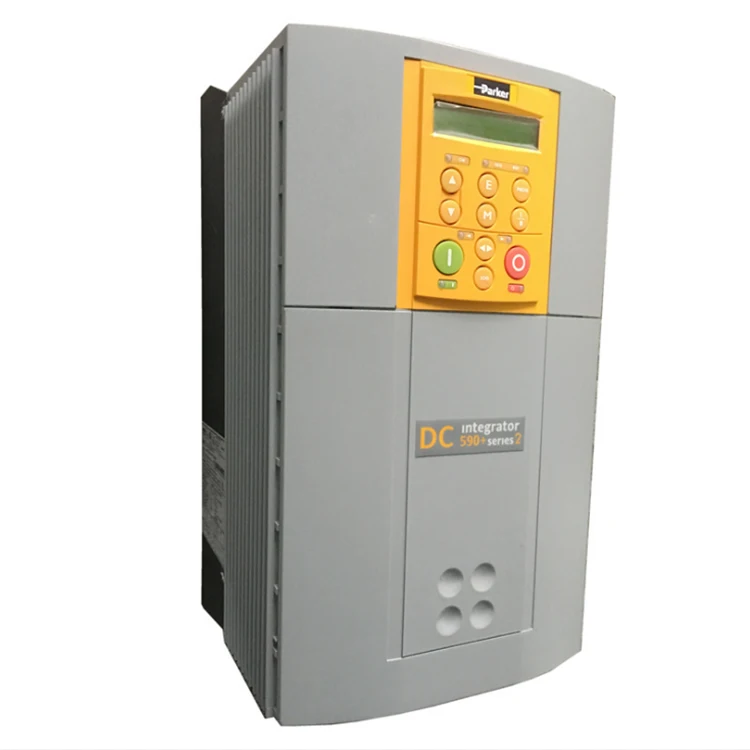

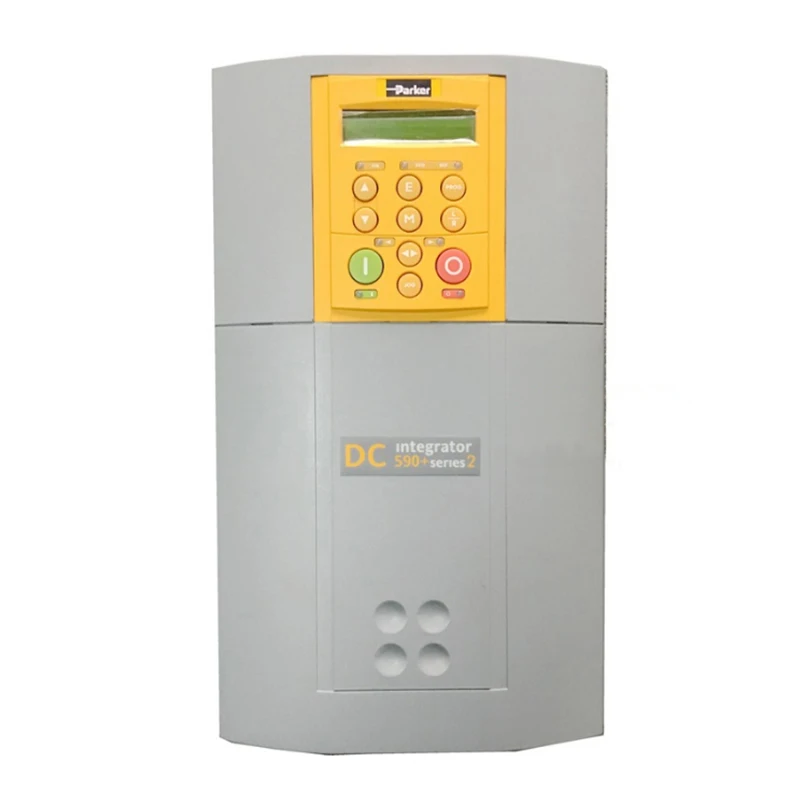

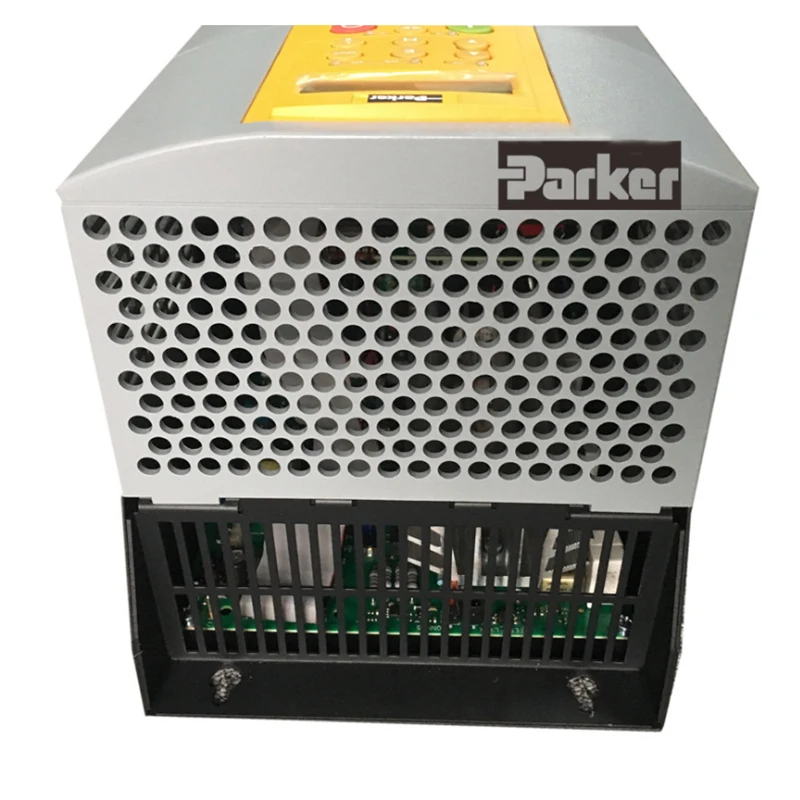

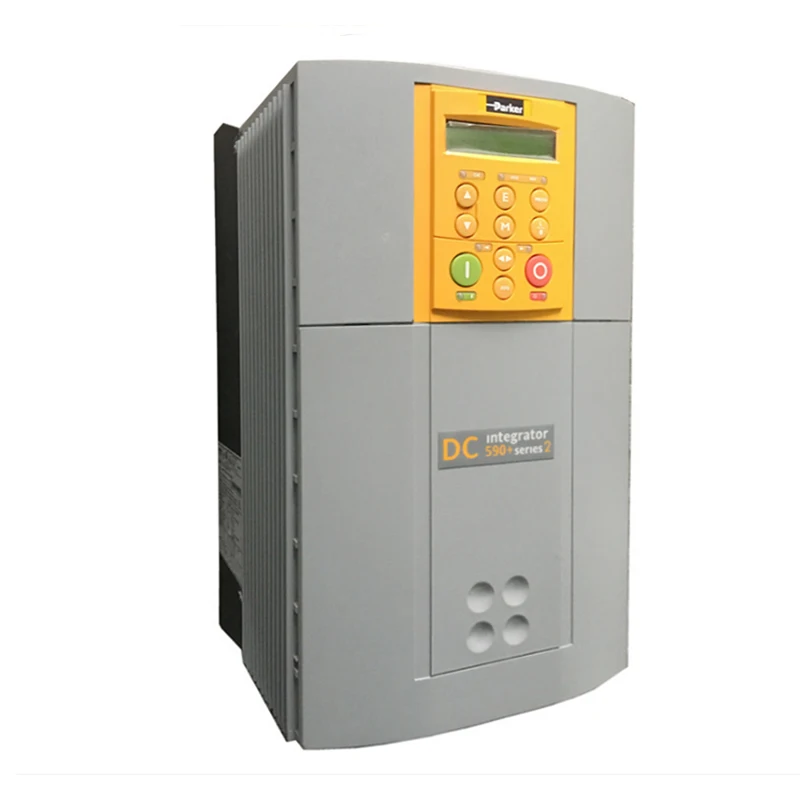

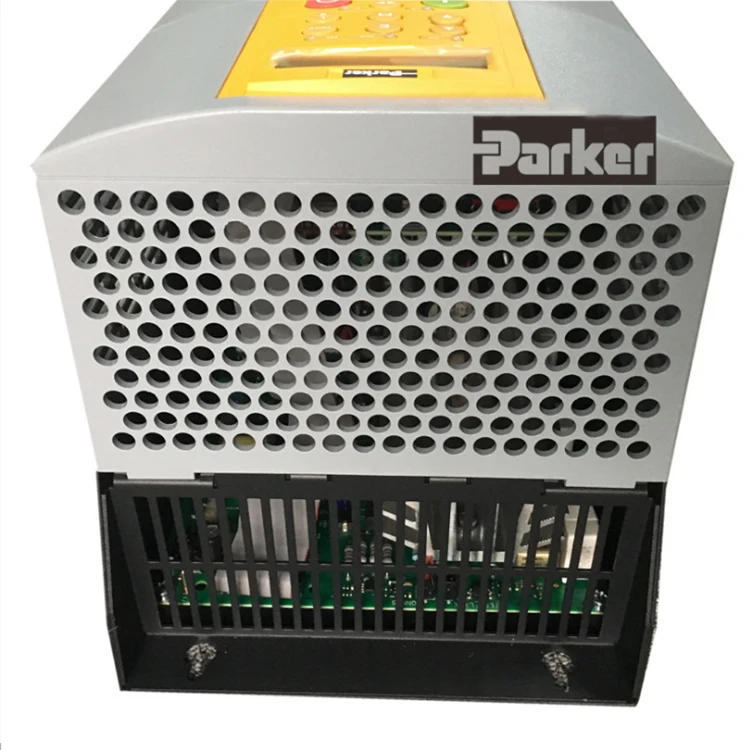

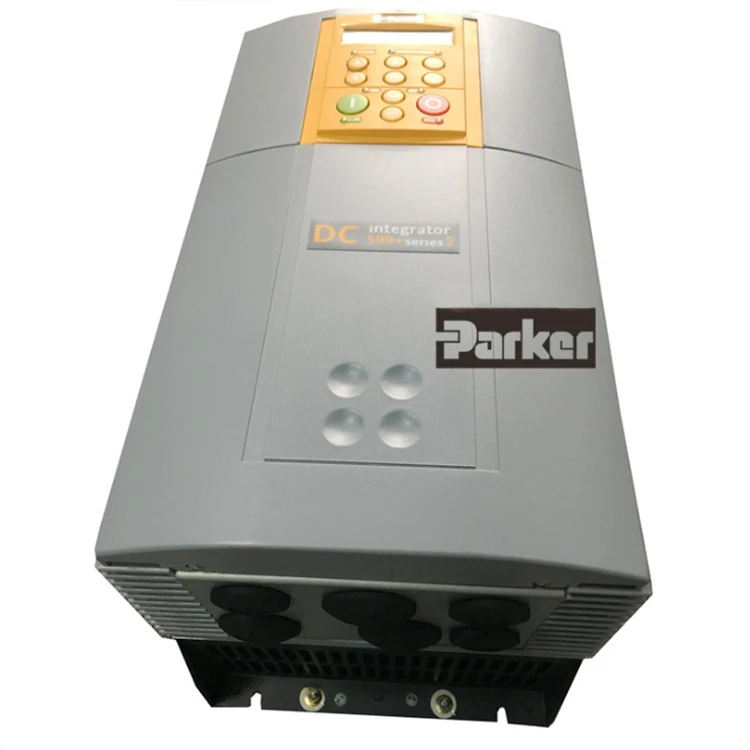

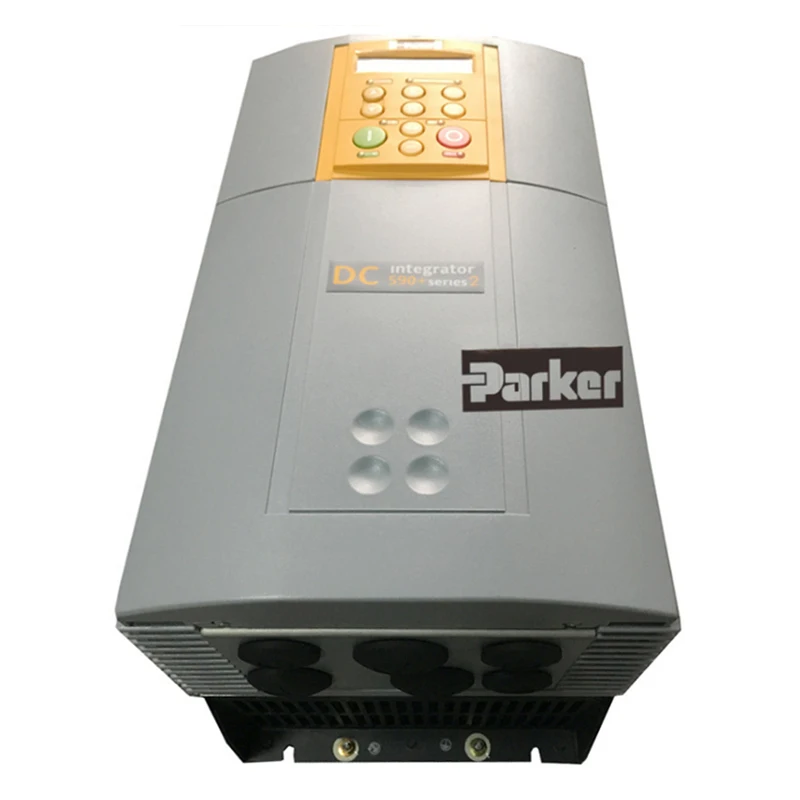

PARKER called DC Current 15 kw DC motor armature Current 35 a matching 591P/0011/0035/500/UK/AN/0/0/0
- Category: >>>
- Supplier: Anhui Tailaide Automation Technology Co. Ltd.
Share on (1600786755362):
Product Overview
Description
Product Description
DC Drive 590P Series
The 590P Series DC Drive is designed for use in a suitable enclosure, with associated control equipment. The unit accepts standard
three-phase ac supply voltages in the range 110V to 660V, depending upon the model, and is suitable for the powering of DC shunt
field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
The coding circuitry adjusts automatically to accept supply frequencies between 45-65Hz and possesses high immunity to
supply-borne interference. The armature controllers are phase rotation insensitive.
three-phase ac supply voltages in the range 110V to 660V, depending upon the model, and is suitable for the powering of DC shunt
field and permanent magnet motors, providing controlled dc output voltage and current for armature and field.
The coding circuitry adjusts automatically to accept supply frequencies between 45-65Hz and possesses high immunity to
supply-borne interference. The armature controllers are phase rotation insensitive.
Product Details
Product Name | DC Drive 591 Series |
Model Number | 591P-53235010-P00-U4A0 |
Type | DC/DC Inverters |
Input Voltage | 200V-500V |
Output Voltage | 500V |
Rated Current | 35A |
Output Frequency | 50Hz/60Hz |
Package Size | 375*200*220MM |
Weight | 6.4KG |
Warranty | 12 Months |
DC Drive - 590P Series | #590P-53215010-P00-U4A0
The advanced 590P series 4-quadrant variable speed DC drives offer current ratings of up to 1950A, function block programming,
configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications.
The advanced 590P series 4-quadrant variable speed DC drives offer current ratings of up to 1950A, function block programming,
configurable I/O and extensive application software, meeting the demands of the most complex DC motor control applications.
Product specifications
Selection Table
590P Model | Rated current | Input voltage | Mode of operation |
590P/0015 | 15A | 500v | Reversible |
590P/0035 | 35A | 500v | Reversible |
590P/0040 | 40A | 500v | Reversible |
590P/0070 | 70A | 500v | Reversible |
590P/0110 | 110A | 500v | Reversible |
590P/0165 | 165A | 500v | Reversible |
590P/0180 | 180A | 500v | Reversible |
590P/0270 | 270A | 500v | Reversible |
590P/0380 | 380A | 500v | Reversible |
590P/0500 | 500A | 500v | Reversible |
590P/0725 | 725A | 500v | Reversible |
590P/0830 | 830A | 500v | Reversible |
591P/0015 | 15A | 500v | Irreversible |
591P/0035 | 35A | 500v | Irreversible |
591P/0040 | 40A | 500v | Irreversible |
591P/0070 | 70A | 500v | Irreversible |
591P/0110 | 110A | 500v | Irreversible |
591P/0165 | 165A | 500v | Irreversible |
591P/0180 | 180A | 500v | Irreversible |
591P/0270 | 270A | 500v | Irreversible |
591P/0380 | 380A | 500v | Irreversible |
591P/0500 | 500A | 500v | Irreversible |
591P/0725 | 725A | 500v | Irreversible |
591P/0830 | 830A | 500v | Irreversible |
DC Drive 590P/591P Series 15-35A
DC Drive 590P/591P Series 40-165A
DC Drive 590P/591P Series 180A
DC Drive 590P/591P Series 270A
DC Drive 590P/591P Series 380-830A
DC Drive 590P/591P Series
Installation Instructions
Size and Installation -- DC Drive 590 Series
All units are designed for simple and economical panel mounting using keyhole slots.
Plug-in control connectors simplify the fitting and removal of the unit to the panel where possible standard parts are used
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.
throughout the range thereby reducing the variety of spare parts required to maintain a multi-drive system.
For example, the same basic control boards are used in all types of three-phase armature controller regardless of horsepower or bridge configuration.
The control circuit is totally isolated from the power circuit thus simplifying the interconnection of controllers within a system and improving operator safety.
Size and Installation 590P
