Product Overview
Description
Products Description

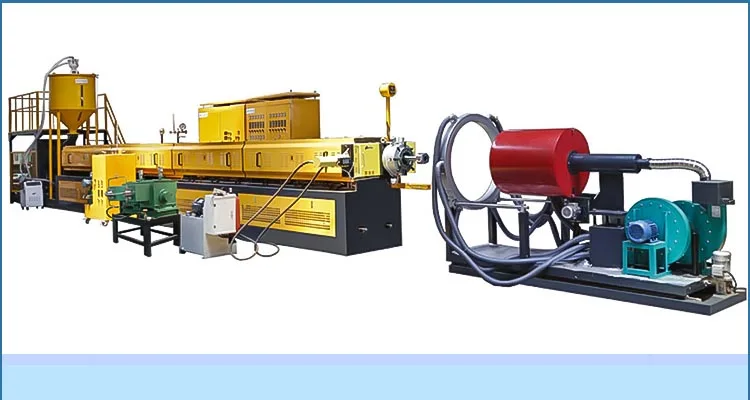

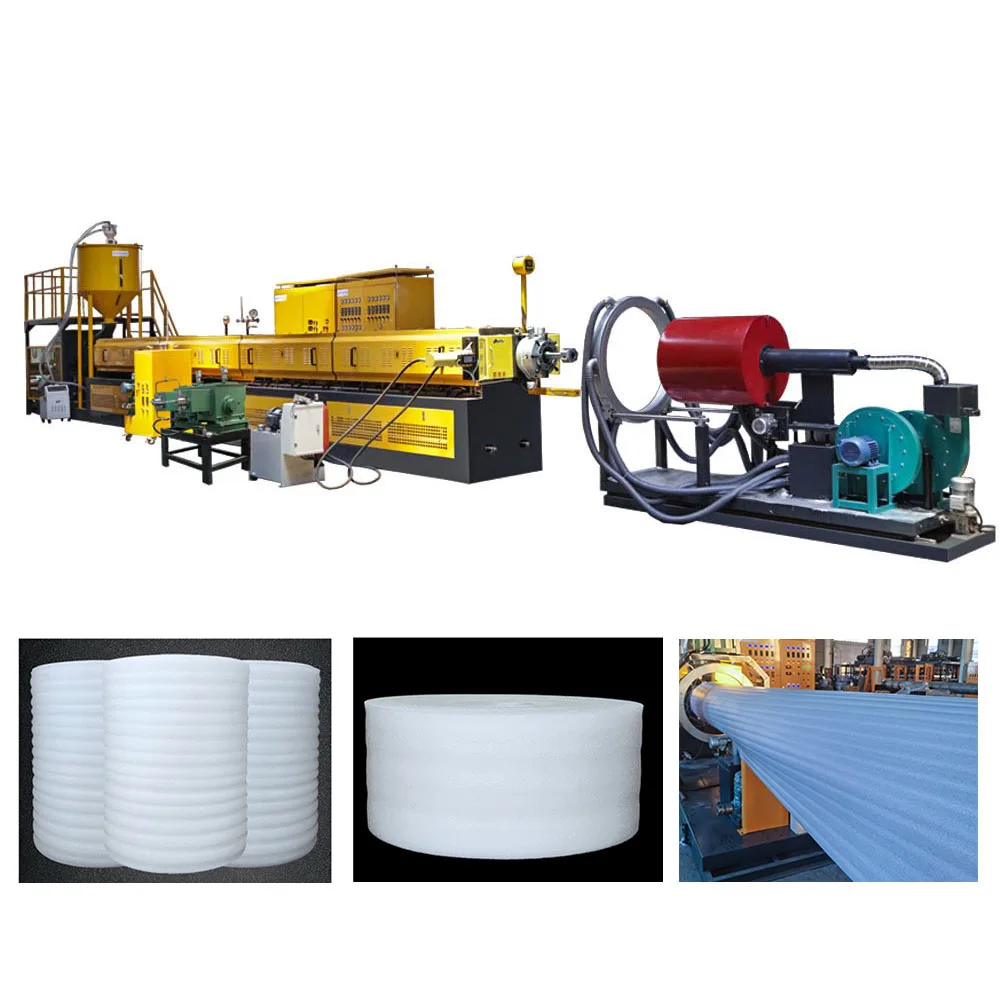

polyethylene epe foam extruder machine production line
polyethylene epe foam extruder machine production line can make different foam sheet widths and thicknesses according to customer requirements. Meanwhile, it can also make foam pipe, foam net, foam rod, foam profile, and so on through changing mould and machine parts.

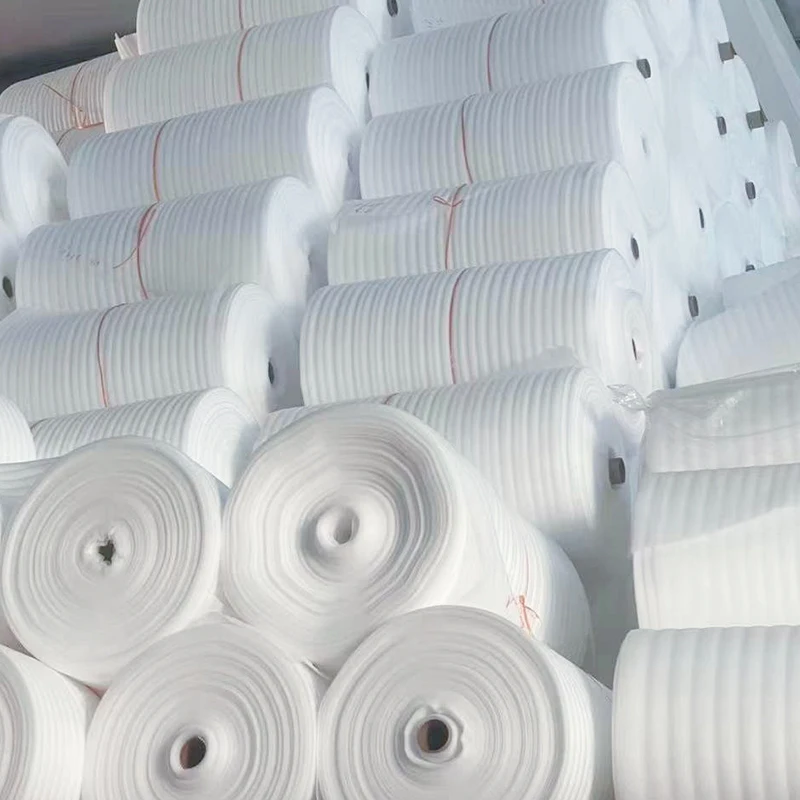

The foam sheet has the features of dampproof, shockproof, soundproof, heat preservation, and good plasticity. After laminating, the foam sheet will get high dampproof performance. These products are mainly used for placing underfloor.
Machine Parmeter
Model | Unit | EPE105 | EPE120 | EPE150 | EPE170 | EPE180 | EPE200 | EPE220 | |||||||
Screw diameter L/D | 105/55:1 | 120/55:1 | 150/55:1 | 170/55:1 | 180/55:1 | 200/55:1 | 220/55:1 | ||||||||
Screw speed | r/min | 5-45 | 5-45 | 5-45 | 5-45 | 5-45 | 5-45 | 5-45 | |||||||
Foam rate | 20-40 | 20-40 | 20-40 | 20-40 | 20-48 | 20-48 | 20-48 | ||||||||
Width of product | mm | 1000-1500 | 1000-2000 | 1000-2000 | 1000-2000 | 1000-2000 | 1000-2000 | 1000-2000 | |||||||
Thickness of product | mm | 0.5-6.5 | 0.8-8 | 1-12 | 2-16 | 2-18 | 3-20 | 4-25 | |||||||
Cooling method | water cooling | ||||||||||||||
total power | kw | 130 | 170 | 240 | 285 | 320 | 350 | 420 | |||||||
Dimensions (L×W×H)(approx) | m | 23×2.3×2.2 | 25×2.3×2.2 | 30×2.3×2.2 | 32×2.3×2.2 | 34x2.8x3.5 | 38x2.8x3.8 | 45X2.8X3.8 | |||||||
Total weight (approx) | t | 9 | 12 | 15 | 17 | 15.5 | 18 | 22 | |||||||

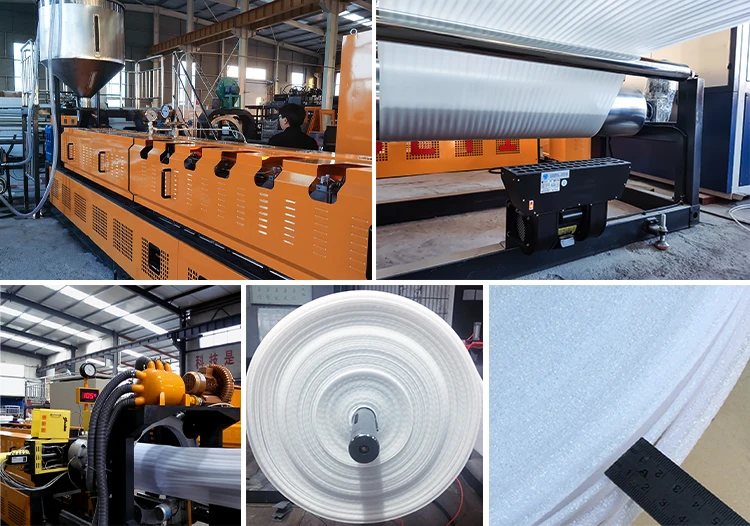

Details Images
Gear Box And Automatic Feeder
1.the driving seystme adopts well-known brands: GUOMAO gear box and Simense motor
2. the whole body of automatic feeding hopper is made from stainless steel #304.
Talcumpowder injection unit
Adopt Italy technology. Double screw substitute single screw, Solve the poor mobility features oftalcum powder.
The motor is controlled by inverter to make talcum powder injection accurate and stable.
The motor is controlled by inverter to make talcum powder injection accurate and stable.
Die Head
Die lip Material：carbonalloysteel
Material：carbonalloysteel the thickness controlof sheet: regulated by the distance between mold heads
Connecting Neck
Neck Model: Cooling water jack，own-made by DEYI company
Function: prevent material sticking at the inlet of hopper when material injecting.
Material: FCD25 mollealle iron
Main Extruder
Special Neck :Cooling water jack，prevent material sticking at the inlet of hopper when material injecting.
Screw And Barrel: 38CrMoAlA nitrogen treatment.
Method of heating：cast aluminum heater
Method of cooling: inner and outer water coooling pipe.
Screw And Barrel: 38CrMoAlA nitrogen treatment.
Method of heating：cast aluminum heater
Method of cooling: inner and outer water coooling pipe.

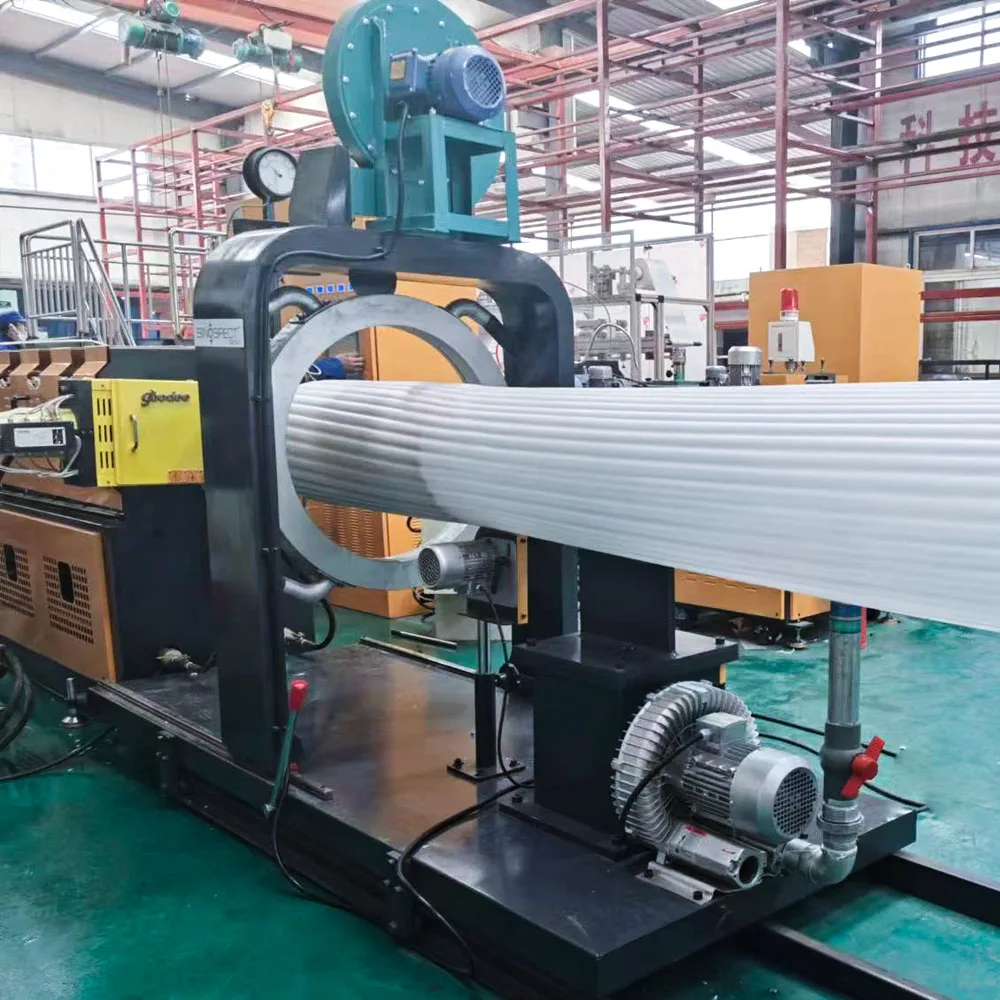

Air ring & shaping drum
Air ring & shaping drum unit aluminum air ring, you can adjust air direction and air flow according to production.The air is more
uniform. The aluminum material is more wearable.Cooling method：wind cooling
Methods for cutting open: round cutter motor driven
Shaping drum size: customer product decided
Haul-off unit
Install static electricity eliminator under haul-off unit (ion fan). \\
The black oneMaterial of expanding roller: stainless steel
Material: STPG tube hard chrome plating
Material: STPG tube hard chrome plating

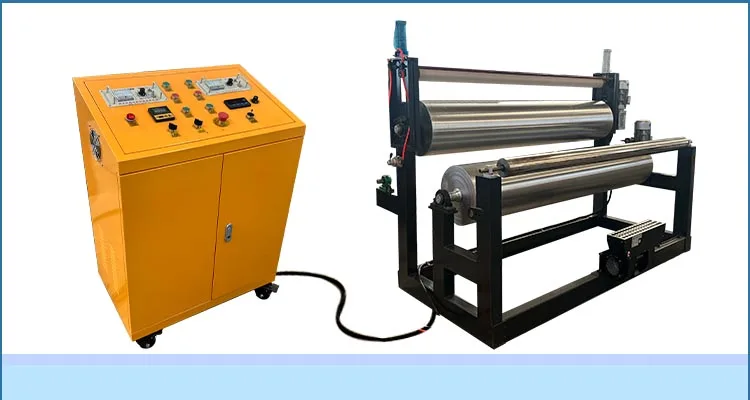

Winding Unit
Model: Double axis cantilever displacement Ttype（air shaft type）Maximum of rolling weight: Maximum 30kg×1m(diameter)

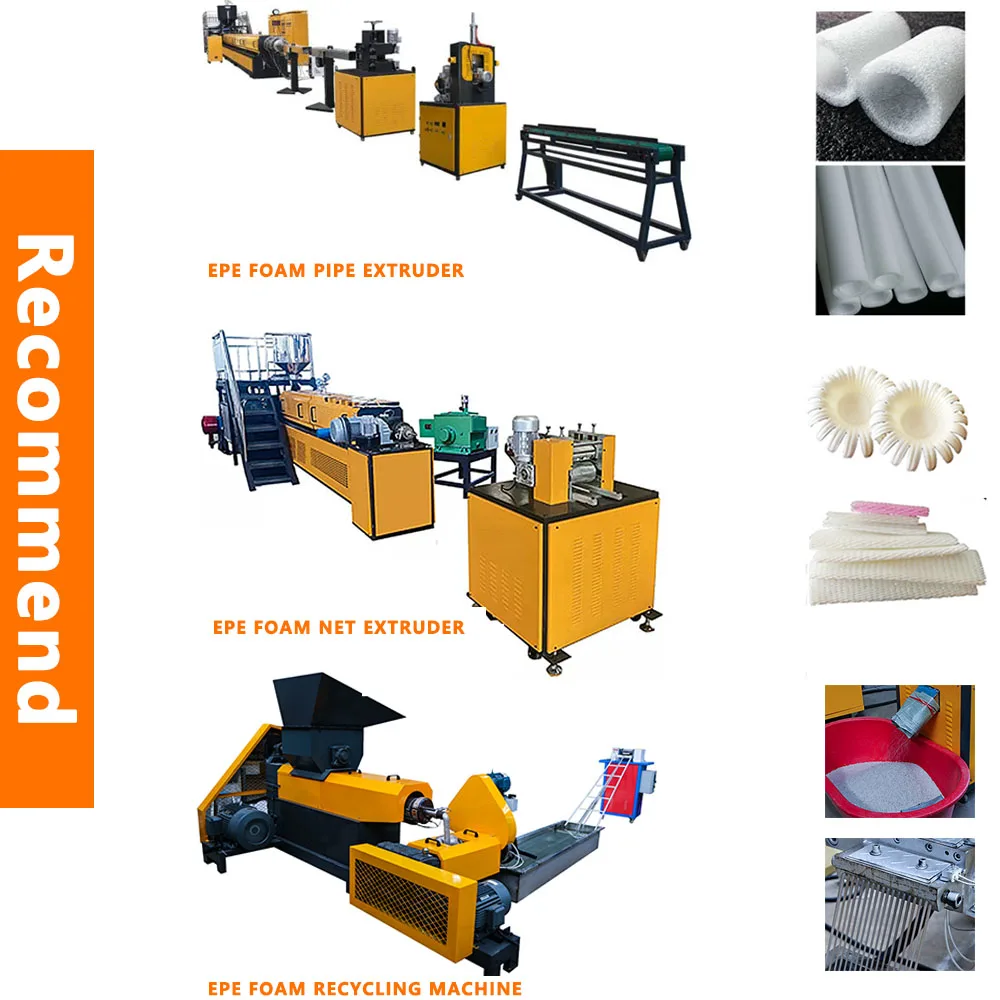

Recommend Products
Exhibition

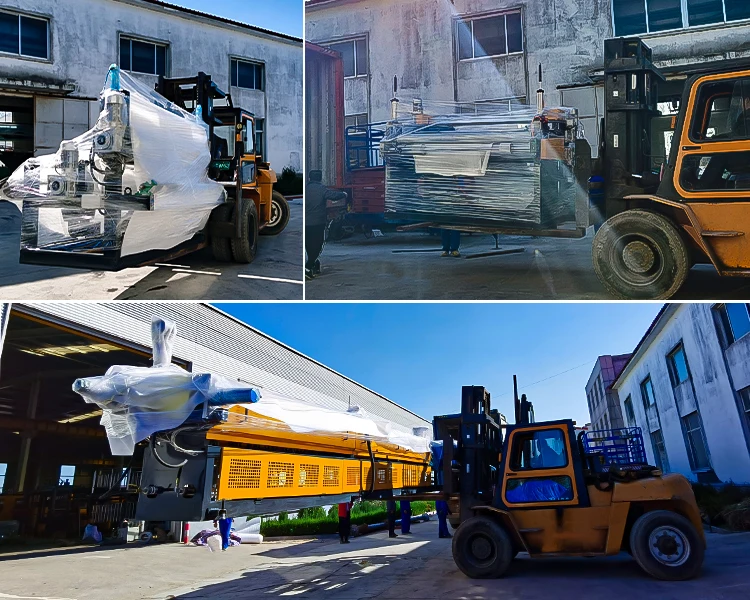

Packaging&Shipping
