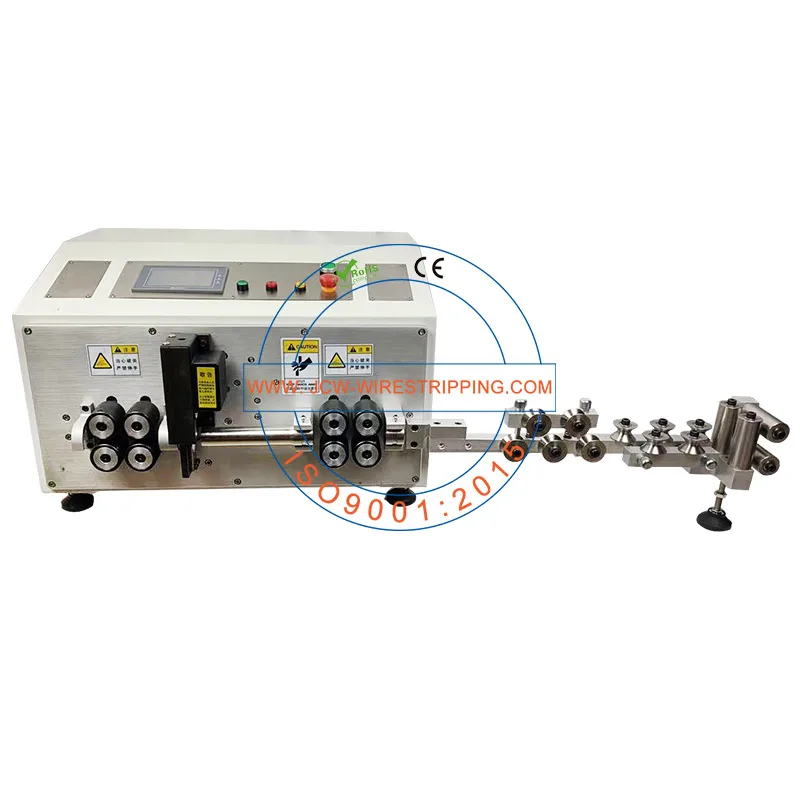

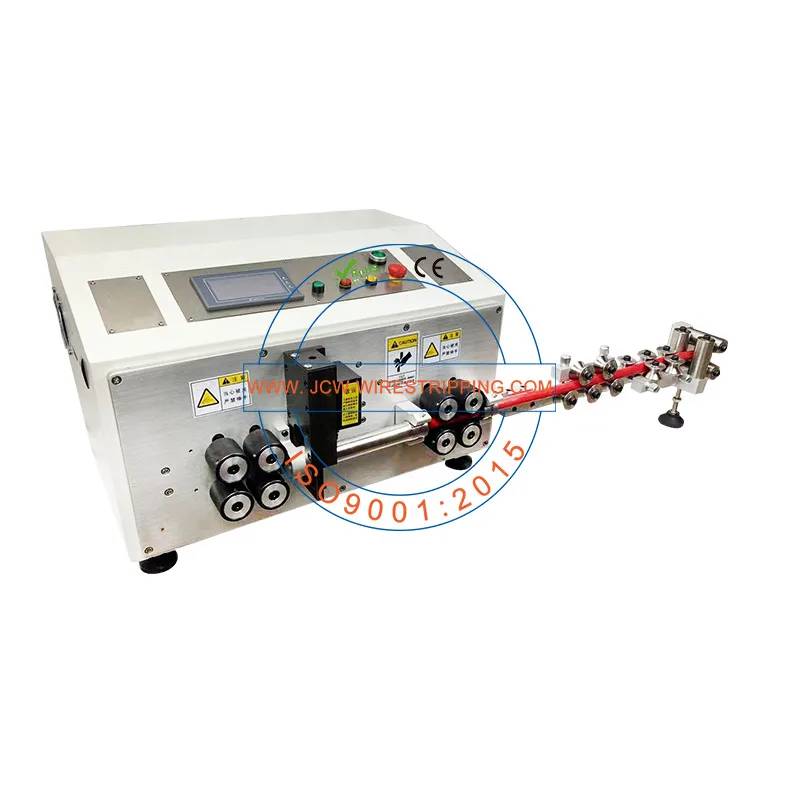

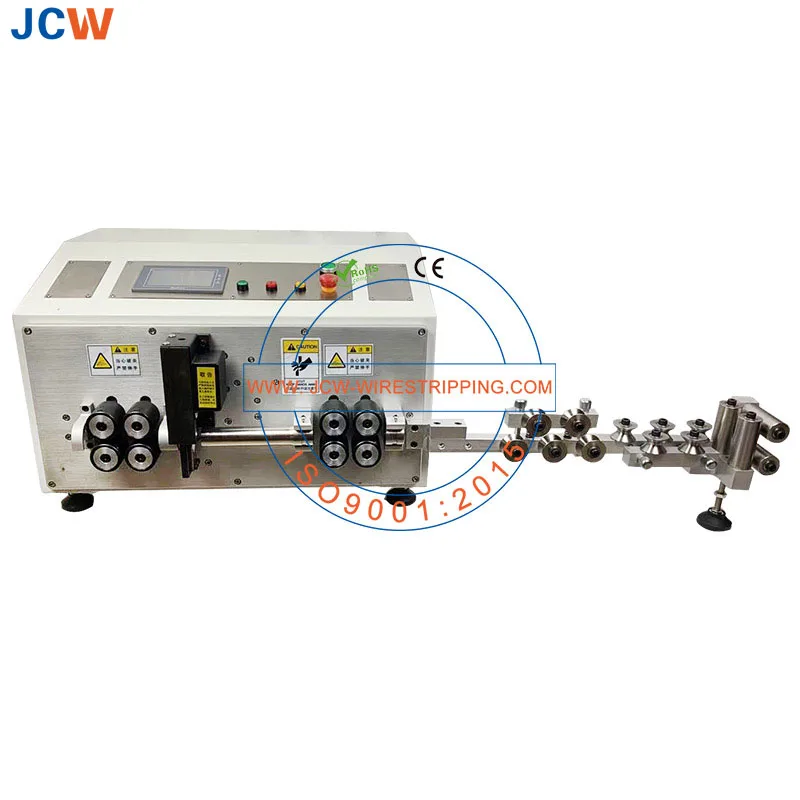

JCW CS18 Computer wire cutting stripping equipment 70mm copper cable super stripper automatic machine
- Category: >>>
- Supplier: Qingdao Titan Lansheng Trading Co. Ltd.
Share on (1600788432878):
Product Overview
Description
Model | JCW-CS18 Automatic 70SQ Big Cable Cutting and Stripping Machine |
Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Cut depth, Cut speed, Feed speed, Safety door sensor |
Raw material | PVC, Teflon, Silicone, Low halogen, Fiberglass, etc |
Conductor cross-sections | 4 - 70 mm² |
Cable diameter | Max 20 mm |
Cutting length ( L ) | 1 - 99999.9 mm |
Cutting length accuracy | 0.002 x L |
Stripping length | Leading ( left ) side: 1 - 270 mm |
Trailing ( right ) side: 1 - 140 mm | |

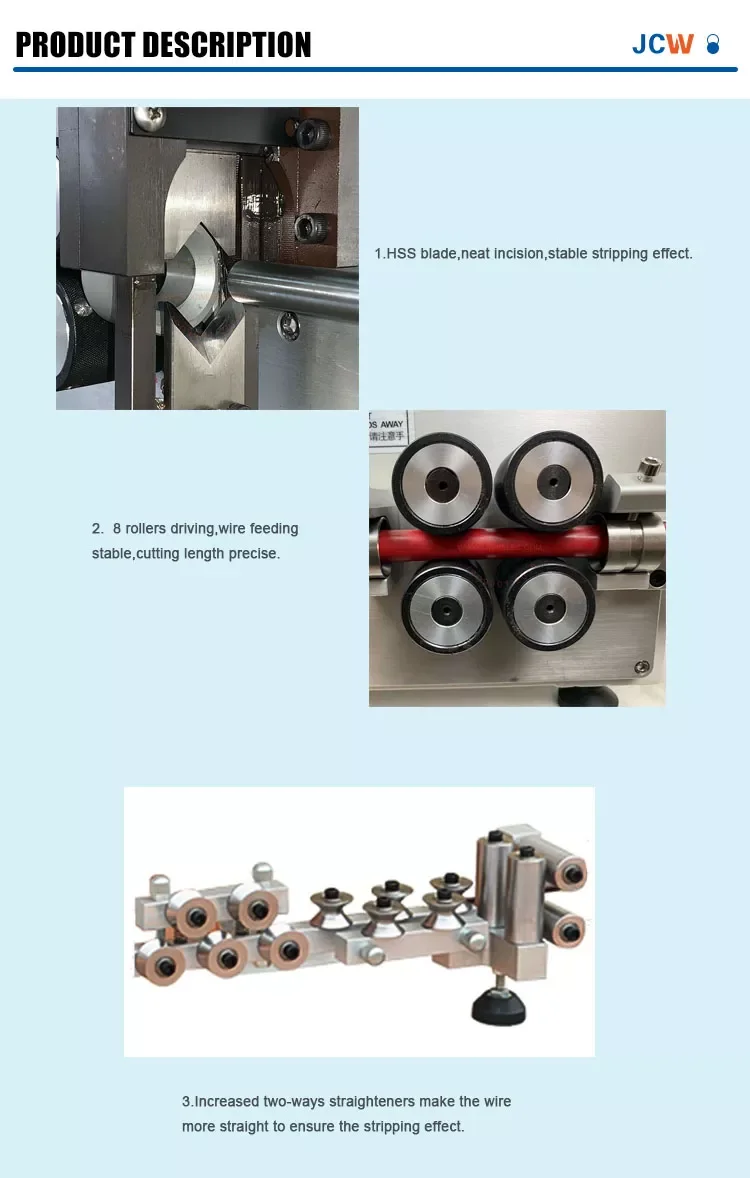

Feeding system | 8 rollers |
Production rate | 1500 pcs/h [ depends on cutting length ] |
Data library | 100 programs |
OEM | Yes |
Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
Compatible peripherals | Wire pre feeder, robot arm, conveyor belt |
Power supply | AC 220 V ± 10%, 50 / 60 Hz [ 110V on request ] |
Dimensions | Machine: L 620 x W 540 x H 410 mm |
Weight | 85 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
