1873 пищевая промышленность, пластиковая верхняя сторона, гибкая конвейерная цепь с нижней цепью 1873 K325, боковая гибкая цепь

Product Overview

Description

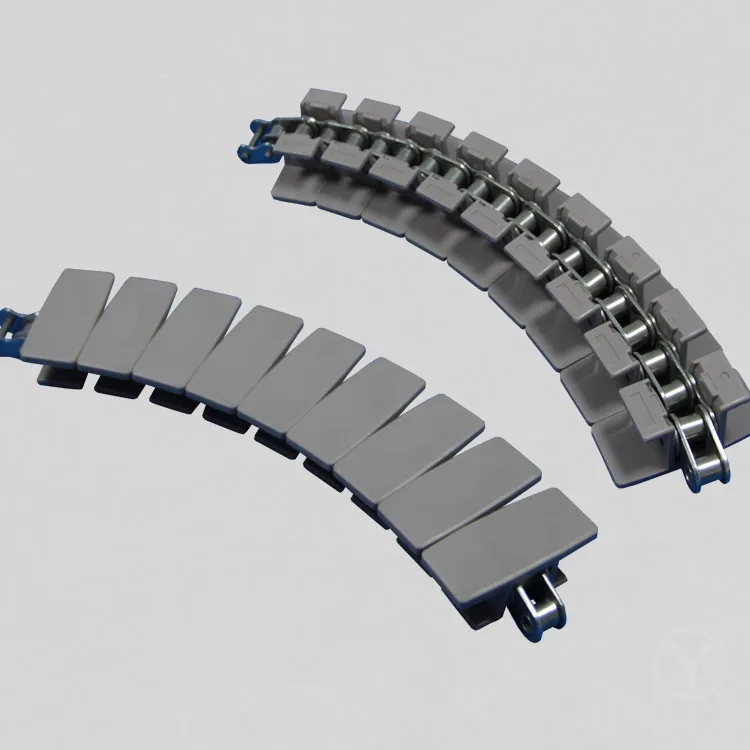

1873 Plastic Top Conveyor Chains with Bottom Chain for Food Industry

Specifications of Plastic Top Conveyor Chains



Type: Plastic Top Conveyor Chains or 1873 Chains

Certification: ISO9001:2008

Material: POM

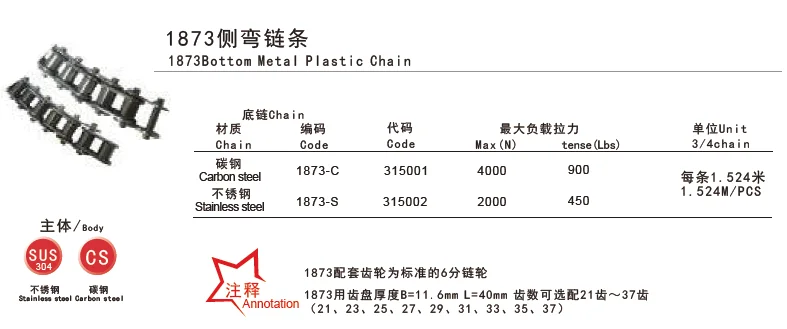

Special Structure: Bottom base chain and top chain

Bottom Chain material: SUS or Carbon Steel

Width:  82.6 mm ; 3 1/4 inch

Weight:  2.17 Kg/m ; 1.67 Lbs/ft

Back radius: 150mm ; 6 inch

Max Conveying length:  30m (mat.: CS), 24m (mat.: SUS)

Max tense:  4000N (mat.: CS), 200N(mat.: SUS)

Max speed:  V-lubricant<=90m/min, V-dry<=60m/min

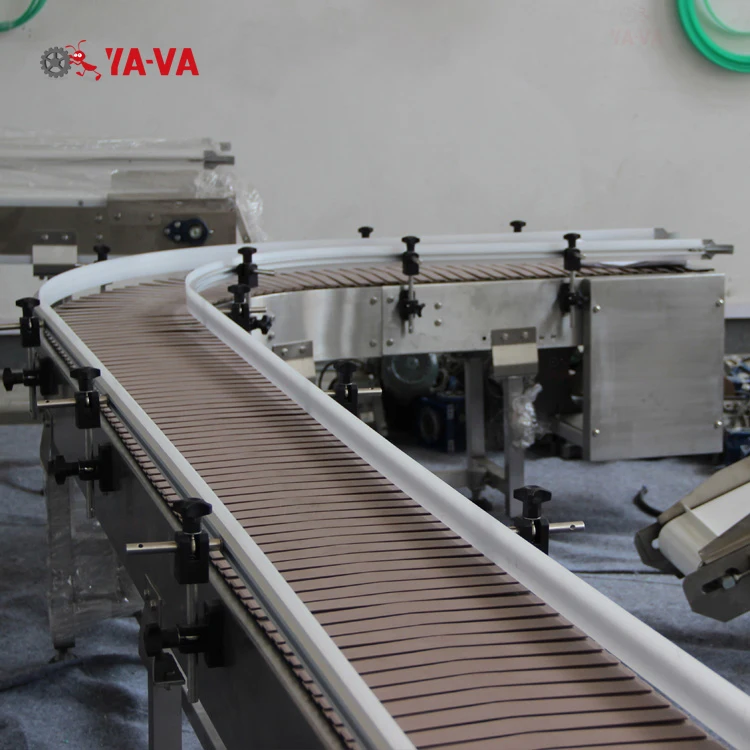

Application: for all kinds of High-Speed Curve Conveyors in Food Industry

Features



1.Easy installation and maintenance

2.High mechanical strength and wear resistance

3.No gaps between parallel chains

4.Excellent product handling

5.High performance

6.Suitable for long-distance high speed Curve Conveyors

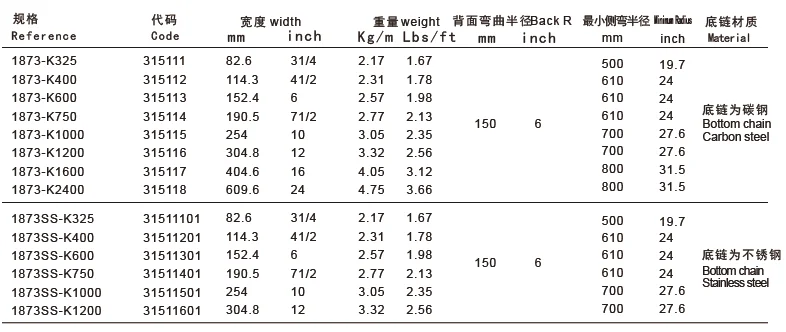

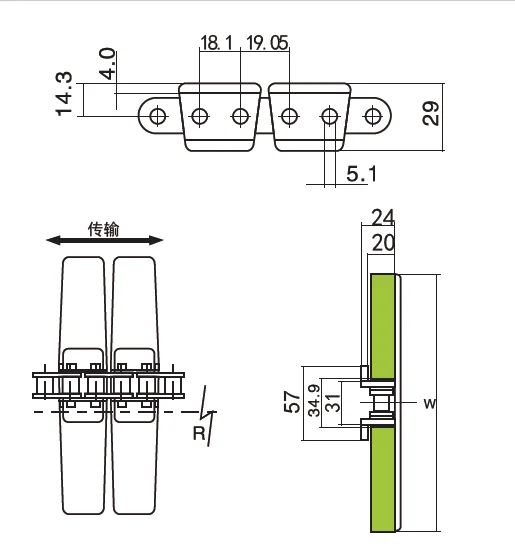

Technical data and drawing

Our Advantages



We produce all conveyor parts,and we are the big supplier for Europe ,united states, Middle East and other countries more than 6 years.



YA-VA	conveyor components and conveyor system
Business Scope	Professional R & D, Production and Sales manufacturers. Mainly Conveying machinery,Packaging machinery accessories,Conveying Chain,Modular belt,Roller and so on.
Department	Professional Technology Dept; Market Development Dept; Business Dept; Engineering Dept; Purchase Dept; Product Dept; Assembly Dept; After-Sale Service Dept; Mould Production Dept.
Equipment	We have 16 sets Full-automatic injection machines, Mounting equipments, Quality inspection equipments, Machining machines and so on.
Brand	YA-VA brand or OEM
Design	We can design by your drawing or we offer design scheme for your approval.
Order	Accept small orders
Inspection	In home or third inspection accepted
Material	SUS 304/202, Carbon Steel, POM/PP/PE, Reinforce Nylon, HDPE or according to customer requirements
Packing	Wooden case, Strong box, Pallet or according to customer requirements
Certificate	ISO9001:2008
Delivery	Delivery cargo by Air ,Sea or International Express.
Your inquiry is very appreciative, We will reply to you soon.
