Product Overview

Description

500l beer fermentation buckets/300l 500l beer fermenter micro brewery beer fermenting machine maker

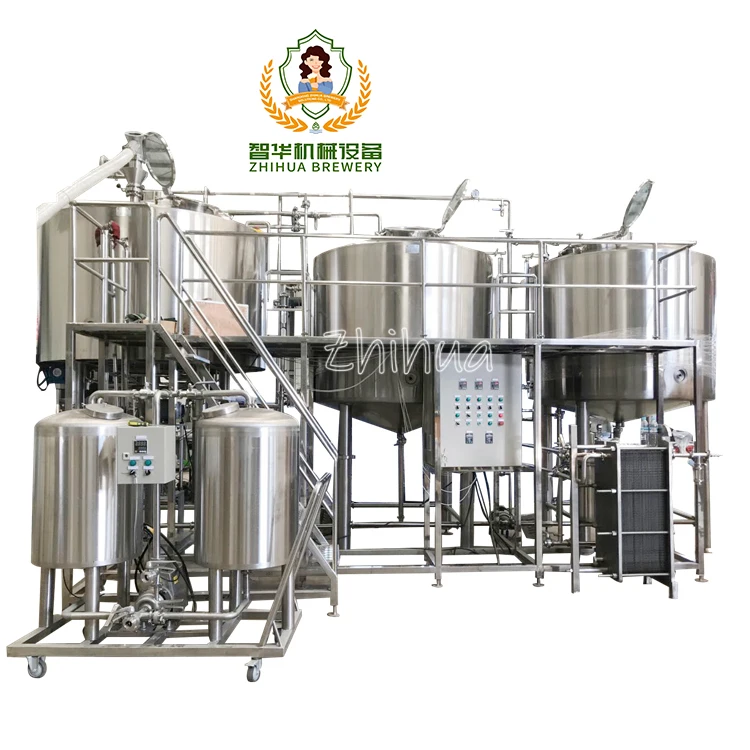

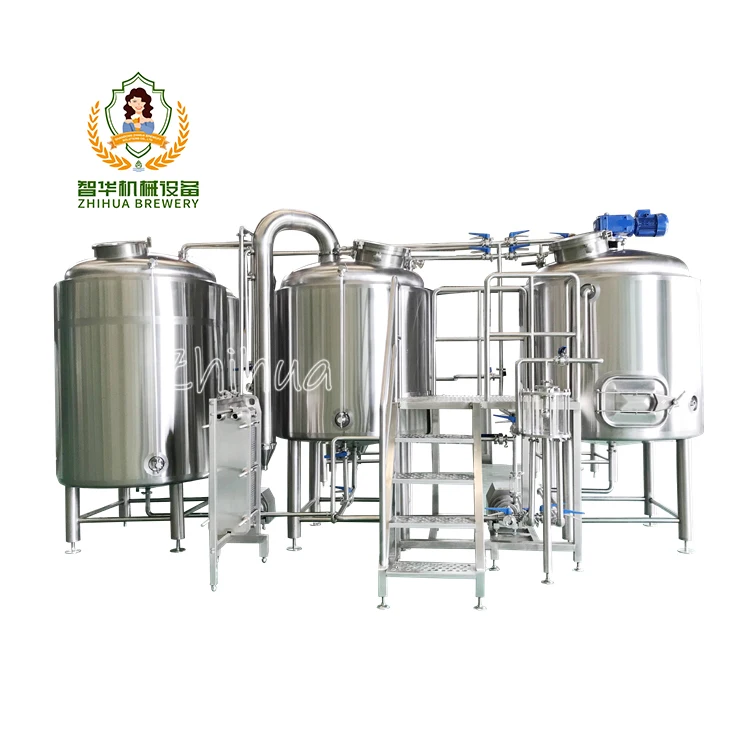

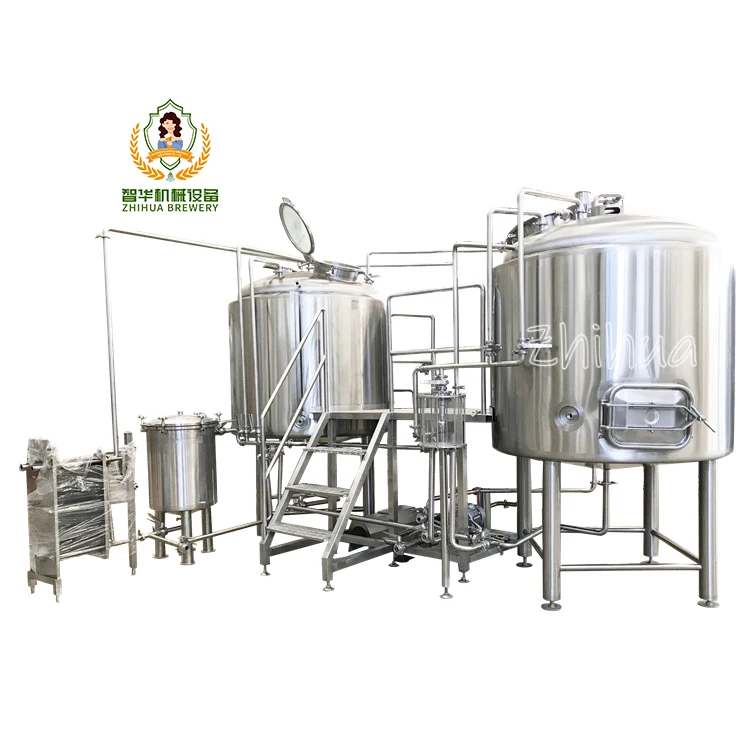

500L Brewery Equipment Introduction

The whole beer equipment is consisted of Malt milling system, Mash system, Fermentation system, Refrigeration system, Control system and CIP cleaning system. The tank of the system all adopts Red copper and S.S 304,and the system also have high automatic control capacity.

Simple operation, PLC automatic control system, PLC semi-automatic control system.

Equipments characteristics: Small investment, quick effectiveness, high quality, lower prices, the investment repayment is fast, the service life of equipment is long, easy operation, lower cost. Strong technical force.

At the same time if you have requirements, we could design and produce the products you need!

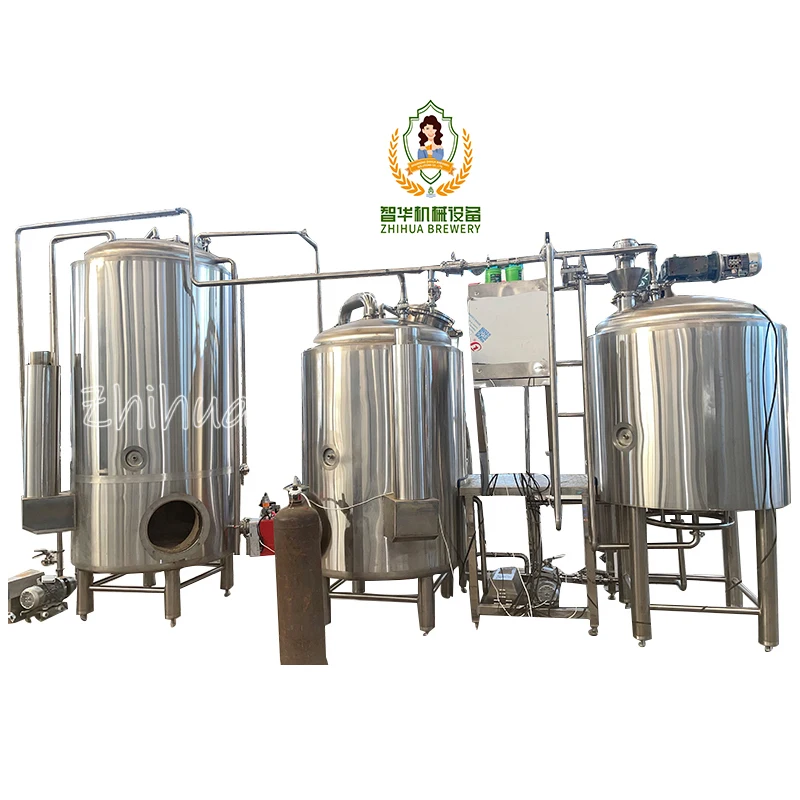

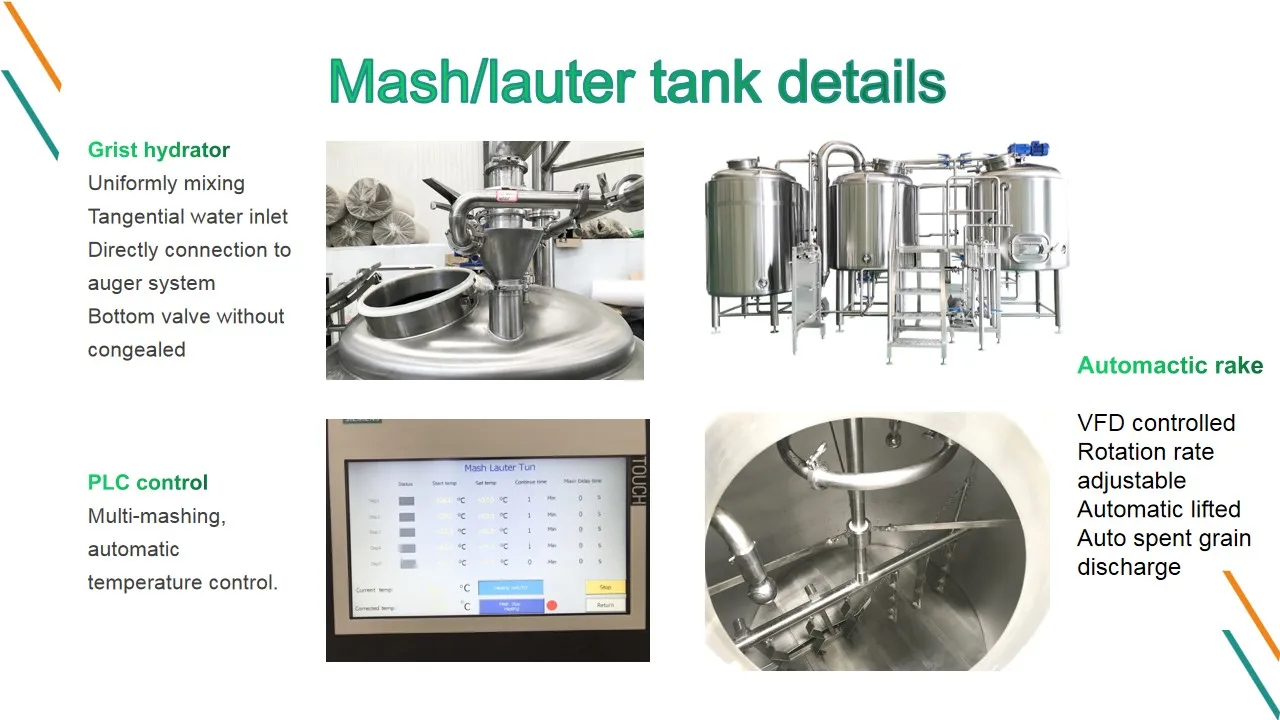

Mash System

Mash/ Lauter+ Brew Kettle/ Whirlpool + HLT

1. Material: 304 stainless steel;

2. Total volume: 1300L, effective volume 1000L;

3. Shape: upper dish head, cylindrical barrel, shallow cone bottom;

4. Manhole: glass manhole with sight light;

5. Insulation material: polyurethane, rock wool insulation layer thickness 80mm;

6. Thickness of the cylinder: the thickness of the inner cylinder is 3mm, and the thickness of the outer cylinder is 2mm;

7. Heating method: Support Steam or heat up with hot water.

8. Control system: The control cabinet automatically controls the temperature and controls the opening and closing of the upper stirring motor.

9. At the top raker with frequency control(VFD). Forward and reverse and automatically drain the dregs

10. Stirring method: mechanical stirring of the upper cultivator, horizontal motor, power 0.75kw, speed: 60 rev / min, high power, low speed to ensure a complete layer;

11. Heating Method: Steam Boiler or Fire Burner



Milling system	Malt miller	300-500kg/h	1pcs
	Auger(option)	Ability is 1000-1500KG/h	1pcs
	Hopper(option)	Volume is 0.5m3. SUS 304 with pre-masher	1pcs
Brewhouse	Mash tun/ Lauter tank	Volume is 500L, with a false bottom, grant, raker with motor	1pcs

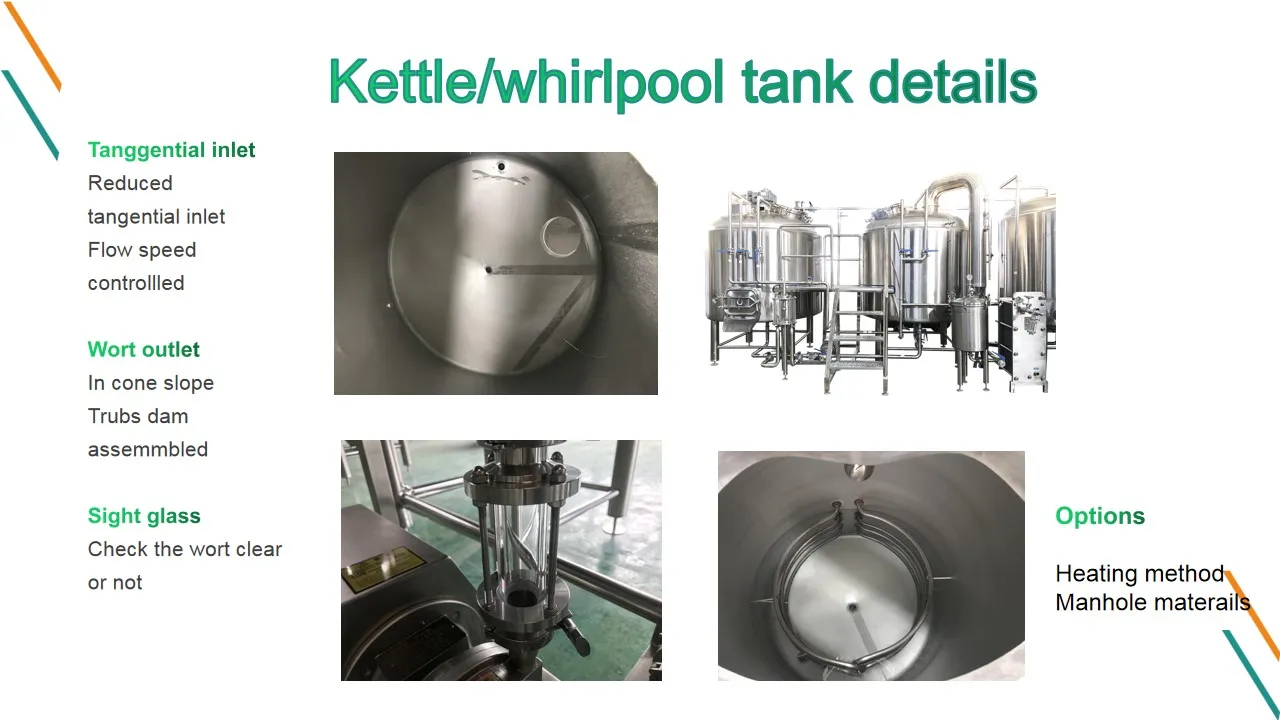

	Kettle/Whirlpool tank	Volume is 500L, electric heating	1pcs
	HLT water tank	Volume is 1000L, electric heating	1pcs
	Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device, and pipelines
Fermenting	Fermenters	Volume is 500L or 1000L (double batches)	6pcs

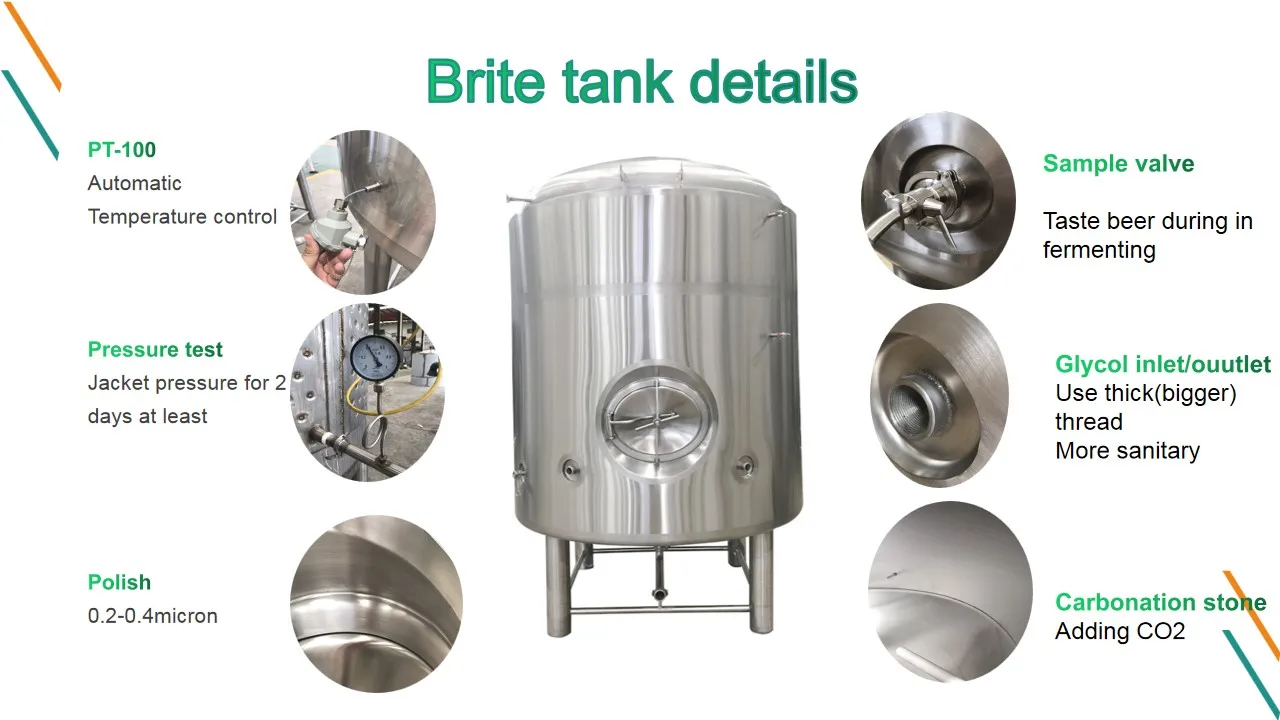

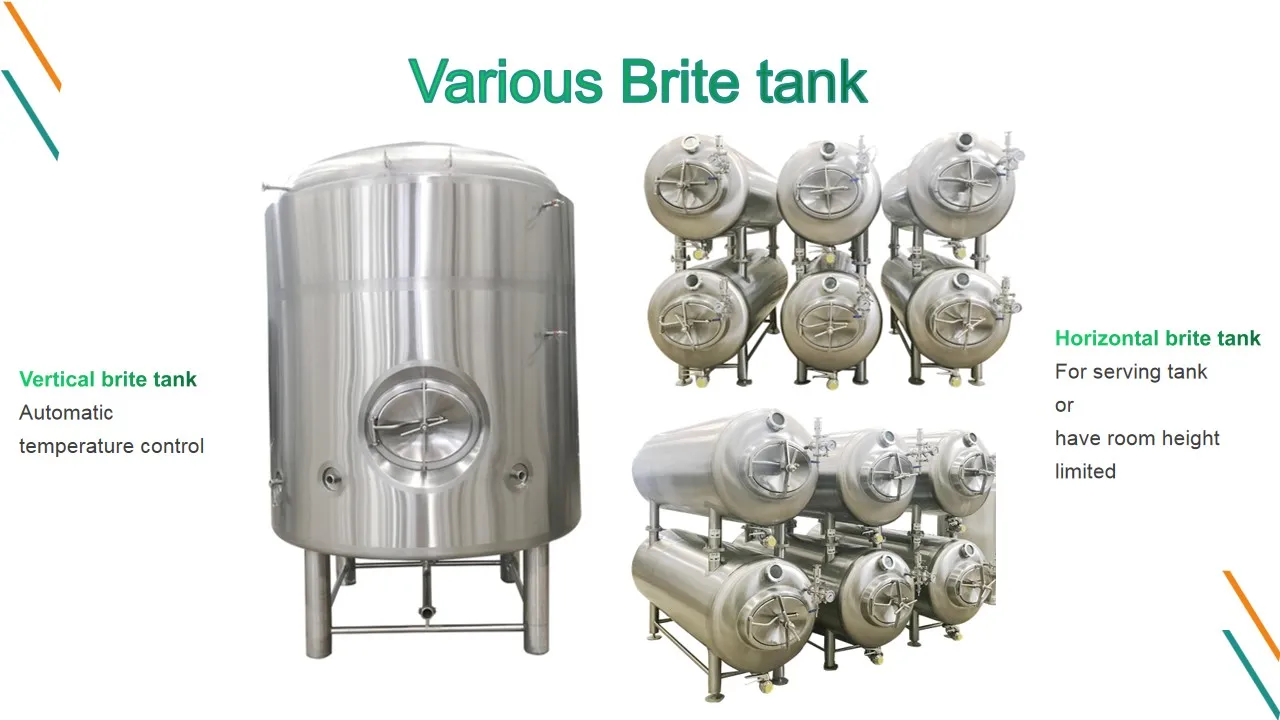

	BBT(option)	Volume is 500L or 1000L (double batches)	2pcs
	Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve
Cooling system	Glycol tank	Volume 1000L or 1500L	1pcs
	Coldwater tank(option)	Volume 1000L, cooled by glycol tank	1pcs
	Chiller	3HP, Copeland	2pcs
Cleaning	CIP	50L two tanks, heated by electric, with pump and trolley	1pcs

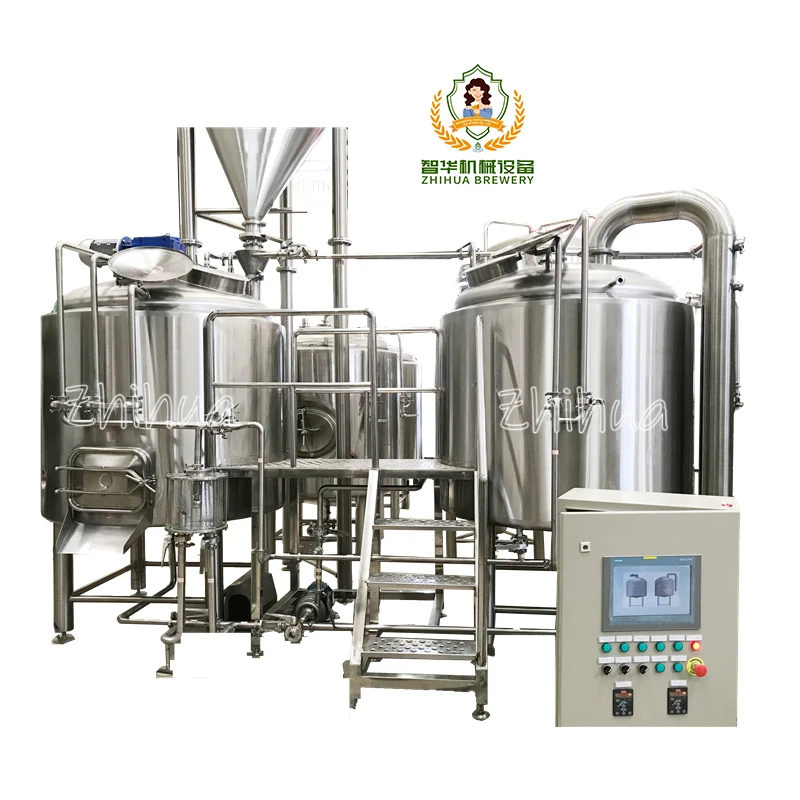

Controlling	Control cabinet	PLC touch screen or PID controller	1pcs

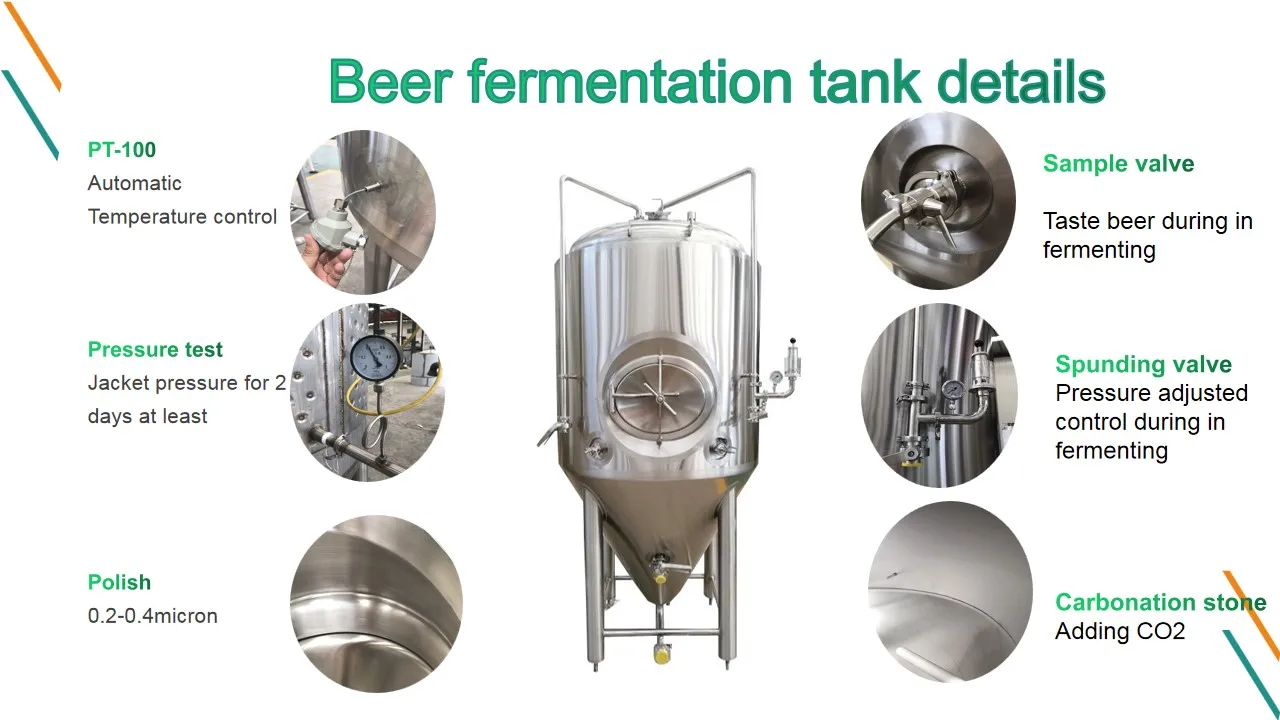

Fermentation System

1. Material: food grade stainless steel SUS304;

2. Cylinder design: cylinder, cylinder thickness: 3.0mm barrel outer thickness: 2.0mm;

3. Manhole: the side manhole;

4. The upper part is equipped with a hop add port, a breathing valve, and a carbon dioxide inflation port at the bottom.

5. Insulation material, polyurethane foam, thickness: 80mm;

6. Cooling method: Miller plate jacket double cooling

7. Pressure: design pressure 3bar, working pressure 1.5-2bar;

8. Lower cone design: cone seal 60° (for yeast discharge);

9. Cleaning method: matching cip cleaning car uses fixed all-round rotating cleaning ball;

10. Temperature measurement method: PT100 platinum resistance,

11. Control system: automatically controlled by the temperature of the control cabinet;

Cooling System:

Glycol Water Tank+ Chiller

We usually use glycol water tank + environmentally friendly chiller



Brewery Equipment Parameters

Item	Production capacity	Volume in US Gallon	Heating area	Tank diameter	Height
ZH-50L	50L/day	14US Gallon	0.15m²	550mm	1500mm
ZH-100L	100L/day	26US Gallon	0.25m²	650mm	2000mm
ZH-200L	200L/day	53US Gallon	0.25m²	850mm	2200mm
ZH-300L	300L/day	79US Gallon	0.3m²	950mm	2500mm
ZH-500L	500L/day	132US Gallon	0.5m²	1160mm	2800mm
ZH-1000L	1000L/day	264US Gallon	1.0m²	1360mm	3000mm
ZH-2000L	2000L/day	528US Gallon	2.0m²	1760mm	3150mm
ZH-3000L	3000L/day	792US Gallon	3.0m²	1860mm	3800mm
ZH-5000L	5000L/day	1320US Gallon	5.0m²	2260mm	4400mm

Zhihua Service

 1. Projects supporting (Free Layout design and equipment drawing);

 2. Brewing formula & technology;

 3. Equipment installation at your location;

 4. Equipment debugging and trial brewing;

 5. Equipment maintenance;

 6. Personal training.

Package & Shipping

We can provide services to assist you in transporting equipment. We have regular cargo agents and are familiar with the transportation process, which can save you transportation costs and ensure the safety of equipment.



Contact Jeesie, let's talk more!
