220V 380V Semi Automatic Brake Lathe Machine for Auto Maintenance
- Category: >>>
- Supplier: Yancheng Xinchun Machinery And Electrical Equipment Co. Ltd.
Share on (1600788465833):
Product Overview
Description
220V 380V Semi Automatic Brake Lathe Machine for Auto Maintence
Sincerely looking for contracted distributor in different country , thanks for kind contacting .
Product description
Applicable for repair brake , disc and drum on car .

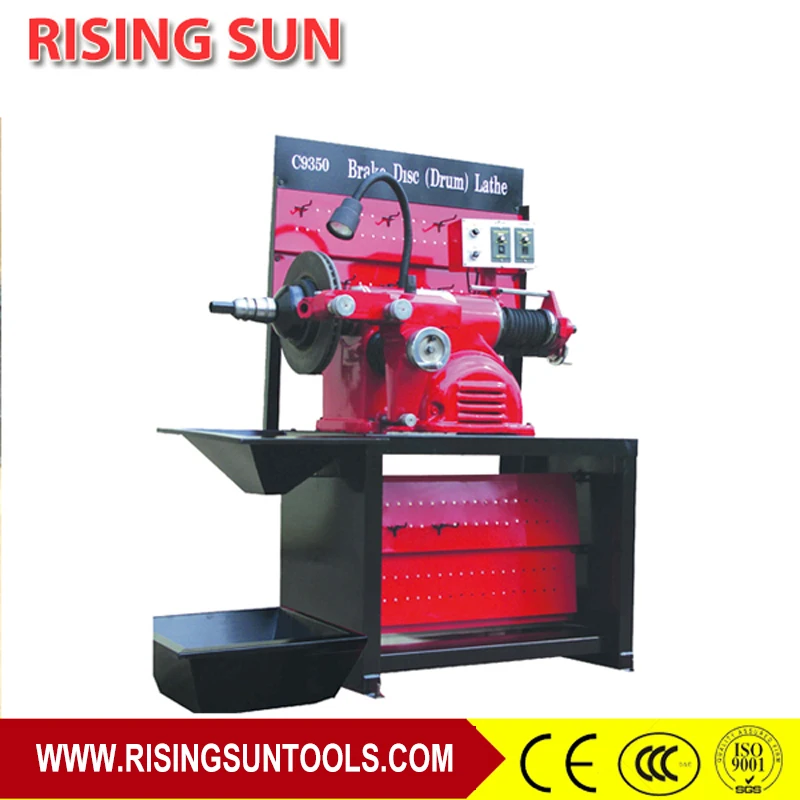

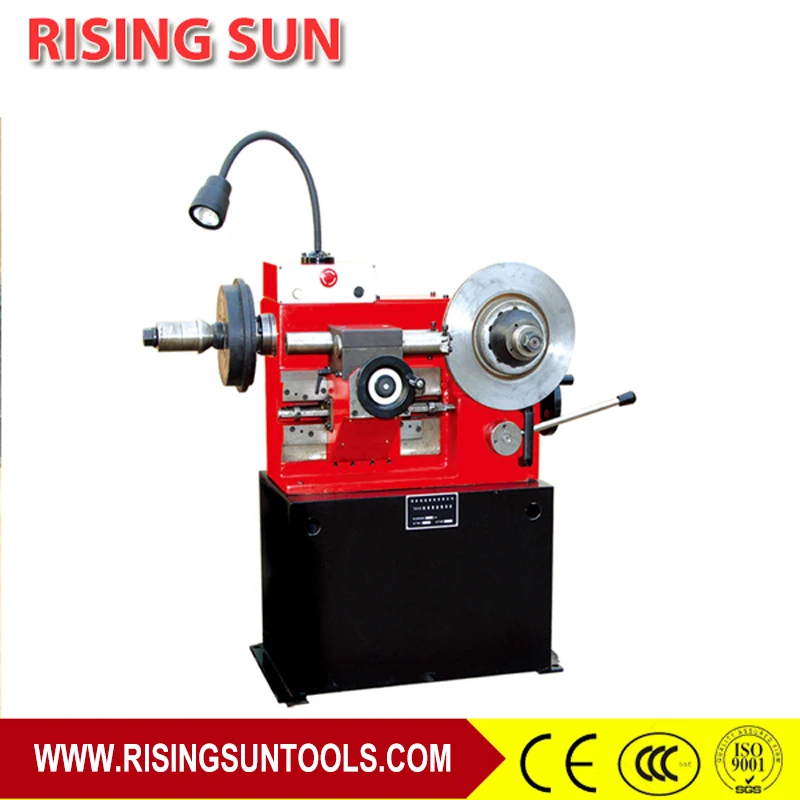

BRAKE DISC/DRUM LATHE
| Range of processing(diameter) | Brake drum | 152-500mm |
| Brake plate | 180-385mm | |
| Max depth of processing brake drum | 245mm | |
| Spindle speed | 70.80.115r/min | |
| Feed | 0.05-0.5mm/r | |
| Max processing depth | 0.5mm | |
| Machine power | 0.75kw | |
| Packing size | 1220x90x1490mm | |
| G.W/N.W | 260/340KGS | |

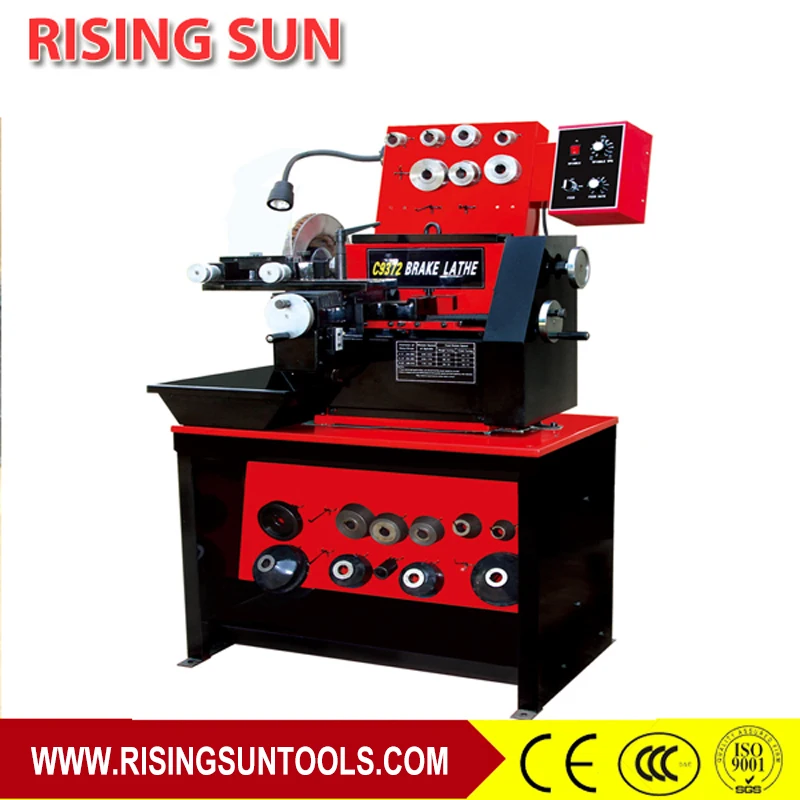

9372 BRAKE DISC / DRUM LATHE
| Brake Disc Diameter | 102-610mm |
| Max Disc Thickness | 73mm |
| Brake Drum Diameter | 160-715mm |
| Brake Drum Depth | 229mm |
| Spindle Weight(capacity) | 69kgs |
| Spindle speed(stepless) | 70-320rpm |
| Feed speed | 0-0.66mm |
| Main motor | 220V/110V 50HZ/60HZ 0.6KW |
| Machine size | 1080x700x1450mm |
| G.W./N.W. | 245/300KGS |
| Packing size | 935x680x880mm |

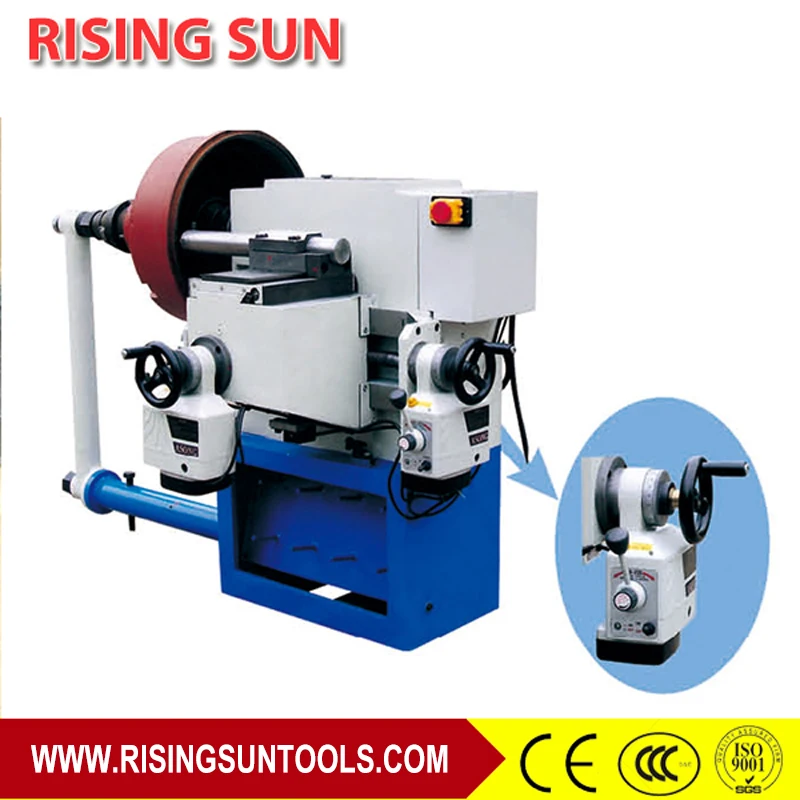

BRAKE DISC / DRUM LATHE MACHINE
| Model | T8445 | T8465 |
| Drum diameter | 180-450mm | 180-650mm |
| Disc diameter | 103-400mm | 102-520mm |
| Cutting Travel | 190mm | 265mm |
| Spindle speed | 30.52.85rpm | 30.52.85rpm |
| Feed speed | 0.16mm | 0.16mm |
| Main motor | 1.1kw | 1.1kw |
| Machine size With lifting unit | 1110x870x1000mm | 1580x1020x1050mm 1880x1020x1970mm |
| Packing size With lifting unit | 900x820x1110mm | 1020x1065x1110mm 1420x1065x1110mm |
| G.W./N.W. | 350/290KGS | 540/470KGS |

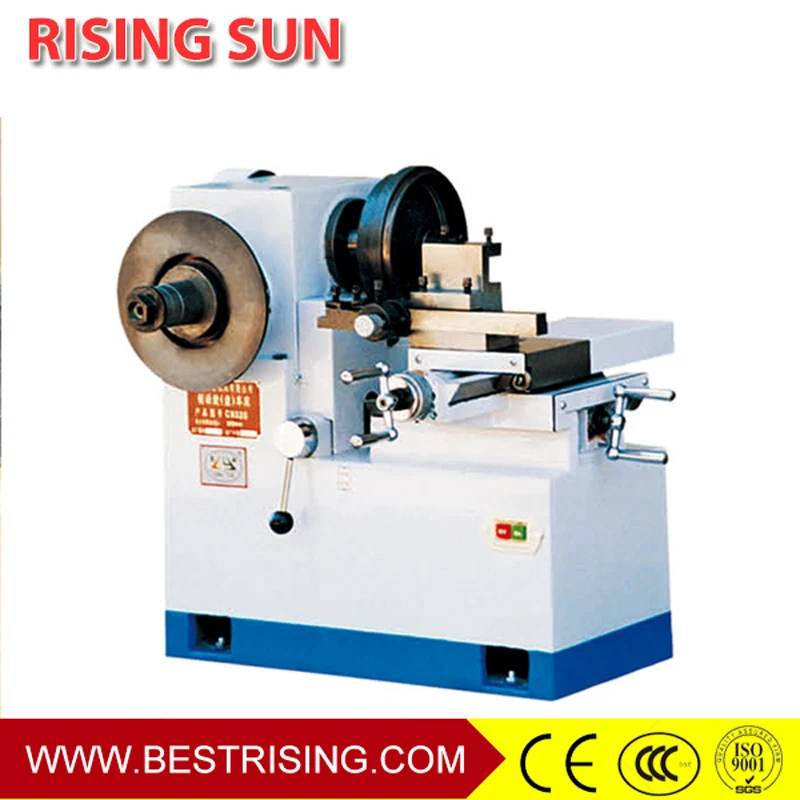

BRAKE DRUM (PLATE) LATHE
| Range of processing diameter(brake drum ) | 180-350 |
| Range of processing diameter(brake plate ) | Less than 400 |
| Rotating speed of workpiece | 90 |
| Working travel of slideboard | 100 |
| Overall dimension | 695x565x635 |
| Packing dimension | 830x780x830mm |
| N.W./G.W. | 200/260mm |
| Motor power | 0.75kw |
Our service
Warmly thanks for your any kind suggestion for our services and machine , we will improve better and better in the near future.
1) Warranty : 12months
Free parts will be sent by courier or post if machine goes wrong during 12months .
2) Delivery time : 10days after payent received .
3) 1set sample order is acceptable .
4) Method of payment : T/T , WESTERN UNION ,PAYPAL ,
5) Certificate : ISO , CE
Company information
Rising Sun - Professional quality you can rely on !
This brand was founded aims for providing one-stop solution for vehicle works.
Our advantages
1) Products meet different quality standard all over the world,no worry about the reselling .
2)18years export experience , well known about various of trade term .
3)Stronger shipping supported ,ensure reasonable cost and delivery in time .
4) 7 x 24 online customers service
5) Various payment way can be accepted
Honestly , we can give more safe of your business and money.
