New Self Balancing Single Axis Solar Tracking/Solar Tracker With A Type Strut By Earth Anchor, Slewing Drive Suit Bifacial PV
- Category: >>>
- Supplier: Dalian Bofu Construction Material Co. Ltd.Dalian Ltd.
Share on (1600788490353):
Product Overview
Description
Specification
New Design Of Arch Purlins
Self-balancing solar tracker use new design arch purlins to support solar panels. This is the most obvious difference between BOFU Self-balancing solar tracker and other brand trackers. Why this?
Ordinary flat prulin
The barycenter of ordinary flat purlins is located above the main beam, when the main beam rotates at a certain angle, the barycenter of the purlins and solar panels will deviate from the pivot of the main beam, resulting in an eccentric torque. Therefore, when the slewing drive rotates, it is not only necessary to overcome the friction of the supporting bearing itself, but also to overcome the torsion force caused by the eccentric torque, which inevitably increases the power consumption of the motor.

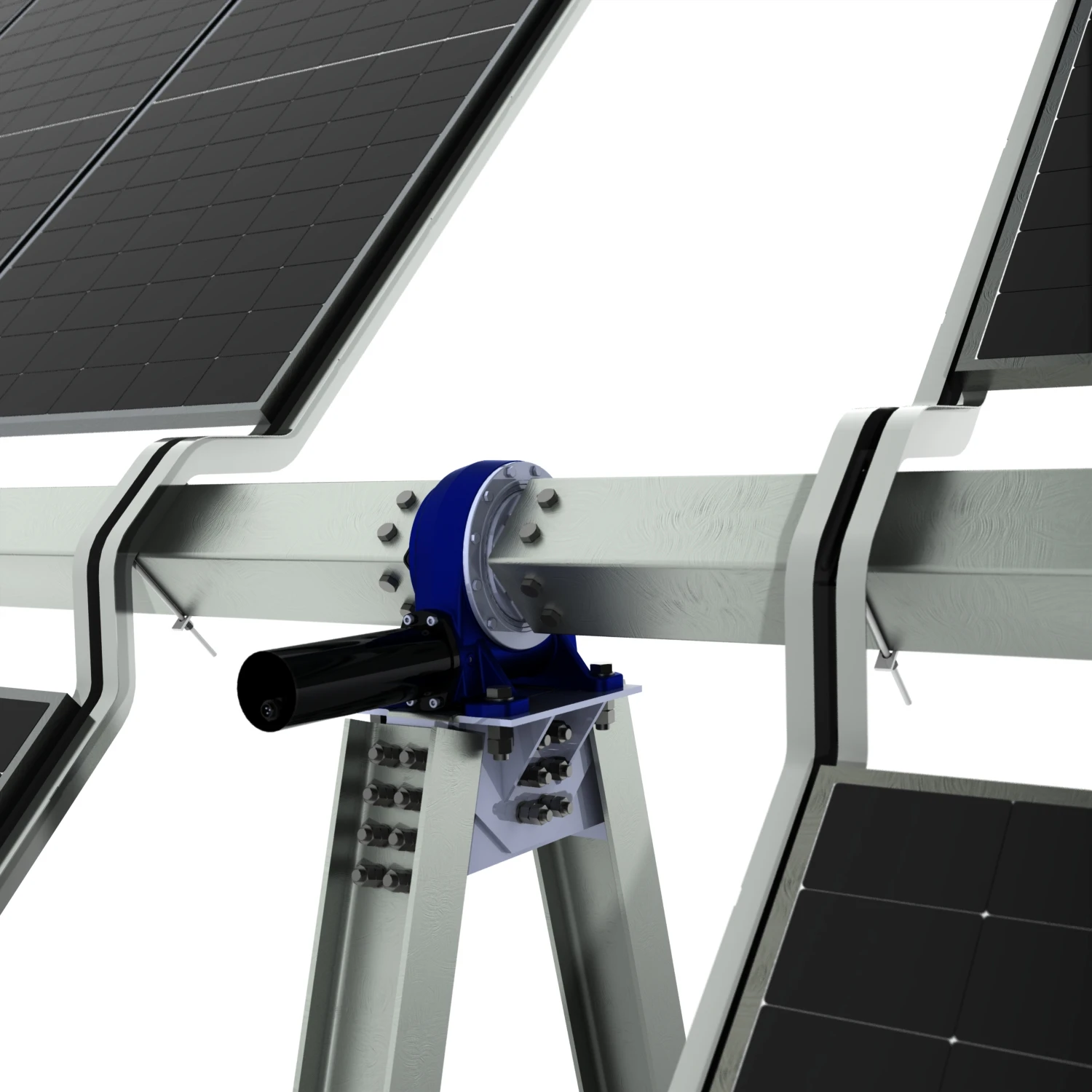

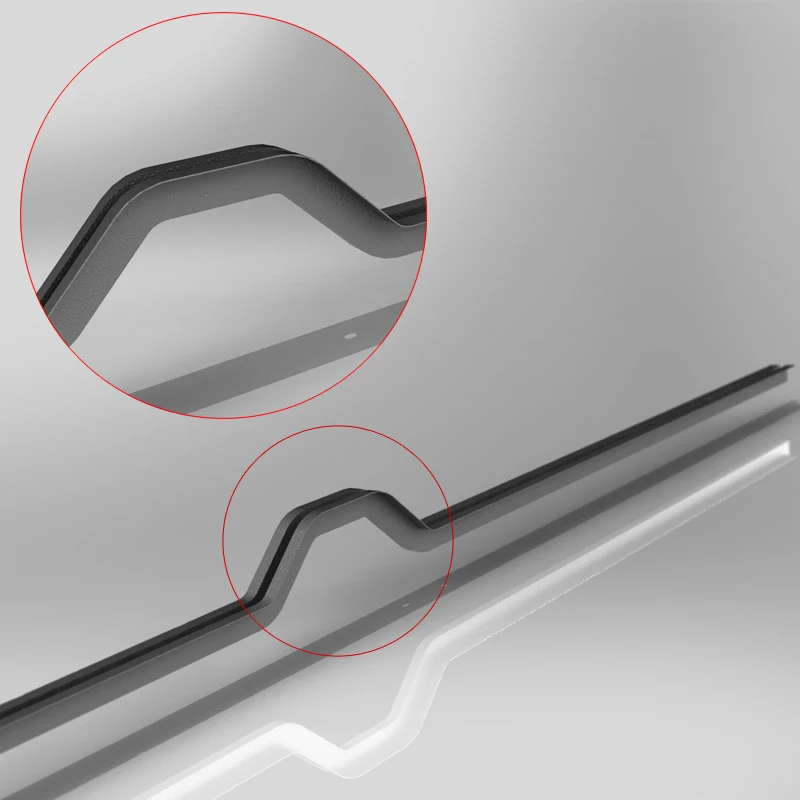

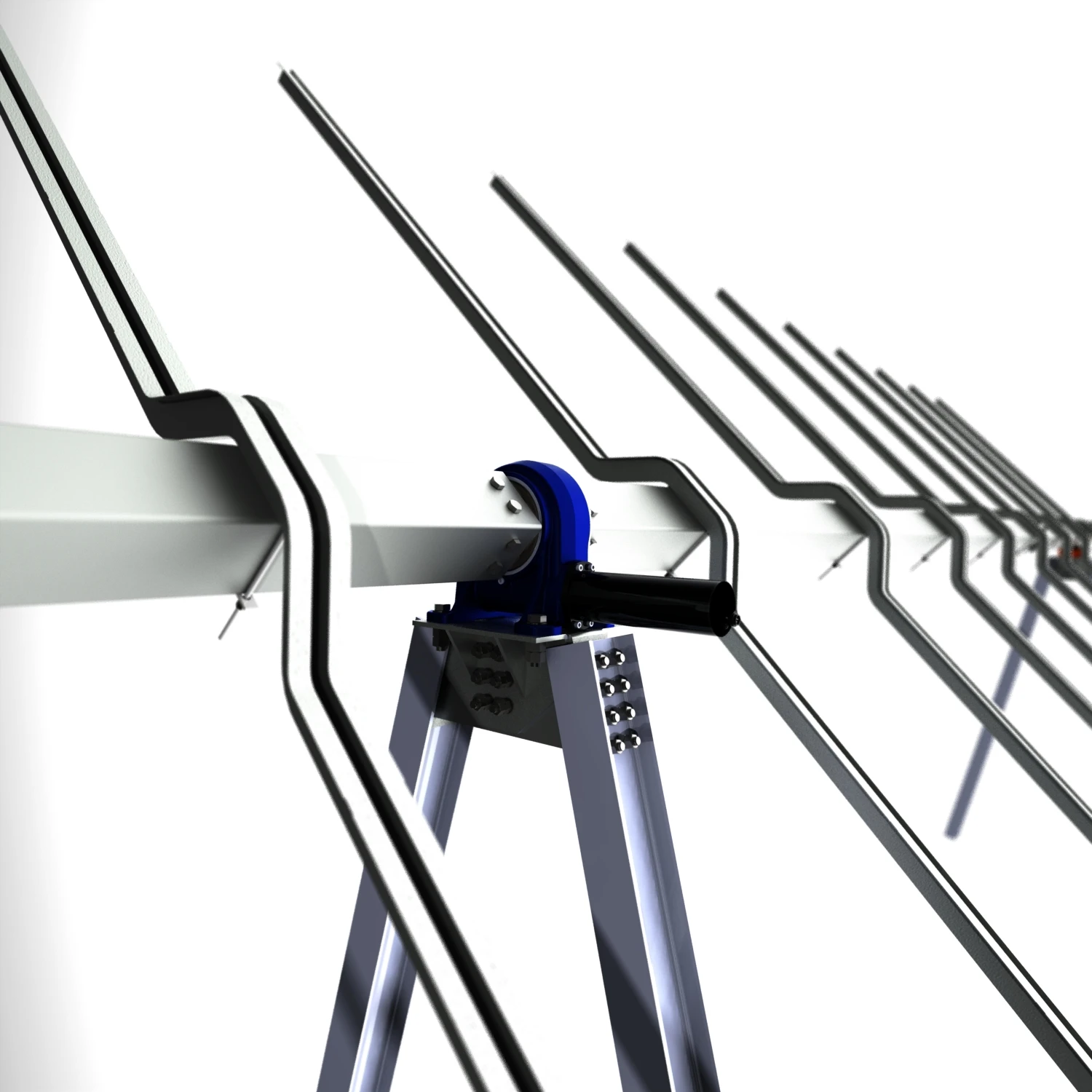

Arch Purlin
The BOFU new arch-type purlins makes the total barycenter of the purlins and solar panels coincide with the pivot of the main beam at any angle, thus the overall eccentric toque is almost zero no matter how the main beam rotates, the slewing drive only need to overcome the friction of the supporting bearing itself, so to reduce the power consumption of the motor.
Advantage Of Arch Purlins
1. Reduce the power consumption of the drive motor thus increase the power generation rate of the total system.
2. The load of the drive motor is stable, prolong the service life of the drive motor.
3. Ordinary purlins have a short-term zero eccentric toque only in the horizontal state, and arch-type purlins are in a zero-eccentric toque moment at any time, which reduce the co-frequency resonance caused by eccentricity and also reduce the swing caused by wind, so the windproof effect of self-balancing bracket is better.
4, The zero eccentric torque design of the arch purlins makes the supporting point always in the center of the strut, which overcomes the diagonal pull, bending, and torsional force caused by the eccentric toque in the flat purlin design, greatly extends the service life of the solar tracker system.
2. The load of the drive motor is stable, prolong the service life of the drive motor.
3. Ordinary purlins have a short-term zero eccentric toque only in the horizontal state, and arch-type purlins are in a zero-eccentric toque moment at any time, which reduce the co-frequency resonance caused by eccentricity and also reduce the swing caused by wind, so the windproof effect of self-balancing bracket is better.
4, The zero eccentric torque design of the arch purlins makes the supporting point always in the center of the strut, which overcomes the diagonal pull, bending, and torsional force caused by the eccentric toque in the flat purlin design, greatly extends the service life of the solar tracker system.

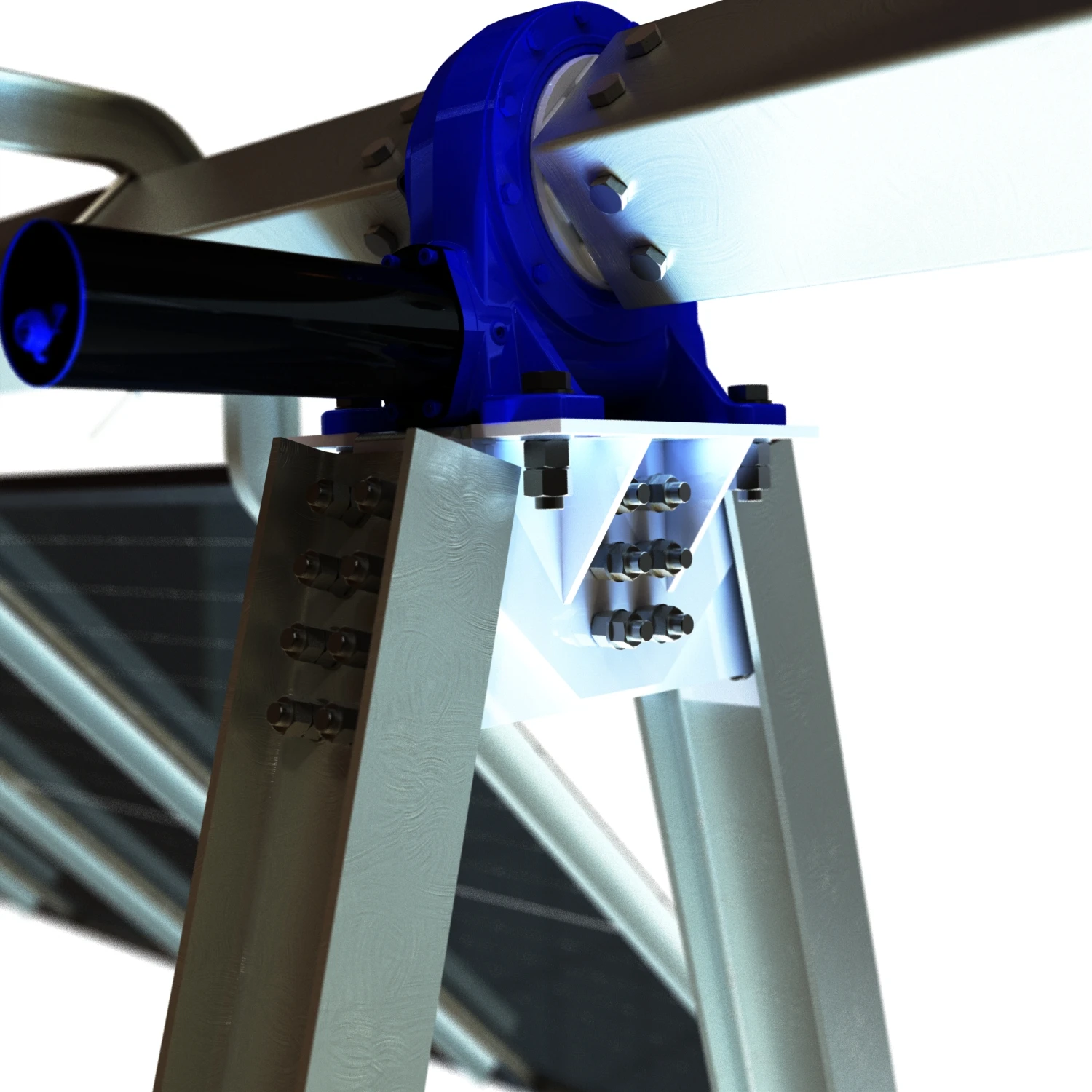

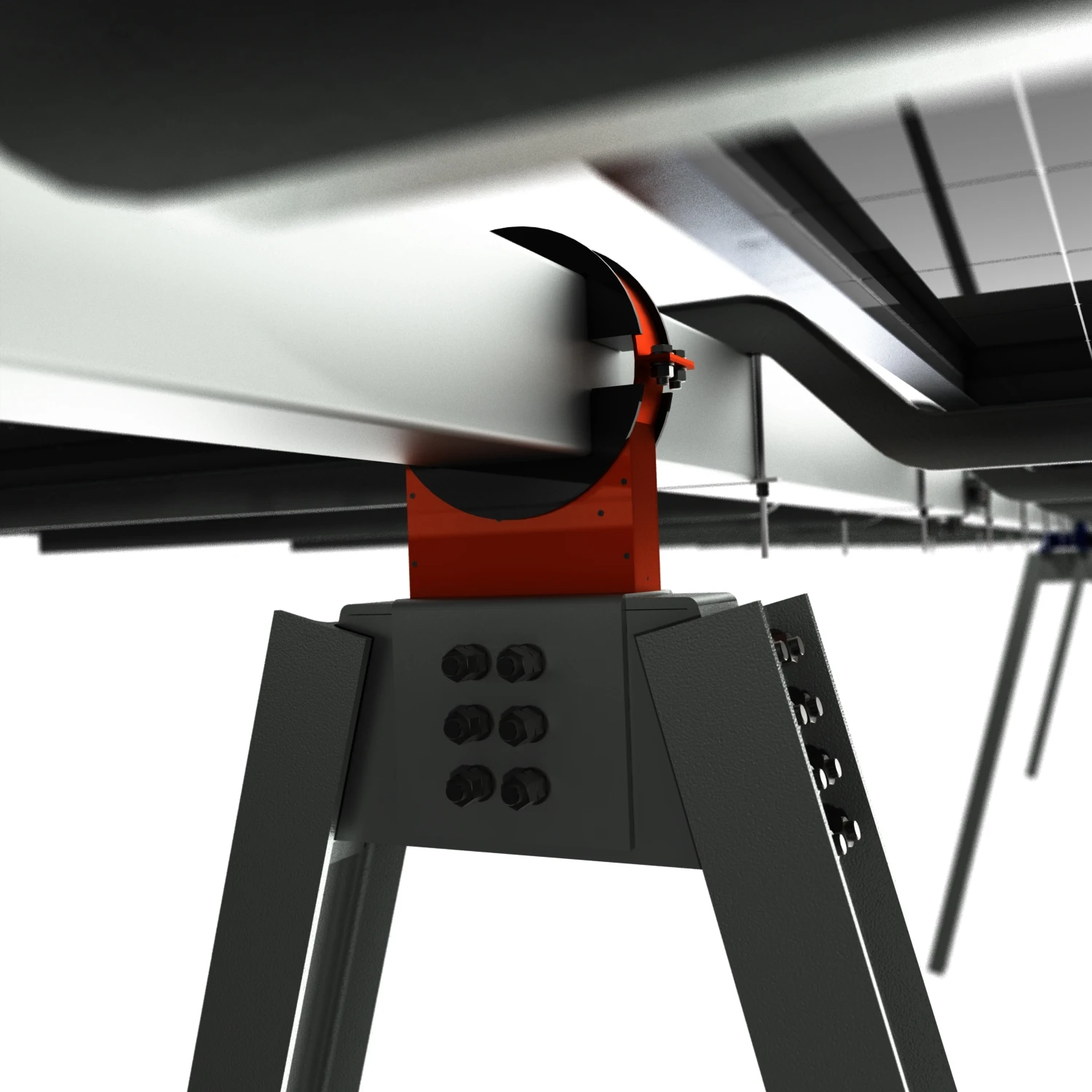

A Type Strut
For medium or small power stations, pouring the concrete foundation of the solar tracker can be a difficult and expensive task. BOFU offers A-type struts that can be adapted to earth anchor, make it is possible to eliminat the need for concrete foundations, speeding up installation of the tracker and save labor cost, lower the total cost of the solar power system.

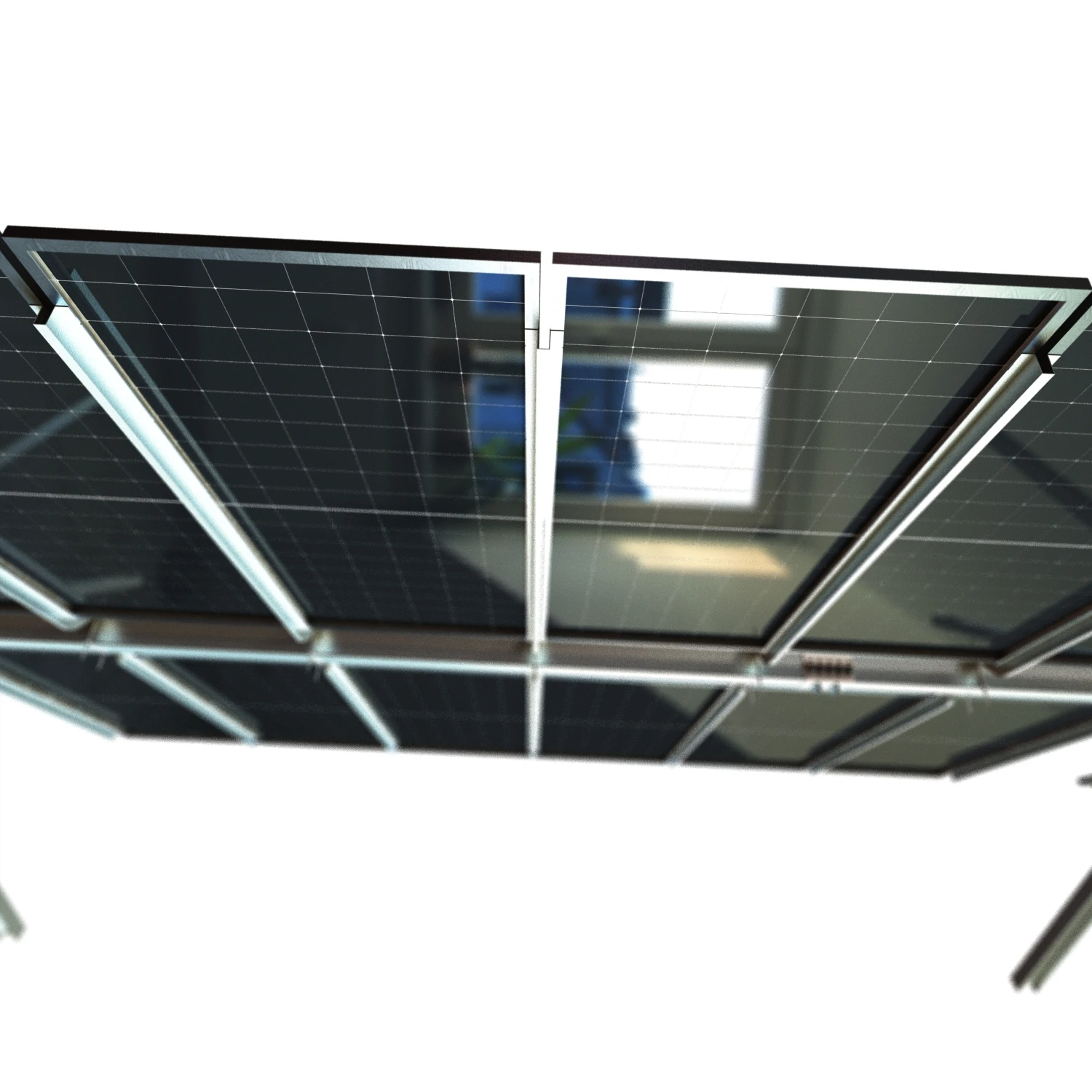

Suit For Bifacial Solar Panel
More and more power stations are choosing to use Bifacial solar panels, which generate power not only by direct sunlight to the front face but also by reflected light to the panel back. Unlike single-sided solar panels, they are made of clear glass that allows reflect light pass through and arrive panel back to generate power. This requires that the solar tracker must minimize the blocking of sunlight, especially on the back of the solar panel. BOFU's arch-shaped purlins are designed so that the solar panels can be mounted on purlins only by the edge of panels, which greatly increases the reflective area on the back of the solar panel.
Fast Lock Clip
The solar panels were mounted on the purlins with fast lock clip, no need tools and screws, one panel locked on the purlin by 6 clips, only 30 seconds for one solar panel, save time and labor.
item | value |
Place of Origin | China |
Brand Name | BOFU |
Model Number | BOFU-SST-SB001 |
Wind Load | 17M/S |
Snow Load | 1.6KN/SQM |
Warranty | 3 |
Product name | Single-axis Solar Tracking System |
Feature | Self balance |
Drive System | Slewing drive |
Driving Power | 24v |
Daily Power Consumption | ≤0.3kwh |
Communication Protocol | RS485 |
Surface Treatment | Hot-dip galvanize |
Solar Tracking method | Astronomical algorithm+GPS |
Foundation Form | Concrete/Earth anchor |
Quantity of Solar Panels | Customized |
