China suppliers construction elevator building hoist small elevator

Share on (1600788493014):


Price:

Quantity:


Product Overview

Description


SC200/200 construction elevator



Product Description




SC200/200 construction elevator elevator construction elevator construction hoists















































































































































Technical parameters

 Unit


 SC200/200 Frequency Construction hoists
 Height m

 300


 Rated load kg2000/2000
 Maximum capacity  009/009
 Boom lift wweight kg≤200
 Lifting speed m/min 0-40 0-45 0-55 0-66
 Electormotor  Model  YZEJ132M(L)-4

 Power


 kw 15×2/15×2 11×3/11×3 15×3/15×3 18.5×3/18.5×3
 Speed-limiter   Model   SAJ40-1.2A   SAJ40-1.4
 Rated tripping speed m/s 1.2/1.4
 Standard motion speed  m/s 1.1/1.35
 Rated automaticload KN

 40


 Type  gradual
 Reducer Model  SWC1  TU68T  TU66T
 Center distancemm 125
 Speed radio  1:12  1:10
 Bracking distancem 0.3-1.2

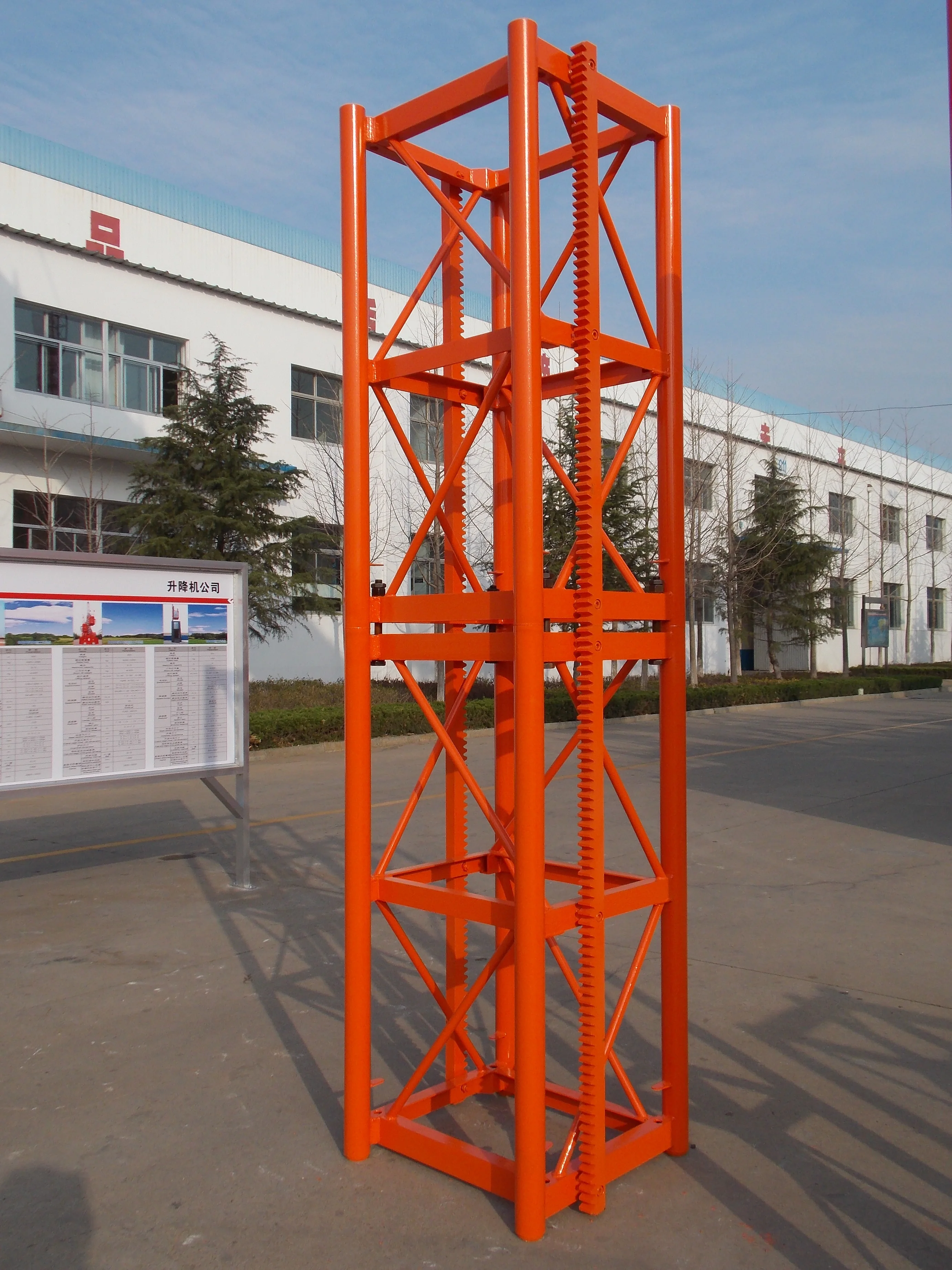

 Mast section dimensionmm 650×650×1508
 Crane cage inner net dimensionm 3.0×1.3×2.2  3.2×1.5×2.2
 Guardrail dimensionm 5.53×3.42×1.82 5.93×3.62×1.82
 Hoistway dimensionsm
 Free end height of the guide rail framem ≤9
 Gounterweight weightkg
 Direct attached frame Installing intervalm/set 006-9
 Distance between two embedded partsmm ≈1488
 Installation dimensions from center of rail frame to building wallmm 2800-3200
 Safe and protection system Upper and below limited switches,upper and below limit utmost switches,gate limited switch,falling avoiding safe device,cushion device,safe lock of gate,counterweight rope breaking or loose protecting device,safe hook,The safety device against overload,Anti-punching standard section  etc.

150_-1-_02_01.jpg150_-1-_02_02.jpg150_-1-_03 - .jpg150_-1-_04.jpg150_-1-_03 - .jpg



Packaging & Shipping


SC200/200 construction elevator elevator construction elevator construction hoists





Related Products













 SC200/200 construction elevator construction elevator construction elevator construction hoists





elevator FAQ


— — · FAQ · — —


1. Are you a trader or manufacturer?


A:We are manufacturer, which means that we can off you the best price and provide you the quick feedback after-sale service.





2. What's the difference between converter motor and constant frequency motor?
A:Converter motor hoist is steadier in the process of going up and down than constant frequency motor hoist.

3.Quotation request
:


If you are interested in our products, please provide the following parameters:





1) Load capacity (ton)


2) Lifting height (m)


3) Local power supply (kV, Hz)


4) Other special equipment


We will provide best price once confirmed the above.





4.Can you accept OEM or ODM?
Of course.Logo is also acceptable.





5.What is the warranty term of your product?


A: The warranty term of our product is 12months. Within warranty, if there is any quality defect, we will solve this problem as soon as possible.





6.if i want to be your agent,is it possible?
welcome to be our agent to cooperate for the business.
