Good efficiency low price paste trough mixing machine mayonnaise making machine mixing machine
- Category: >>>
- Supplier: Henan Workers Machinery Co. Ltd.
Share on (1600788531561):
Product Overview
Description

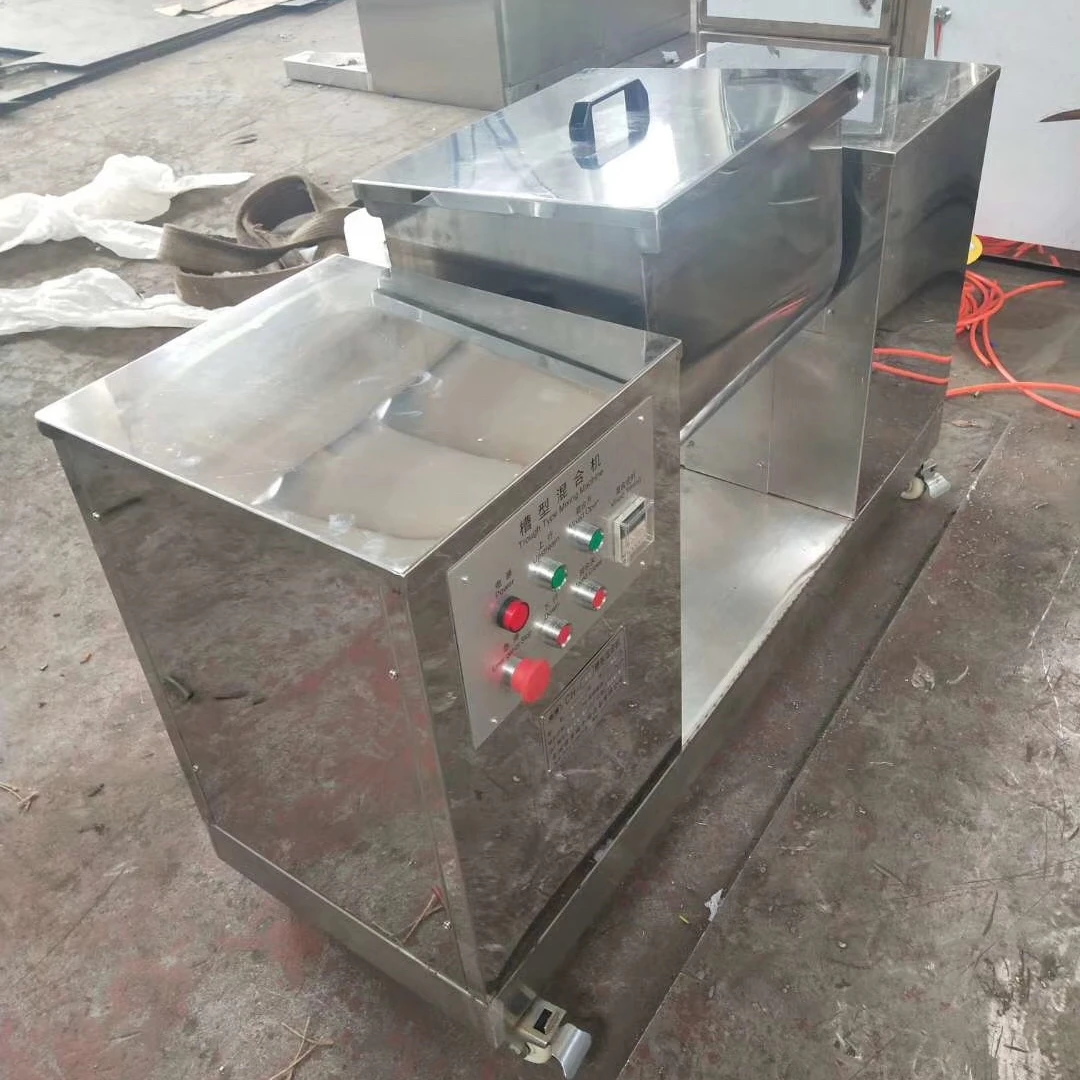

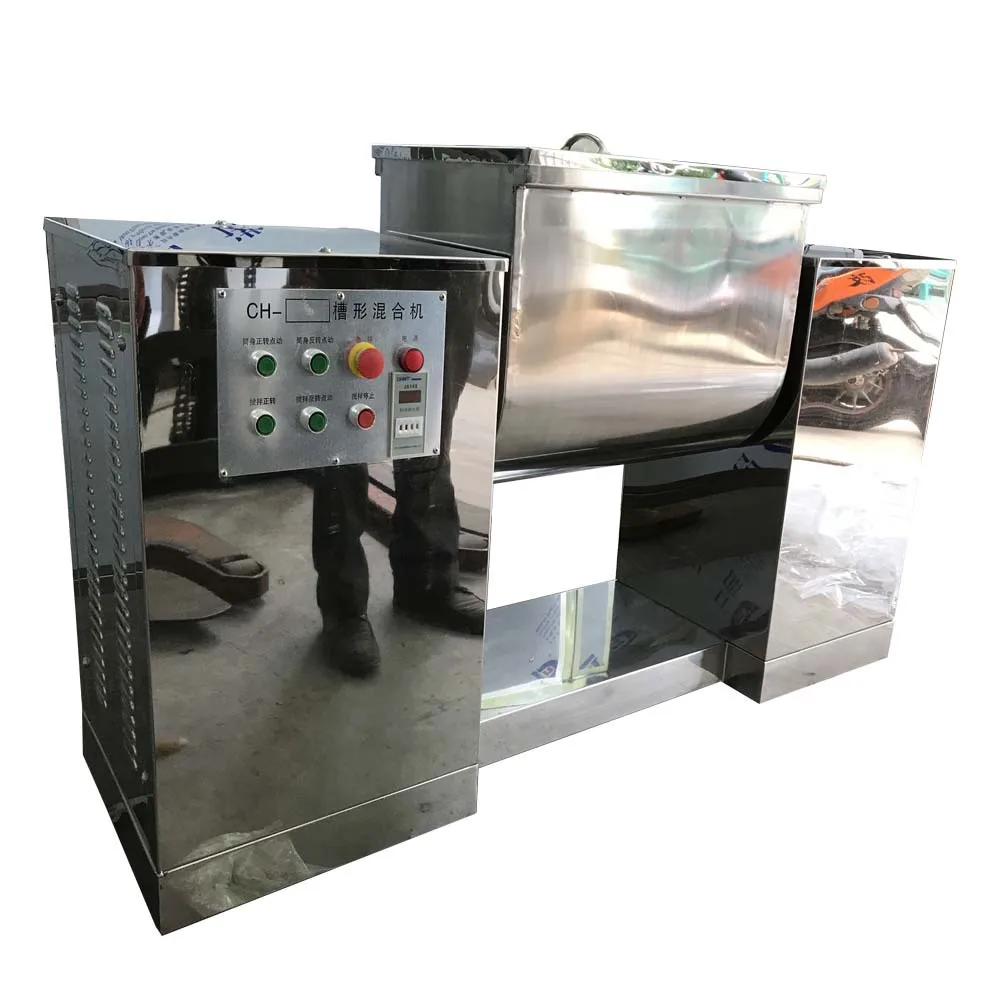

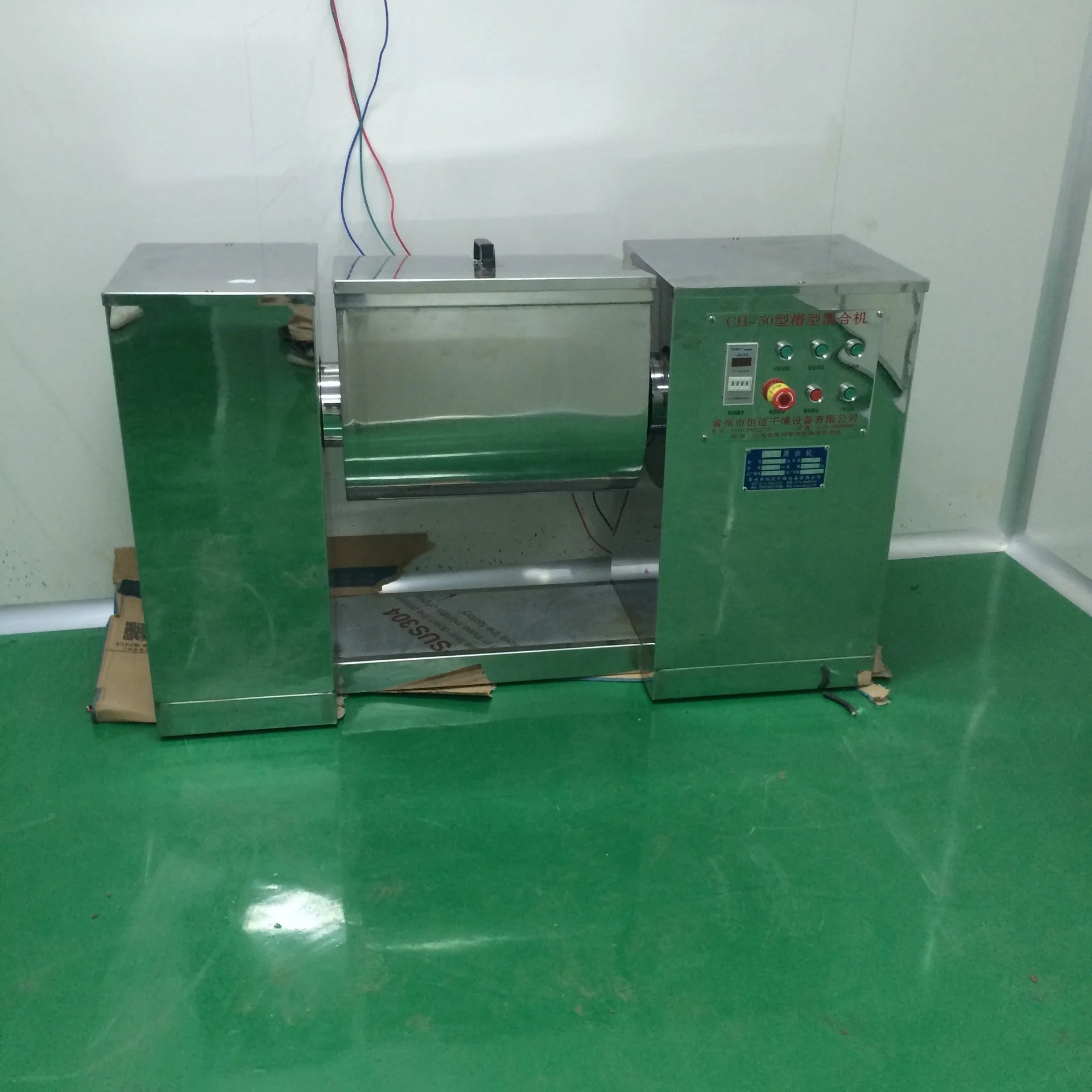

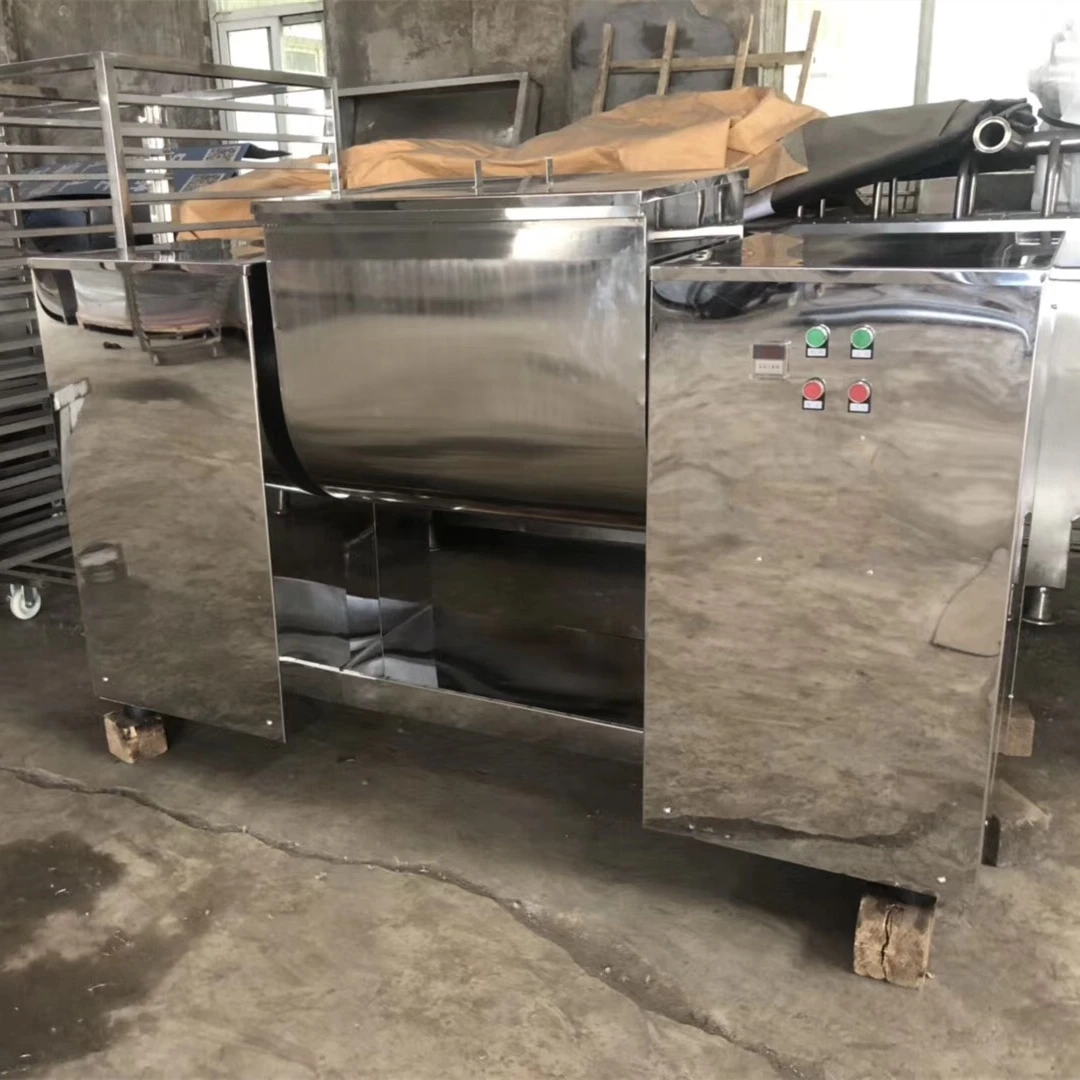

Trough type ribbon mixer
Introduction
The trough type mixer is based on the transmission trough mixer of our company. It has made many improvements to the mixing paddle, sealing and unloading, which makes the operation more convenient and the cleaning is more thorough. More widely used.
Application
1. Mixing of the previous steps in the production of tablets and granules.
2. Mixing of the food industry, such as condiments, dairy products, spices, cakes, etc.
3. Mix of feed production.
4. Mixing of powders and liquids in the chemical industry.
The trough type mixer is based on the transmission trough mixer of our company. It has made many improvements to the mixing paddle, sealing and unloading, which makes the operation more convenient and the cleaning is more thorough. More widely used.
Application
1. Mixing of the previous steps in the production of tablets and granules.
2. Mixing of the food industry, such as condiments, dairy products, spices, cakes, etc.
3. Mix of feed production.
4. Mixing of powders and liquids in the chemical industry.

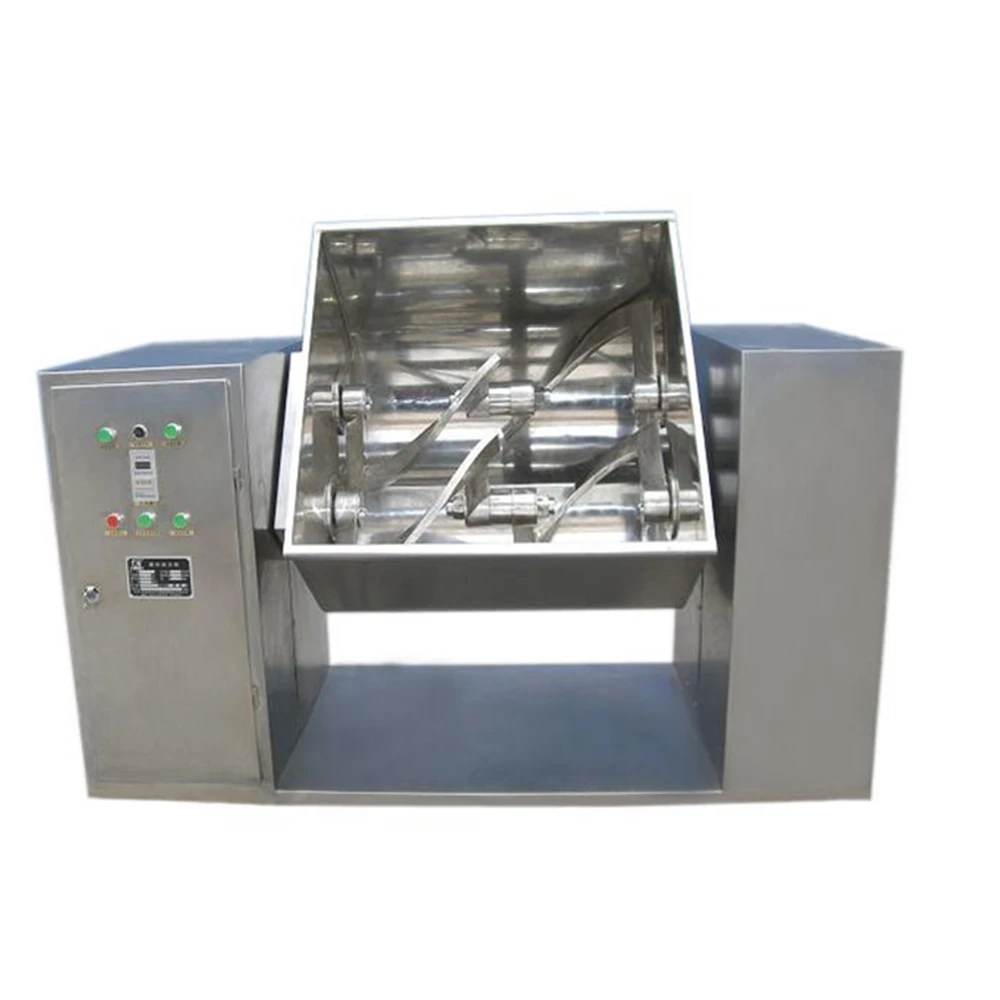

1. This machine uses two motors, a stirring motor, which drives the mixing paddle to rotate the mixture material through the shaft. A discharge motor can be used to tilt the stirring tank to facilitate unloading.
2. There are one-way thrust ball bearings and radial thrust ball bearings at both ends of the stirring shaft to prevent radial turbulence caused by negative stress.
3. The sealing at both ends of the mixing shaft has been improved, and it can be completely sealed without contaminant material.

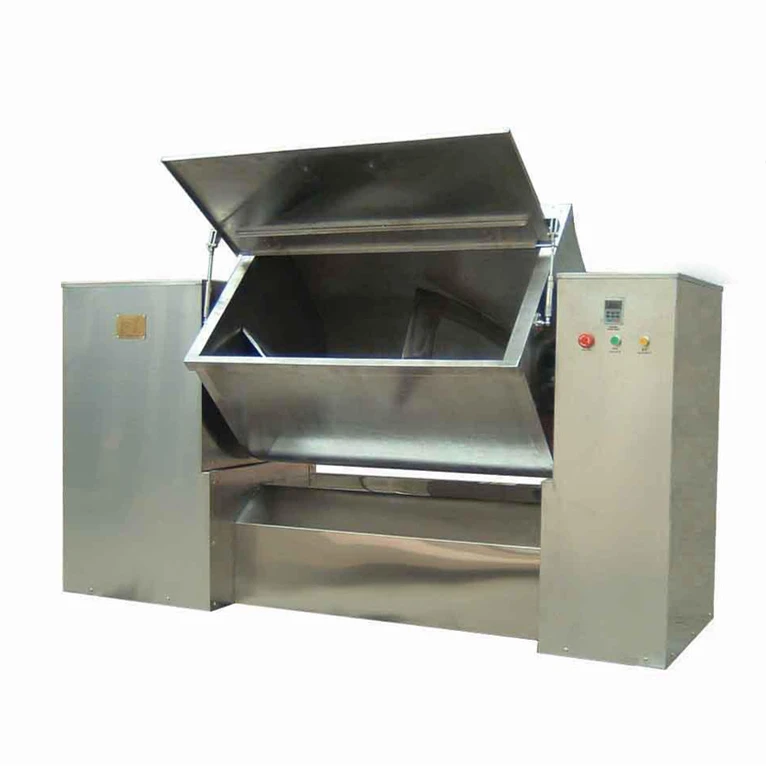

4. When jogging is used, it is easy to discharge, and it will not cause the phenomenon that the hopper tilts too much. The left end of the machine rotates. Because the worm wheel and the worm drive have self-locking effect, the mixing box can be dumped at any angle. .
5. Add the raw material to the cylinder at one time, dry it for a period of time, add the adhesive or spray the liquid, or add the raw material and the adhesive to the working container at one time, and mix it into the ideal soft material.

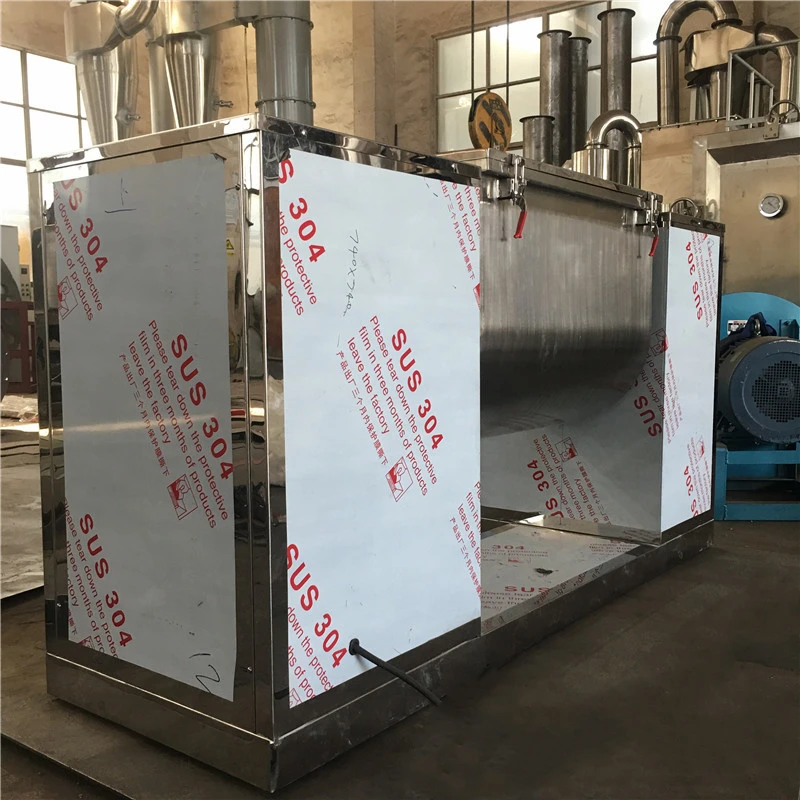

304 stainless steel manufacturing

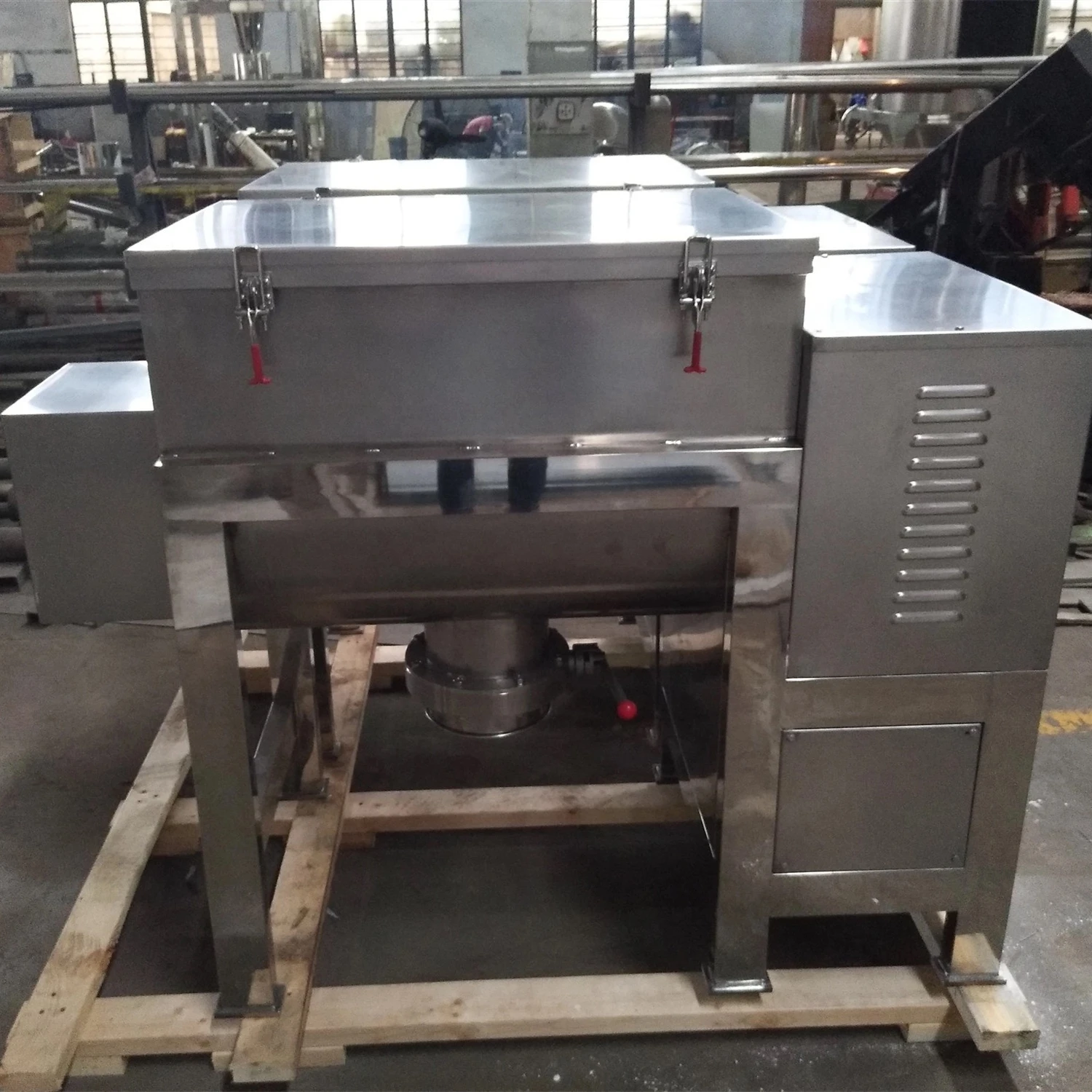

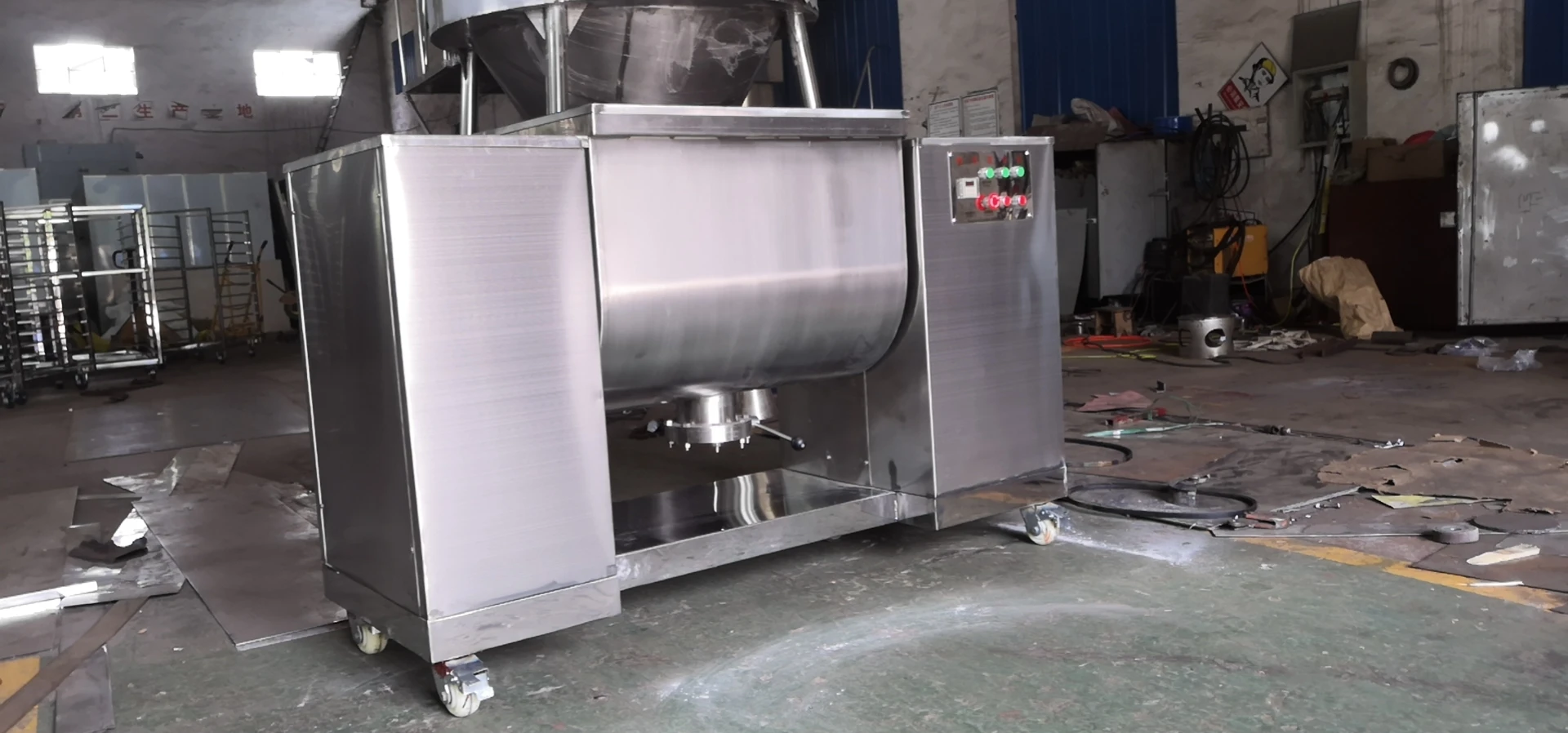

With casters and butterfly valve discharge; customizable

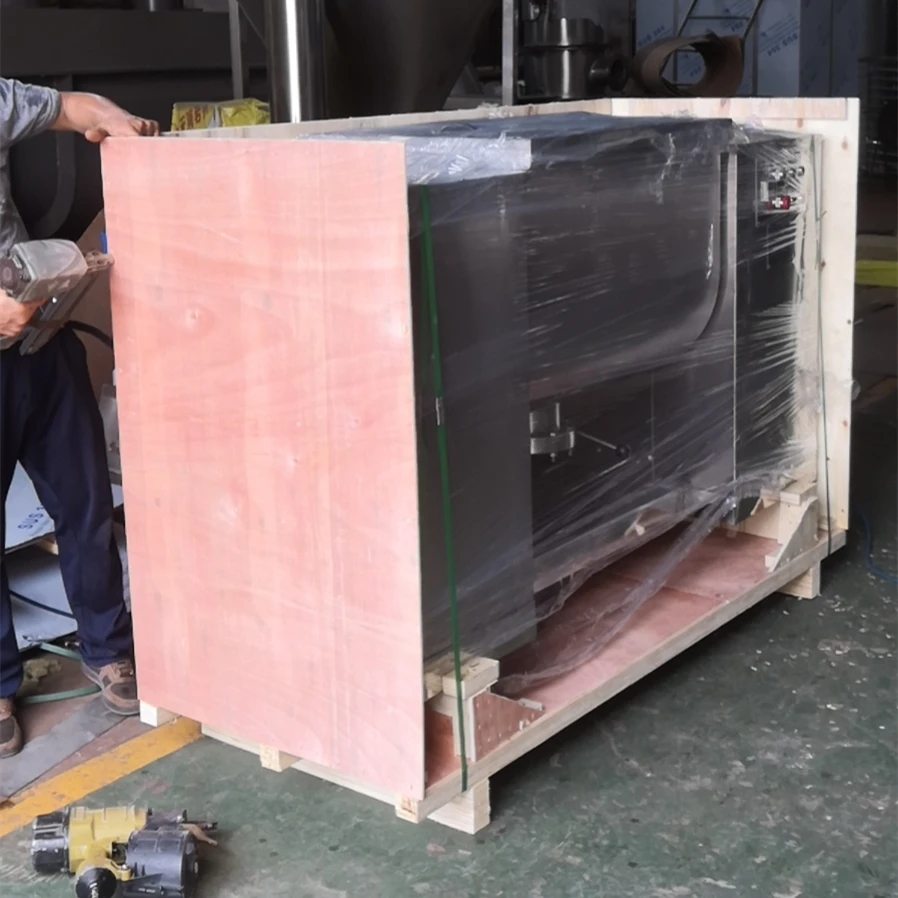

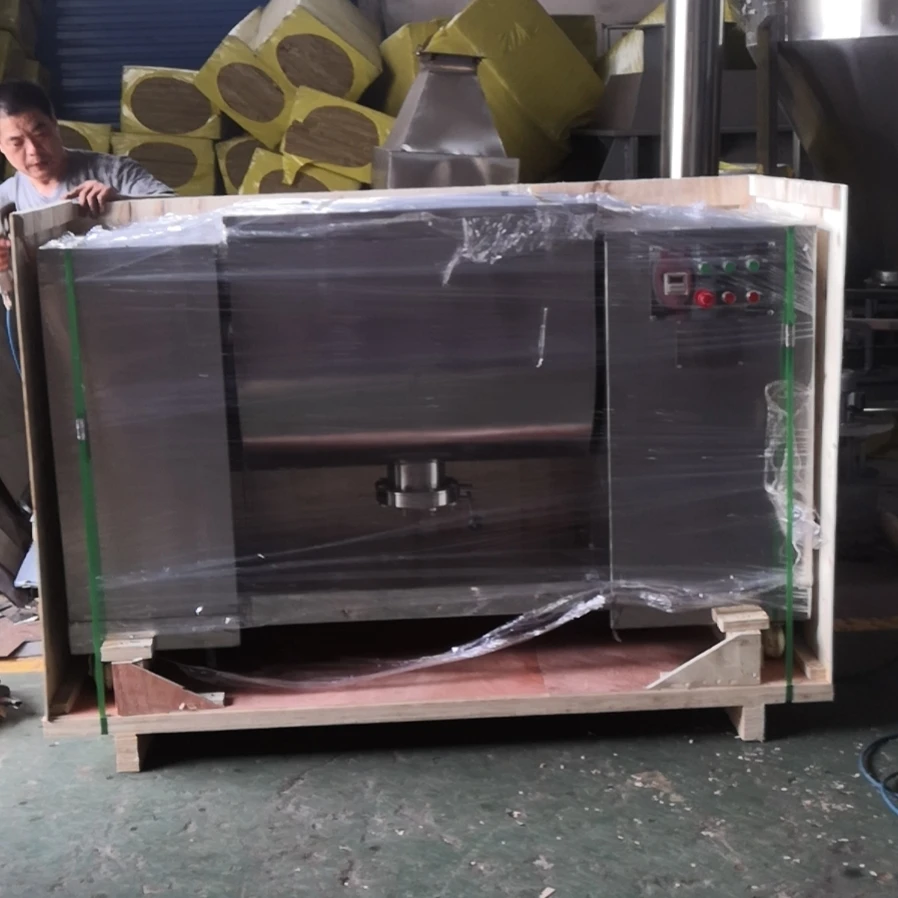

Plywood packaging
Technical parameters
Model | CH-50 | CH-100 | CH-200 | CH-400 | ||||
Volume L | 50 | 100 | 200 | 400 | ||||
Capacity kg/batch | 25 | 50 | 100 | 200 | ||||
Mixing motor kW | 1.5 | 3 | 4 | 5.5 | ||||
Discharge kW | 0.55 | 0.55 | 0.75 | 1.5 | ||||
Stirring speed rpm | 24 | 24 | 24 | 24 | ||||
Weight kg | 180 | 300 | 420 | 610 | ||||
Dimensions mm | 1200*400*750 | 1500*500*900 | 1750*600*1050 | 2200*700*1150 | ||||
Note: there may be minor difference from final dimensions; large volume is also available | ||||||||
