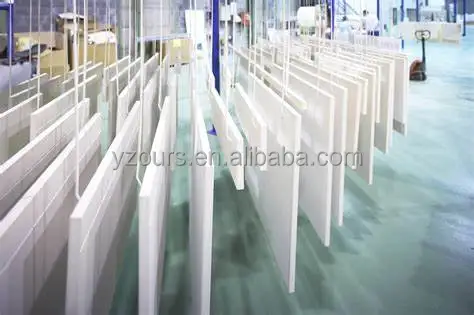

2023 New Automatic Paint Mdf Powder Coating Line
- Category: >>>
- Supplier: Yangzhou Ours Machinery Co. Ltd.
Share on (1600788544719):
Product Overview
Description
Product Description
Technical difficulties of MDF powder coating:
MDF wood-based panels are made by mixing wood fibers and adhesives and then pressing them under steam heating and pressure. There are many voids in the material, which is very hygroscopic, and the adhesive contains a certain amount of small molecule volatiles. Therefore, it is very different from the powder electrostatic coating of metal parts. To realize the electrostatic coating of MDF powder, three technical difficulties must be solved first:
The MDF board has poor conductivity, and it needs to solve its uniform adsorption capacity for charged powder.
MDF boards are not resistant to high temperatures. To solve the problem that the substrate is not damaged, ensure that the surface powder coating is melted, leveled and fully solidified.
The shorter the residence time of the MDF wood board in the high temperature zone of the curing tunnel, the better, and the corresponding fast curing powder must be developed.
The MDF board has poor conductivity, and it needs to solve its uniform adsorption capacity for charged powder.
MDF boards are not resistant to high temperatures. To solve the problem that the substrate is not damaged, ensure that the surface powder coating is melted, leveled and fully solidified.
The shorter the residence time of the MDF wood board in the high temperature zone of the curing tunnel, the better, and the corresponding fast curing powder must be developed.
Application:
Ourscoating MDF powder spraying technology is to make the MDF become a conductor and directly enter the electrostatic powder spraying production line, and the powder will be directly and evenly adsorbed on the surface of the centerline board through static electricity. The remaining powder is sucked away by the fan and directly recycled and reused. The sprayed plate is directly put into the heating box for curing. The whole process only takes 20 minutes. Therefore, the technology can be said to be a green and environmentally friendly process with low energy consumption, no pollution, and recyclability.
Detailed Images

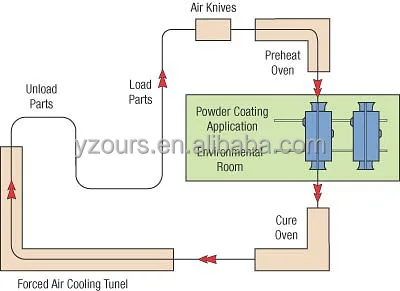

Technical process:
Loading---Sanded---Sealed---Base paint---Curing---Sanded---Preheated---Powder coating---Powder curing---Inspection---Unloading
Ourscoating adopts the latest and most advanced MDF coating technology to deliver the best quality painted MDF board.

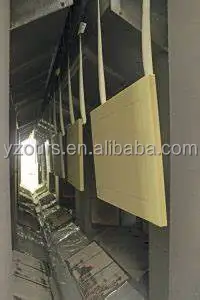

Pretreatment
MDF pretreatment is an important factor that determines the quality of the MDF board powder coating film. Improper pretreatment of chemical methods in metal powder coating can affect the quality of powder coating film up to 30%, and improper treatment before sandblasting and shot blasting can cause up to 50% of quality defects. Improper pre-treatment and back cover of the MDF board will also cause a lot of disadvantages in demand.

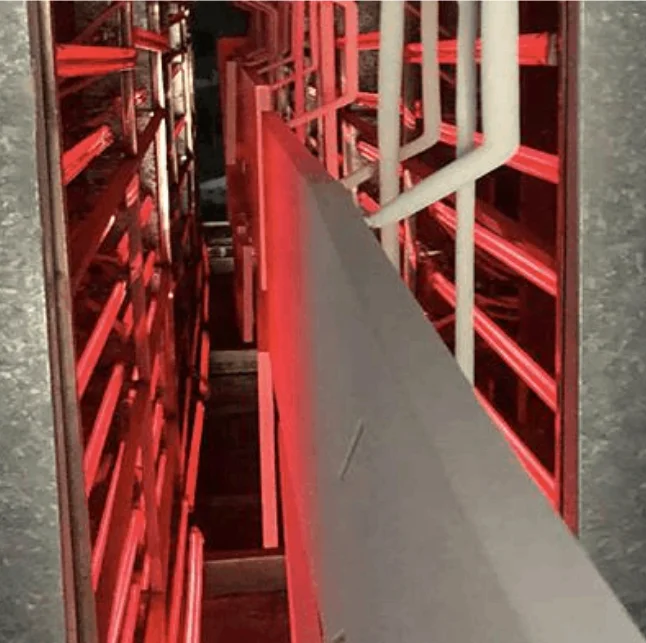

MDF powder curing
Using mid-wave infrared heating technology. It can make the powder adsorbed on the surface of the MDF board quickly absorb heat and level and solidify in a short time.

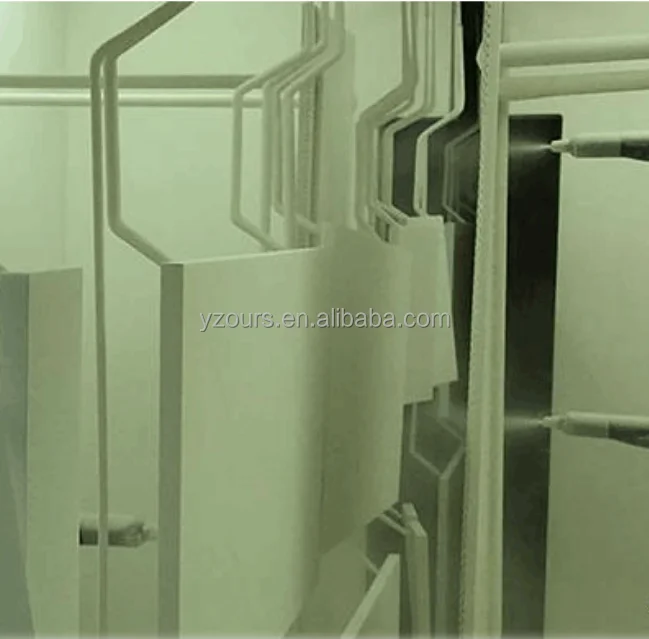

Electrostatic spraying technology
We have the domestic first-class both preheating electrostatic spraying technology and MDF board room temperature electrostatic
spraying technology.
spraying technology.

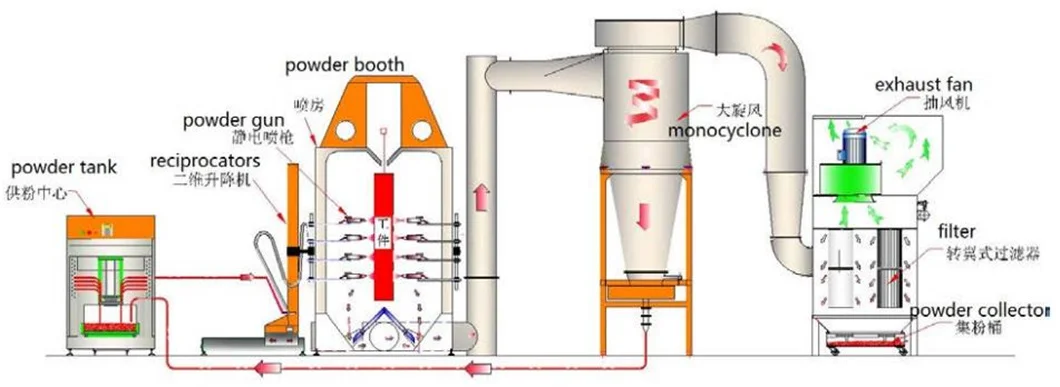

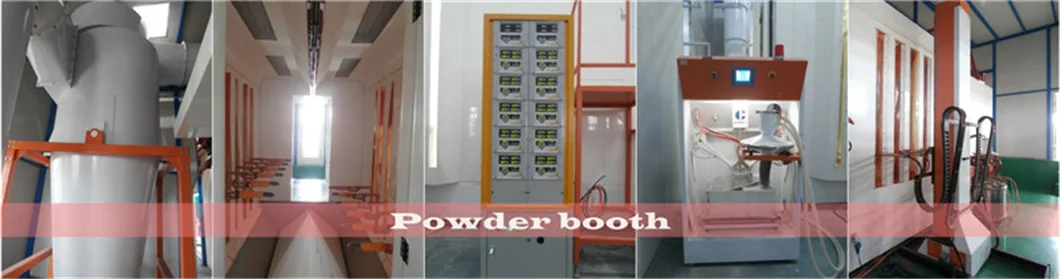

Powder coating booth with cyclone recovery system
Our powder booth is easy to clean, with quick color change system. It is also safe to operate and has no powder overflows out of the booth.
The powder recovery system could be Multi-cyclone, Mono-cyclone with filters. Now normally use is Mono-cyclone quick color change system.
The powder recovery system could be Multi-cyclone, Mono-cyclone with filters. Now normally use is Mono-cyclone quick color change system.
The material of powder booth can be PP, stainless steel, powder coated carbon steel.

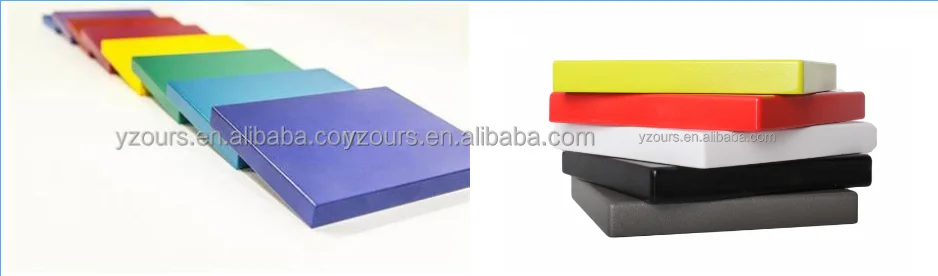

Benefits of powder coated MDF
A powder finish offers the advantages of both protection and style to consumers.
Powder coating makes the wood products resistant to stains and damage caused by direct sunlight, and the MDF is protected from scratches, rough handling, chemical or water spills, and temperature extremes.
Powder coating makes the wood products resistant to stains and damage caused by direct sunlight, and the MDF is protected from scratches, rough handling, chemical or water spills, and temperature extremes.
Why Choose Us
OURS is a professional manufacturer engaged in the design, manufacture, installation, commissioning and service of coating and environmental protection equipment for about 20 years. It adopts European technology to make the company's products follow the world advanced level.
OURS COATING
Coating specialist providing turnkey projects
Focus on coating equipment for about 20 years
More than 10years of experience in large projects
More than 10years of experience in large projects
90% of employees have more than 8 years of experience
Advanced CNC machining center
Until now we have successively provided more than 300sets of turn-key projects for automotive, construction machinery, medical equipment, home appliances, security equipment, firefighting equipment, electrical equipment, metal furniture, logistics, building materials, hardware, fitness equipment, outdoor recreation machinery and motorcycle industries.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* View our Factory.
After-Sales Service
* Install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Pre-sales: close contact, better understanding
Freely provide pre-sale technical services including technical consultation, technical exchange, etc., and accompany domestic and foreign customers to visit OURS's existing powder coating line, painting line and ED coating line.
During sale: quality insurance, on-time delivery
The company pays attention to digesting and absorbing international and domestic advanced coating technology and process. The products are all designed and manufactured by ourselves, this not only guarantees the quality, but also reduces the equipment manufacturing cost, operation cost; so that we can deliver on time, provide better service to our customers.
Freely provide pre-sale technical services including technical consultation, technical exchange, etc., and accompany domestic and foreign customers to visit OURS's existing powder coating line, painting line and ED coating line.
During sale: quality insurance, on-time delivery
The company pays attention to digesting and absorbing international and domestic advanced coating technology and process. The products are all designed and manufactured by ourselves, this not only guarantees the quality, but also reduces the equipment manufacturing cost, operation cost; so that we can deliver on time, provide better service to our customers.
After-sales: regular return visits, timely maintenance
Send skilled and experienced engineers to install the equipment and provide training services, including on-site training and professional training, theoretical training and practical training, technical training and management training. One-year warranty is available. If problem occurs, we will respond promptly: guide online or dispatch engineers for inspection.
Send skilled and experienced engineers to install the equipment and provide training services, including on-site training and professional training, theoretical training and practical training, technical training and management training. One-year warranty is available. If problem occurs, we will respond promptly: guide online or dispatch engineers for inspection.
Certifications
Packing & Delivery
Size | Non standard equipment, need to be installed. | |
Weight | It depends on design | |
Packaging Details | 40HC containers The normal package is film and carton. Or pack it according to customers special request. | |
