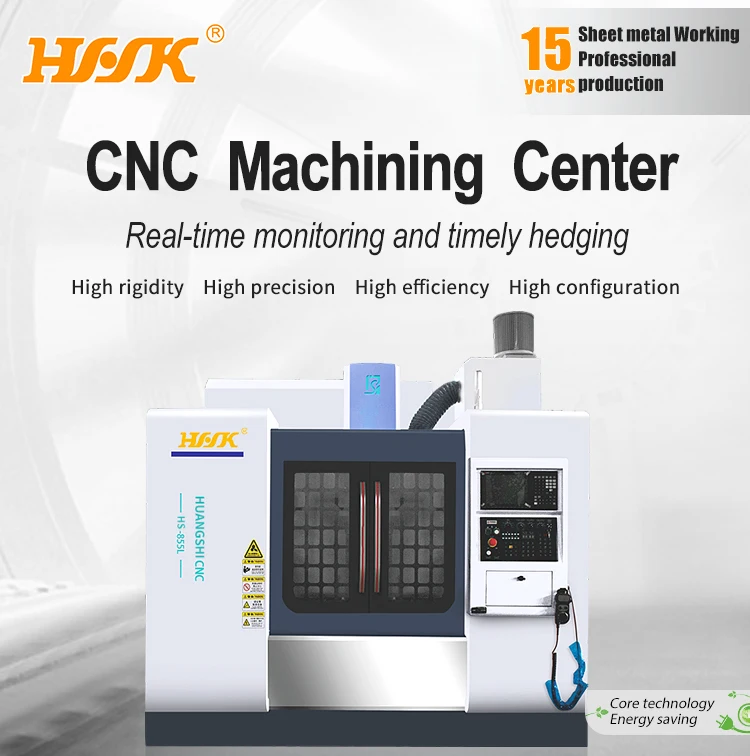

3 Axis Vertical CNC Turning Machining Vs Milling Center Lathe Machine Metal Customized Price Vmc850 Max Travel Motor Single 500
- Category: >>>
- Supplier: Nanjing Huangshi Machine Tool Manufacturing Co. Ltd.
Share on (1600788577005):
Product Overview
Description
Products Description

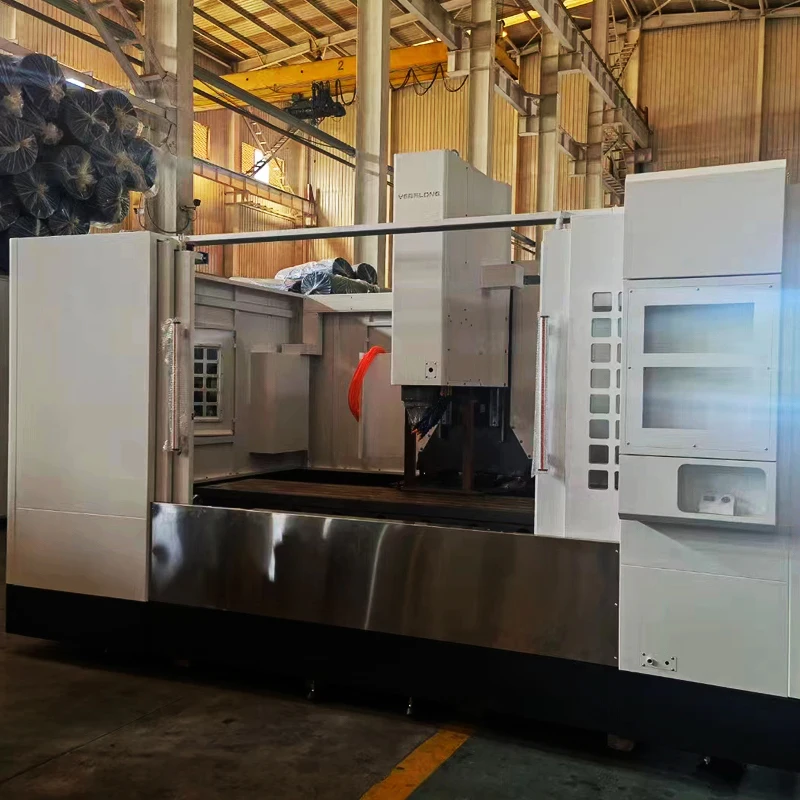

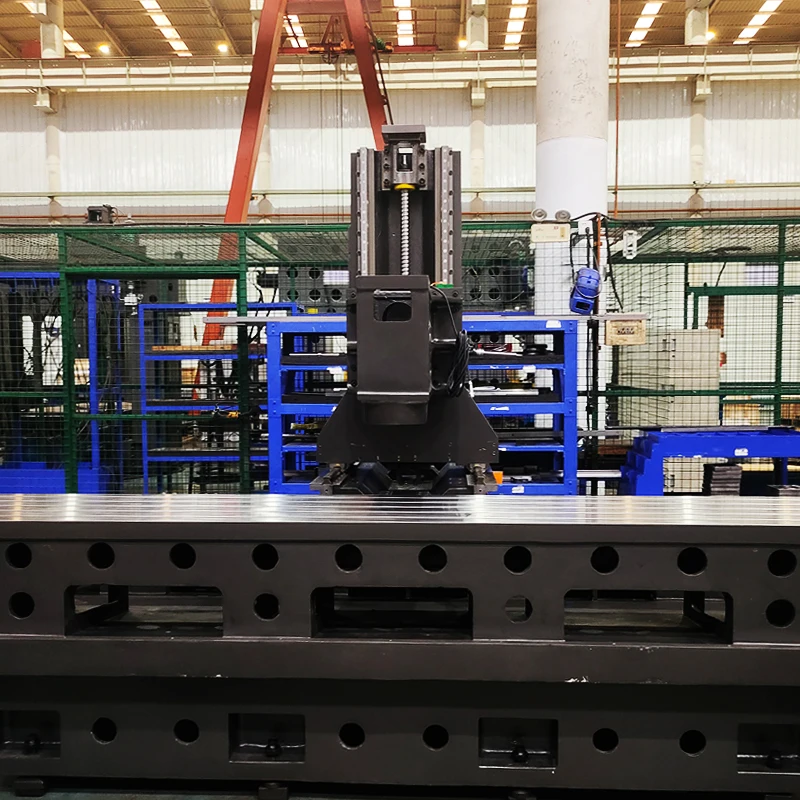

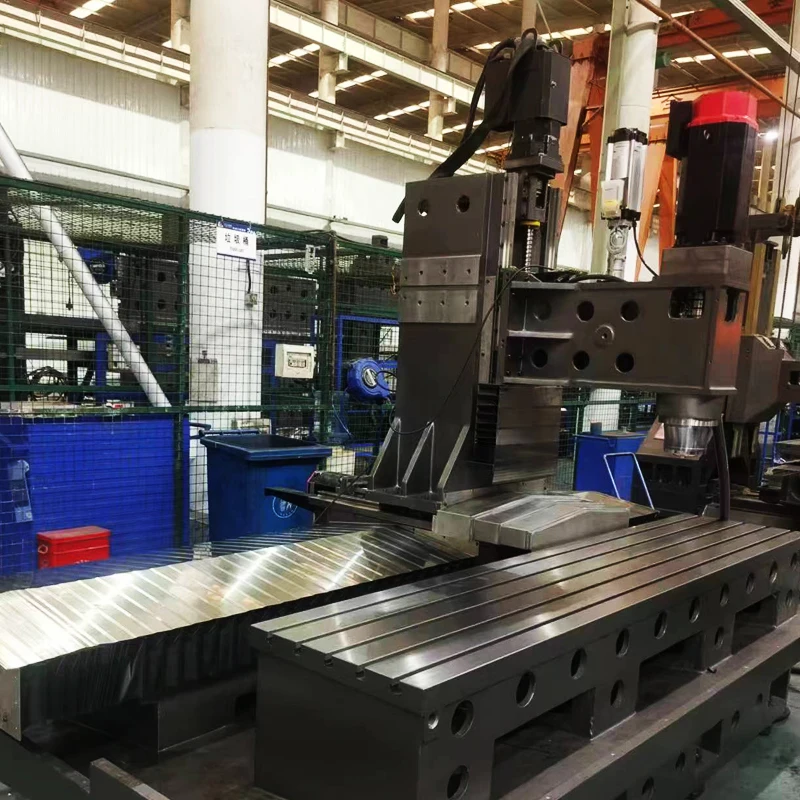

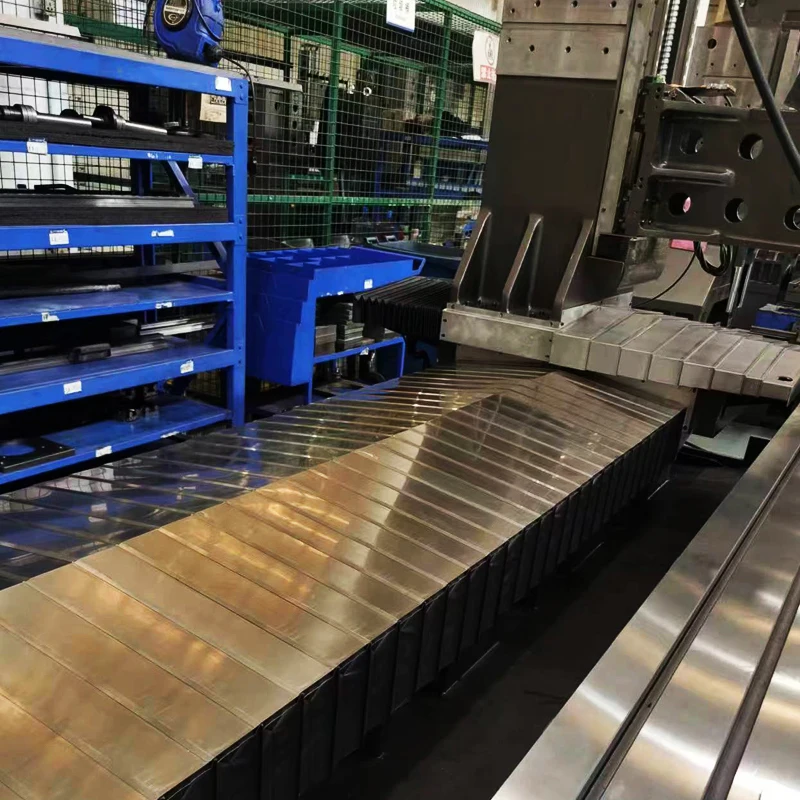

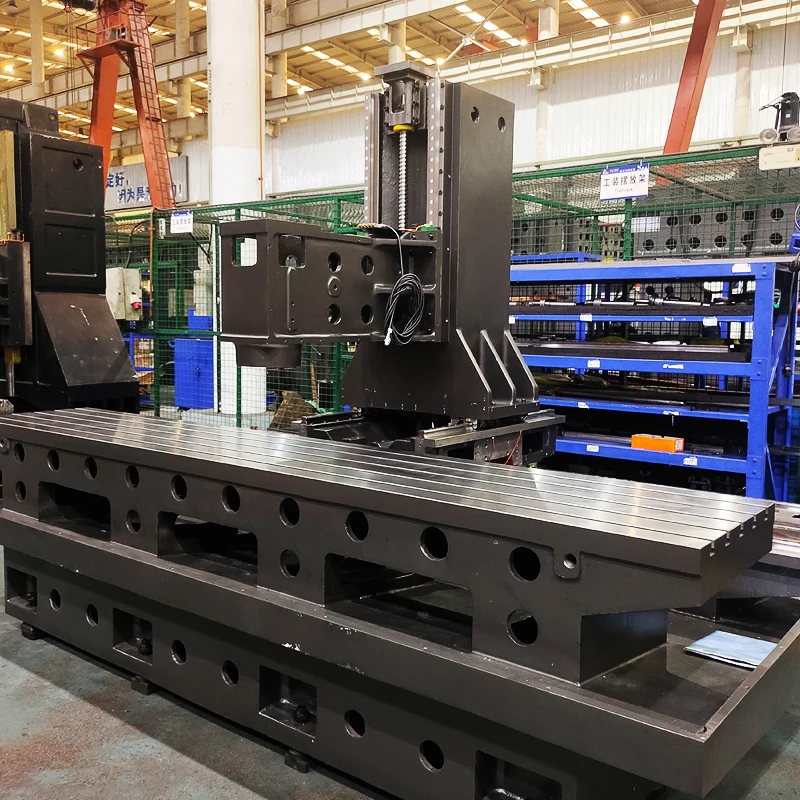

Details Images
Technical parameter
name | unit | RS-650L | RS-855L | RS-860L | RS-1165L | RS-1270L | RS-1380L |
X-axis stroke | mm | 600 | 800 | 850 | 1100 | 1200 | 1300 |
Y-axis stroke | mm | 500 | 550 | 600 | 650 | 700 | 800 |
Z-axis stroke | mm | 500 | 570 | 500 | 600 | 700 | 800 |
Working Table size | mm | 800*500 | 1000*550 | 1000*520 | 1200*600 | 1300*700 | 1400*800 |
Table bearing | kg | 500 | 600 | 800 | 800 | 1000 | 1500 |
Table T-slot specifications | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-100 | 5-18-100 | |
Distance from table to spindle nose | mm | 120-570 | 170-740 | 150-650 | 150-750 | 140-840 | 150-950 |
Distance from spindle center to column guide rail surface | mm | 515 | 610 | 630 | 690 | 730 | 815 |
Spindle taper hole specification | BT-40(φ140diameter) | BT-40(φ150diameter) | BT-40(φ150diameter) | BT-40(φ150diameter) | BT-40(φ150diameter) | BT-40(φ150diameter) | |
Spindle speed | rpm/min | 10000/12000 | 10000/12000 | 10000/12000 | 10000/12000 | 8000/12000 | 8000/12000 |
Spindle motor rate | kw | 7.5（β8） | 7.5（β8） | 11（β12） | 11（β12） | 15（β15） | 15（β15） |
Triaxial motor rate (Mitsubishi) | kw | 2/2/3 | 2/2/3 | 3/3/3 | 3/3/3 | 3/3/3 | 3/3/3 |
Triaxial motor rate (FANUC) | β12/β12/β22 | β12/β12/β22 | β22/β22/β22 | β22/β22/β22 | β22/β22/β22 | β22/β22/β22 | |
Three axis rapid displacement | m/min | 36/36/36 | 36/36/36 | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/24 |
Triaxial cutting feed rate | mm/min | 1-12000 | 1-12000 | 1-12000 | 1-12000 | 1-12000 | 1-12000 |
Positioning accuracy | mm | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 | ±0.003/300 |
Repetition accuracy | mm | ±0.0025 | ±0.0025 | ±0.0025 | ±0.0025 | ±0.0025 | ±0.0025 |
Tool change type | Disc type | Disc type | Disc type | Disc type | Disc type | Disc type | |
Tool storage capacity | pcs | 24 | 24 | 24 | 24 | 24 | 24 |
Power demand | KVA | 15 | 20 | 20 | 20 | 20 | 20 |
Barometric demand | kg/cm2 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 | ≥6 |
Z-axis counterweight mode | Nitrogen gas | Nitrogen gas | |||||
Machine weight | kg | 5200 | 5500 | 6000 | 8000 | 9000 | 9200 |
Floor area (l*w*h) | mm | 2200*2350*2450 | 2700*2650*2500 | 2750*2650*2700 | 3200*2800*3000 | 3600*3000*3100 | 3600*3400*3200 |
controller | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC | Mitsubishi/FANUC |
Related Products

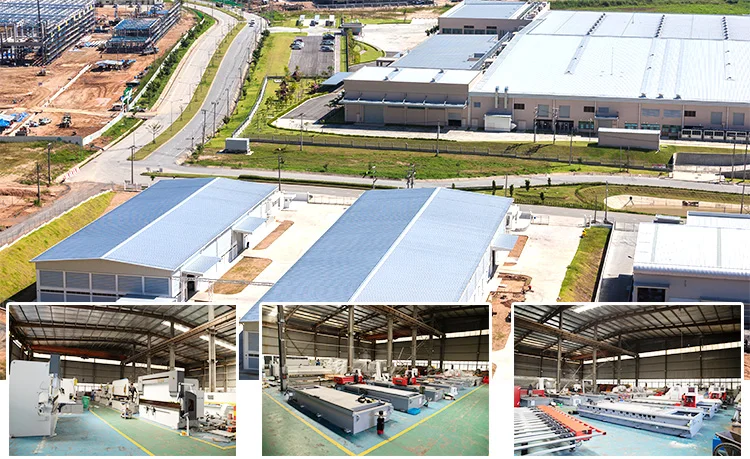

Company Profile
VR
Why choose us?
Huangshi is a world famous manufacturer of sheet metal equipment. Its "HHS" brand has been a leader In the international field of sheet metal equipment has many years of brand. The Group is committed to the development, production and marketing of products. The company's main products are: CNC bending machine, shearing machine, hydraulic press, laser cutting machine, CNC plate rolling machine and other sheet metal processing equipment. We use the European Belgium forging machine tool production technology. Exported to Europe, America, the Middle East, South Africa, Southeast Asia and more than 30 countries and regions. We have a professional R & D team with world-class design and manufacturing capabilities.

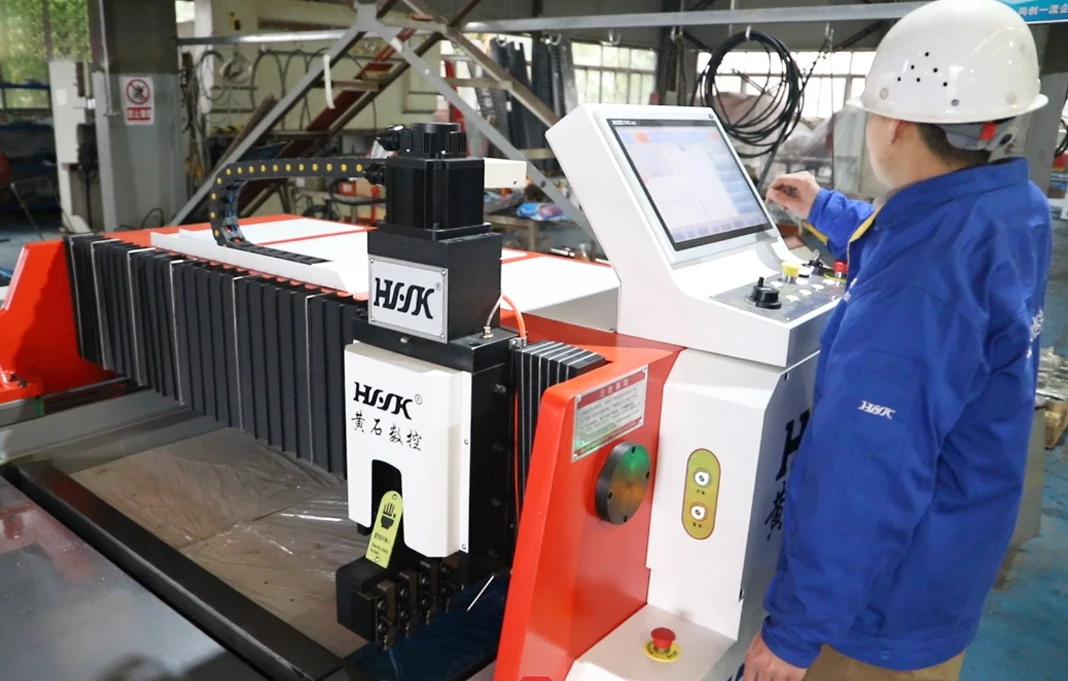

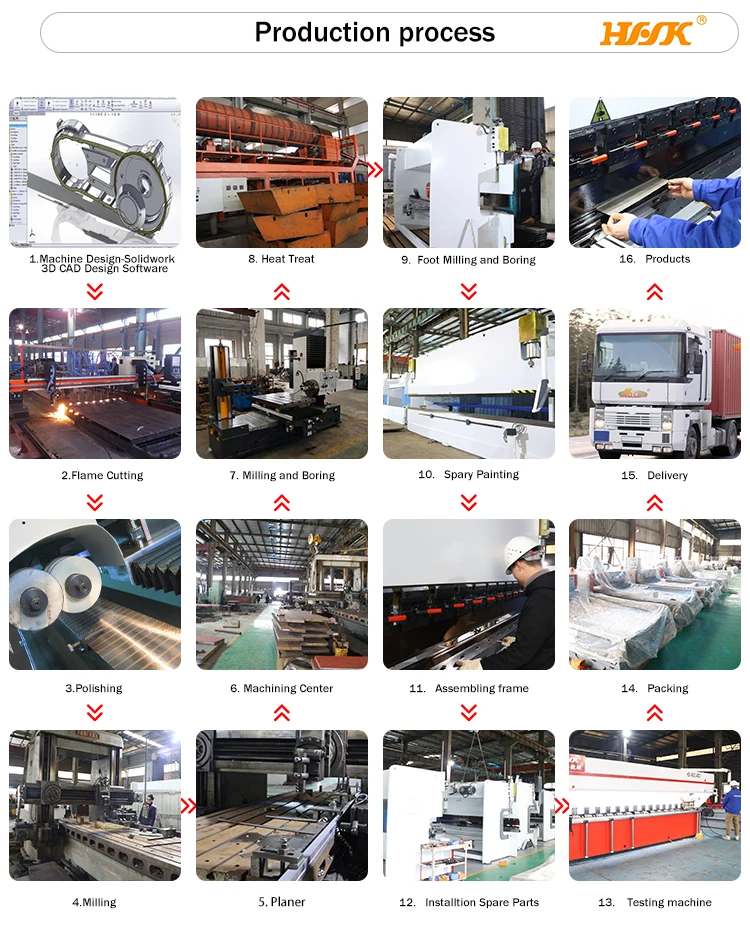

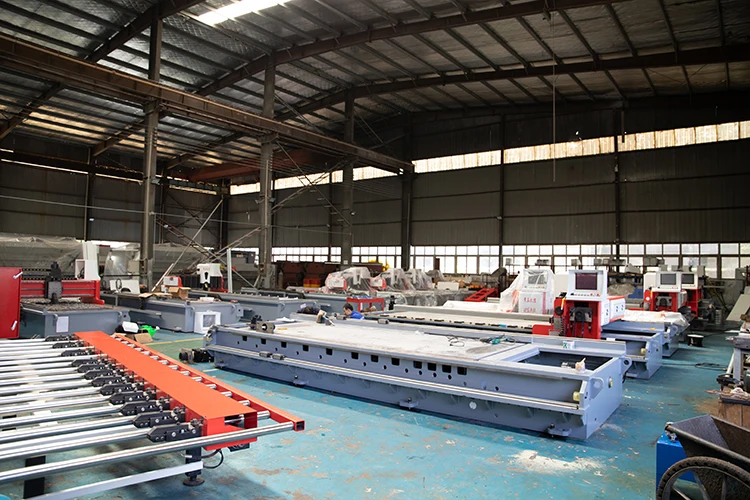

Technological Process

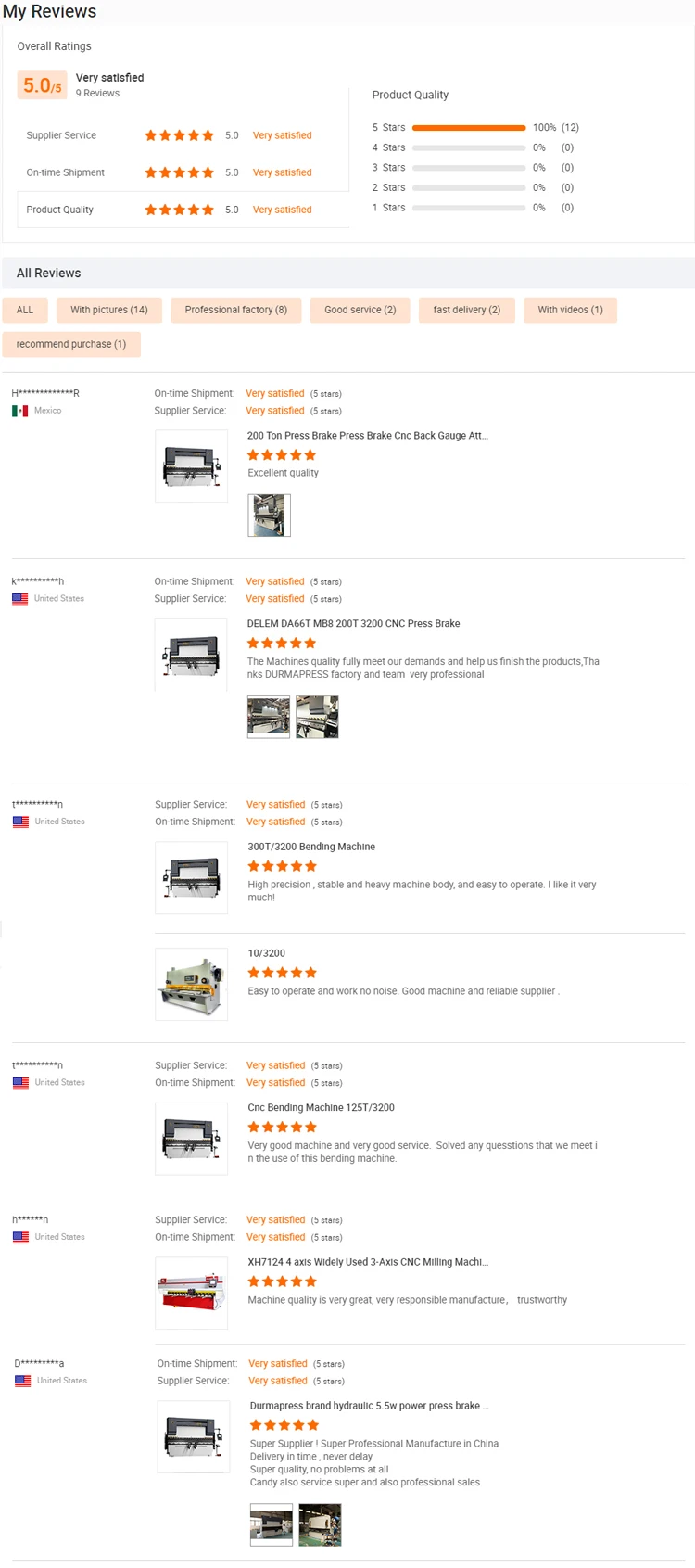

We got 5 stars rating!

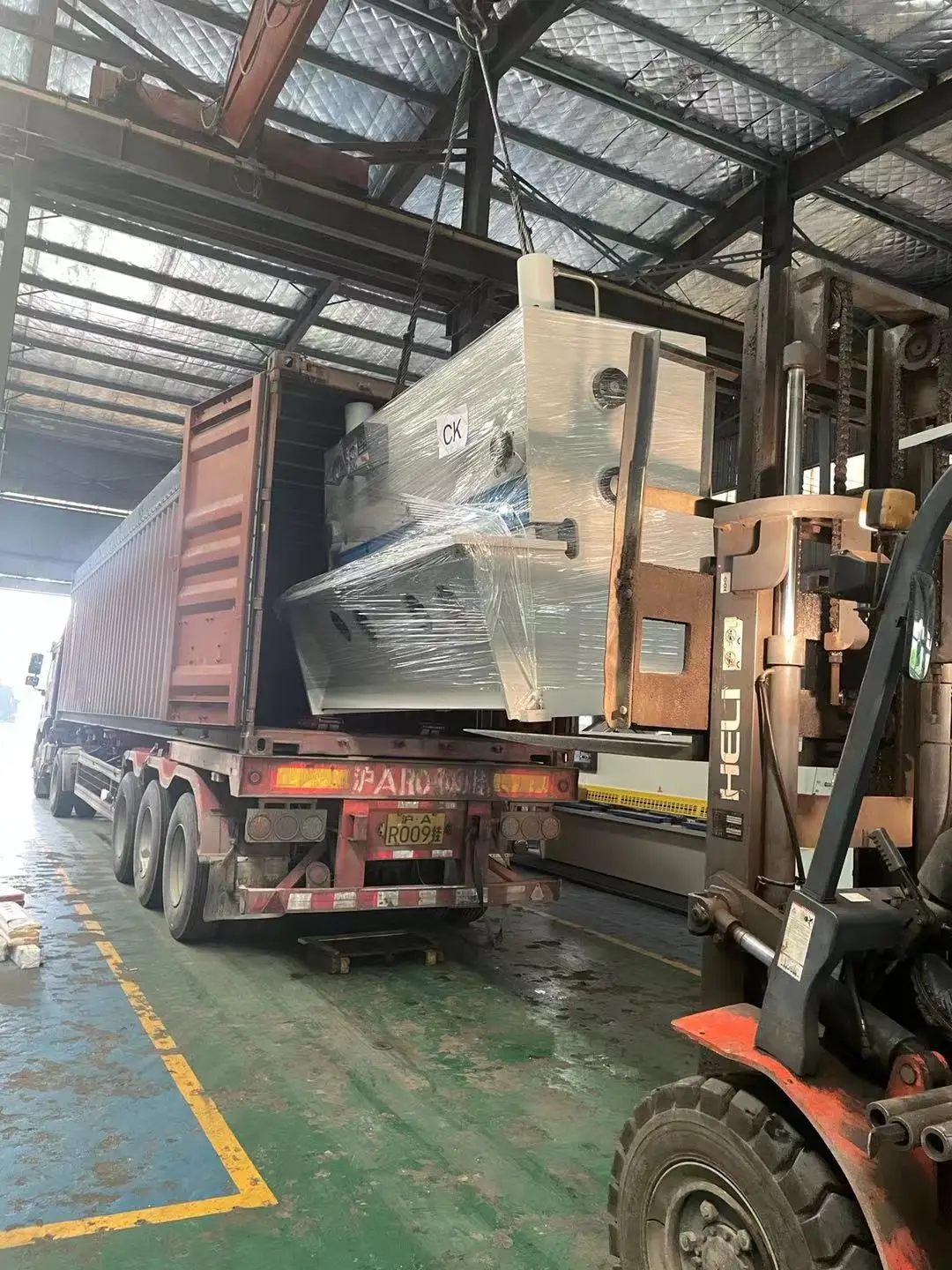

Product packaging
1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the spare parts of the machine were covered by the some soft materials mainly using pearl wool.
3. The outmost is wooden case with fixed formwork.
4. Thebottom of the wooden case has firm iron jack, convenient to handing and transport.
Our Serives
Our certificate & Our partners

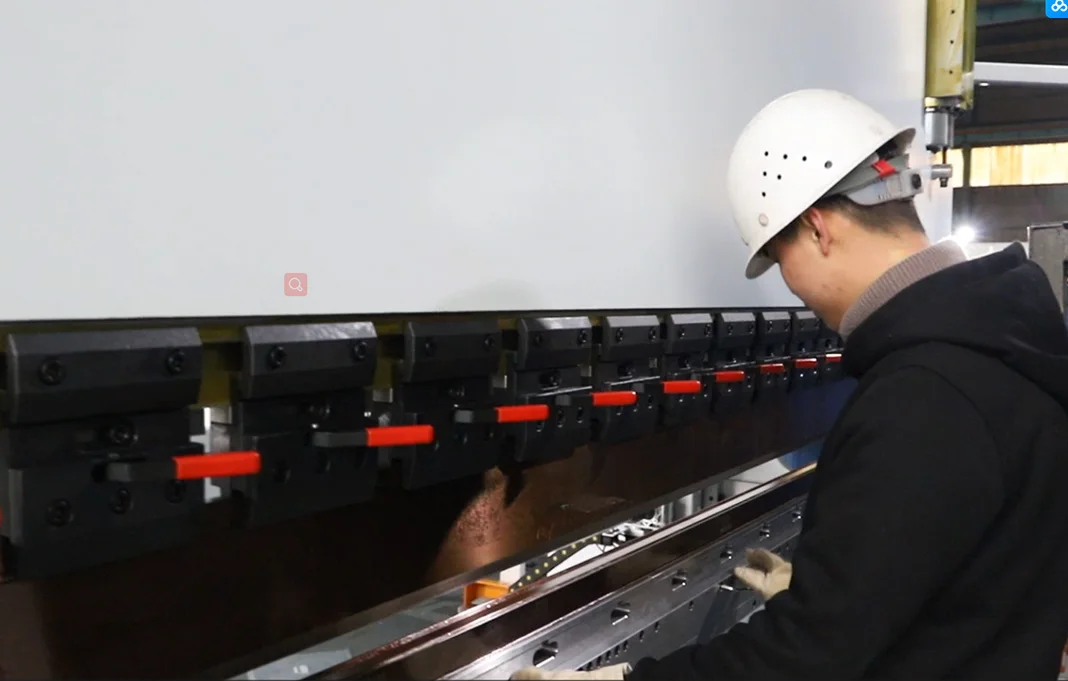

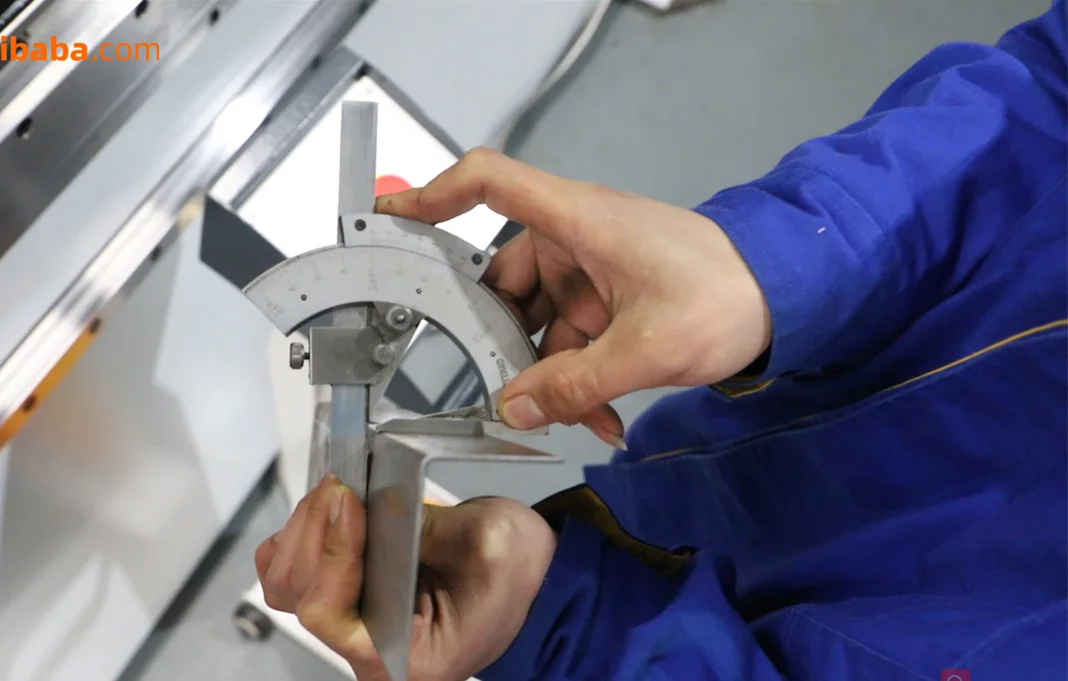

QUALITY CONTROL
Nearly 50 years of expertise in the manufacture of press brakes and guillotines machines give us the security that is needed for future challenges. High standards of quality and a team with the best training and knowledgeare a major condition for our success.Our products are the result of a continued focus on improving internal processes underpinned by high quality levels, that result in the recognition of Huangshi machines as quality garantee equipment.
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .You can also send us the products drawing ,we will choose the most suitable machines for you
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine,gear hobbing machine and so on
3.Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required.
4.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to accommodate your needs. In most cases we are able to do so.
5.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.
6.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the culture of our company to address and resolve all customer issues to everyone’s satisfaction.
7.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
8.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of amount, weight and way. Please contact us for further information.
