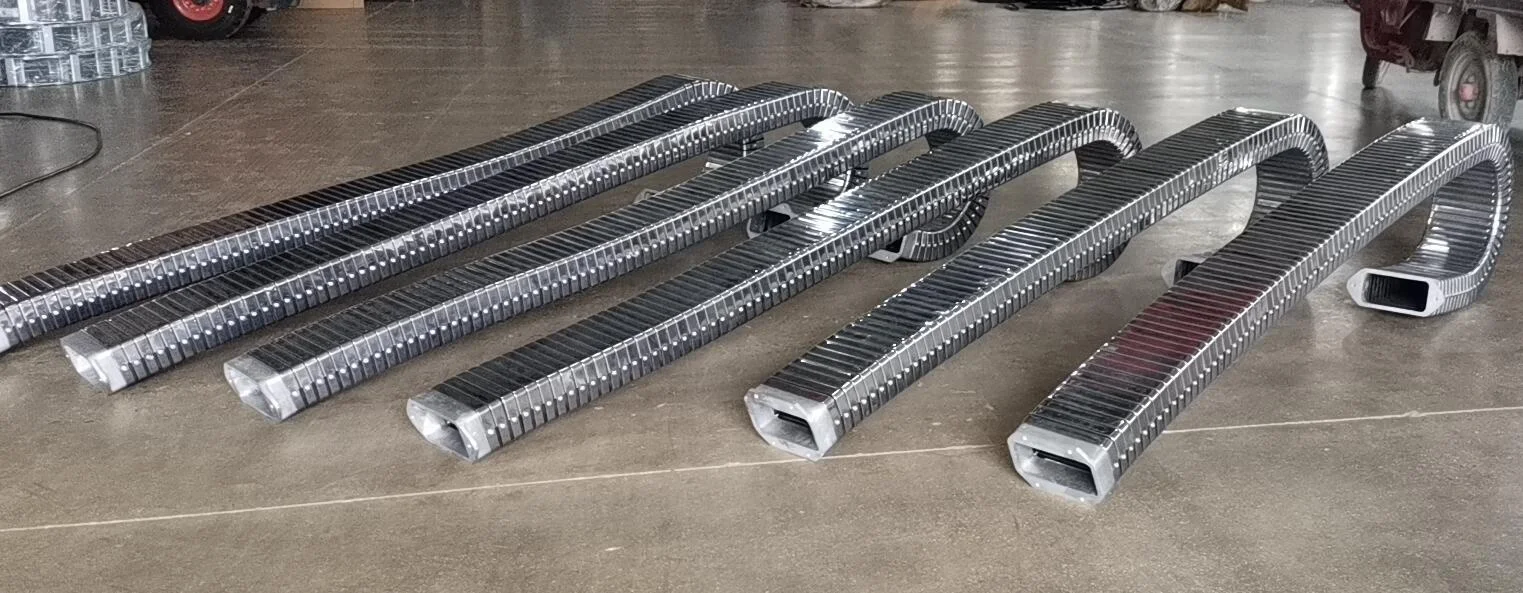

Flexible factory direct supply cable drag chain protective tracks steel cable carrier drag chain for machine
- Category: >>>
- Supplier: Suzhou Keview Mechanical & Electrical Equipment Co. Ltd.
Share on (1600788770872):
Product Overview
Description
Product Description

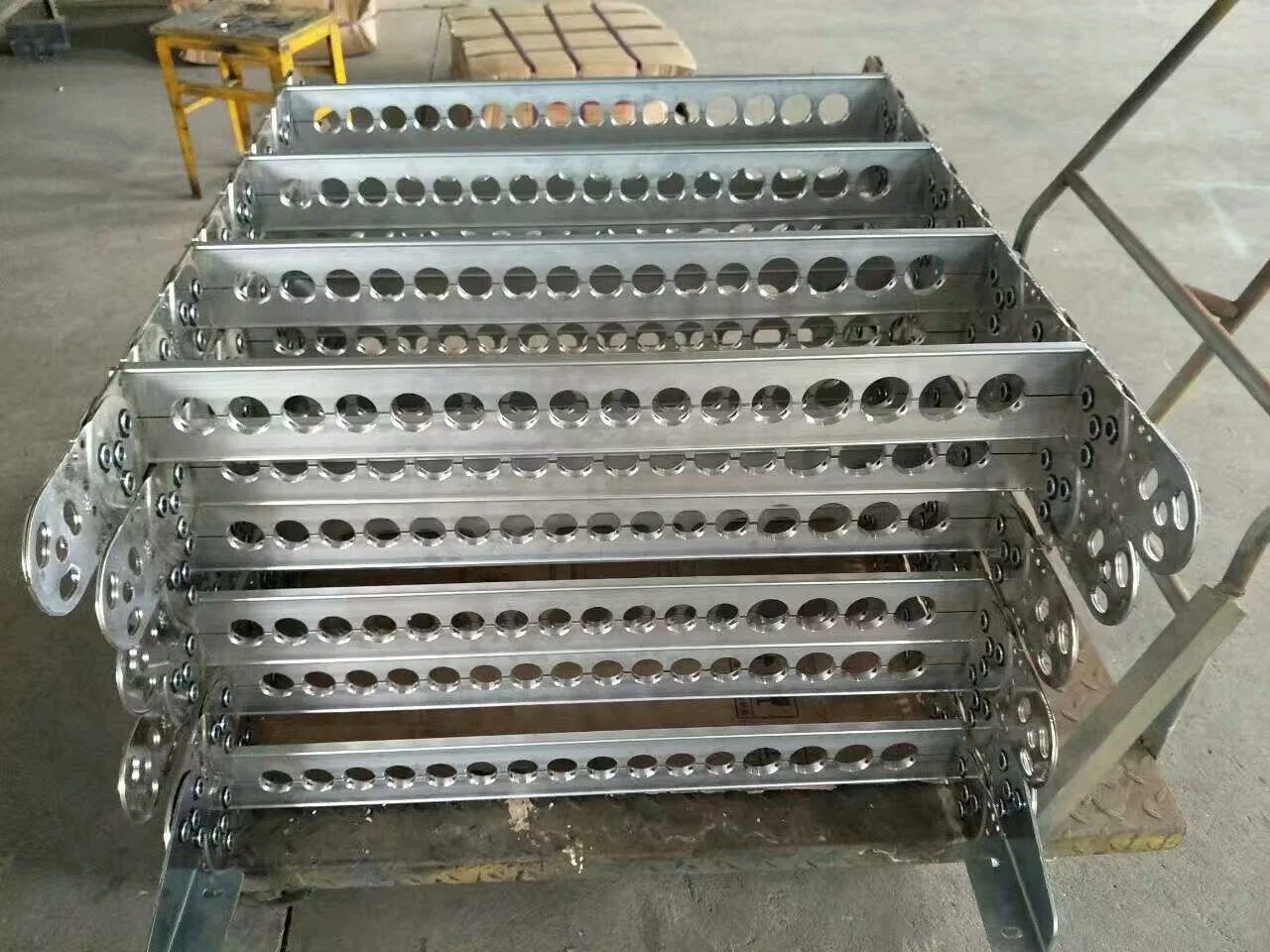

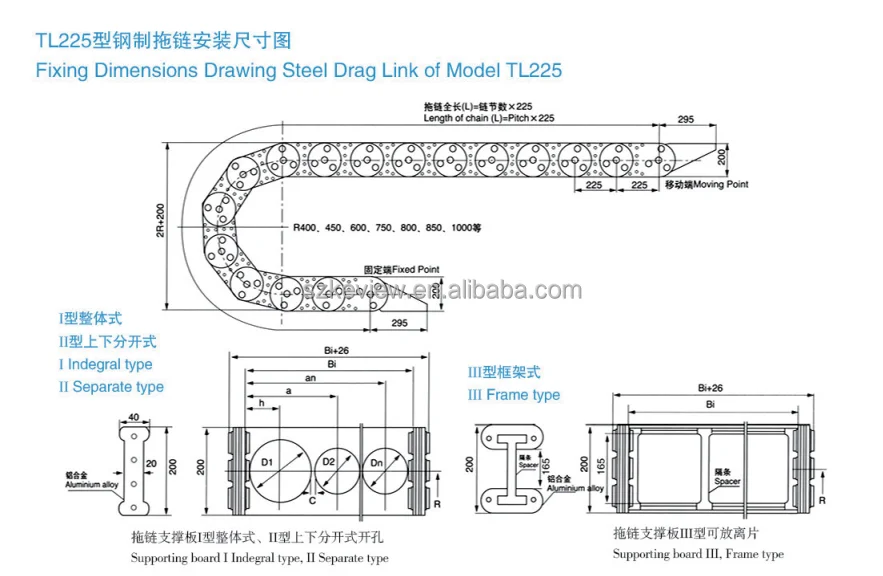

The type steel drag chain has a maximum travel span of 32 meters. Suitable for all transmission modes. Can be lengthened and shortened at will. Furthermore, the changing bending radius can be obtained by changing the pin axis.The support plate digram of the drag chain is 50mm to 600mm, and the interval between the hole and the hole is 5mm.The height of the chain plate, which is the height of the support plate, is maximized by the cable
Diameter determination, the maximum operation of the machine tool, such as the width of the drag chain exceeds 300mm, the length of the drag chain exceeds 4m for stability reasons, should consider to increase the size of the drag chain. The bending radius
shall be selected according to the maximum diameter of the cable and shall be 10 times the diameter of the cable. The bending radius can be selected from 50-600mm according to the given table, and a smaller radius can be selected accordingly.

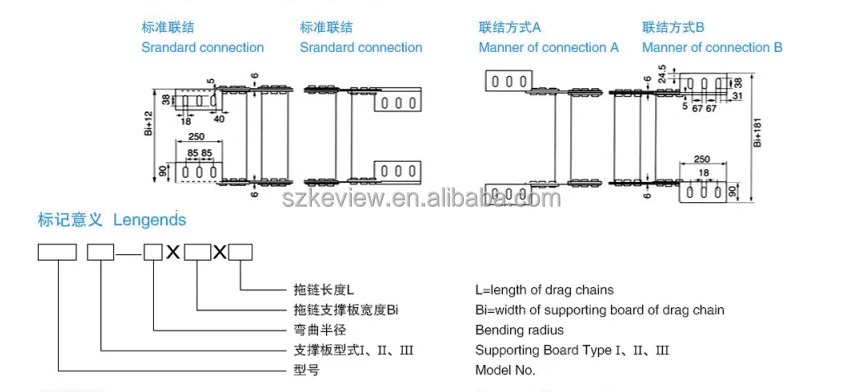

The length of the drag chain is =1 / 2 travel + 4 bending radii, which is only true when fixed The connection is made at the midpoint of the trip. The fixation of the drag chain can be selected according to the position of the machine tool. Fixed Angle steel can be Put in the periphery or inner week in the drag inside or outside the chain, generally the connection part in the drag In the key, while toward the periphery

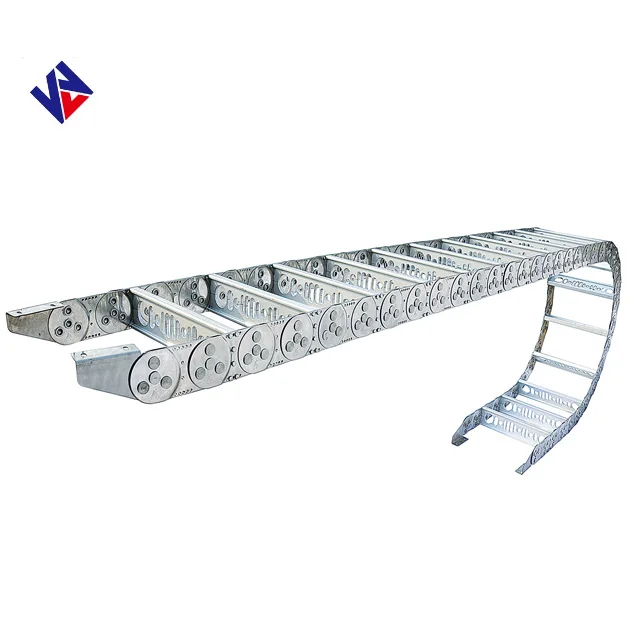

Product Detail

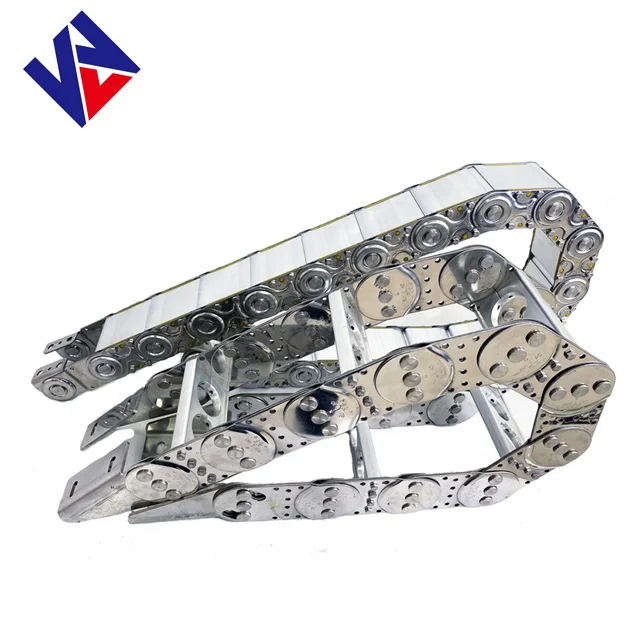

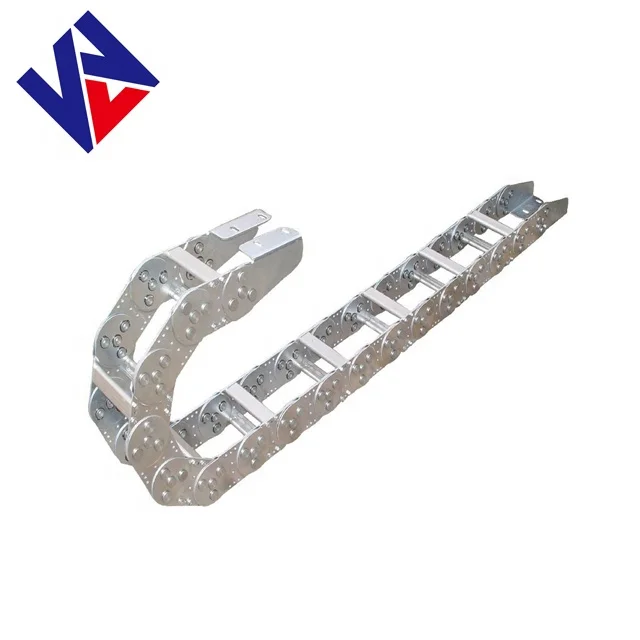

Product name | Steel cable chain |
Metrial | Steel/Aluminium alloy |
Color | Sliver color/Customized |
Type | Bridge/Closed |

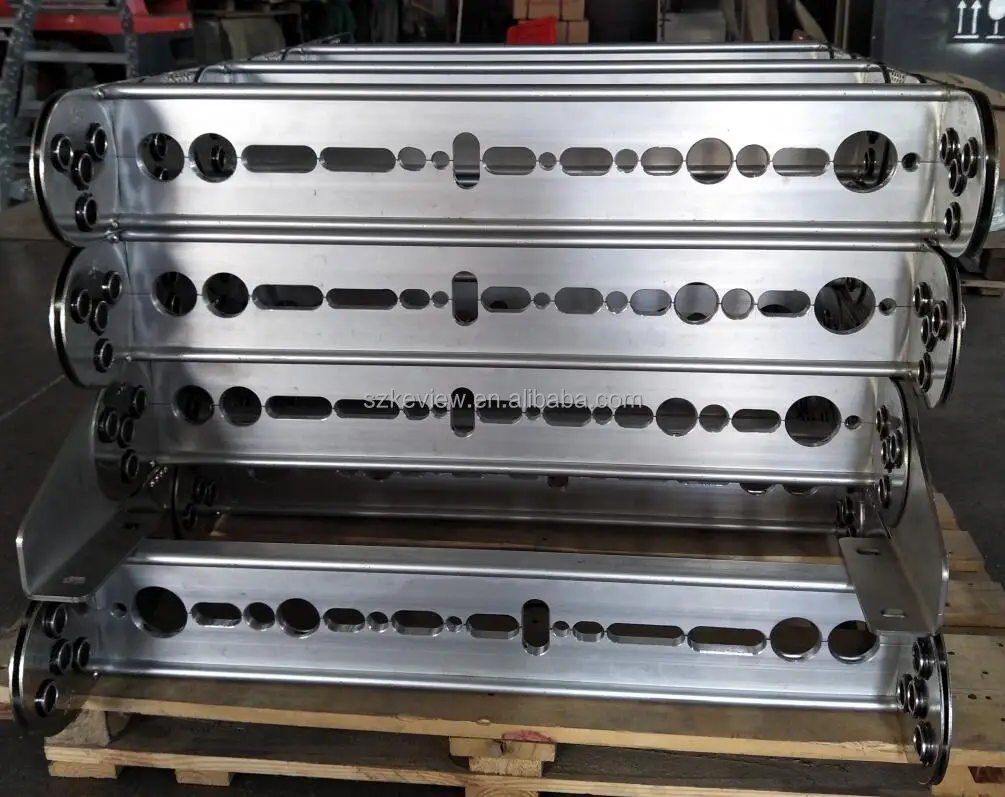

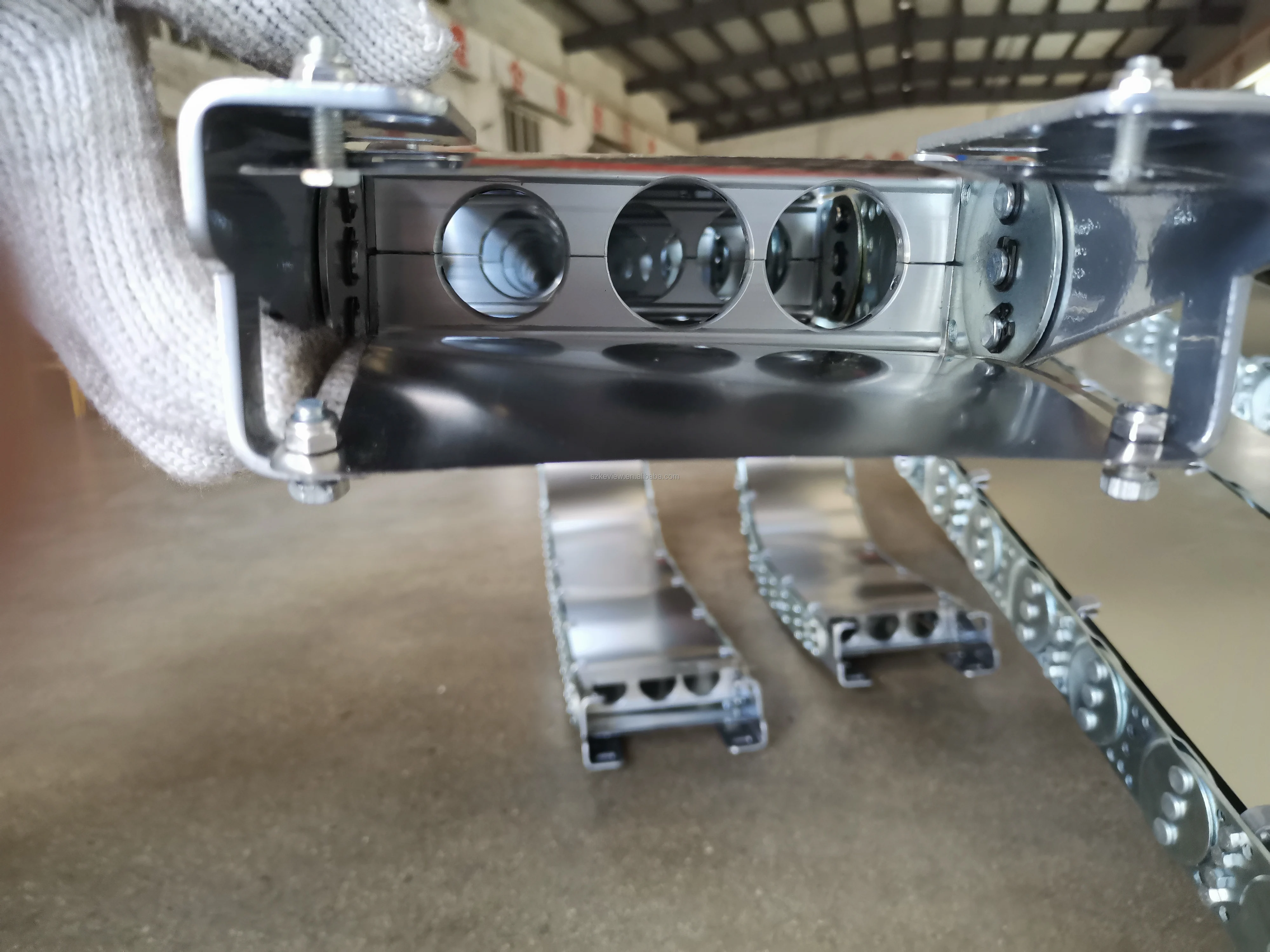

Aluminium alloy type is the only solution to the larger size chains. The supporting boards can be made according to the requirements of the users. Thanks to the strong construction, the width of the supporting board can be 1200mm， plastic spacing straps can moved and adjusted in position freely. See figure for details.If cables in many different specifications, you may select this economic foam supporting board has many advantages such as cables be protected in a most appropriate way and suitable for the condition of high travel speed.

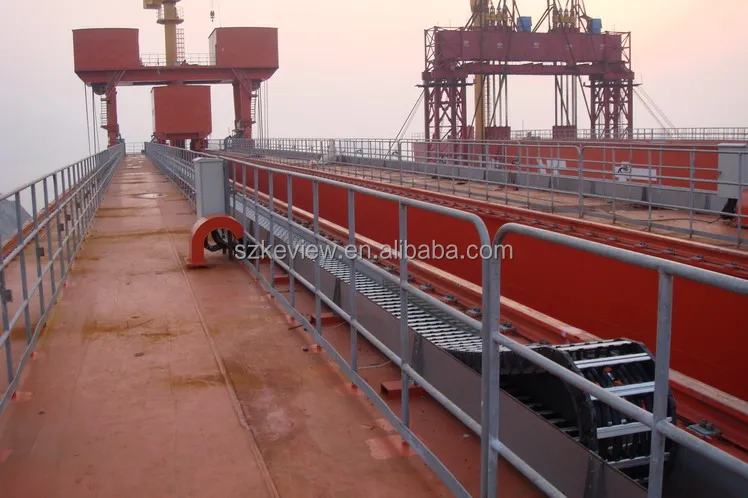

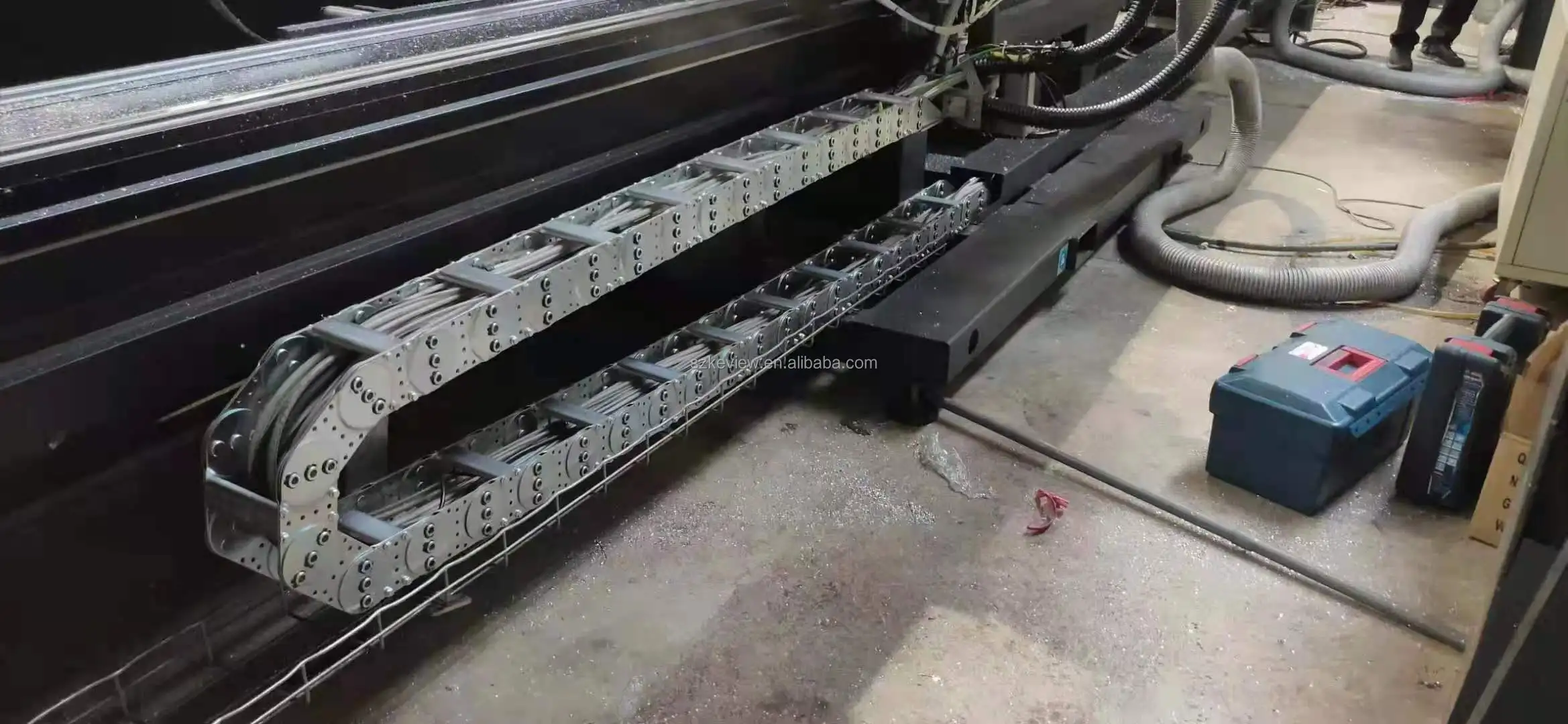

Application
Company Profile

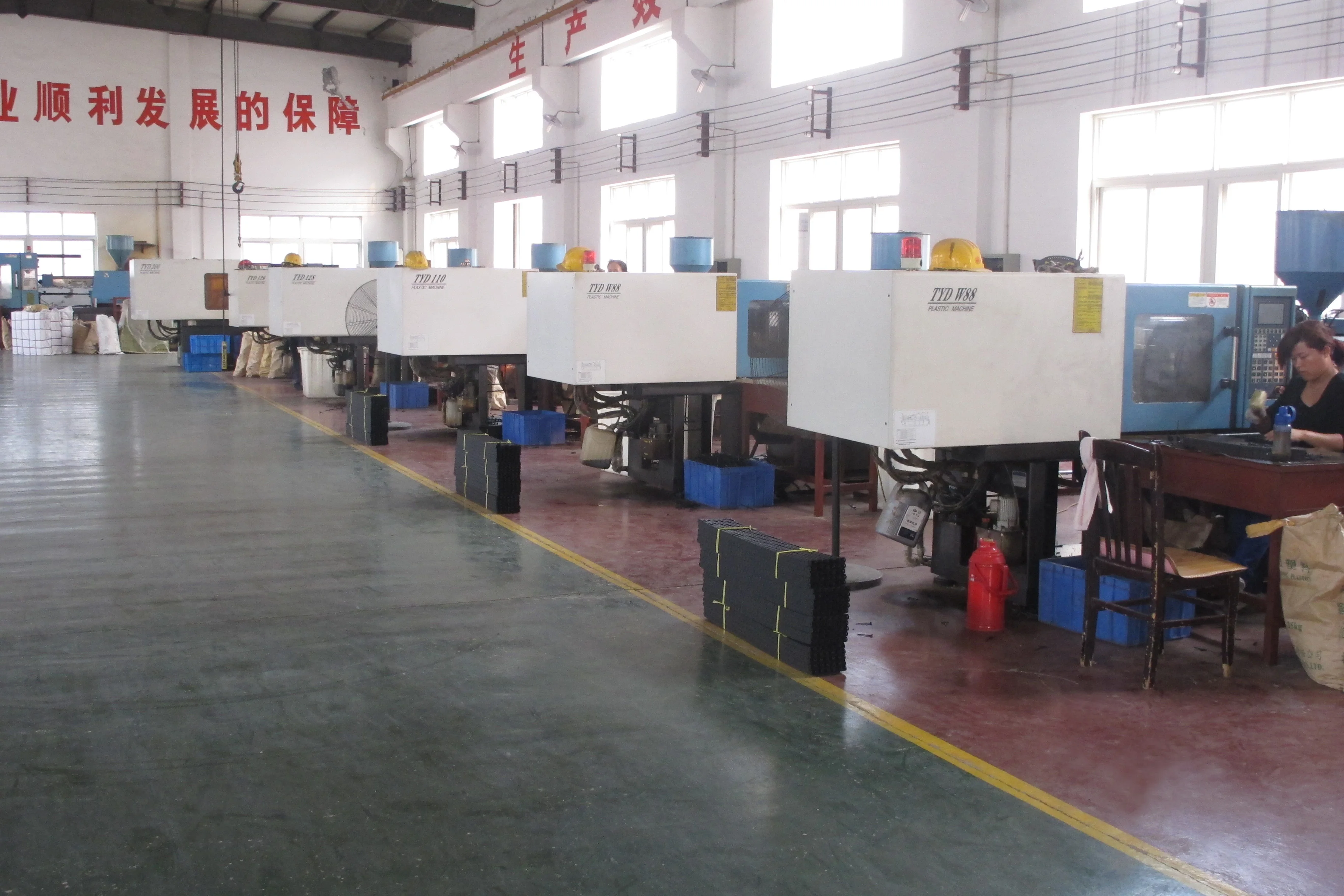

Suzhou Keview Mechanical &Electrical Equipment Co., Ltd is a powerful electrical equipment company. The company integrates R&D, production, and sales. It has advanced production technology and equipment, and innovates a high-quality and efficient production model. "Products: equipment maintenance series, machine tool series (towing chain series, machine tool protective cover series, chip conveyor series, machine tool work lamp series), operating parts series, machine oil mist collector series, cantilever box series), electronic products and series

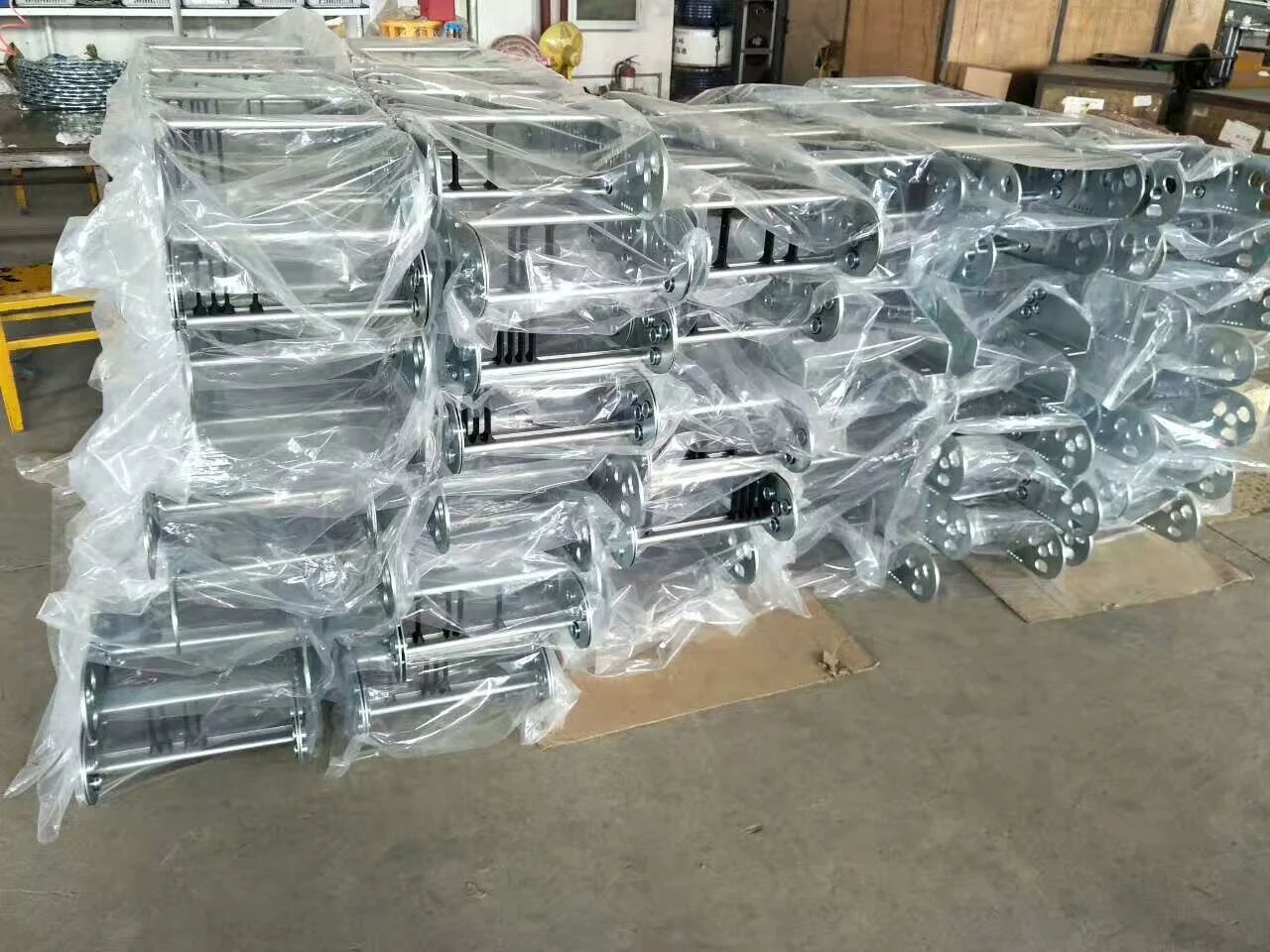

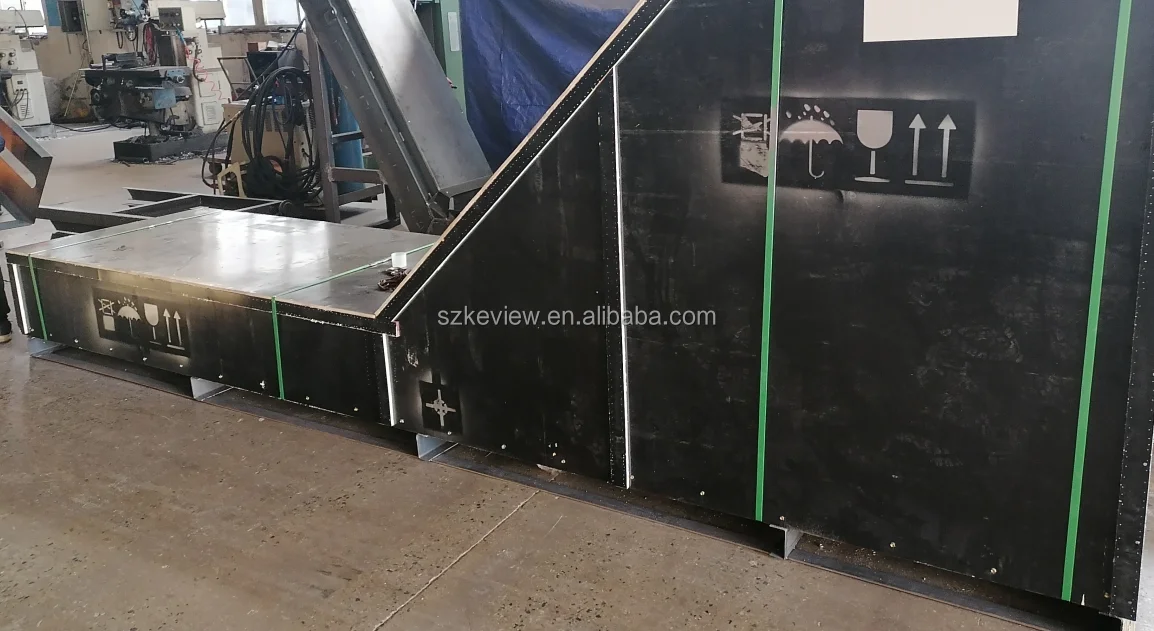

Packing & Delivery
FAQ
1. who are we?
We are based in Jiangsu, China, start from 1998,
We are based in Jiangsu, China, start from 1998,
sell to North America(30.00%),Eastern Europe(20.00%),Southeast Asia(20.00%),Mid East(20.00%),Western Europe(10.00%). There are total about 101-200 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cable drag chain,Bellows cover,Chip conveyor,Oil mist collector,Other product
4. why should you buy from us not from other suppliers?
Professional technical team, good service system, active after-sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Cable drag chain,Bellows cover,Chip conveyor,Oil mist collector,Other product
4. why should you buy from us not from other suppliers?
Professional technical team, good service system, active after-sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDP,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese,Japanese,German
