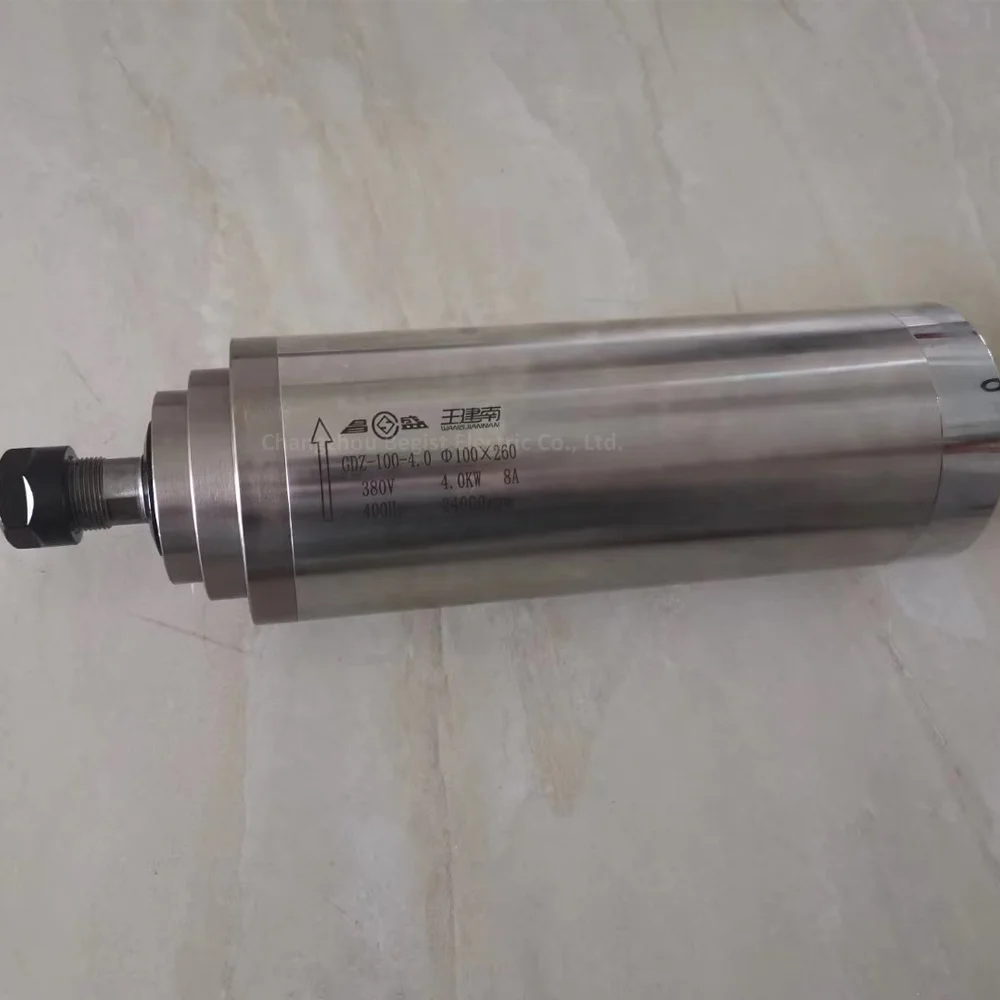

Water Cooling Spindle 4kw 24000rpm ER20 cnc router water cooling spindle motor for wood working

Share on (1600788804288):


Price:$170.00 - $209.00

Quantity:


Product Overview

Description



Product Description


4kw / 4.5kw 220v/380v Water Cooling Spindle Motor ER20








Product Name:

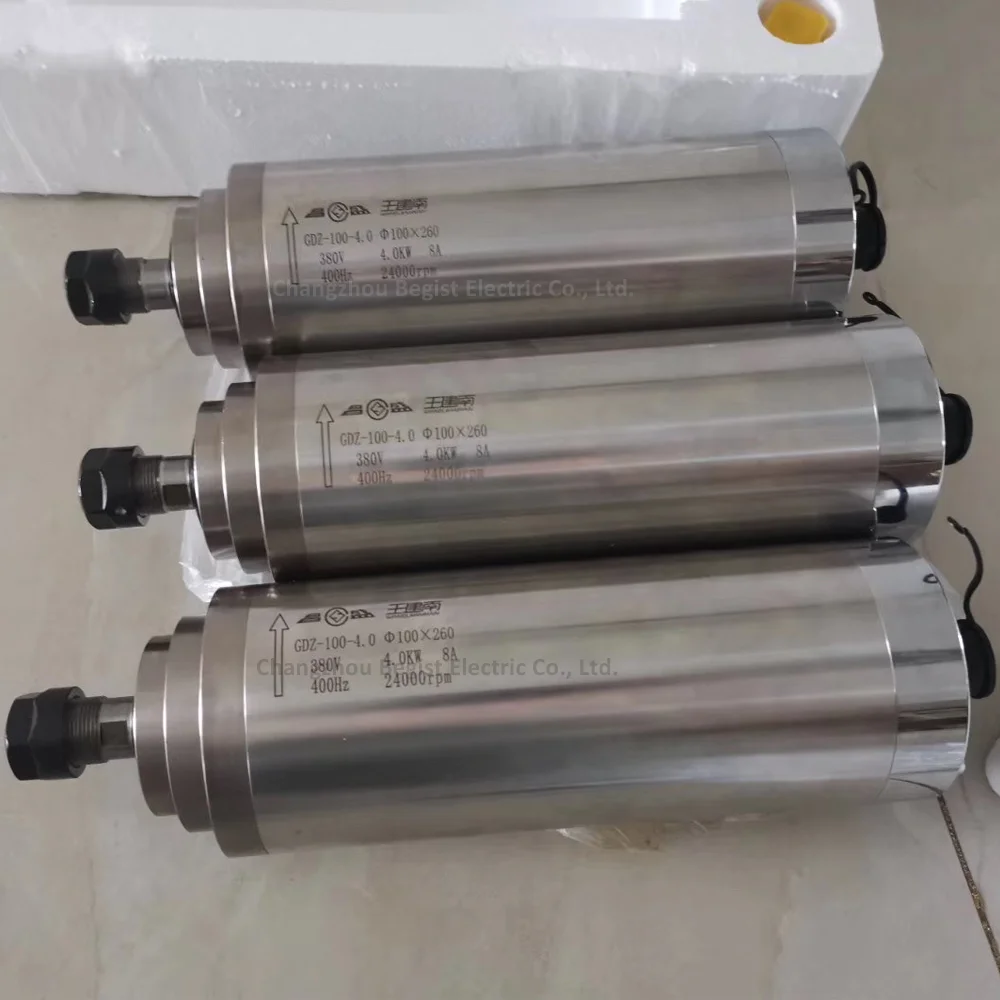

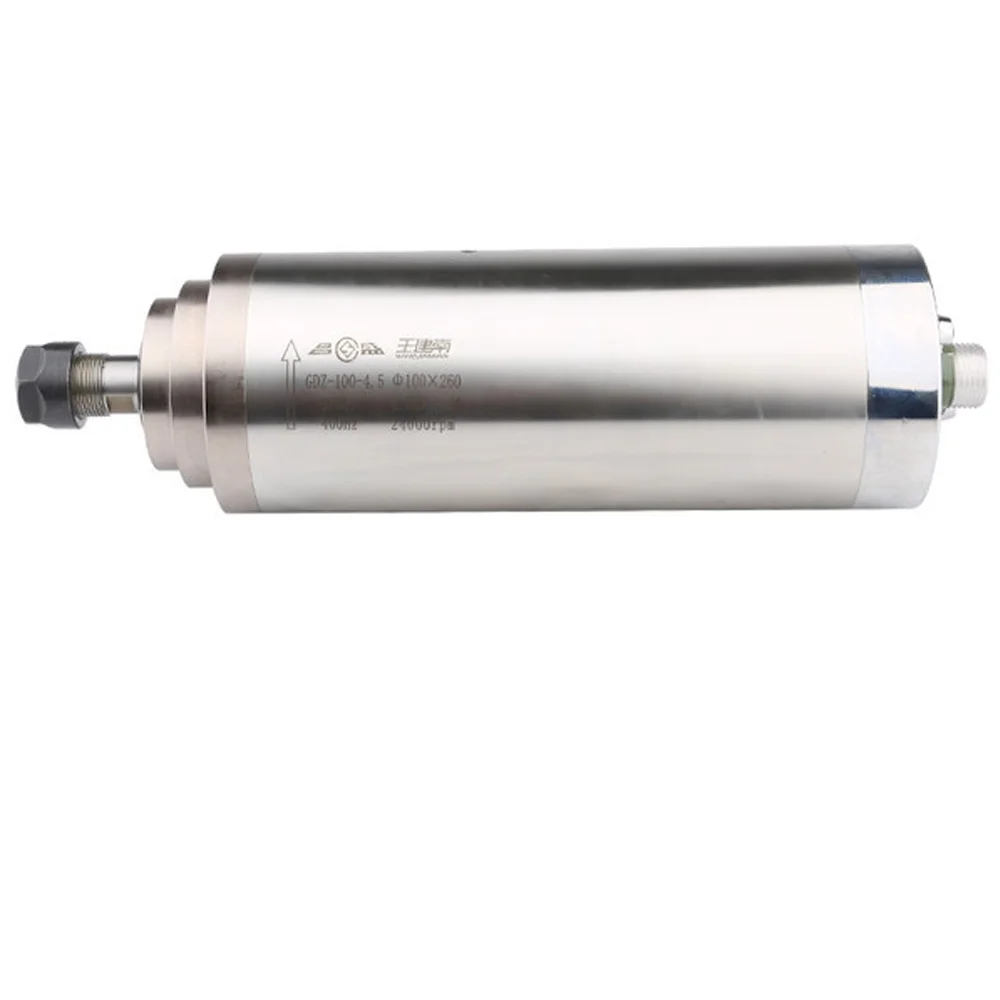

4KW /4.5KW 24000rpm Water Cooling Spindle Motor
Model No.:
GDZ100-4; GDZ100-4.5
Power:
4KW /4.5KW
Voltage:
220V/380V
Current:
13.8A/8A
Frequency:
400hz
Rotate Speed:
24000rpm
Diameter:
100mm
Collet/Nut:
ER20
Weight:
12kg

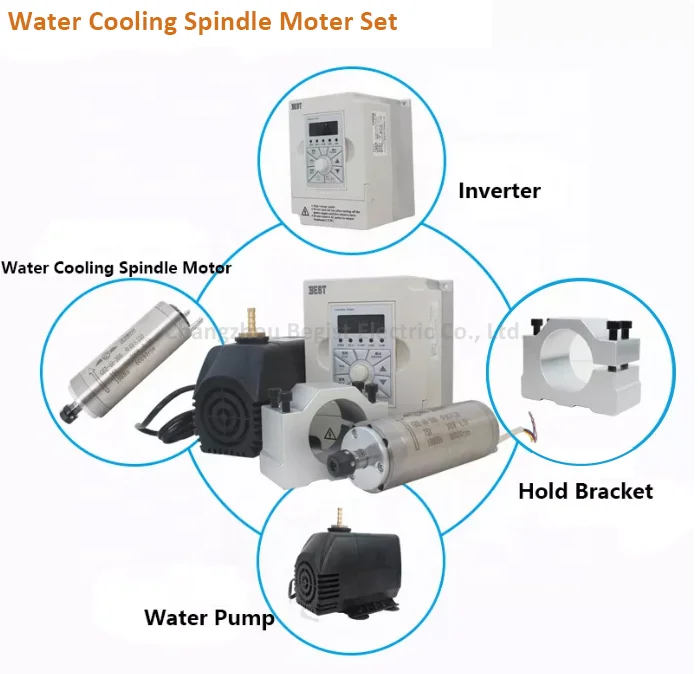

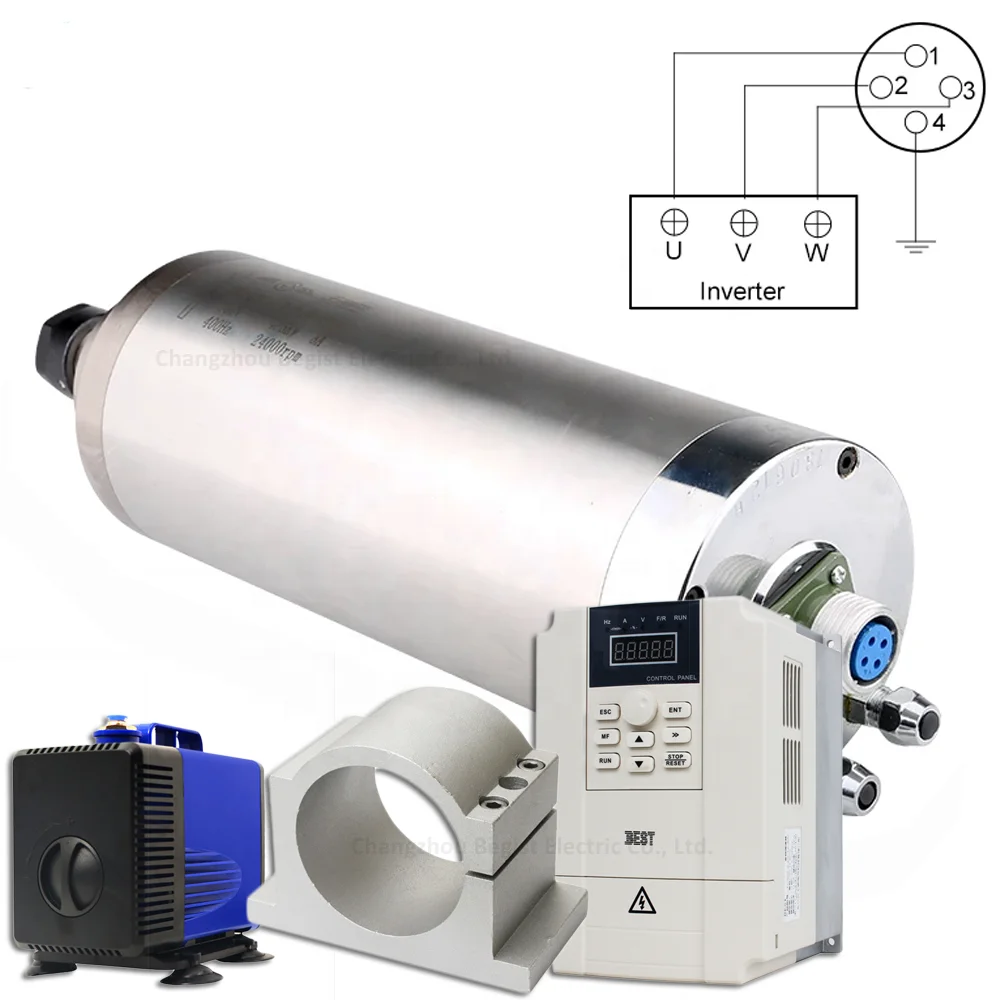

4KW / 4.5KW Spindle Motor kits


Inverter/VFD
Water pump
100mm Bracket


If you also need water pipe and ER20 Chuck Collet kits, we also have. Please feel free to contact me.


Related Products

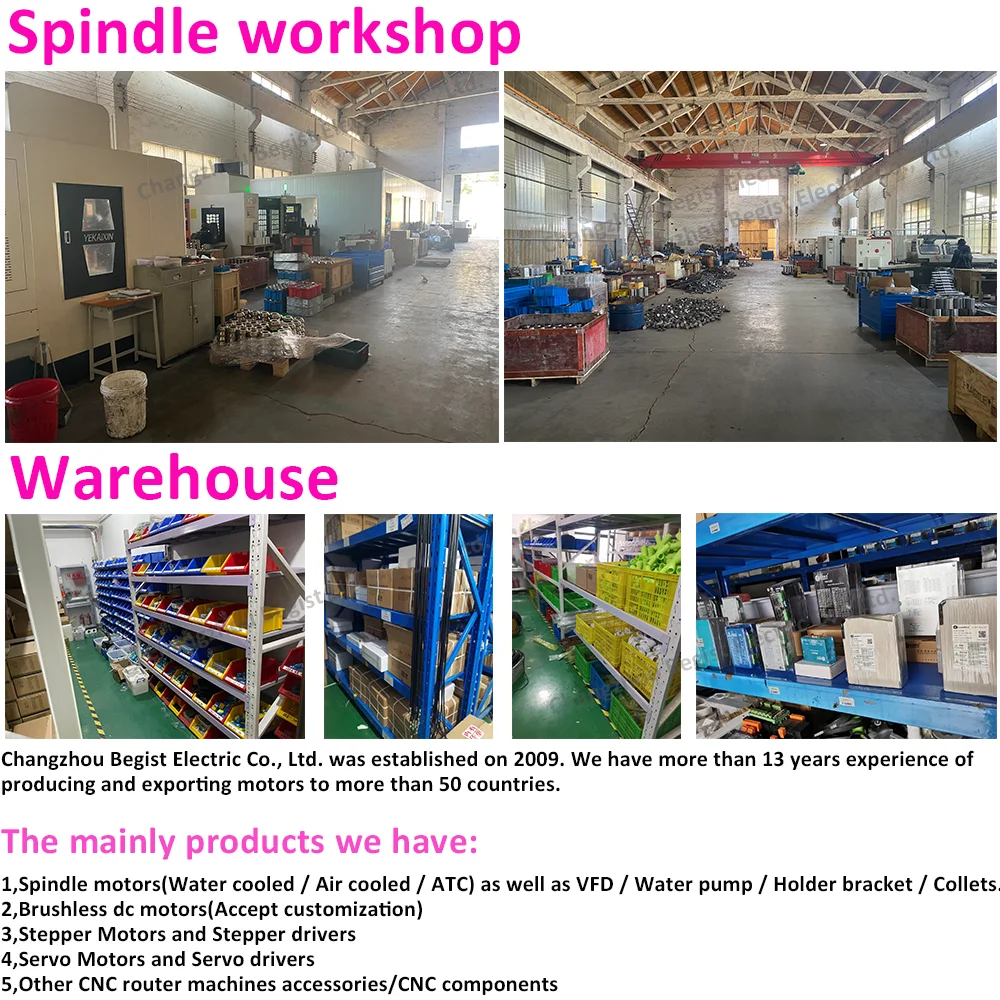

Company Profile




Certifications




FAQ


1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.

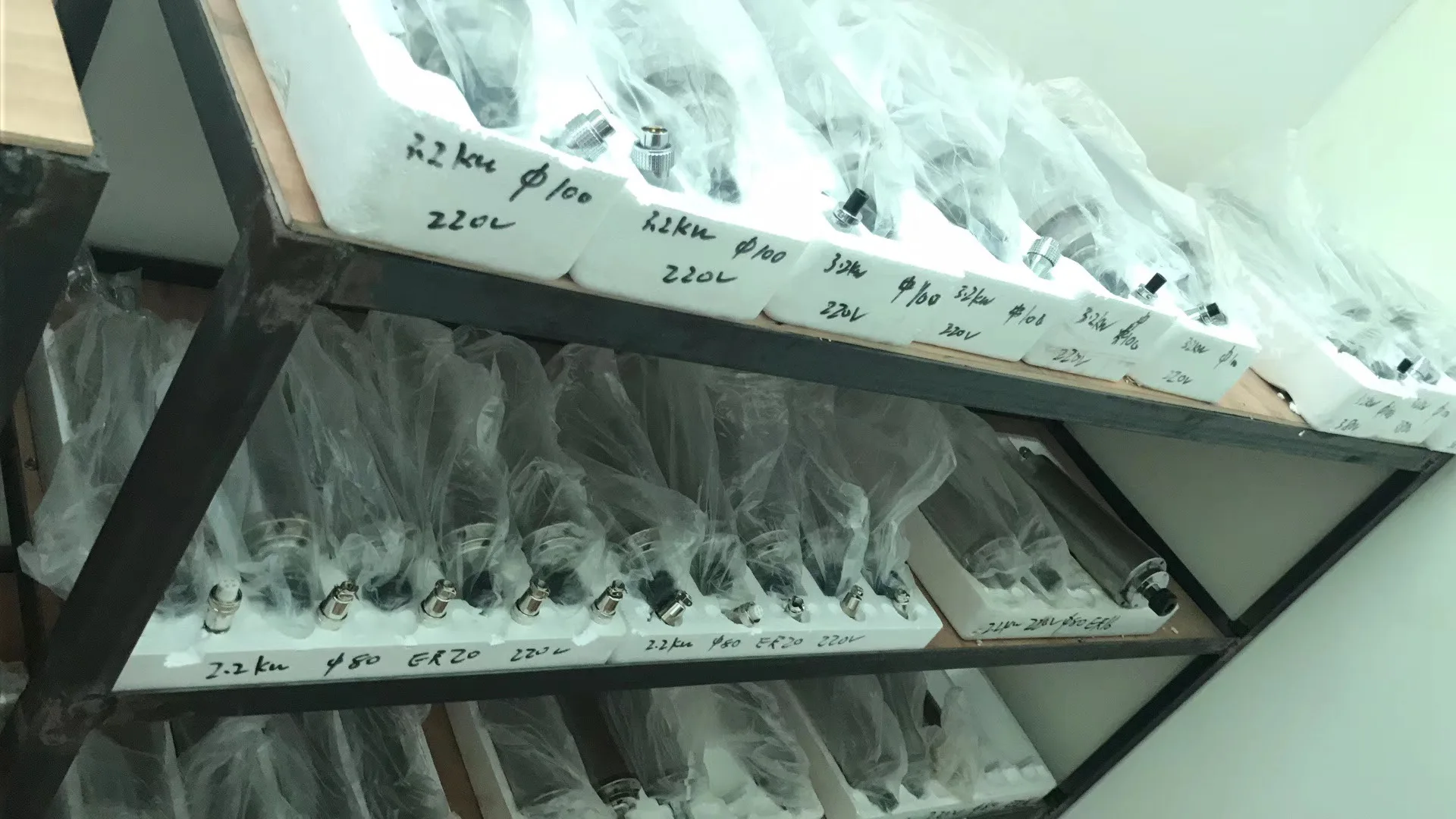

2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?
A:It usually takes about 3 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

5.why should you buy from us not from other suppliers?
A:BEGIST is professional CNC router parts wholesaler , experience more than 13 years We not only produce CNC parts also selling other famous brand CNC parts.
Just tell your needing, we will help you buy with factory price and quality.

6.Q:The spindle has been running for a period of time and the temperature is very high. Is it normal? What is the working environment temperature range?
A:Mechanical products have very good heat resistance. The surface is normal within 150°c, and the suitable working environment temperature is -10°c ~ +50°c

7.Q:Continuous working time?
A:If the ambient temperature is in the normal range and the surface temperature of the spindle is within 150 degrees, it can work continuously without interruption.

8.Q:Abnormal sound?
A:If there are abnormal noises, most of them are bearing problems, because the bearing has a service life and is vulnerable to damage. According to different frequency and intensity of use, the bearing needs to be replaced after 0.5 to 1 year.

9.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
