Dell PowerEdge R830 2x Intel Xeon E5 4627 v4 2.6GHz 4 socket 2U Rack server

Product Overview

Description

Dell PowerEdge R830 2x Intel Xeon  E5-4627 v4 2.6GHz  4-socket 2U Rack server



PowerEdge R830 Rackmount Server Exceptional performance optimizes application performance to support dense virtualized workloads, and the 4-slot design extends horizontally.

*Intel® Xeon® processor E5-4600 v4 architecture

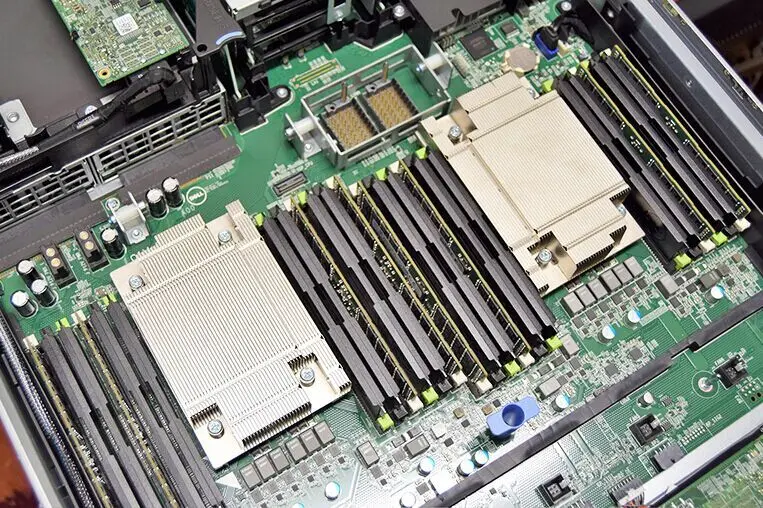

*48 DIMMs with up to 3 TB of DDR4 memory

*Up to 16 solid-state drives or traditional hard drives, ideal for data-intensive workloads

The R830 uses a familiar 2U rack-mount profile that is ideal for the mainstream data center server.



Provide the adaptability and flexibility required for the workload

The R830 is capable of running compute-intensive, memory-constrained or I / O-centric workloads that can be easily adapted to the application. Whether you are Oracle RAC or Microsoft® SQL Server®, you can fine-tune your available resources to maximize application performance and add PCIe SSDs to significantly improve I / O and CPU utilization. In addition, the embedded redundancy hypervisor can help implement a fail-safe virtual environment. The R830 server provides all the assets that meet the following requirements:

*Significant integration of servers while improving overall performance

*Build a test and development environment with an affordable 2U rackmount server

*Easily expand performance to meet future unknown needs



Simplify and automate management processes

Use PowerEdge Embedded Server Intelligence to efficiently manage PowerEdge servers in physical, virtual, local and remote environments - an integrated PowerEdge Remote Access Controller (iDRAC8) with lifecycle controllers and OpenManage Essentials. OpenManage automates the most frequently executed server management tasks (including deployment, updates, monitoring, and maintenance) with the Agent-Free Management feature, regardless of the installed operating system or hypervisor.





Provides automated, proactive, and predictive support for your PowerEdge servers

*PowerEdge SupportAssist for the server provides remote monitoring, automated data collection, automated case creation services, and PowerEdge Technical Support will contact you to recommend a selected  PowerEdge server.

*ProSupport Plus offers a full suite of SupportAssist features, including predictive problem detection and monthly optimization reports. Recent research has found that ProSupport Plus with SupportAssist proactive monitoring and automatic case creation is able to solve the problem by up to 90% faster than using only basic warranty. 3

*To further simplify support, TechDirect allows you to manage day-to-day problems and component distribution through self-service online portals, mobile applications and APIs. Get real-time access to all of your PowerEdge support cases anytime, anywhere without any additional charges. TechDirect users can increase productivity by up to 90% after implementing this tool

\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t\t
\t\t\t
\t\t\t
\t\t
\t

\t\t\t Processor \t\t\t   \t\t\t	\t\t\t 2x Intel® Xeon® E5-4627 v4 2.6GHz,25M Cache,8.0 GT/s QPI,Turbo,No HT,10C/10T (135W) Max Mem 2400 MHz \t\t\t
\t\t\t Memory \t\t\t	\t\t\t 8GB RDIMM, 2400MT/s, Single Rank, x8 Data Width \t\t\t 16GB RDIMM, 2400MT/s, Dual Rank, x8 Data Width \t\t\t 32GB RDIMM, 2400MT/s, Dual Rank, x4 Data Width \t\t\t
\t\t\t Hard Drive \t\t\t	\t\t\t 2TB 7.2K RPM SATA 6Gbps 512n 2.5in Hot-plug Hard Drive \t\t\t
\t\t\t Warranty \t\t\t   \t\t\t	\t\t\t 3 Years Basic Hardware Warranty Repair: 5x10 HW-Only, 5x10 NBD Onsite \t\t\t
\t\t\t Drive Bays \t\t\t   \t\t\t	\t\t\t Up to 16 x 2.5” \t\t\t
\t\t\t Dimensions \t\t\t	\t\t\t H: 14.17 in (36.0 cm) \t\t\tW: 6.89 in (17.5 cm) \t\t\tD: 17.12 in (43.5 cm) \t\t\t
\t\t\t Chassis \t\t\t   \t\t\t	\t\t\t 2U rack server \t\t\t

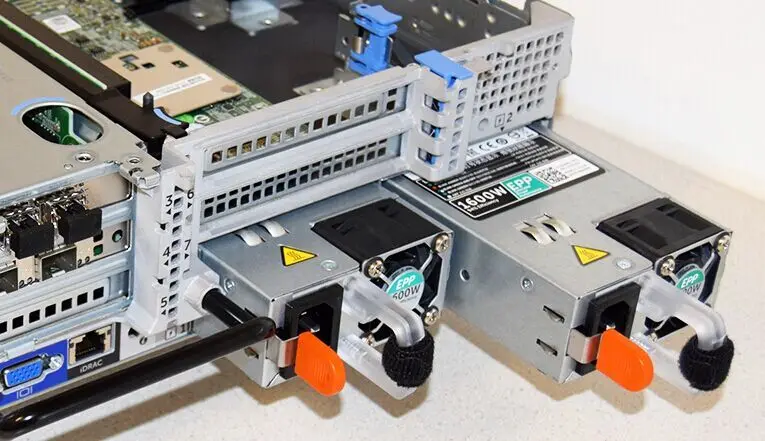

\t\t\t Power \t\t\t	\t\t\t Platinum 750W AC, auto-ranging; Platinum 1600W AC, auto-ranging \t\t\t
\t\t\t RAID Controllers \t\t\t	\t\t\t Internal controllers: PERC H330, PERC H730, PERC H730P \t\t\tExternal HBAs (RAID): PERC H830 \t\t\tExternal HBAs (non-RAID): 12Gbps SAS HBA \t\t\t
\t\t\t Chipset \t\t\t	\t\t\t Intel C612 \t\t\t
\t\t\t Storage \t\t\t	\t\t\t 16 x 2.5” SATA/SAS SSD \t\t\tSAS HDD (15K, 10K) \t\t\tNearline SAS HDD (7.2K) \t\t\t
\t\t\t Slots \t\t\t	\t\t\t 7 PCIe slots: \t\t\t2 x 16 half-length, full-height \t\t\t1 x 8 half-length, full-height \t\t\t3 x 8 half-length, half-height \t\t\t1 x 8 half-length, full-height for the RAID controller \t\t\t
\t\t\t Embedded Hypervisor (Optional) \t\t\t	\t\t\t Microsoft Windows Server with Hyper-V® \t\t\t Citrix® XenServer® \t\t\t VMware vSphere ESXi \t\t\t
