Product Overview
Description
Product Description
*Usage and Characteristics*

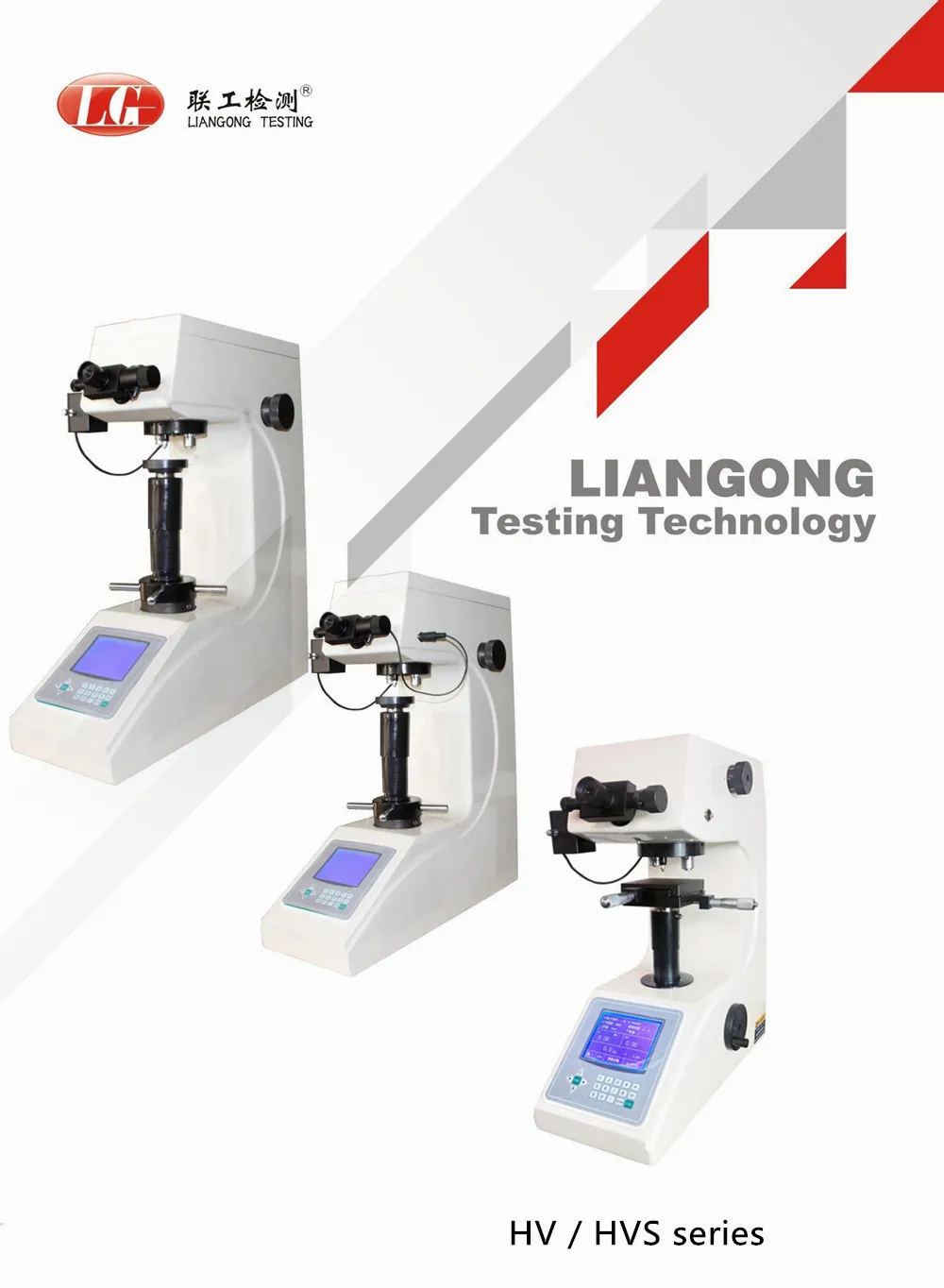

Vickers hardness tester, in the mechanical, electrical, light source with a unique and sophisticated design, indentation imaging clearer, more accurate measurement. Using color LCD screen, high-speed 32-bit microprocessor control system, full realization of man-machine dialogue and automation. Has a high test accuracy, simple operation, high sensitivity, easy to use, stable indicating value and so on.
The electronic closed-loop control is used to apply the test force; the functions of automatic application, maintenance, removal, and direct display of the hardness value are fully realized.
*Advantages*
1-The product body part is once formed by the casting process, and after a long time of aging treatment. Relative to the puzzle process, long-term use of deformation is minimal, and can effectively adapt to a variety of harsh environments;
2-Car paint, paint high grade, strong anti-scratch ability, using many years is still bright as new;
3-Optical systems designed by senior optical engineers not only have clear images, but also can be used as simple microscopes with adjustable brightness, comfortable vision and long-term operation without fatigue.
4- Optional CCD image processing system and video measuring device;
5- Equipped with Bluetooth module, Bluetooth printer, and optional Bluetooth PC receiver for wireless printing and wireless data transmission;
6- Accuracy in line with GB / T4340.2 ISO6507-2 and the United States ASTM E384.
*Main Technical Parameters*
Model | HV/HVS-5/10/30/50 | HV/HVS-1000 | ||
Measurement range | 5-5000HV | 5-5000HV | ||
Test force | Loading method: Weight loading | 0.09807N(10gf), 0.2452N(25gf), | ||
HV-5: 0.3, 0.5, 1.0, 2.0, 3.0, 5.0kgf | 0.4904N(50gf),0.9807N(100gf), | |||
HV-10: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0kgf | 1.961N(200gf), 2.942N(300gf), | |||
HV-30: 0.3, 0.5, 1.0, 5.0, 10.0, 30.0kgf | 4.904N(500gf), 9.807N(1000gf) | |||
HV-50: 1.0, 5.0, 10.0, 20.0, 30.0, 50.0kgf | ||||
Data input method | Manual /Automatic | Manual /Automatic | ||
Turret mode | Manual | Manual | ||
Maximum allowable height of specimen | 200mm | 120mm | ||
Distance between indenter center and wall | 130mm | 110mm | ||
Hardness resolution | 0.1HV | 0.1HV | ||
Appearance size and power | Dimensions: 620 * 330 * 650mm; Power: AC220V / 50Hz; Weight: 75Kg. | Dimension: 530*290*490mm Power supply: AC220V/50Hz Weight: 45Kg | ||
Remarks: Please contact us for further more Model and details. | ||||

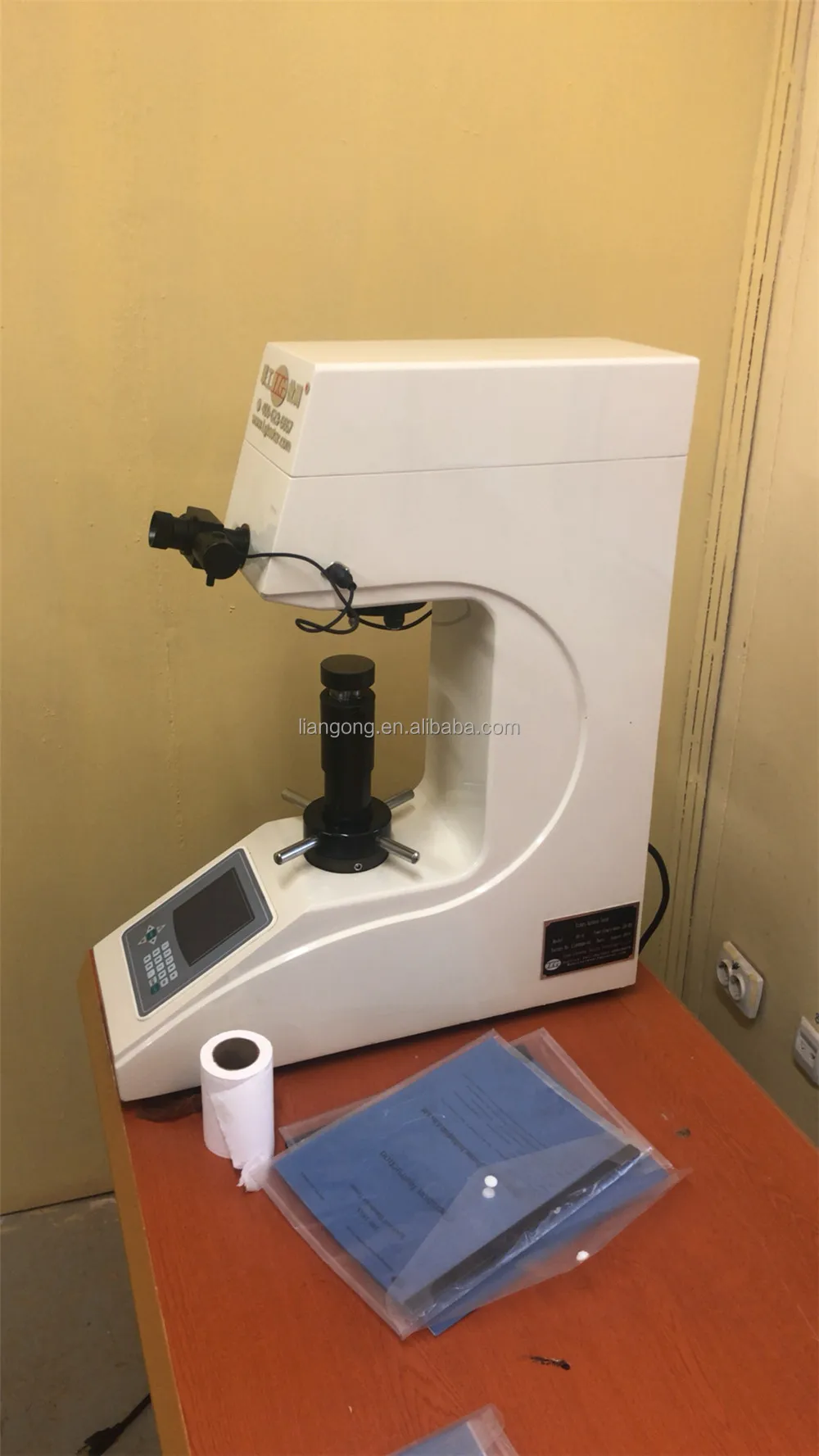

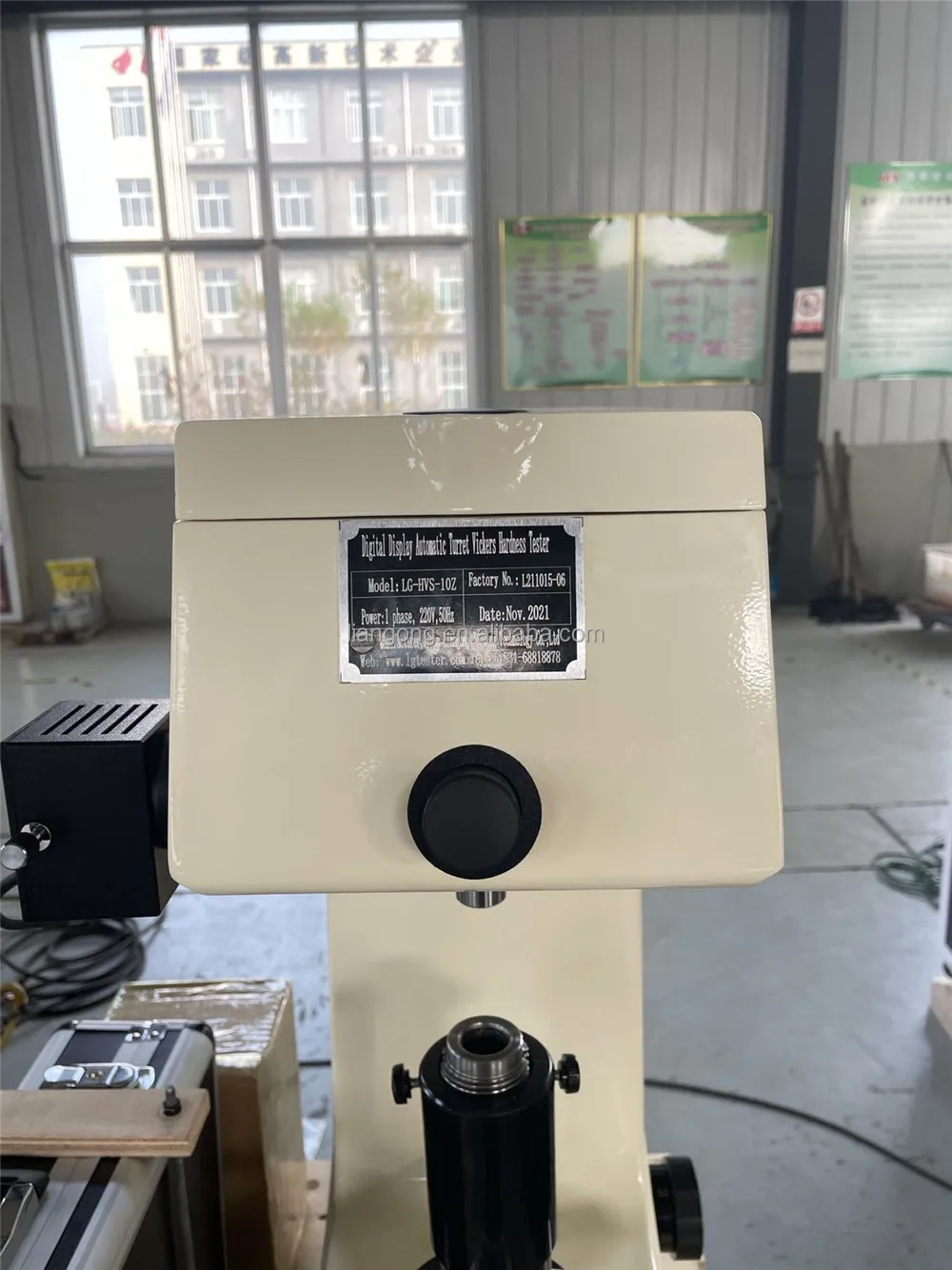

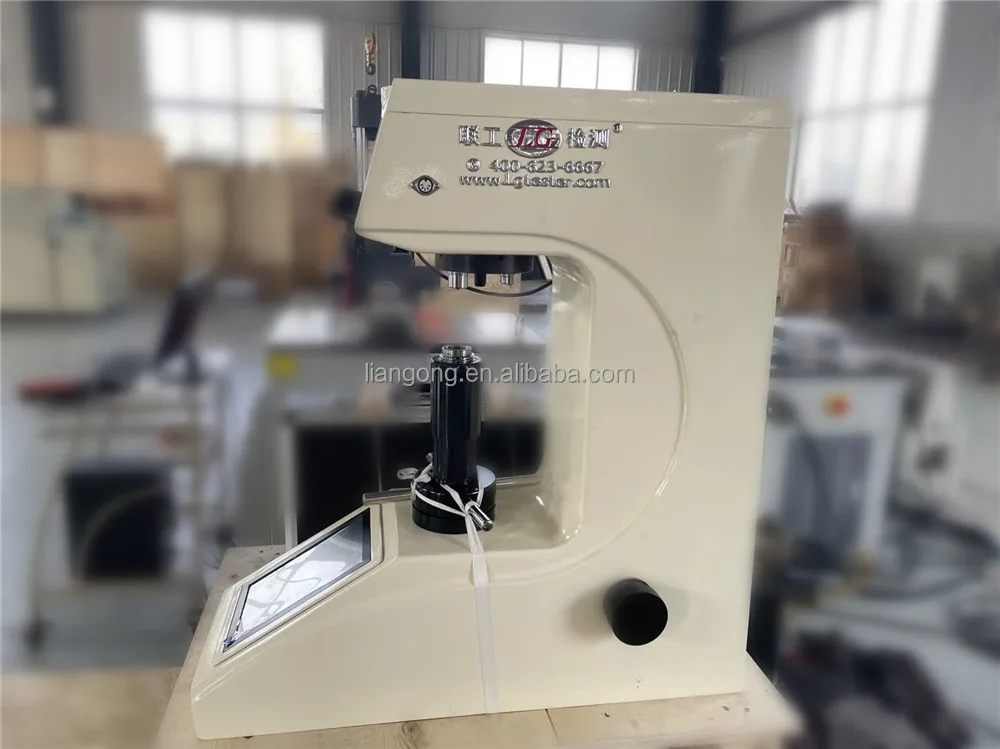

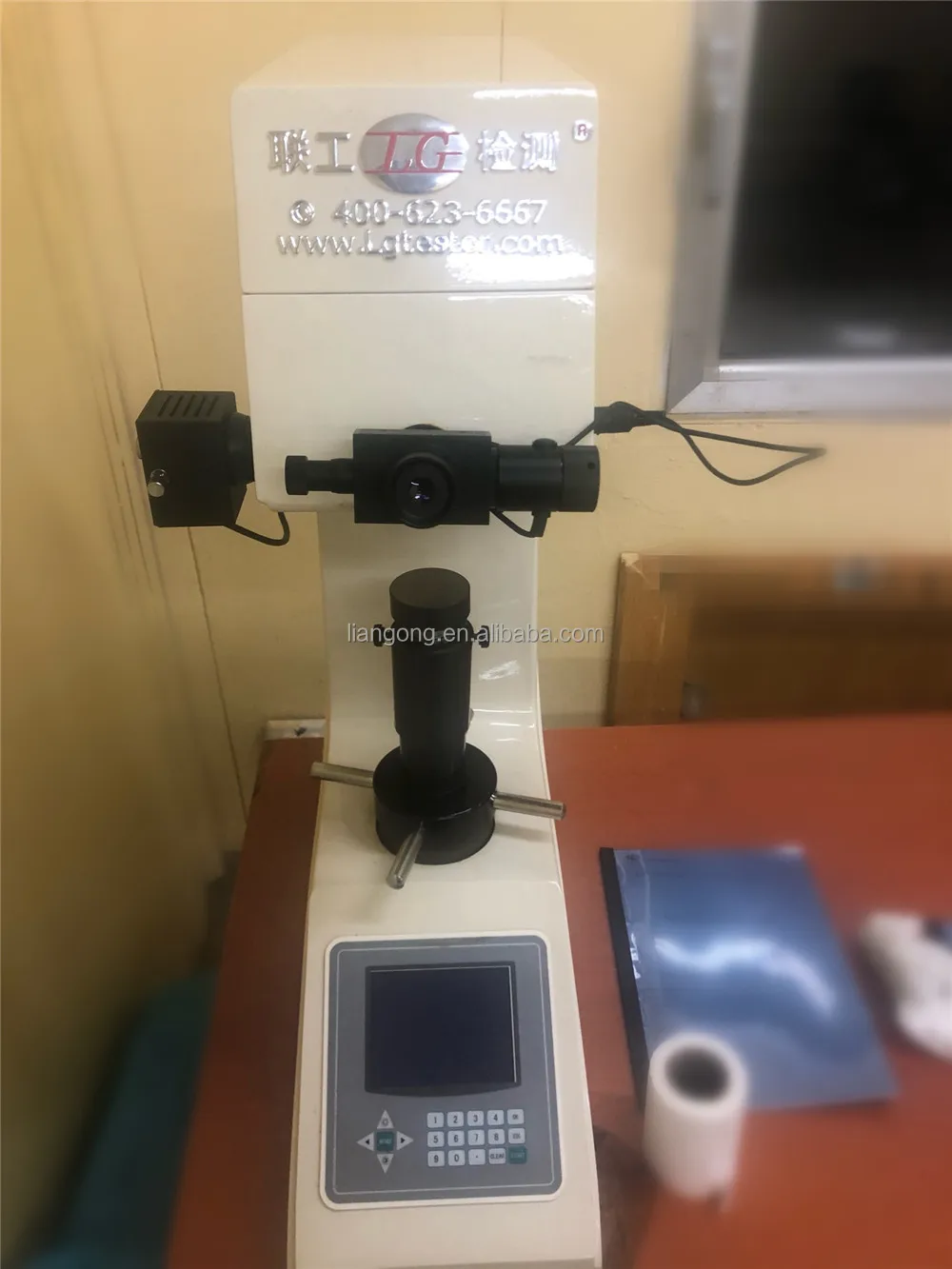

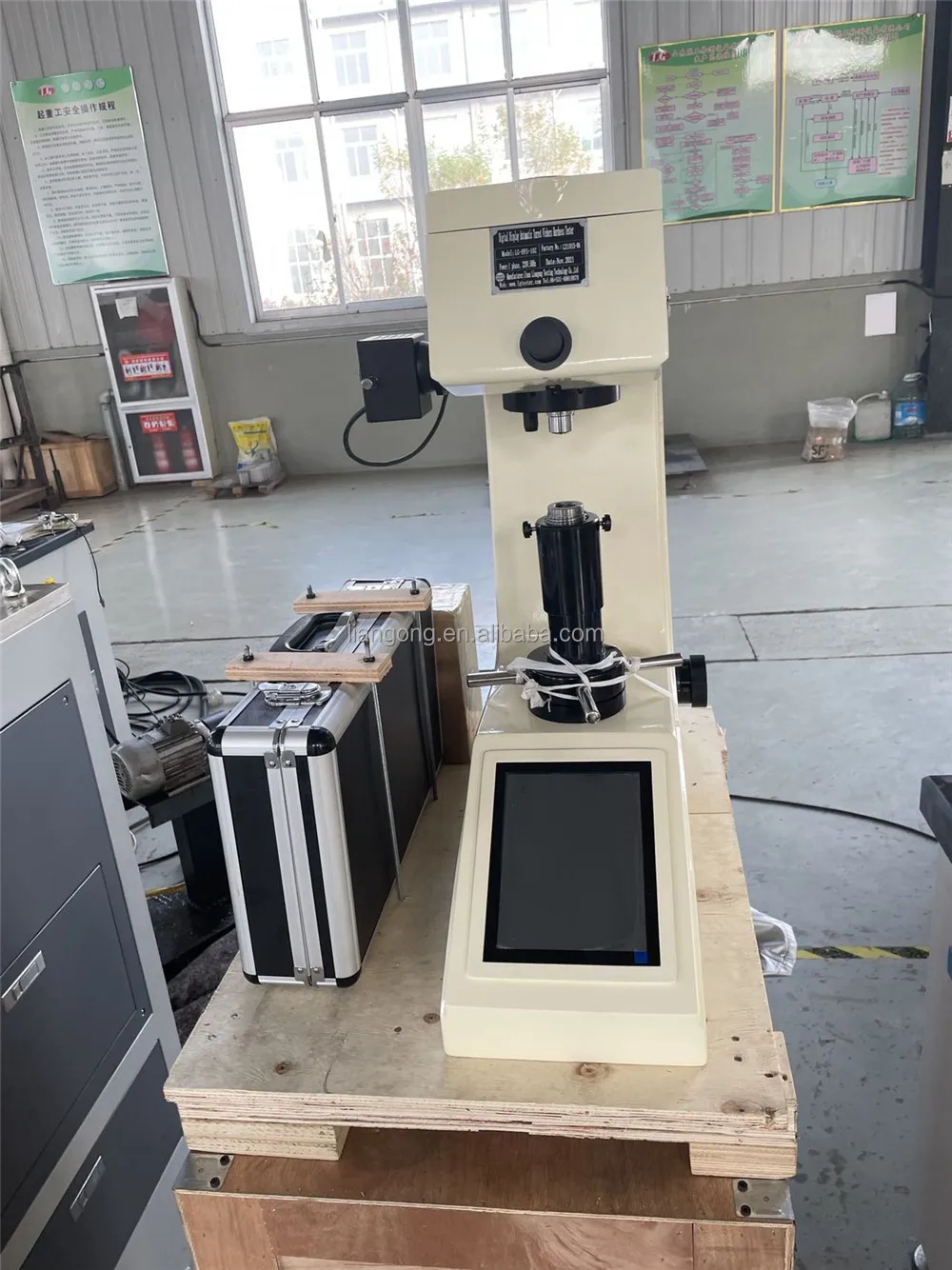

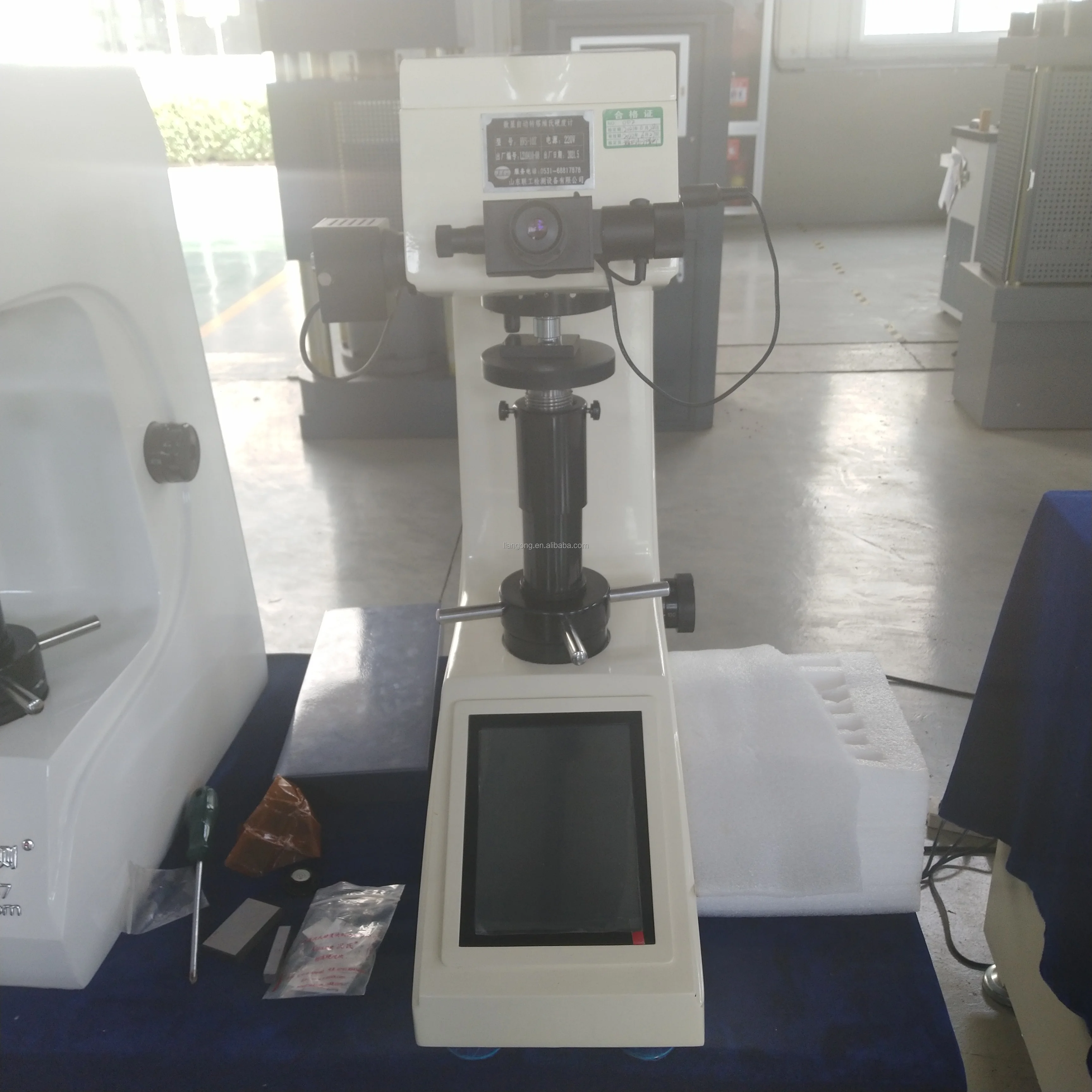

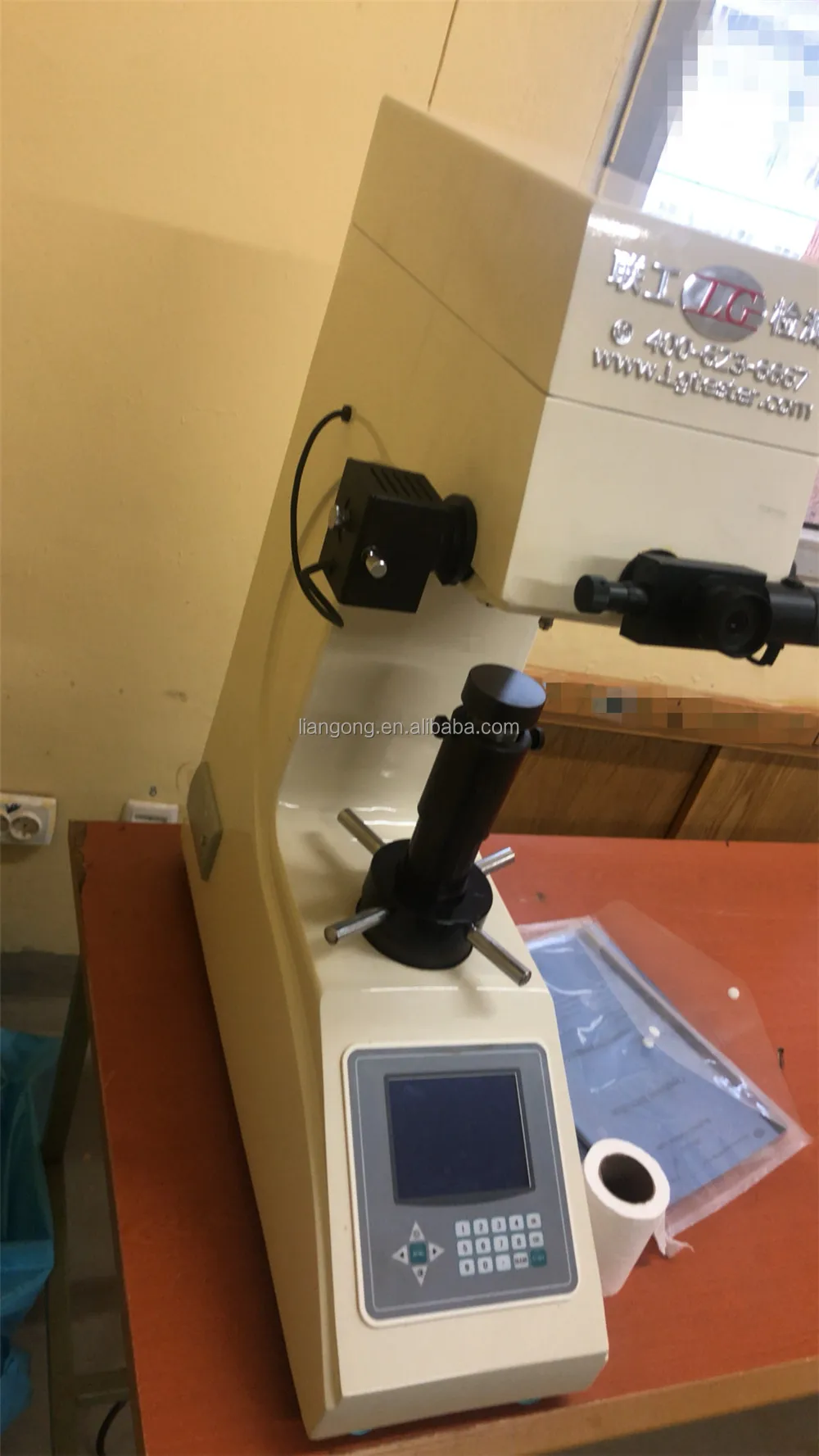

Detailed Images
Company Introduction
Certifications
Customer Photos
Packing&Shipping
Standard Export Plywood package per set
After Sales Service
Warranty
The testing machine is guaranteed for a year by Jinan Liangong Testing Technology Co., LTD and has whole-life service (including machinery, clamps, hardware, software).
Training
1. We will provide you the operation video about how to install and operate the equipment. We also sincerely welcome every customer to visit and learn the equipment operation.
2. We can arrange engineer to train the operation of equipment to customer’s company when you need.
Maintenance
Consultation services. We answer your question timely via the telephone or email. Our exquisite technology, excellent quality, competitive price, good service and you give us the concern and support, there will be enjoyable and long-term friendly cooperation.
Because professional,its leading.
We are committed to every customer to provide timely, efficient, high quality service!
FAQ
1. Are you manufacturer or trading company?
We are professional manufacturer for making testing machine, charpy testing machine,broaching machine, temperature champer, etc for many years.
2. What is your payment terms?
We accept TT, West Union, L/C, and other payment terms.
3. What is your delivery time?
Generally is about 10 days for standard testing machine, but for non-standard machines, it needs to be customized.
4. Can you accept customers' inspection or third party inspection?
Yes, we totally accept inspection before shipment. Welcome to our factory.
5. Why choose your company?
We are manufacturing testing machines for more than 10 years, and our products have exported all the world. We constantly study and research new projects, and some of our products have won patents. We also get the CE, ISO certificates. High quality products and service are our main center.
