Lab Compact Vacuum Heat Doctor Blade Tape Casting Coater Machine For Battery Coin Cell Coating
- Category: >>>
- Supplier: Xiamen Lith Machine Limited
Share on (1600788879872):
Product Overview
Description
Product Description
Lab Compact Vacuum Heat Doctor Blade Tape Casting Coater Machine For Battery Coin Cell Coating
LITH-H200T is an NRTL standard Compact Tape Casting Coater with the vacuum chuck hotplate up to 200ºC and the active carbon filter on the top cover to protect lab environment. It is an excellent tool to make high-temperature polymer coating or conductive ceramic film on various substrates.
Specifications
Power | · 110V AC 50/60Hz · 1500W |
Heatable Vacuum Platform | · Vacuum chuck made of aluminum alloy with micro-size hole · Vacuum chuck Area: 250mm(W) x 400 mm(L) ( 10"W x 16" L ) · Heating elements are installed inside chuck which can reach 200ºC Max. · Precision digital temperature controller with +/- 1ºC accuracy |
Vacuum Pump (Optional) | · A vacuum pump is required, (Included) |
Film Applicator | · Built in pushing bar for using micrometer adjustable applicator. · 200 mm width Applicator with micrometer adjustable head is included for immediate use · 24VDC motor driven the pushing bar continuously to the adjustable position, which can be used under Ar gas glovebox. Note: Thinnest film can be achieved is > 10 micron |
Max. Coating Area | · 350mm(L) * 200mm(W) (Can be customized) |
Accuracy of Film thickness | · +/- 0.01mm |
Traverse Speed & Distance | · Travel Speed: 0 - 80mm/sec variable · Travel distance: 0 - 400 mm adjustable |
Top Cover and Filter | · Active carbon filter and venting fan are installed on the top cover · The filter will remove organic vapor to make lab environmental safe & clean |

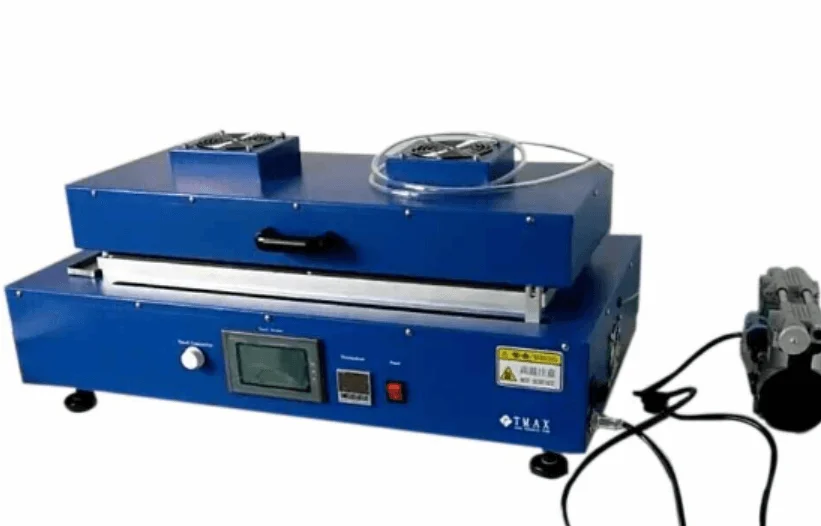

Product Image
Main Products
Certifications
Company Information
Cooperative Partners
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use Alibaba Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
Packaging & Shipping
1 Standard exported package: Internal anticollision protection, external export wooden box packaging.
2 Shipping by express, by air, by sea according to customers' requirements to find the most suitable way.
3 Responsible for the damage during the shipping process, will change the damage part for you for free.
