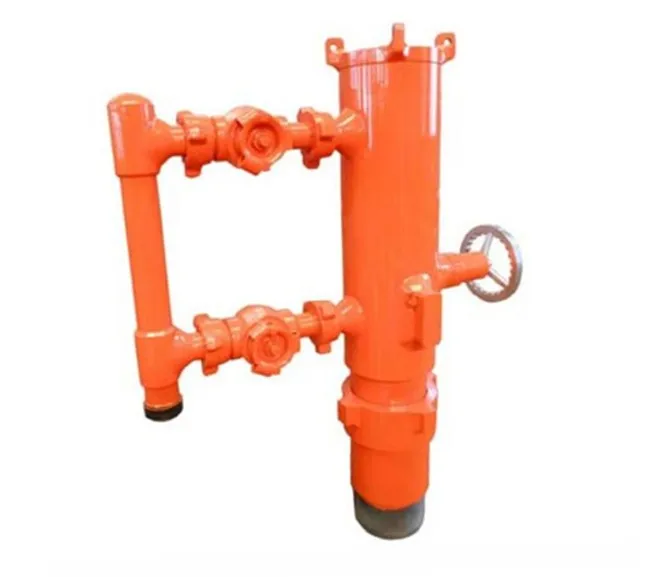

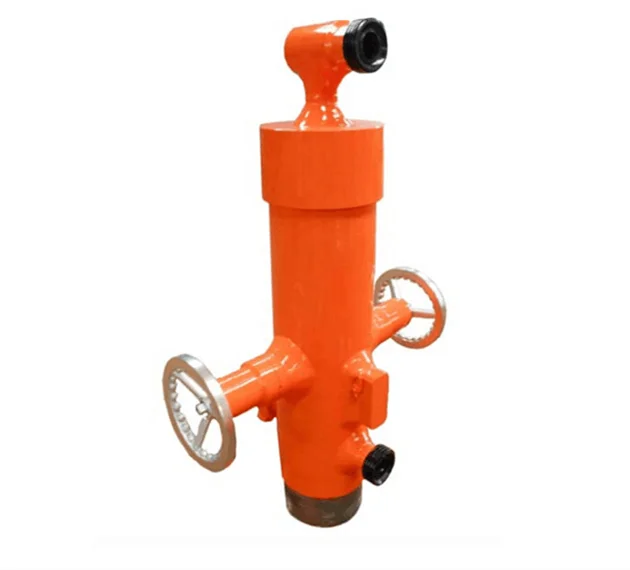

Cementing Head
Cementing head is special tool for pumping slurry and releasing plug and can be connected with casing.
Main Features:
1.Main parts are made from AISI4145H alloy steel.
2.Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
3.It is manufactured utilizing API grade steels with API threads.
4.Positive lever indicates plug releasing.
5.Balance pipe is developed.
Main Features:
1.Main parts are made from AISI4145H alloy steel.
2.Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
3.It is manufactured utilizing API grade steels with API threads.
4.Positive lever indicates plug releasing.
5.Balance pipe is developed.

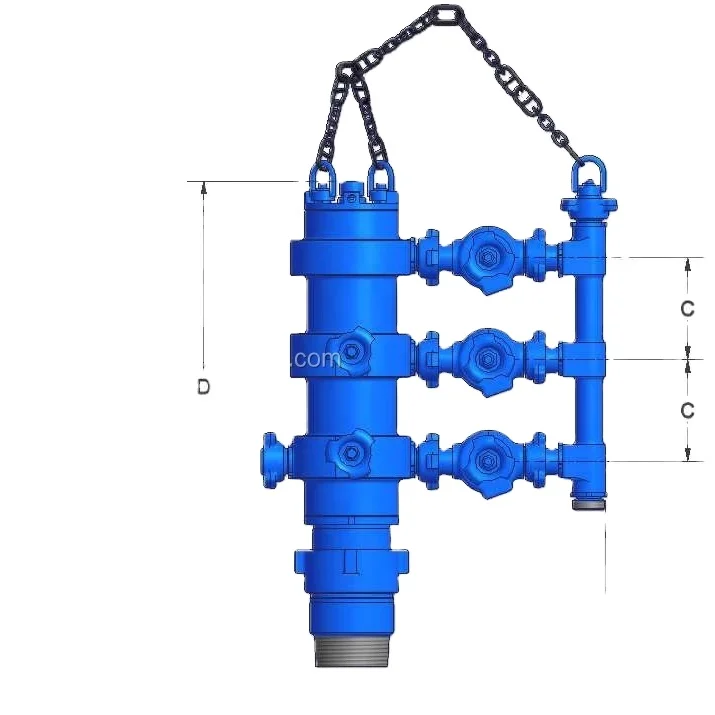

Product Parameters
Specifications,mm (in) | Φ139.7 (5½") | Φ168 (6⅝") | Φ177.8 (7") | Φ194 (7⅝") | Φ244.5 (9⅝") | Φ273 (10¾") | Φ339.7 (13⅜") | ||||||
Overall Length, mm | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 | ||||||
Manifold | 2"Union | ||||||||||||
I.D. of Plug Container, mm | Φ125 | Φ150 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 | ||||||
Length of Plug Container, mm | 400 | 450 | 450 | 450 | 550 | 550 | 600 | ||||||
Working Pressure, MPa | 35.50 | 35,50 | 35,50 | 35,50 | 35,50 | 35 | 35 | ||||||
Product Details Show
Why Choose Us
ISO 9001
ISO 14001
GB/T 28001

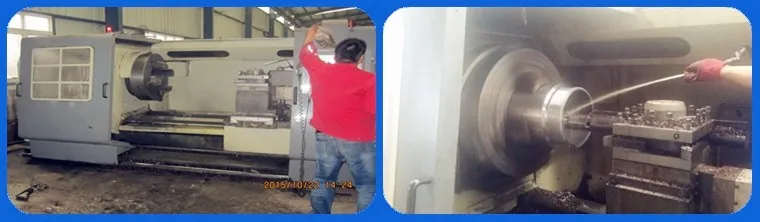

Product Processing
Workshop

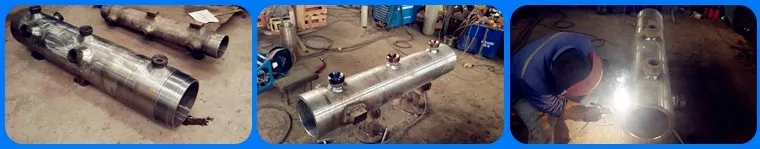

Semi-finished products

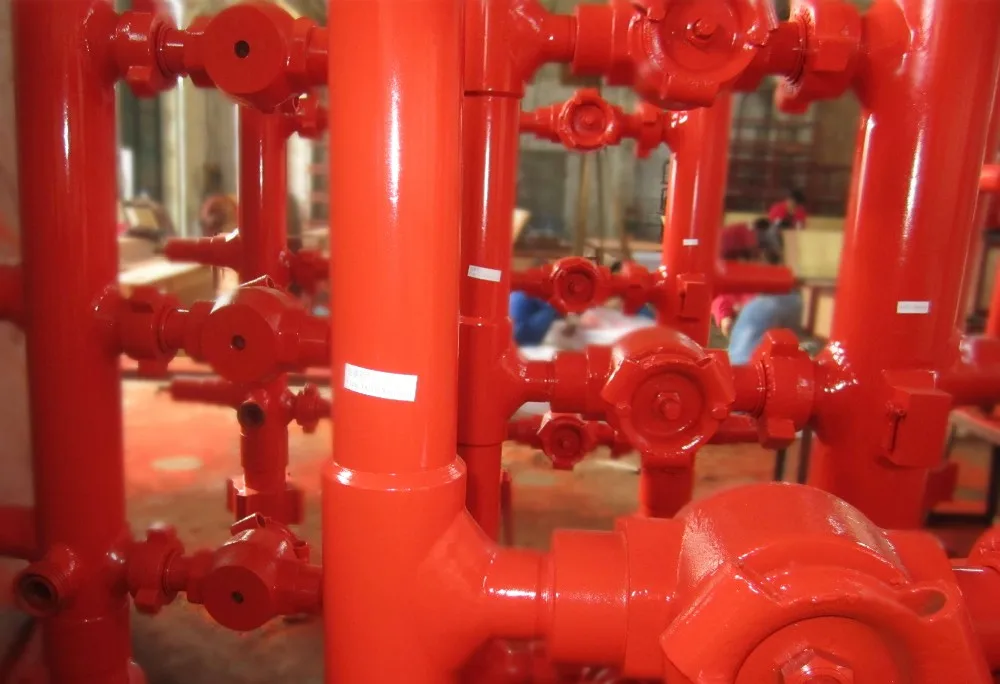

Finished Product

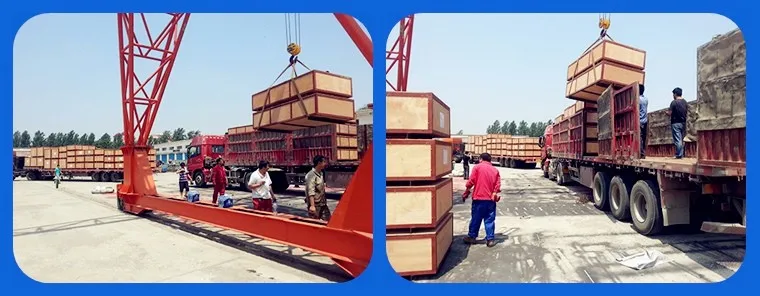

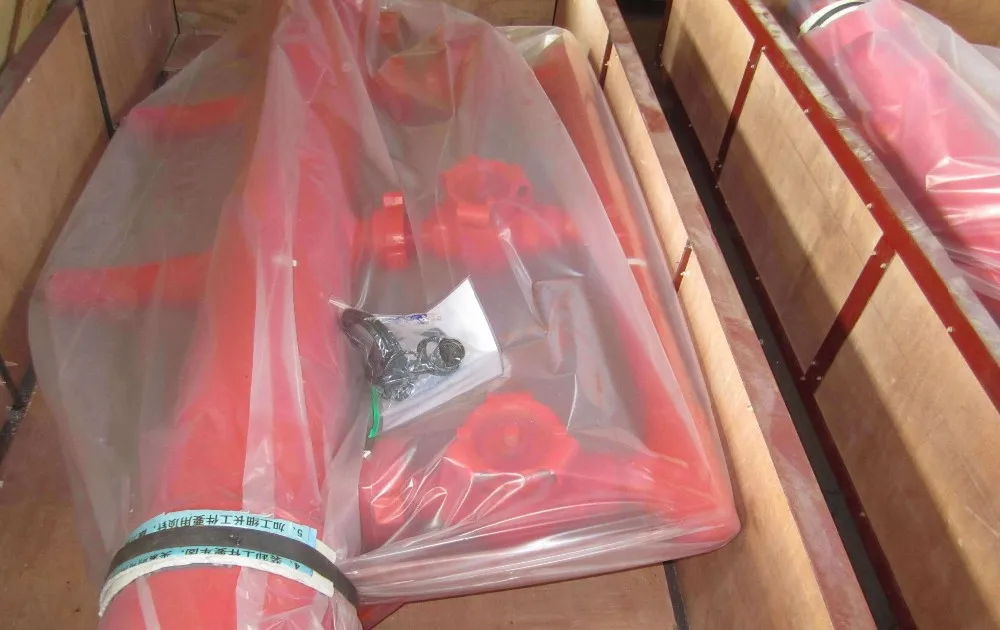

Product Packing

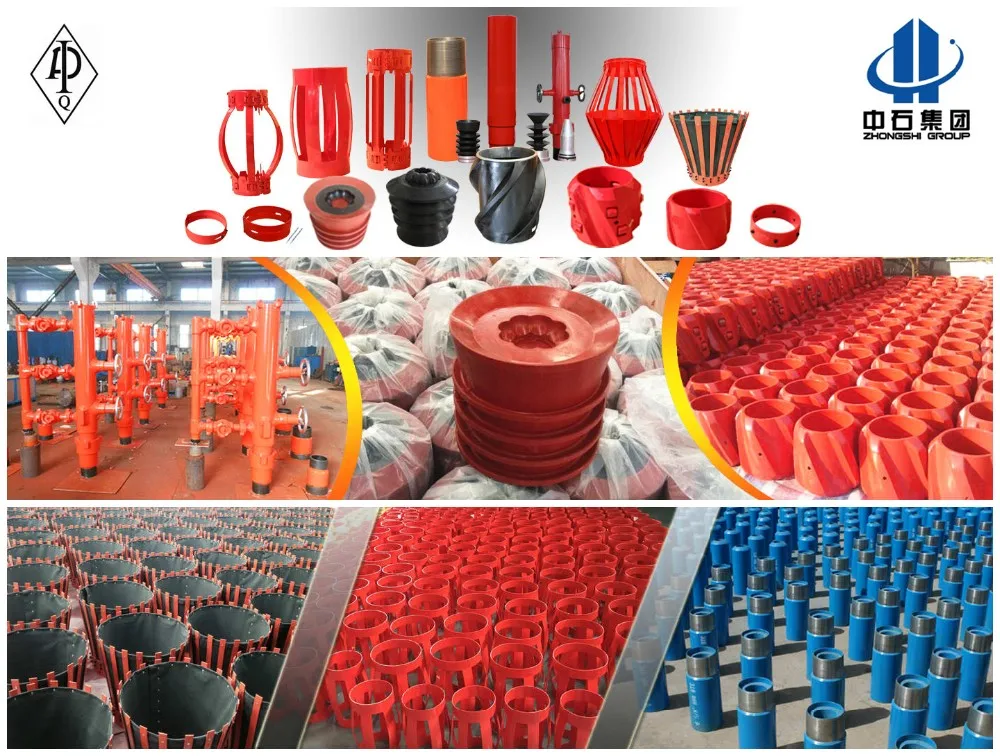

Main Products
Single Piece Centralizer
1.Shuttle bow spring
2.Higher restoring force than API standard
3.Integrate steel plate to process
Hinged Bow Spring Casing Centralizer
1.Strong & reliable
2.Interlocking design
3.Suited for vertical and deviated applications.
Semi-rigid Bow Spring Centralizer
1.API 10D Certificated
2.Nearly 100% stand off
3.Hinged design,seasy for transportation and installation
Spiral Solid Rigid Centralizer
1.Sizes 4-1/2" to 20"
2.Casted steel/aluminum/zinc
3.Good corrosion resistance
Composite Centralizer
1.Sizes 4-1/2" to 20"
2.Tapered construction
3.Suited for horizontal applications
Roller Centralizer
1.Reduce frictional forces obviously
2.Increase casing running depth
3.Ensure casings are centralized
