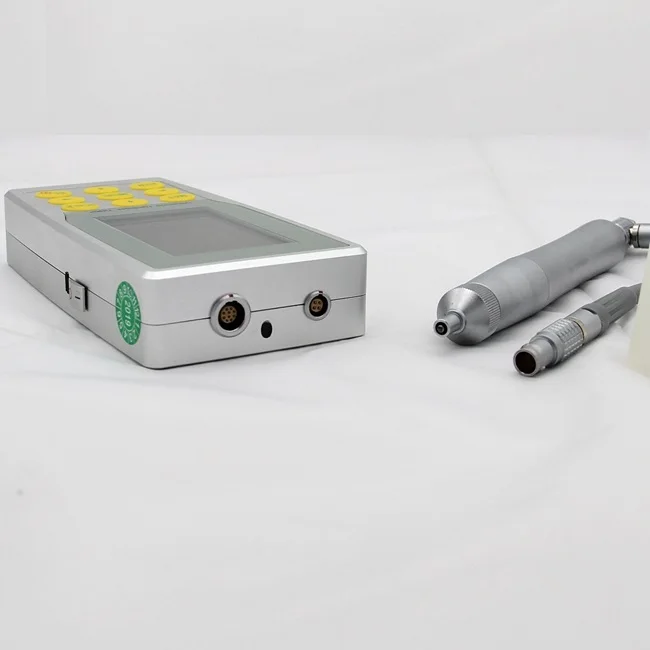

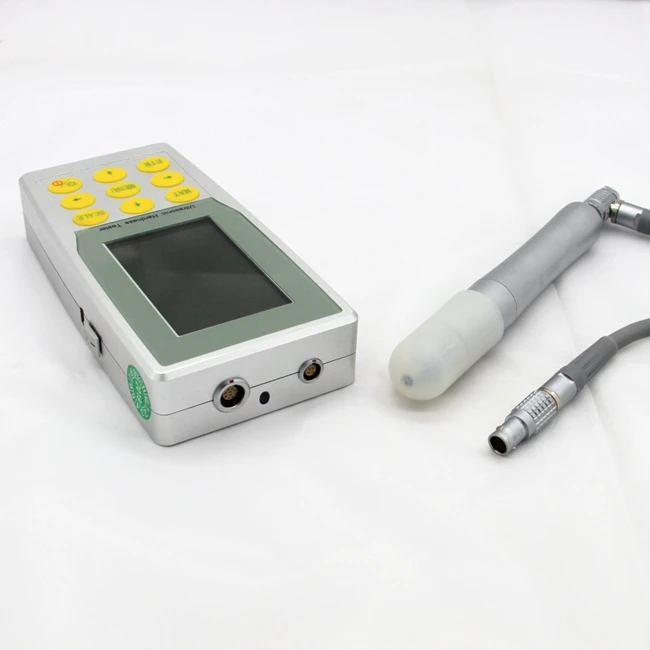

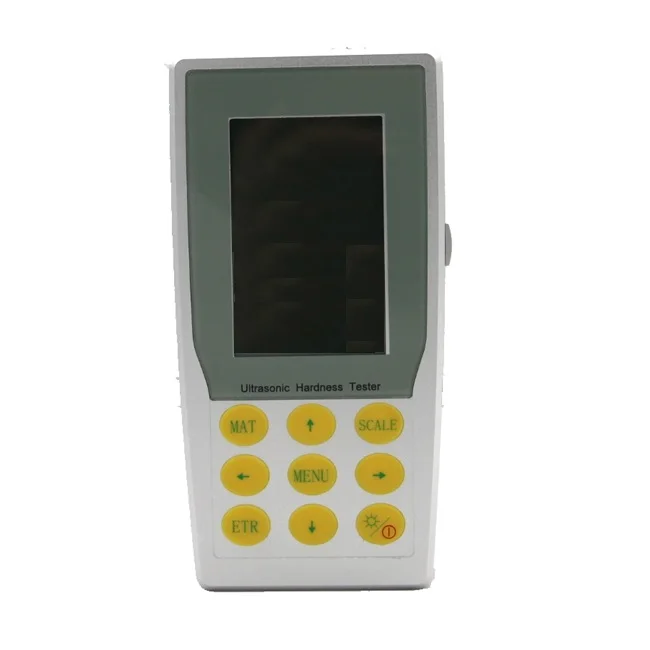

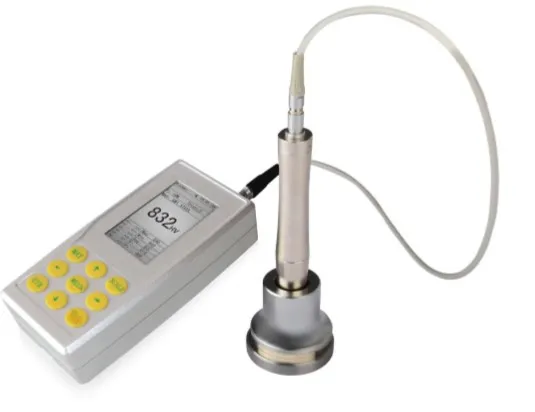

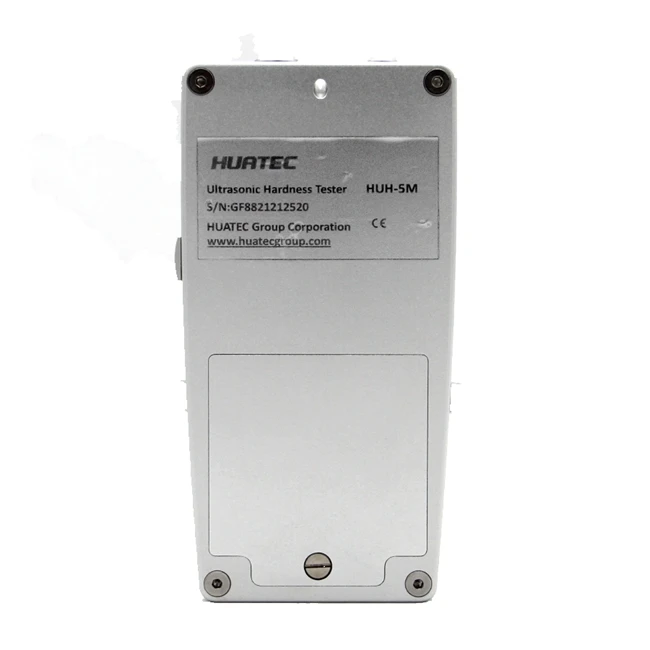

HUH 5E Handheld Motorized probe diamond angle 136degree UCI Multiple ranges Ultrasonic Hardness Tester
- Category: >>>
- Supplier: Huatec Group Corporation
Share on (1600788898003):
Product Overview
Description
information display
HUH-5E Handheld Motorized probe diamond angle 136° UCI Multiple ranges Ultrasonic Hardness Tester
Features:
*Disadvantages are obvious for the hardness measurement commonly used like Brinell, Rockwell, Vickers, Leeb, etc.*Rockwell and Brinell with heavy loading force and big indentation, lead to serious destruction on sample surface. *Vickers apply optical measurement, but only professional technicians can operate smoothly, impossible to measure hardness of heavy work piece, installed machinery and permanently assembled parts.*Leeb hardness tester apply rebound and indirect method to measure hardness, easily lead to big deviation when convert to Brinell, Rockwell and Vickers scales.
Ultrasonic hardness tester HUH-5E applies ultrasonic contact impedance method to do comparative hardness measurement for testing pieces, with advantages of high accuracy, efficiency, portable and easy operation.
Ultrasonic hardness tester HUH-5E is widely used to measure hardness of small forgings, cast material, weld inspection, heat affected zone, Ion-nitride stamping dies and molds, forms, presses, thin walled parts, bearings, tooth flanks, etc.
Specifications:
Product Name | UCI Ultrasonic Hardness Tester |
Model | HUH-5E |
Loading Force | 10N Motorized Probe |
Indenter | 136°Vickers Diamond Indenter |
Measuring Range | HB: 85-650;HV 80-1599; HRC 20-70;HRB: 41-100; HRA: 61-85.6 HS: 34.2-97.3;Mpa: 255-2180N/mm |
Measuring Accuracy | HV:±3%HV; HRC:±1.5HRC; HB:±3%HB; HLD:±5HLD; |
Measuring Direction | Support 360° |
Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data |
Hardness Scale | HV,HB,HRC, HLD |
Data Display | Loading force, Testing-times, Testing result, Average, |
Hardness Indication | LCD display |
Operating Environment | Temperature:-10℃~50℃; Humidity: 30%~80%R.H |
Operating Voltage | DC 6V |
Instrument Dimensions | 160x80x31mm |
Net Weight | Approximate 500g(Without probe) |

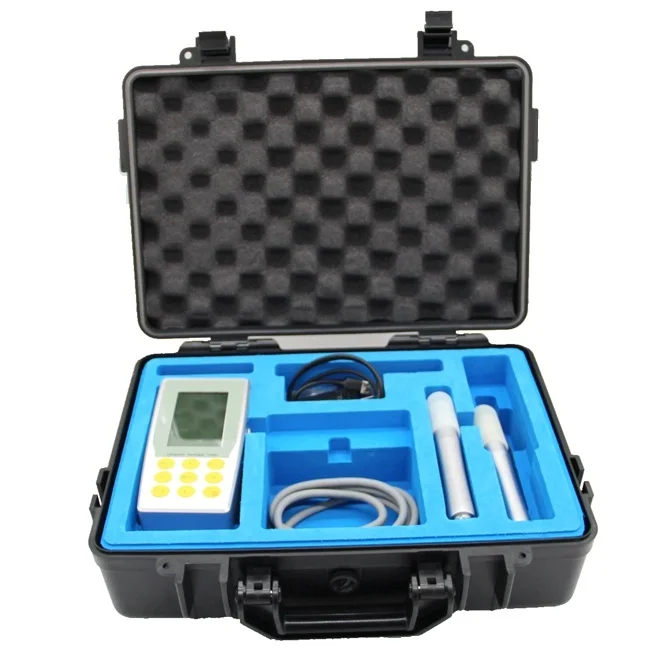

Standard Delivery:
Standard Delivery | quantity | Standard Delivery | quantity | Standard Delivery | quantity | Standard Delivery | quantity |
HUH-5E main unit | 1 | Probe Cable | 1 | Anti Vibration Case | 1 | English Operation Manual | 1 |
1Kgf Motorized Probe | 1 | Com Cable | 1 | Screw | 1 | Warranty Card | 1 |
Standard Rockwell Block | 1 | USB Cable | 1 | Qualification Certificate | 1 | Packing List | 1 |
Motorized Probe Specifications:
Probe Type | UCI-300 | UCI-500 | UCI-800 | UCI-1000 |
Testing force | 3N | 5N | 8N | 10N |
Diamter | 46mm | 46mm | 46mm | 46mm |
Length | 197.5mm | 197.5mm | 197.5mm | 197.5mm |
Oscillating Rod Diameter | 3.7mm | 3.7mm | 3.7mm | 3.7mm |
Min weight of test material | 0.3kg | 0.3kg | 0.3kg | 0.3kg |
Minimum thickness | 2mm | 2mm | 2mm | 2mm |
