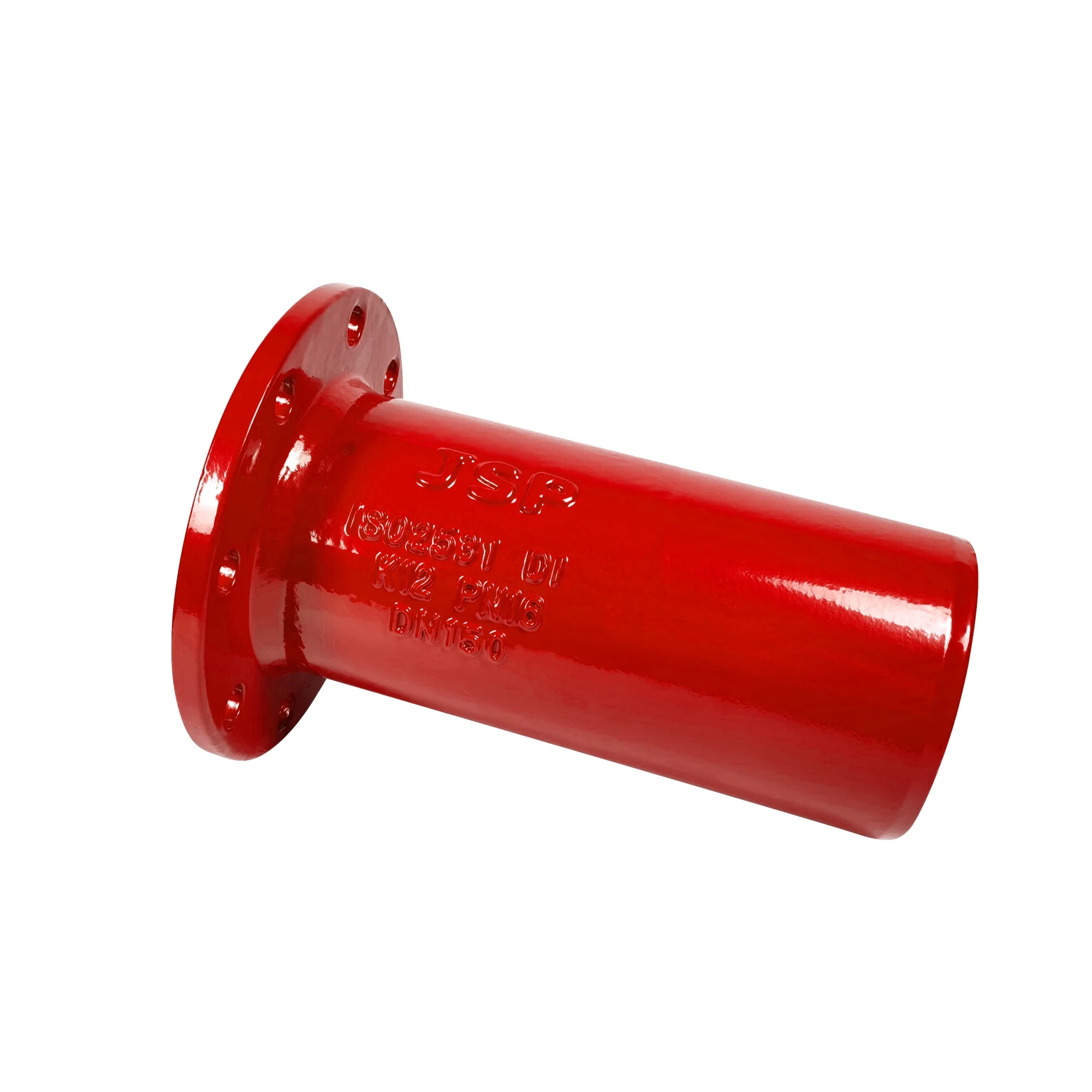

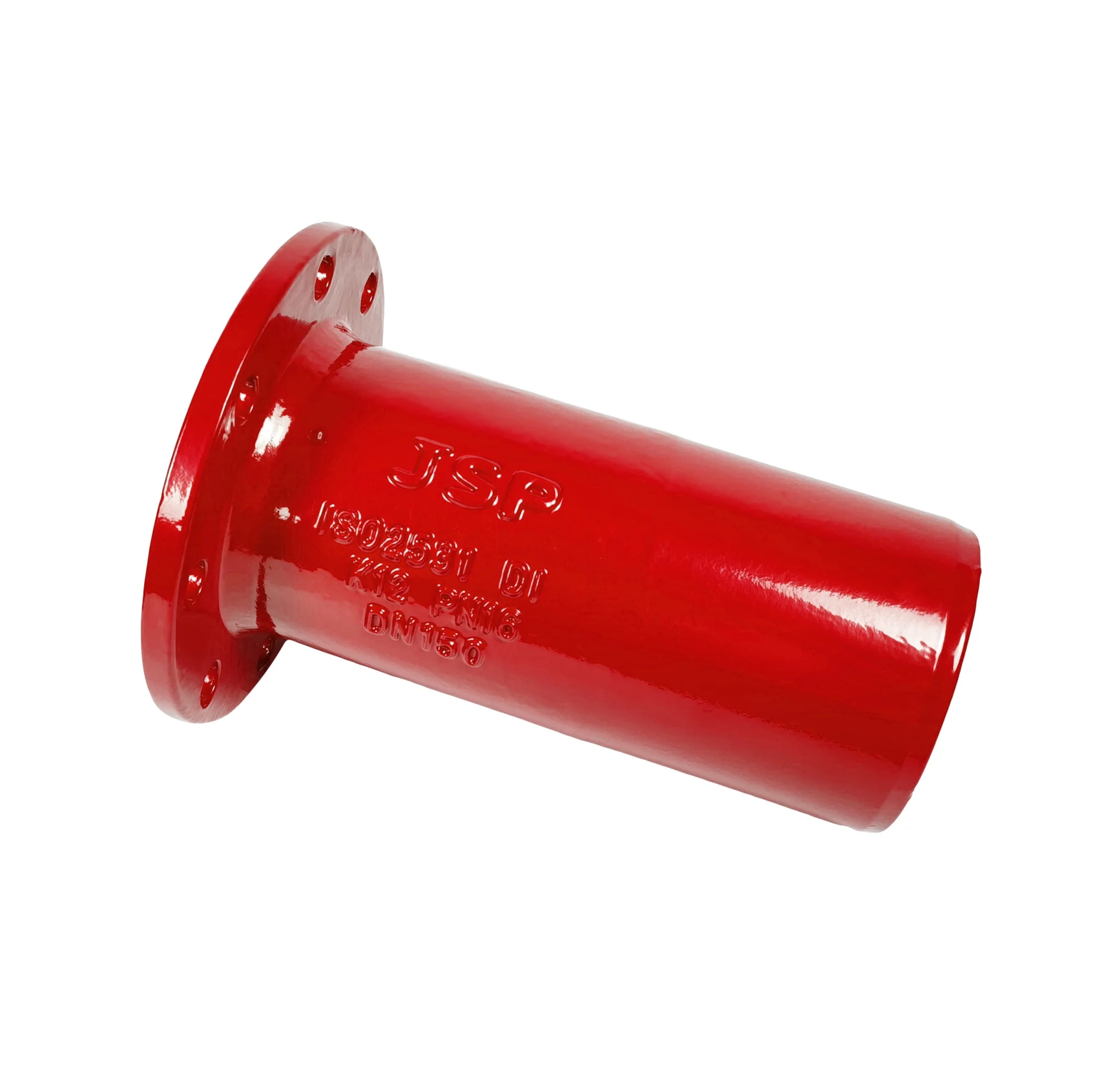

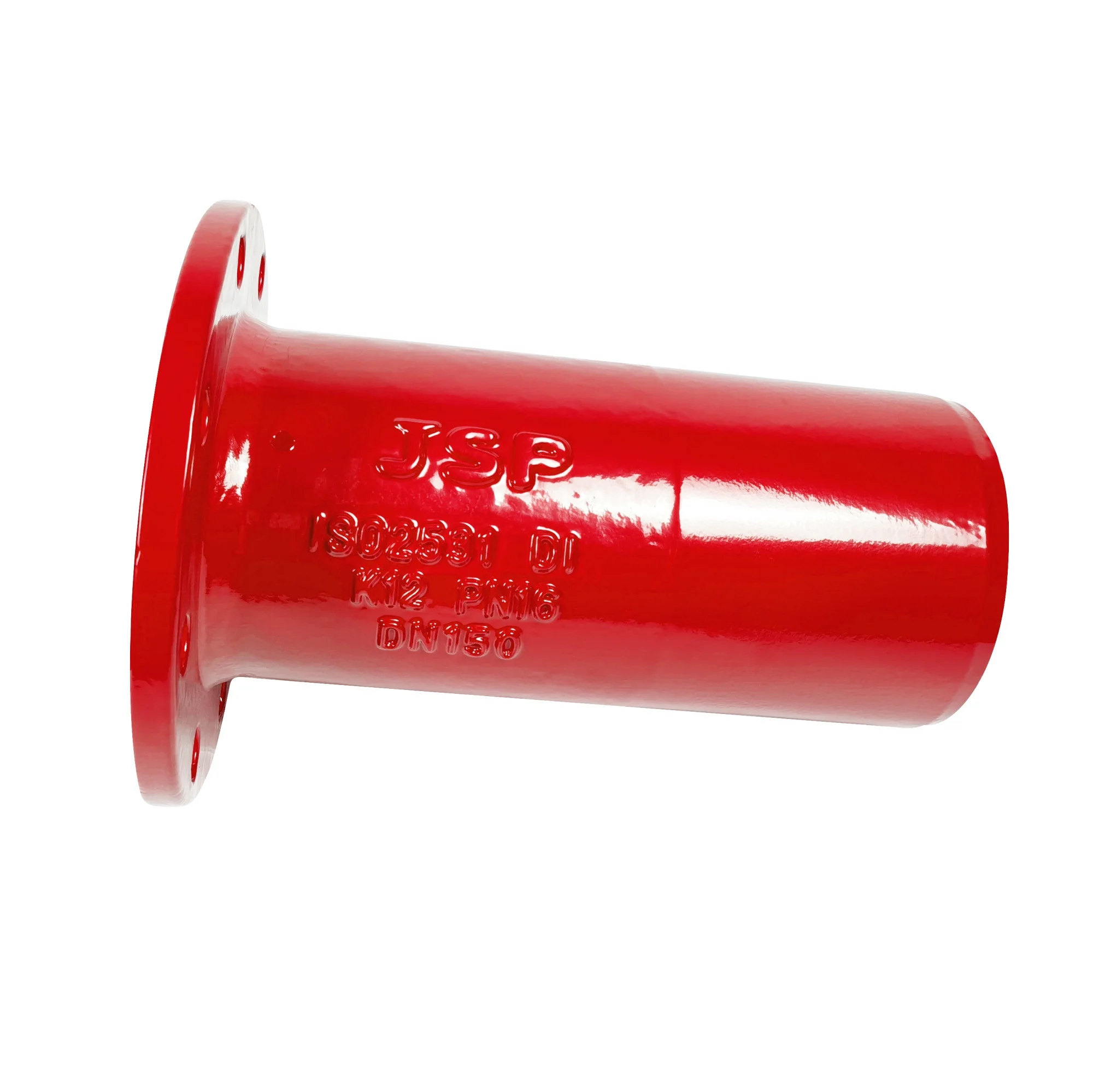

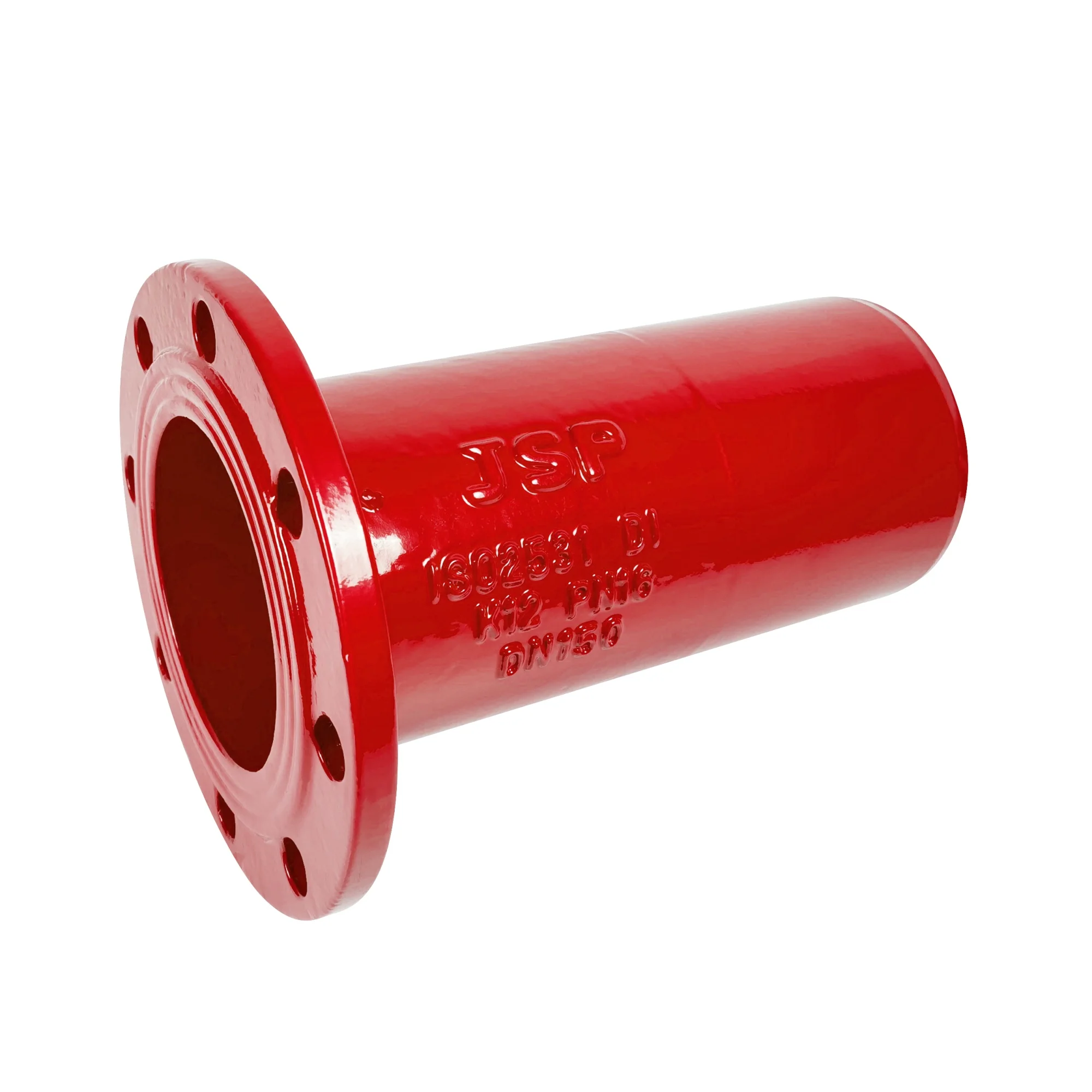

JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water
JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water
JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water
JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water
JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water
JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water

JSP Red Epoxy PN16 DI China Fire Hydrant Ductile Cast Iron Pipe Fittings Ductile Iron Spigot Flanged Fittings For Water

Share on (1600788914277):


Price:$1,200.00

Quantity:


Product Overview

Description







Products Name:
Ductile iron pipe fittings
Manufacturing Standard:
ISO 2531  EN545/598  AWWA C110/C153
Material:
Ductile iron 500-7/450-12 as per ISO 1083
Class:
K12, K14 for Tee and Cross
Wall Thickness Calculation:
e=K(0.5+0.001DN)
Type of joint:
Flanged/Push-in(Tyton)/Mechanical(K)/Restrained/PVC
Flange drilling:
ISO 7005-2/EN1092-2
Chemical analysis:
C: 3.4-3.9%
Si: 2.5-3.0%
Mn: ≤0.4%
S: ≤0.02%
P: ≤0.08%
Mg: 0.02-0.06%
RE: 0.02-0.04%
Mechanical Properties:
Tensile strength:
≥420 N/mm²
Yield strength:
≥300 N/mm²
Elongation:
≥5 %
Brinell hardness:
≤250 HB
Linning:
Standard:
ISO 4179
Material:
Cement mortar lining(G.P./S.R./H.A.)
Fusion bonded epoxy
Painting Epoxy
PU
Coating:
Standard:
ISO 8179
Material:
Zinc&Bitumen
Fusion bonded epoxy
Painting Epoxy
PU
Marking:
Casted on body:
Logo
Standard
DI
Size
Class&Pressure
Month & year of manufacture
Inspection Standard:
ISO 2531 EN545/598 AWWA C110/C153


JSP products strictly meet the standards as follow:
ISO2531 Ductile iron pipes, fittings and accessories for pressure pipelines.
BSEN545 Ductile iron pipes, fittings and accessories and their joints for water pipelines. Requirements and test methods.
BSEN598 Ductile iron pipes, fittings, accessories and their joints for sewage application-requirements and test methods.
ISO4179 Ductile iron pipes for pressure and non pressure pipelines-Centrifugal cement mortar lining-general requirements.
ISO8179 Ductile iron pipes-External zinc coating.
ISO4633 Rubber Seals – joint rings for water supply, drainage and sewerage pipelines-specs for materials.

Gaskets&Fastener can be supplied in according to customers' requirement.
D.I. fittings with customized dimension are available.
