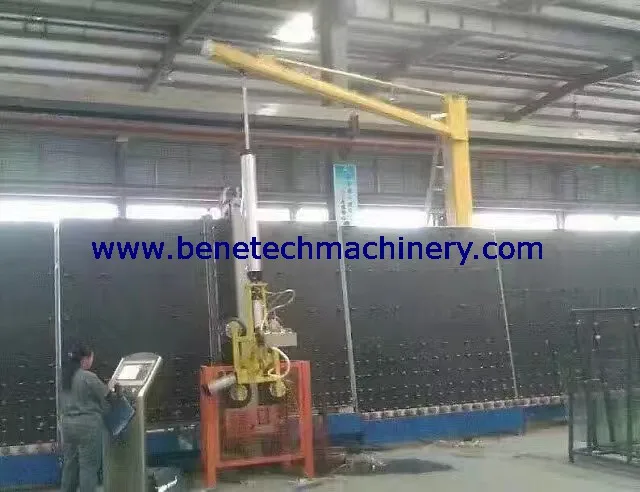

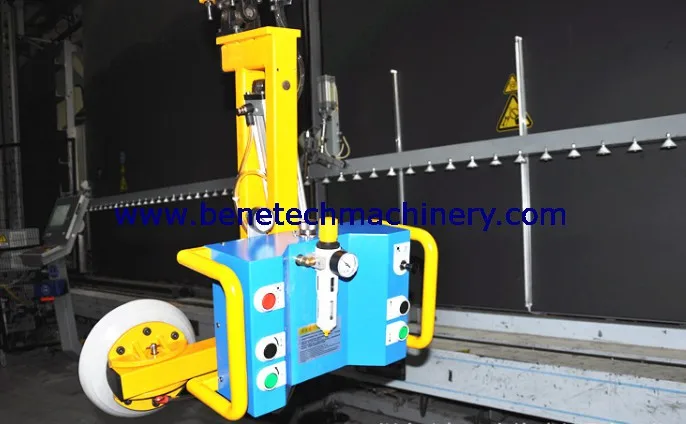

Glass Vacuum Lifter, pneumatic glass suction cup

Product Overview

Description

Product Description

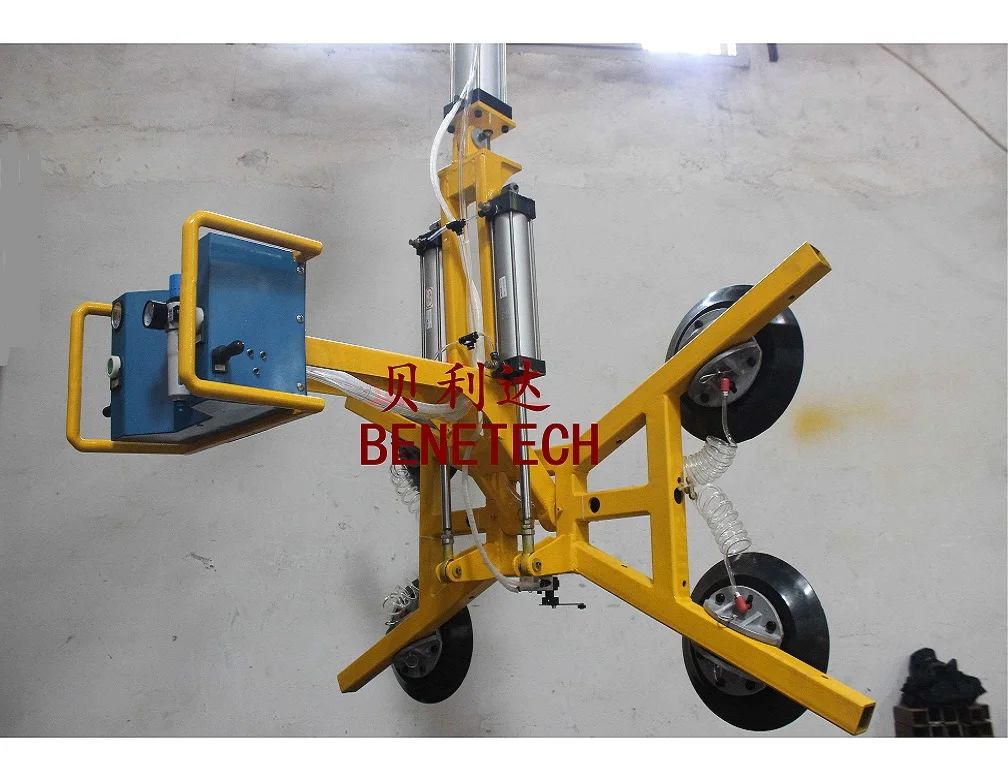

Glass suction cup (pneumatic)

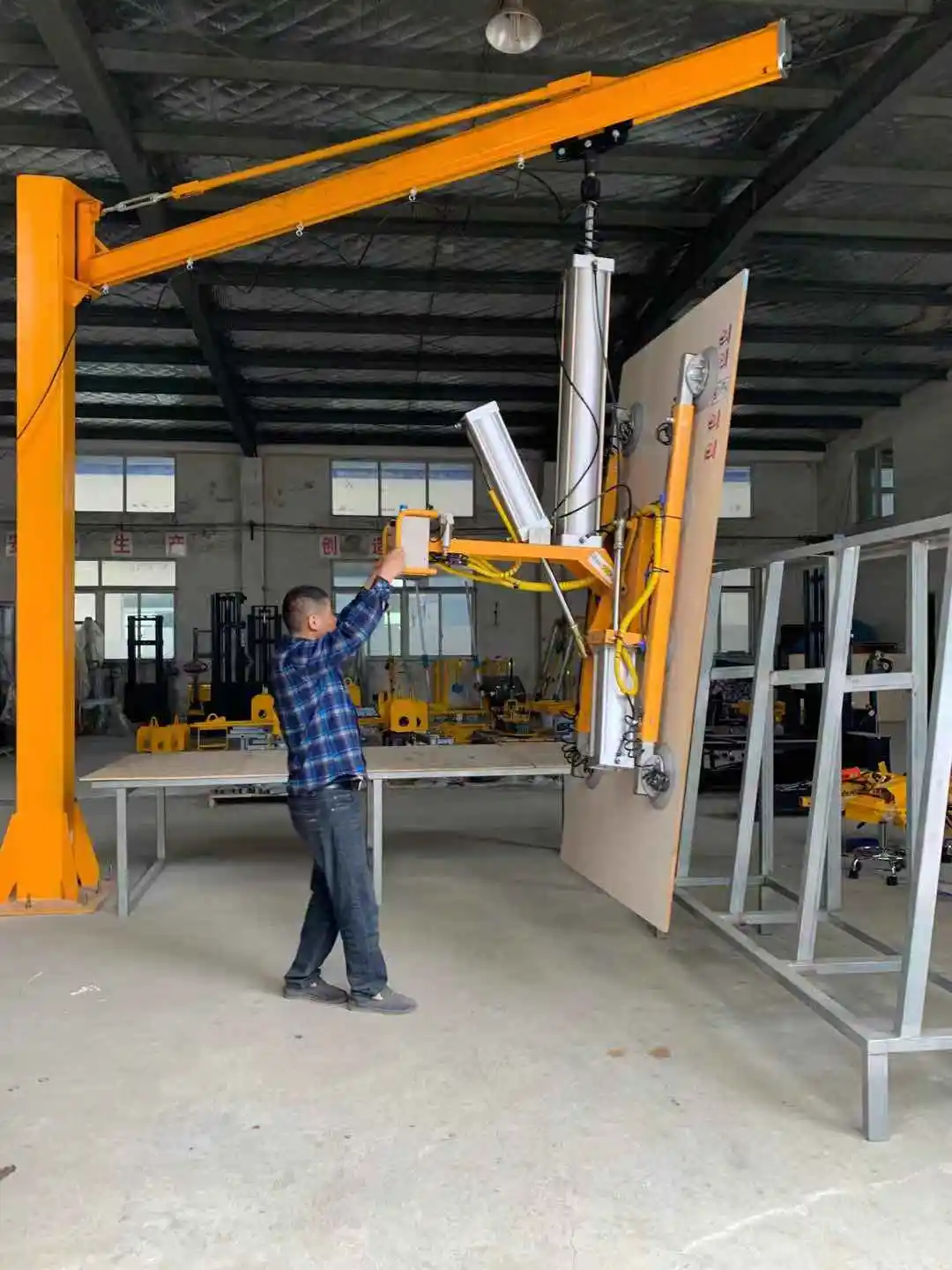

The lifter is designed for semi-automatic for gripping, lifting, moving and placing materials, driven by compressed air. The entire system consists of vacuum gripping device, tilting device and safety protection system, to achieve gripping, lifting, moving and placing glass to specific location by a serial of process setting. The lifter can be expandable to fit for different size of glass.

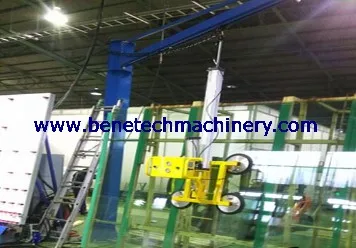

Glass vacuum lifting devices are necessary handling and grip tools to move glass around within factory especially when glass is heavy and/or large. The manipulators could be hung or hoist by any kinds of overhead cranes, carts, trolleys or even forklifts. These powerful glass grip vacuum lifters are also very useful during onsite glass installation especially in tall buildings.



Model	Number of sucker	Max. weight(kg)	Note
BH1000	12	1000	Number of sucker and electric/manual turnover can be selected by customers.
BH720	8	720
BH540	6	600
BH360	4	400

 For the types, please contact us.
