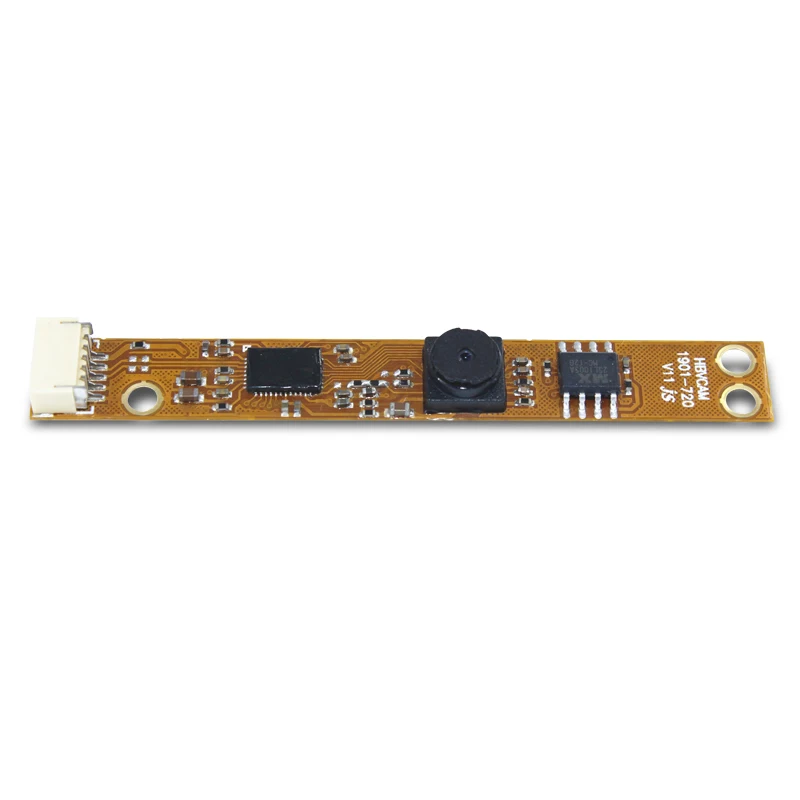

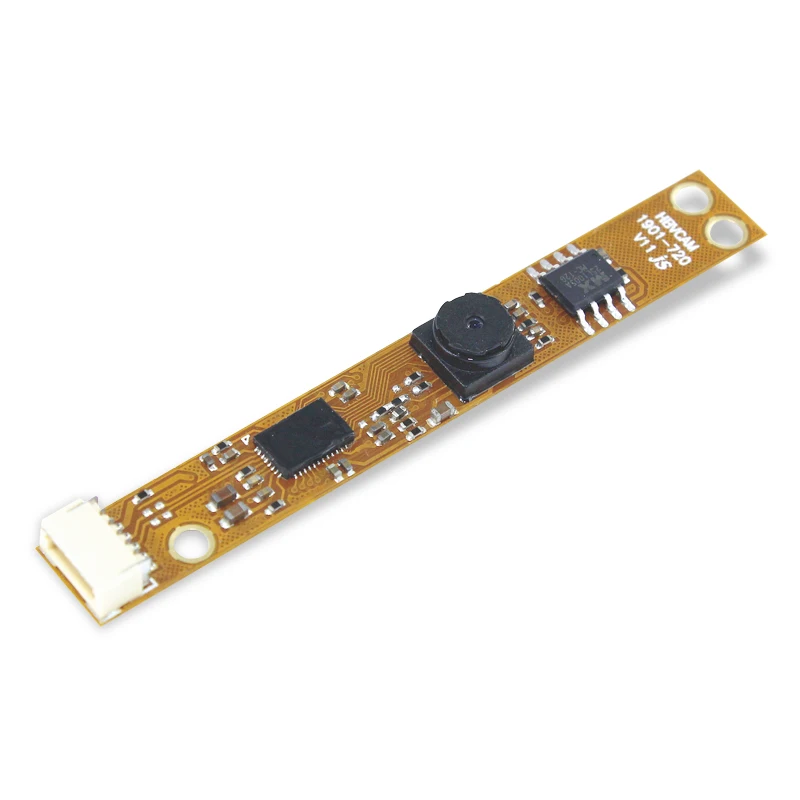

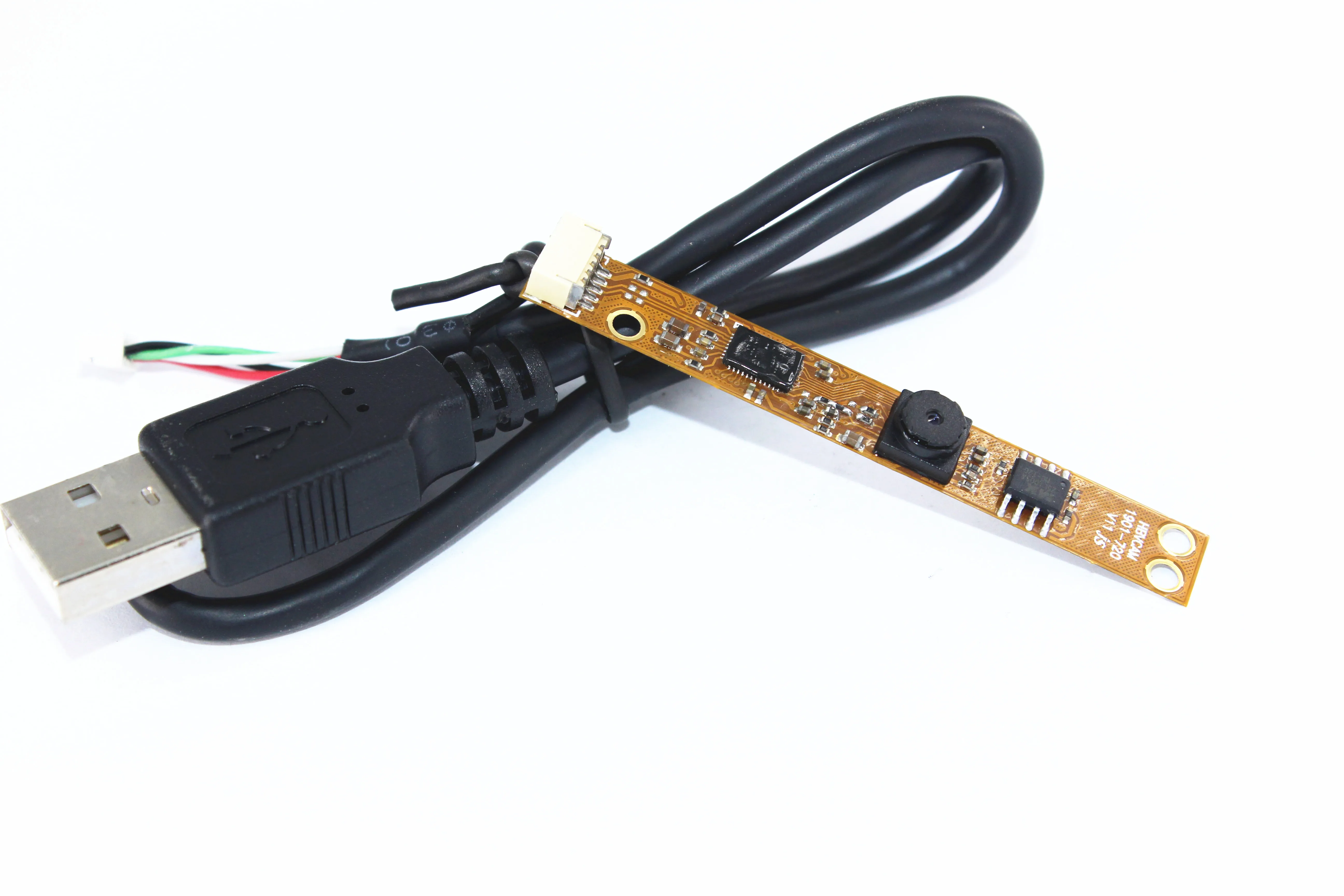

Factory Wholesale 1MP 1280*720 30fps Embedded Board Uvc Camera Module For Laptop Or Tablet
- Category: >>>
- Supplier: Shenzhen Huiber Vision Technology Co. Ltd.
Share on (1600788979030):
Product Overview
Description

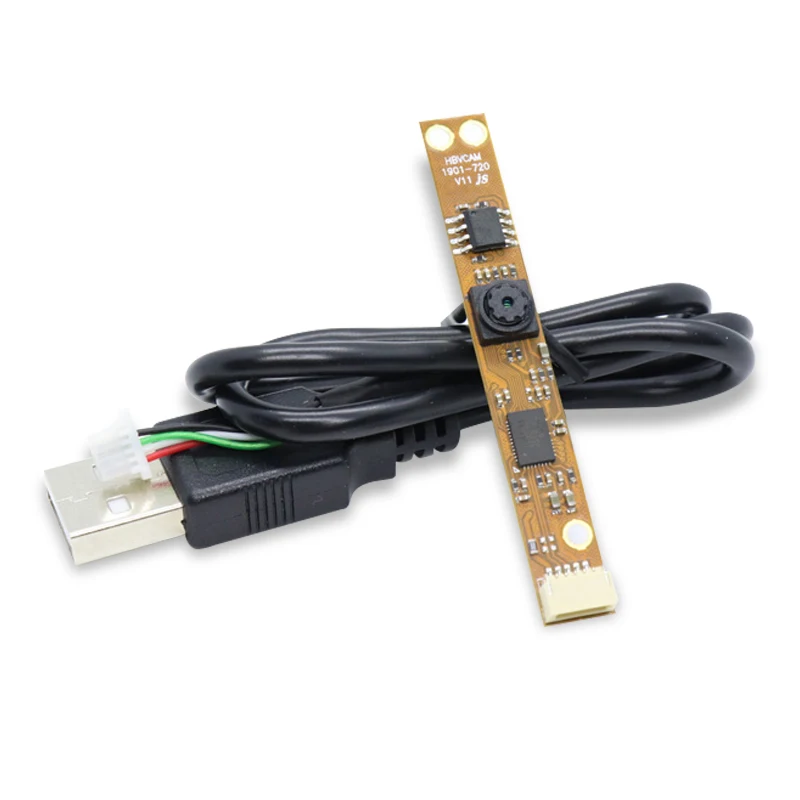

| Model No. | HBVCAM-1901-720 V11 |

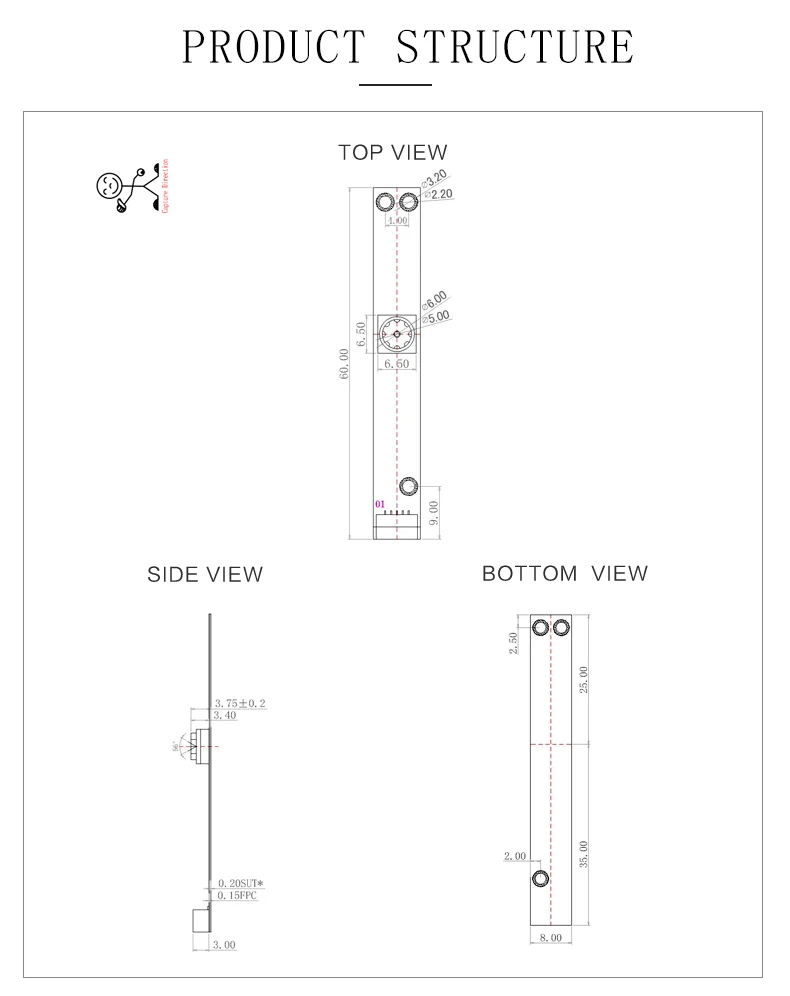

| Model Size | 60mm × 8mm × 3.75mm±0.2MM |
| Temperature (Operation) | -30°C to 70°C |
| Temperature (Stable Image) | 0°C to 50°C |
| Assembly technique | SMT (ROSH) |
| Focus | Fixed |
| Object distance | 30CM-infinity |
| Resolution | 600LW/PH (Center) |
| PCB printing ink | Black |
| interface | USB 2.0 |
| Power supply | USB bus power |
| supply voltage | DC 5V±5% |
| Maximum Power consumption | 500mW |
| Operating system request | Win XP/win 7,8 / vista /android 4.0/ mac /Linux with uvc |
| Sensor | OV9726 (1/6.5” ) |
| Seneor Package | CSP,Bare Die |
| Maximum resolution | 1280*800 |
| Sensitivity | 1300mv /(lux-sec) |
| Pixel Size | 1.75m x 1.75μm |
| Maximum Image Transfer Rate | MJPEG 640x360 30FPS / YUY2 640x360 30FPS MJPEG 640x480 30FPS / YUY2 640x480 30FPS MJPEG 960x720 30FPS / YUY2 960x720 10FPS MJPEG 1280x720 30FPS / YUY2 1280x720 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS MJPEG 1280x800 30FPS / YUY2 1280x800 10FPS |
| S/N Ratio | 36B |
| Max Dynamic Range | 70B |
| Shutter type | Electronic rolling shutter |
| AGC/AEC/Whiter balance | Auto |
| Output Formats | YUY2/MJPEG |
| Microphone | NO |
| Lens Construction | 3P |
| F/No | 2.4 |
| EFL | 2.6mm |
| FOV | 56° |
| TV Distortion | <1% |
| Relative Illumination (Sensor) | 70% |
| IR Filter | 650±10nm |
| Module Package | Anti-electrostatic tray |
| Certifications | FCC/CE/ROSH |

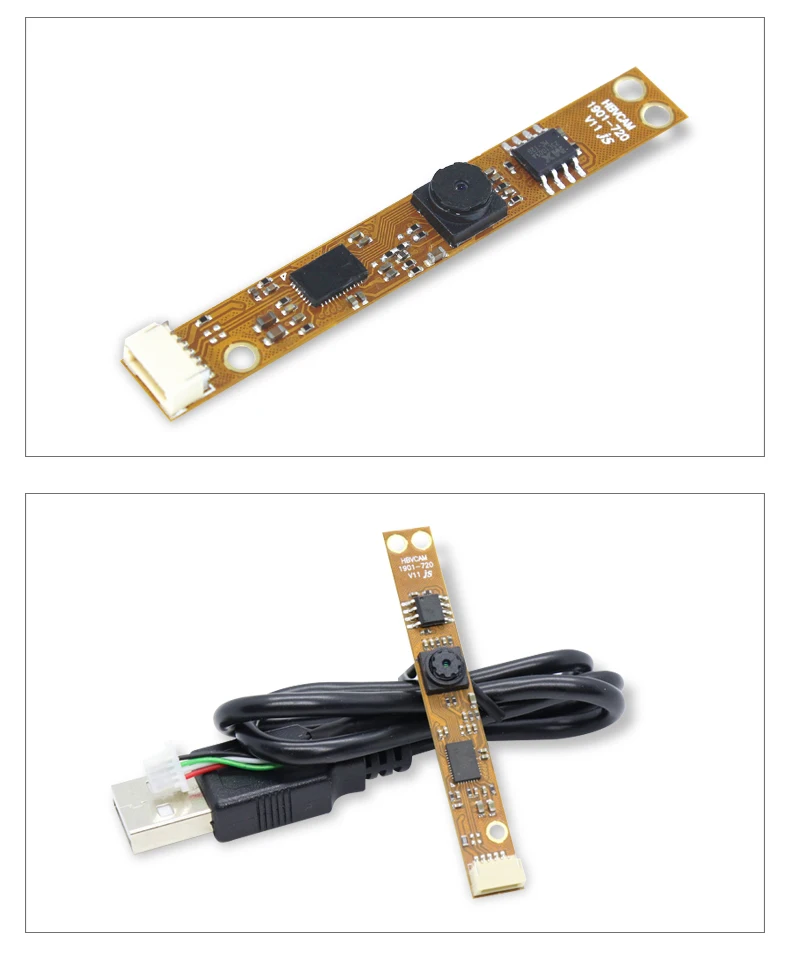

| USB cable | 50CM 1M 2M 3M |
| 1.The parameters of FOV are just for your reference, Different Lens has different FOV 2.The frame rate is related to Light,operating system and so on, the frame rate exist a little error. If you mind it, please don’t make an order for it. Thank you for your understanding | |
Hot Products
Company Information
Packaging & Shipping
1.Are you camera module manufaurer?
Yes, we are a professional usb camera module manufacturer and our compnay was established in 2013
year
2. Do you supply OEM/ODM service?
Yes, we can supply OEM/ODM service, we also can customize the camera module according to your
requirement.
3. Do you provide samples?What's the MOQ?
Samples are provided, but not free.Some of our products provide a drop shipping service, and some
products have a minimum order of 100 /500pieces
4. How to guarantee quality?
Always a pre-production sample before mass production,and final inspection and test before shipment
5: How to pay for order ?
you can pay by TT, Paypal, Escrow, Western Union
6. Does the camera module can work with Windows/Android/Linux system?
Usually the camera can work with Windows system with free driver, it is a play and plug camera
module, it can also work with some Andorid and Linux system with standard UVC protocol, it need to
be tested whether work with Android and Linux system.
7.Does the camera support OTG?
Most of our usb cameras support OTG function
8.Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer,
ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
