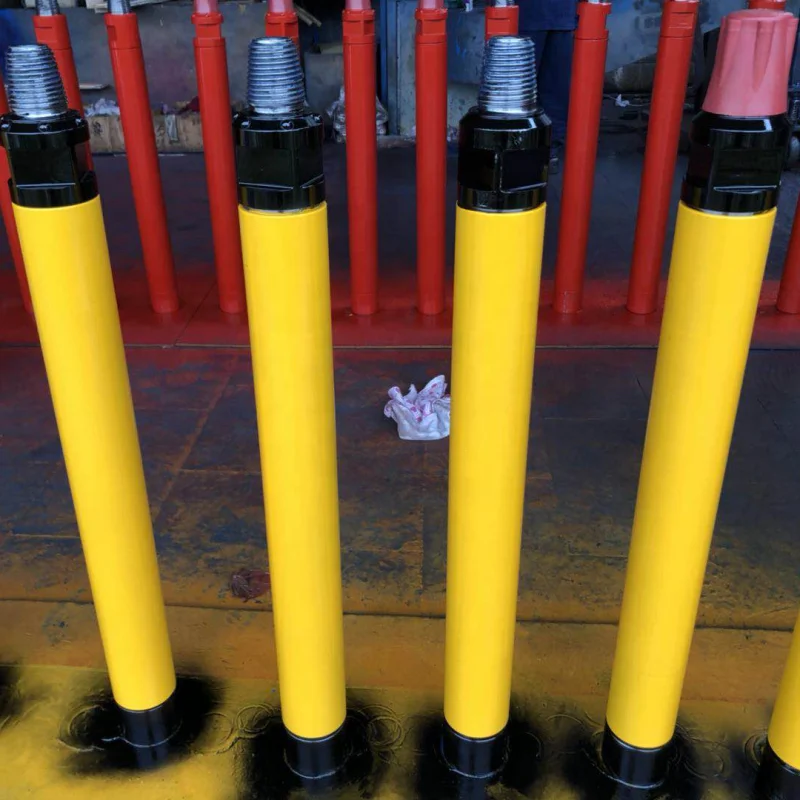

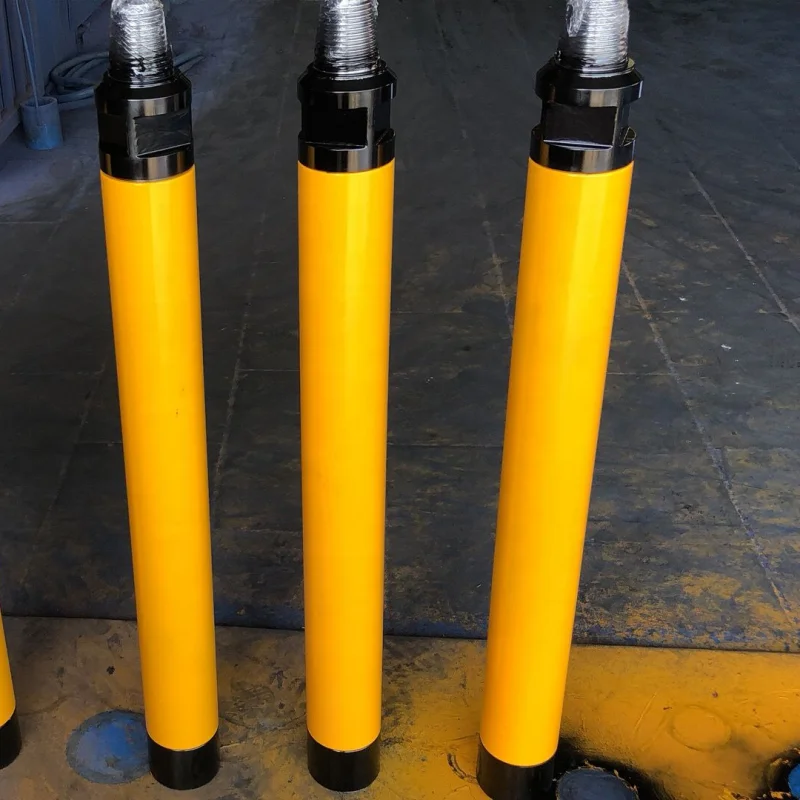

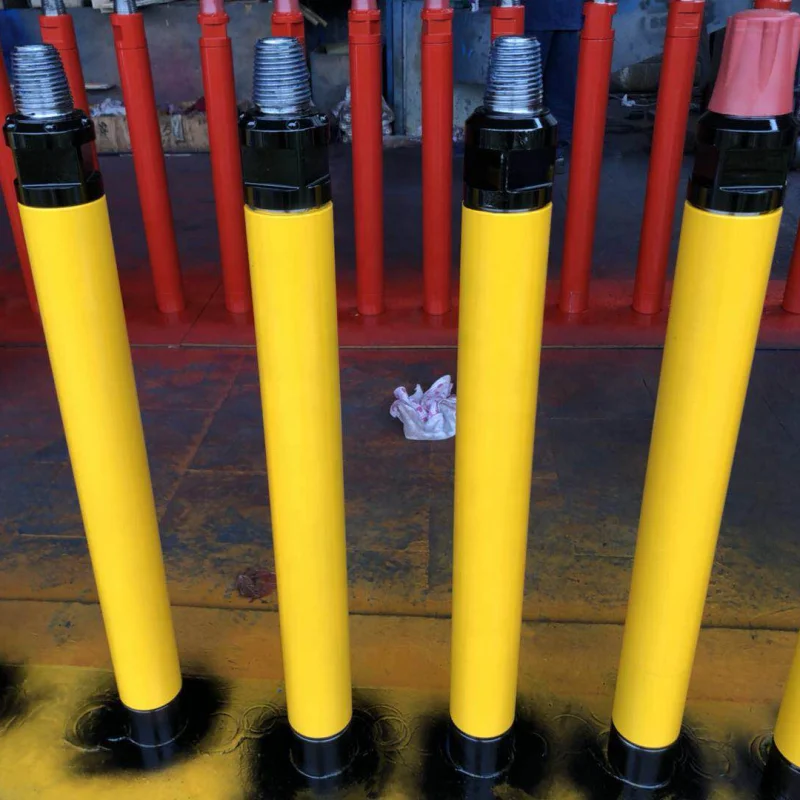

Atlas Copco 4 inches bit COP44 SD4 QL40 DHD340 dth hammer for sale
- Category: >>>
- Supplier: Xiamenshi Xinmeixi Mechanical& Electrical Equipment Co. Ltd.
Share on (1600788980947):
Product Overview
Description
HD85COP84/DHD380 DTH Hammer | ||||||
Bit Shank | COP84/HD84/DHD380 | Hole Range | φ195-305mm | |||
Connection Thread | API 4 1/8"REG | Working Pressure | 1.0-2.5Mpa | |||
QL80 DTH Hammer | ||||||
Bit Shank | QL80 | Hole Range | φ195-305mm | |||
Connection Thread | API 4 1/8"REG | Working Pressure | 1.0-2.5Mpa | |||
SD8 DTH Hammer | ||||||
Bit Shank | SD8 | Hole Range | φ195-305mm | |||
Connection Thread | API 4 1/8"REG | Working Pressure | 1.0-2.5Mpa | |||
Specification of bit for rock drilling | Diameter: (mm) | Weight: (kg) |
5 inch high Air pressure DTH bits | 133mm / 140mm / 146mm / 152mm / 165mm | 15 ~ 18.5 |
Chinese manufacture dth hammer for hard rock
1.superior alloy steel:Hardness and wear resistance combined alloy stell,supplied by national top level specialsteel
manufacturersuperior
2.Longer Service Life:All parts of the DTH hammer and bits are heat treated,longer life,less failure.
3.High Efficiency:More efficient energy transfer, faster drilling speed,15%-30% faster penetration than conventional DTH hammer.
4.Saving Oil:lower air consumption and lower oil consumption.
5.wording pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa)
manufacturersuperior
2.Longer Service Life:All parts of the DTH hammer and bits are heat treated,longer life,less failure.
3.High Efficiency:More efficient energy transfer, faster drilling speed,15%-30% faster penetration than conventional DTH hammer.
4.Saving Oil:lower air consumption and lower oil consumption.
5.wording pressure from 6 Bar to 35 Bar(0.6~ 3.5Mpa)

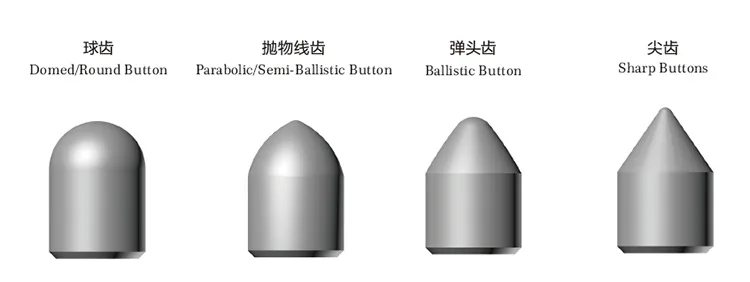

Domed/round button
Mainly used as side teeth for down-the-hole drill bits, suitable for highly abrasive and very hard rocks.
Parabolic /semi-ballistic button
It is mainly used as side teeth and middle teeth of down-the-hole drill bits, and is suitable for moderately abrasive and
relatively hard rocks.
Ballistic button
It is mainly used as the middle tooth of the down-the-hole drill bit, and is suitable for rocks with medium abrasiveness and
medium hardness. The side teeth can also be made when the rock is relatively soft.
Sharp buttons
It is mainly used as the middle tooth of the down-the-hole drill bit, and is suitable for soft rock formations with high drilling
speed and low tooth breakage rate.
Mainly used as side teeth for down-the-hole drill bits, suitable for highly abrasive and very hard rocks.
Parabolic /semi-ballistic button
It is mainly used as side teeth and middle teeth of down-the-hole drill bits, and is suitable for moderately abrasive and
relatively hard rocks.
Ballistic button
It is mainly used as the middle tooth of the down-the-hole drill bit, and is suitable for rocks with medium abrasiveness and
medium hardness. The side teeth can also be made when the rock is relatively soft.
Sharp buttons
It is mainly used as the middle tooth of the down-the-hole drill bit, and is suitable for soft rock formations with high drilling
speed and low tooth breakage rate.
Our factory is in the position to offer a very comprehensive range of DTH drill bits to match various conceivable drilling applications. DTH (Down the Hole) drill bits, also called spline connected drill bit, are widely used for large scale mine (open and underground),
open quarry, water-well drilling, tunnel, geothermal drilling, subway engineering drilling, roads, power stations, and other
construction projects. Our drill bits adopt special heat treatment technology to enhance hardness, surface-compressed for fatigue
resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.
open quarry, water-well drilling, tunnel, geothermal drilling, subway engineering drilling, roads, power stations, and other
construction projects. Our drill bits adopt special heat treatment technology to enhance hardness, surface-compressed for fatigue
resistance, all thus to extend the product life for maximum wear and performance in the toughest of drilling conditions.
