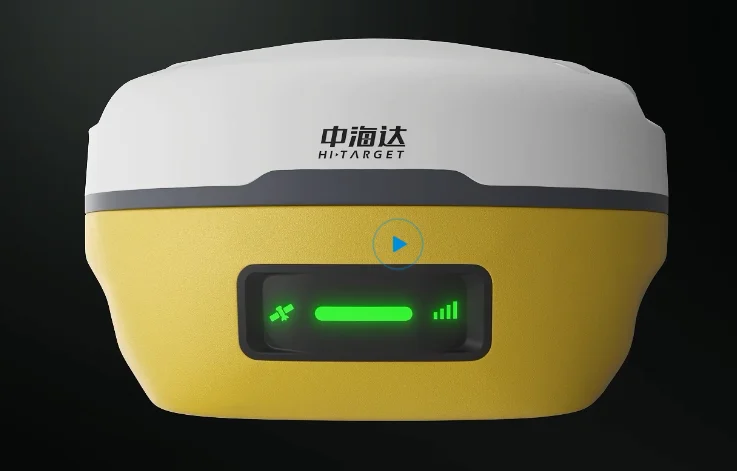

Support new frequency points B1C, B2a, and B2b Hi Target V5 model rtk Gnss Receiver with good price

Share on (1600789066469):


Price:

Quantity:


Product Overview

Description


Support new frequency points B1C, B2a, and B2b Hi Target V5 model rtk Gnss Receiver with good price .





*the New IMU GNSS RTK with Visual Positioning Technology

Equipped with professional dual cameras, vRTK is Hi-Target’s first lightweight and innovative visual RTK receiver product, which not only enables non-contact image surveying, breaking through the objective constraints of previous work, but also improves the speed of stakeout with the function of Live View Stakeout. It greatly improves the work efficiency of engineering users.

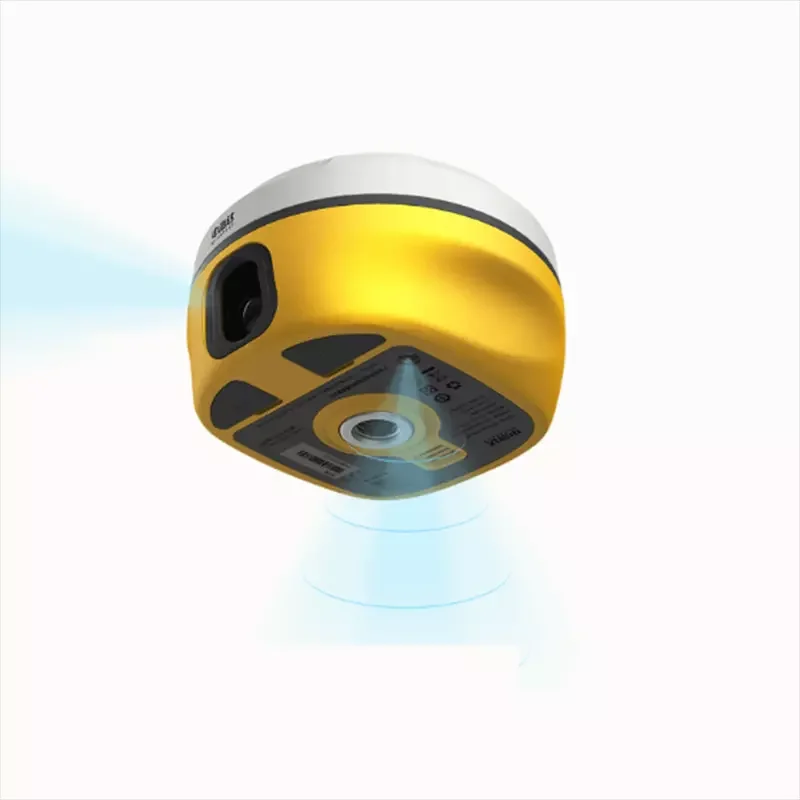

* Dual Cameras for Image Survey and Live View Stakeout

Non-contact measurement greatly improves the usable range of GNSS and efficient safe operation.



*Strong Signal and High-quality Data

New generation GNSS SOC chip with 1408 channels, supports new frequency points B1C, B2a, and B2b RTK decoding for Beidou-3 Satellites.

Introduction of multi-frequency anti-jamming technology and multi-step adaptive filtering technology to ensure strong signals, high-quality data, fast fix, and high accuracy.



*Abundant Industry Data Results

Abundant types of data results meet the needs of different industry applications.
Compatible with the mainstream modelling software to attain point cloud and 3D modelling in one step.







Product Description
















































































































































































Satellite Signals Tracked Simultaneously


Channels


1408


GPS


L1C/A, L1C, L2P(Y), L2C, L5


BeiDou


B1l B2I, B3I, B1C, B2a, B2b*


GLONASS


L1, L2


Galileo


E1, E5A, E5B, E6


IRNSS


L5


SBAS


L1C/A,L5(QZSS,WAAS,MSAS,GAGAN)


QZSS


L1, L2, L5, L6*


POSITIONING PERFORMANCE


High-Precision Static


Horizontal


2.5 mm + 0.1 ppm RMS


Vertical


3.5 mm + 0.4 ppm RMS


Static and Fast Static


Horizontal


2.5 mm + 0.5 ppm RMS


Vertical


5 mm + 0.5 ppm RMS


Post Processing Kinematic (PPK / Stop & Go)


Horizontal


8mm+1ppm RMS


Vertical


15mm+1ppm RMS


Initialization time


Typically 10 min for base and 5 min for rover


Initialization reliability


Typically > 99.9%


Code Differential GNSS Positioning


Horizontal


25cm+1ppm RMS


Vertical


50cm+1ppm RMS


SBAS


0.5m


Real Time Kinematic (RTK)


Single Baseline


Network RTK(VRS,FKP,MAC)


Horizontal


8mm+0.5ppm RMS


Vertical


15mm+0.5ppm RMS


Initialization time


Typically 2-10s


Initialization reliability


Typically> 99.99%


Provides RTK measurements even during differential signal
interruptions


Hi-Fix


Horizontal


RTK+10mm / minute RMS


Vertical


RTK+20mm / minute RMS


Time to first Fix


Cold start


< 45s


Hot start


< 30s


Signal re-acquisition


< 2 s


Image Accuracy


Stakeout


Typically 2cm


Image Measurement


2cm~4cm


Tilt Survey Performance


Additional horizontal pole-tilt uncertainty typically less than
8mm+0.7mm/°tilt(2.5cm accuracy in the inclination of 60°)

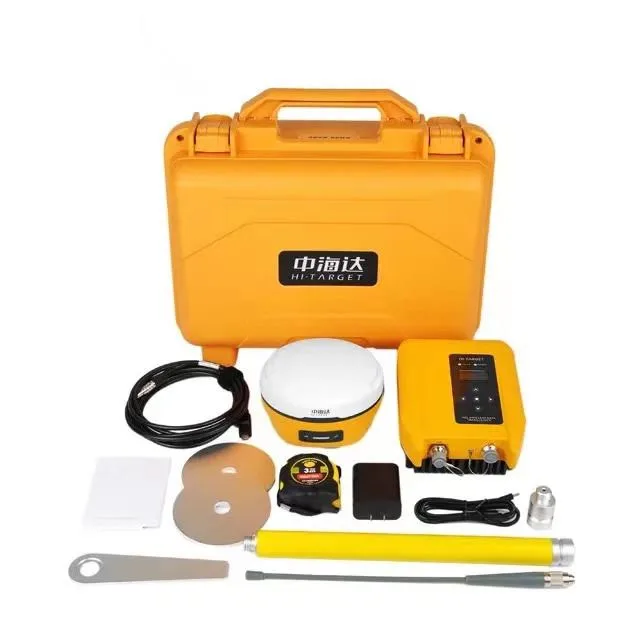

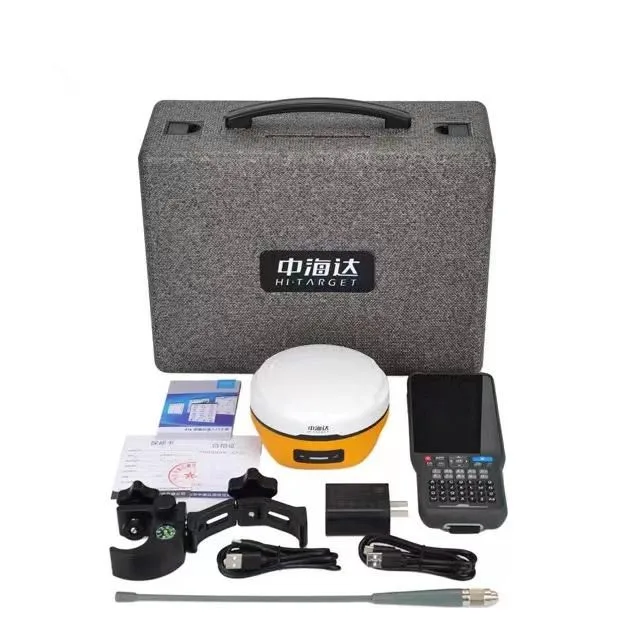

Packaging & Shipping
