ONWA KR 1238/KR 1268 4KW 32 Nautical Miles Marine Radar radome radar antenna marine navigation radar
- Category: >>>
- Supplier: Dowin Corporation
Share on (1600789237453):
Product Overview
Description

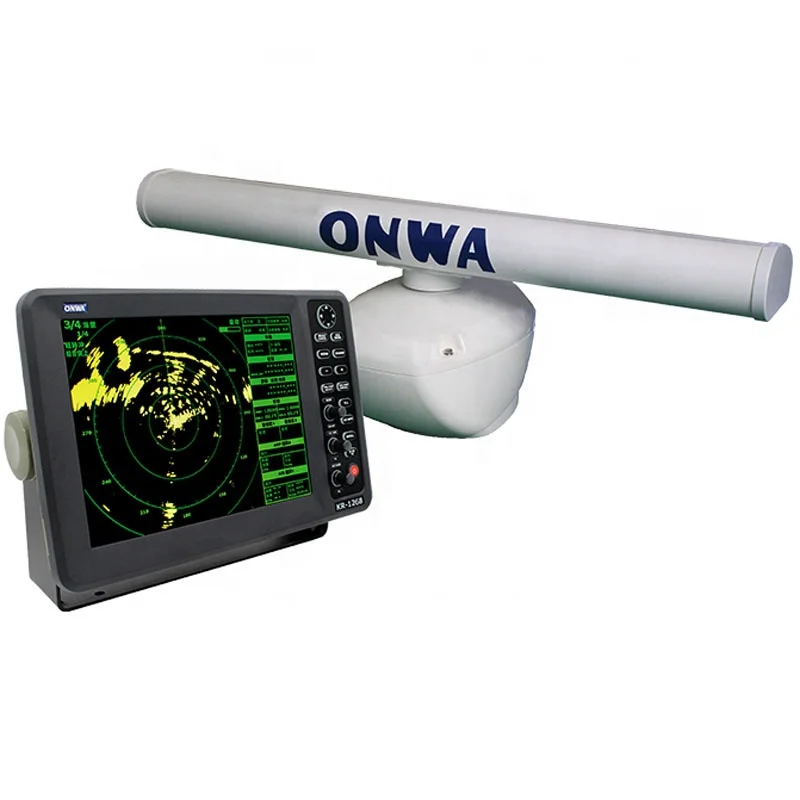

ONWA KR-1238/KR-1268 4KW 32 Nautical Miles Marine Radar radome radar antenna marine navigation radar
Product Description
MODEL: KR-1238/1268
FEATURE:
1. Adjustable DATA FIELD, more flexible
2. The system software can be updated via USB
3. AIS display function
4. Multi color selection for target and background
5. Rugged die-cast, waterproof housing
6. Target tracking (TT) function, can track and trace up to 20 targets
7. User-programmable function keys
8. Automatic optimization of radar picture
9. Newly enhanced performance
10. Head-up, Course-up, and North-up representation mode
11. Economy Mode, Guard Zone Alarm and Watch Mode
Customizable Data Field, more flexible data display.
System Software can be upgraded via USB.
AIS display function.
Multiple-Color selection for target and background.
Rugged die-cast, waterproof housing.
“Target Tracking” (TT) function, can track and trace up to 20 targets.
User-programmable function keys.
Automatic optimization of radar picture.
Newly enhanced performance.
Head-up, Course-up and North-up representation mode.
Economy Mode, Guard Zone Alarm and Watch Mode.
ANTENNA RADIATOR | |
Type | KR-1538: 55cm hybrid array |
Length and Rotate speed | KR-1538: Radome 60cm (KRA-1004) 24RPM |
Wind load | Relative wind 100 knots |
Beam width | KRA-1004: Hor: 4″ Vert: 25″ |
RF TRANSCEIVER | |
Frequency | 9410 +/-30MHz (X-band) |
Pulse length PRR | 0.08 µ s/2100 Hz(0.125, 0.25, 0.5, 0.75, 1, 1.5* nm) 0.3µ s/1200 Hz(1.5*, 2, 3 nm) 0.8 µ s/600 Hz(3*, 4, 6, 8, 12, 24, 36, 48**, 64**nm) Pulse length & PRR for 1.5 and 3nm ranges can be select in menu** KR-1568 |
Peak Output Power | 4KW nominal |
Mixer and Local Oscillator | Microwave Inter grated Circuit |
IF | 60MHz Bandwidth: 25MHz (0.08/0.3 µ s), 3MHz (0.8 µ s) |
Noise Figure | 10dB nominal |
ENVIRONMENT | Temperature: |
POWER SUPPLY | 13.8 VDC, 24 VDC, 36 VDC; 60W (30W in economy mode) |
DISPLAY UNIT | |
Type | 15″ LED backlight, 32-bit TFT Color LCD Display |
Display Modes | Head-up, Course-up*, North-up*, True Motion** |
Range Scale (nm) | Range: 0.125, 0.25, 0.5, 0.75, 1, 1.5, 2, 3, 4, 6, 8, 12, 16, 24, 36, 48**, 64**, 72** |

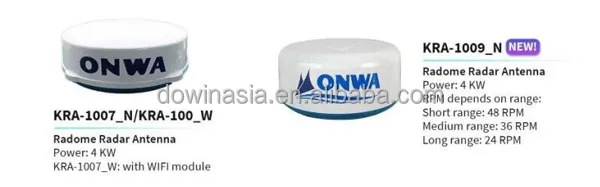

Antenna Radiator
1. Type:
KR-1238: 55cm hybrid array
KR-1268: 120cm hybrid array
2. Length and Rotation speed:
KR-1238: Radome 60cm (KRA-1004) 24RPM
KR-1268: Open 120cm (KRA-2004) 24RPM
3. Wind load: Relative wind 100 knots
4. Beamwidth:
KRA-1004: Hor: 4° Vert: 25°
KRA-2004: Hor: 1.9° Vert: 22°
