Clear/half white coated/gold/ruby red
Halogen quartz heater is made of tungsten wire, put the wire in quartz tube,through lamp wire make light. It is also a kind of shortwave infrared emitter. It can provide a very high energy source capable of responding instantly to voltage changes, allowing for precise temperature control for a variety of applications.
1. Components are allowed to work under the following conditions:
A. The relative humidity of the air is not more than 95 percent.
B. There is no flammable, explosive, corrosive gas and conductive dust in the surrounding environment.
C. Without violent impact and vibration;
D. The working voltage should not be greater than 1.1 times the rated value, and it can also be effectively grounded.
E. Insulation resistance ≥ 1MΩ Dielectric strength: 2KV/1min.
2. The electric heating pipe should be well positioned and fixed. The electric heating pipe is generally equipped with corresponding metal pipe clamps and ceramic pipe clamps according to the porcelain seats at both ends.
When the operating temperature exceeds 200 degrees Celsius, a high-temperature wire and screw connection that withstands 400 degrees or more is used.
3.Insulating material of infrared electric heating tube The quartz glass is a brittle material. When installing and using it, it should be safe and use it according to the specific conditions of the heated object.
Take necessary protective measures to avoid mechanical damage
Suggest the ir lamp type
• Bottle blowing • Thermoforming
• Plastic forming • Welding
• Serigraphy • Strapping
Half white reflecter infrared lamp
• Drying • Copying
• Offset printing • Ink jet
Clear short wave heat lamp
Half white heat lamp
• Food catering • Food processing
Ruby heat lamp. round halogen oven lamp
Wood & Composites
• Drying • Curing • Powder coating
white reflecter infrared heat lamp

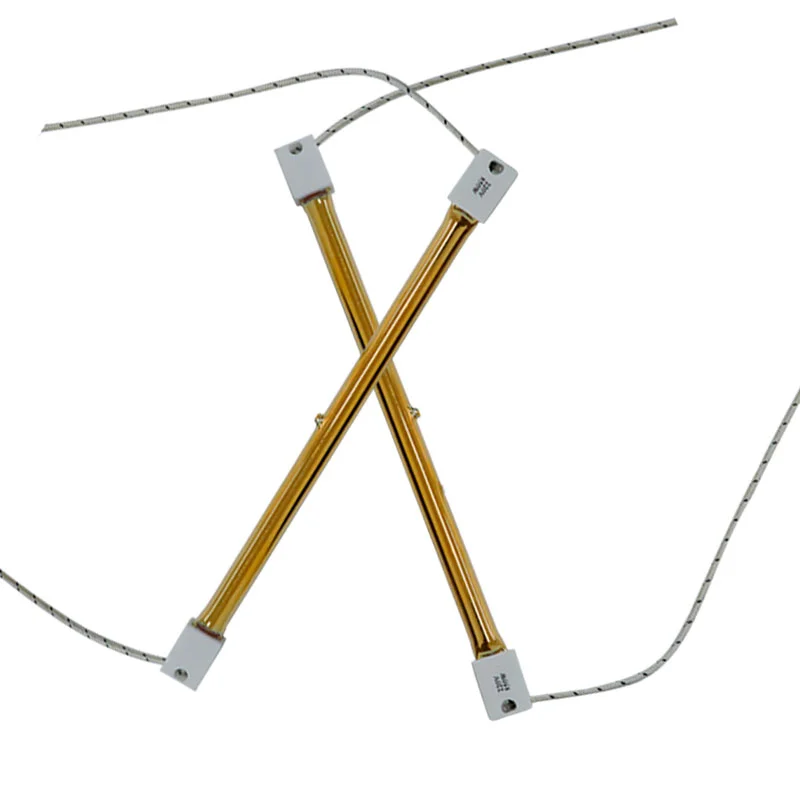

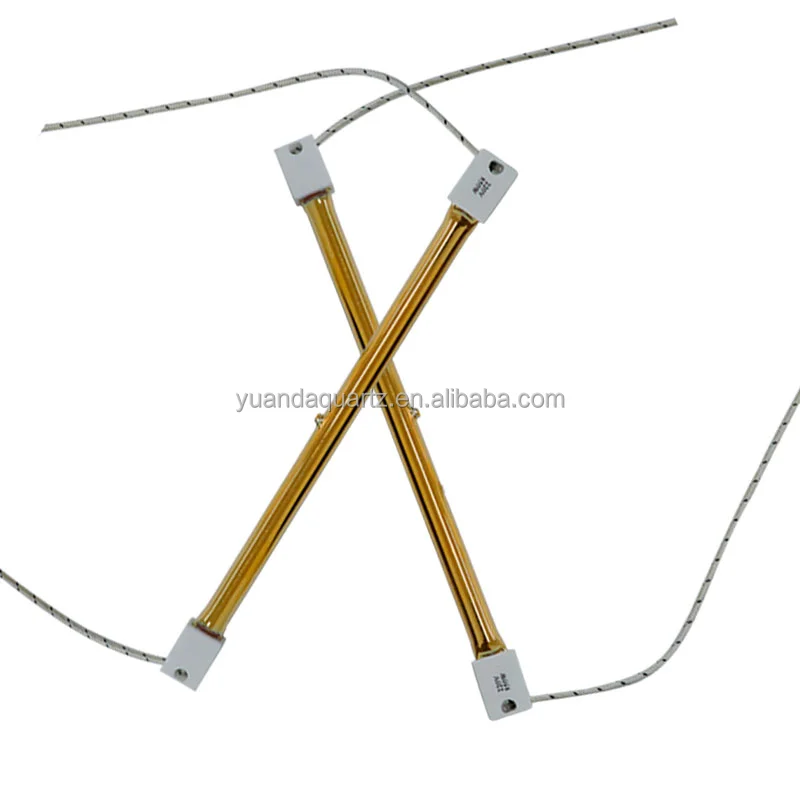

Gold relfetcer heat lamp
Shoes & Fabrics
• Drying • Curing
White relfecter/gold reflecter/clear/ruby
• Strapping • Coil coating
• Powder coating

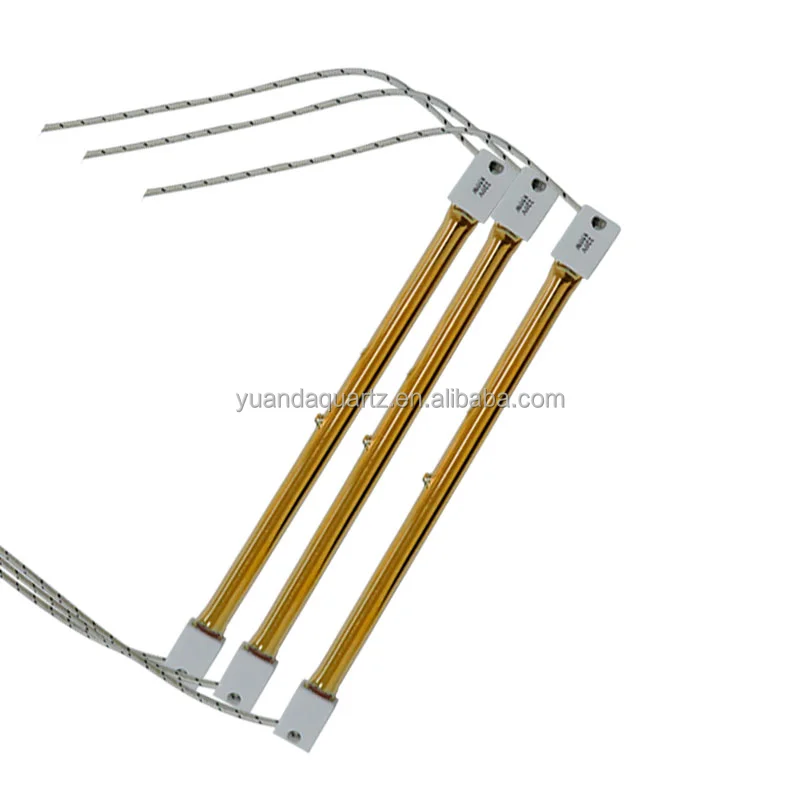

Gold relfetcer heat lamp/twin tube ir lamp
• Automobile repair shops • Powder coating
Ruby jacked heat lamp/relfecter lamp
• Breeding and rearing of animals • Veterinary clinics, zoos,pet shops and beauty parlors
Ruby ir lamp.
