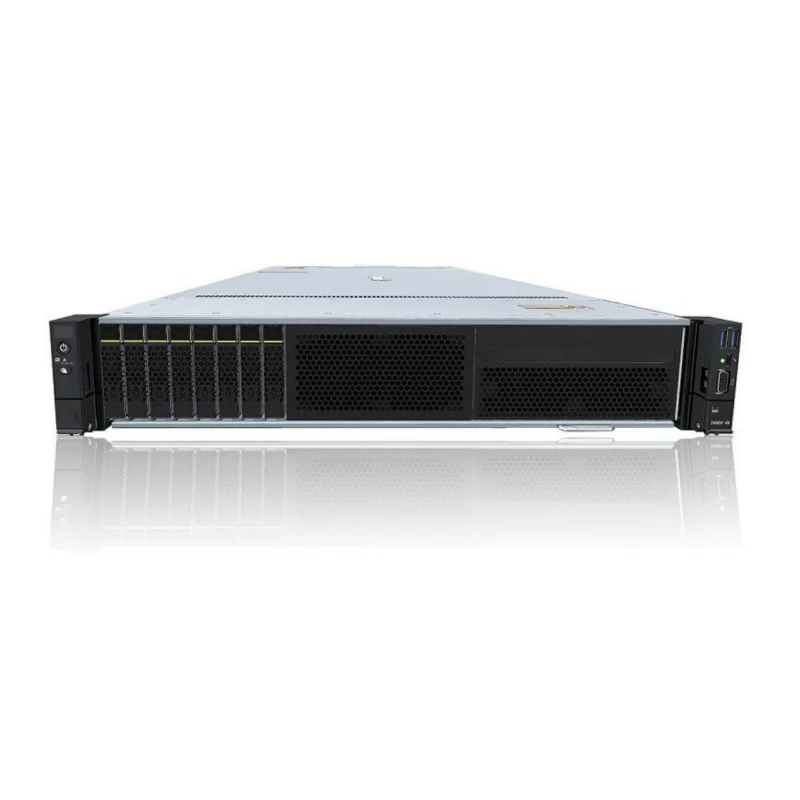

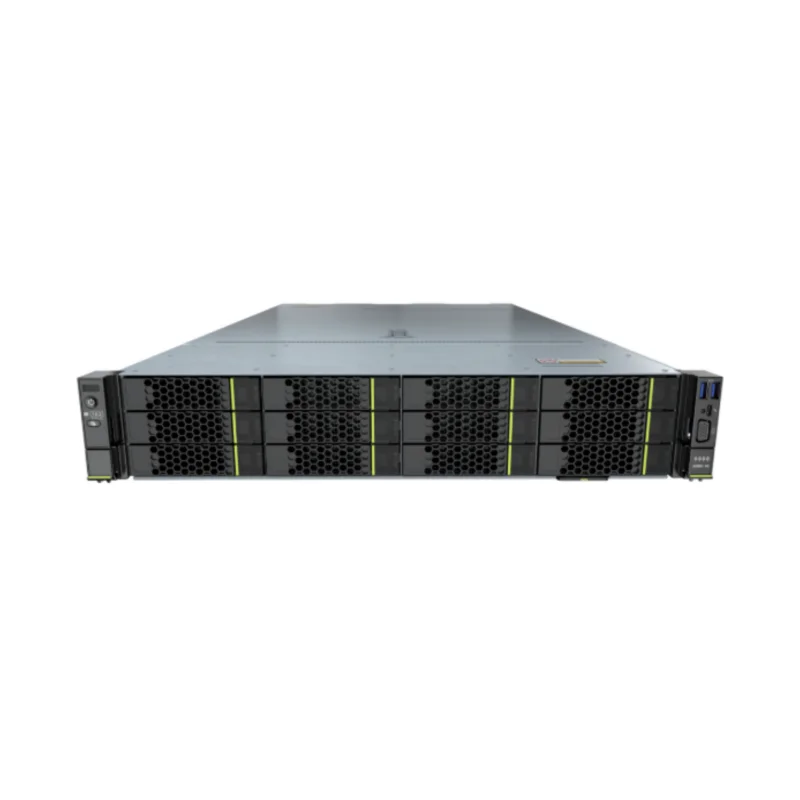

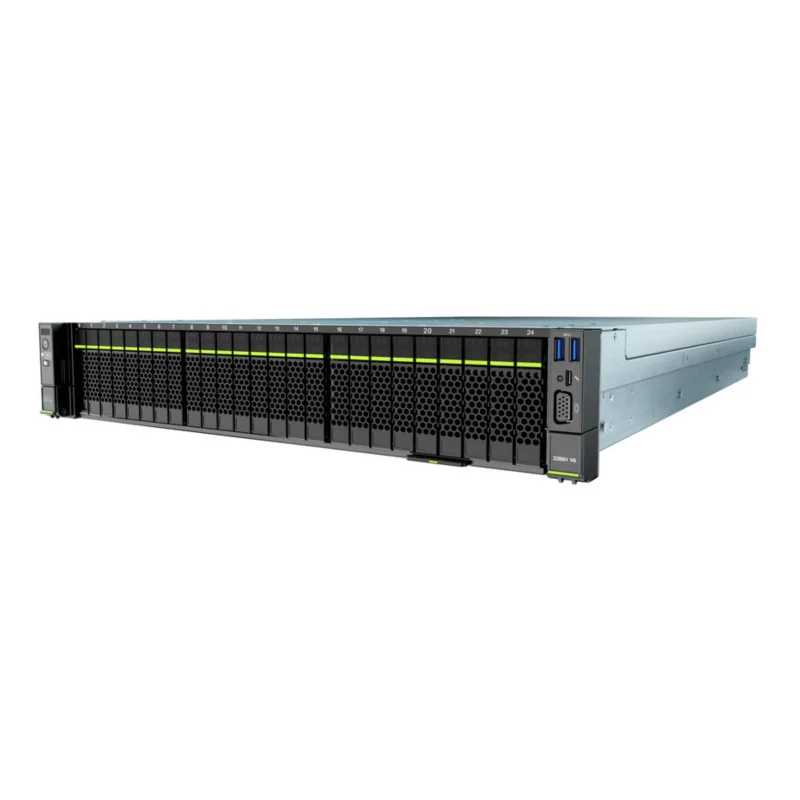

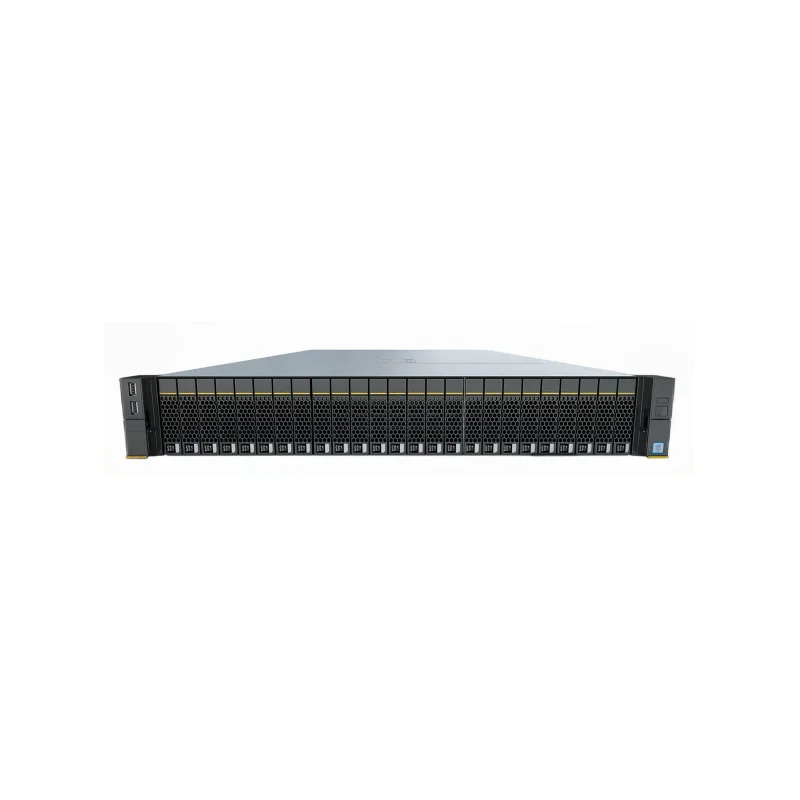

Huawei oceanstor 5310 5300 2600 2288H V3 V5 V6 Dual CPU 2U Servidor Network System Storage Rack Server

Model

FusionServer 2288H V6 SERVER

Form Factor

2U rack server

Processors

One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W

Memory

16/32 DDR4 DIMMs, up to 3200 MT/s; 16 Optane™ PMem 200 series, up to 3200 MT/s

Local storage

Supports various drive configurations and hot swappable:
• 8-31 x 2.5-inch SAS/SATA/SSD drives
• 12-20 x 3.5-inch SAS/SATA drives
• 4/8/16/24 NVMe SSDs
• Supports a maximum of 45 x 2.5-inch drives or 34 full-NVMe SSDs
Supports flash storage:
• 2 x M.2 SSDs

RAID Support

Supports RAID 0, 1, 10, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration,
drive roaming, self-diagnosis, and remote web-based configuration.

Network Ports

Provides expansion capability of multiple types of networks. Provides the OCP 3.0 network adapter. The two FlexIO card slots
support two OCP 3.0 network adapters respectively, which can be configured as required. Hots wappable function supported

PCIe Expansion

Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID controller card, two FlexIO card slots
dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards.

Fan Modules

Four hot-swappable counter-rotating fan modules in N+1 redundancy mode

Management

The BMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis,
automated O&M, and hardware security hardening.
• The BMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on
HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote
control for smart and simplified management.
• (Optional) Configured with the FusionDirector management software to provide advanced management functions such as five
intelligent technologies,realizing intelligent, automatic, visualized, and refined management throughout the lifecycle

Power supply

• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W AC Platinum PSUs
1000 W (input: 100 V to 127 V AC)
1500 W (input: 200 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC)
• 1200 W 1200 W –48 V to –60 V DC PSUs (input: –38.4 V to –72 V DC)
• 3000 W AC Titanium PSUs
2500 W (input: 200 V to 220 V AC)
2900 W (input: 220 V to 230 V AC
3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs
1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC)
2000 W (input: 220 V to 240 V AC, or 200 V to 288 V DC)

Operating System

Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle Linux, Ubuntu,
Debian, openEuler, etc
