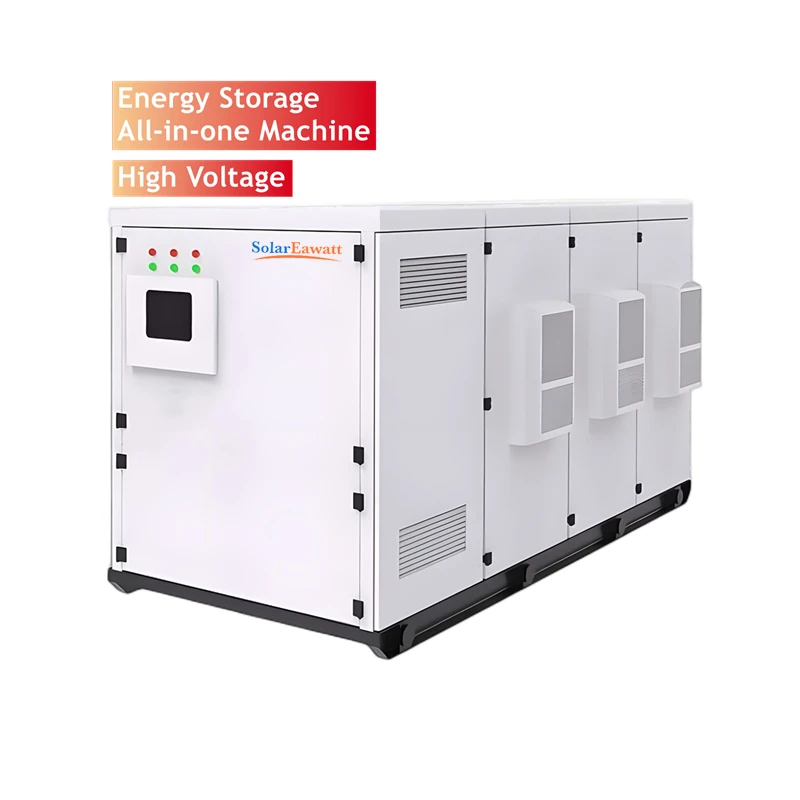

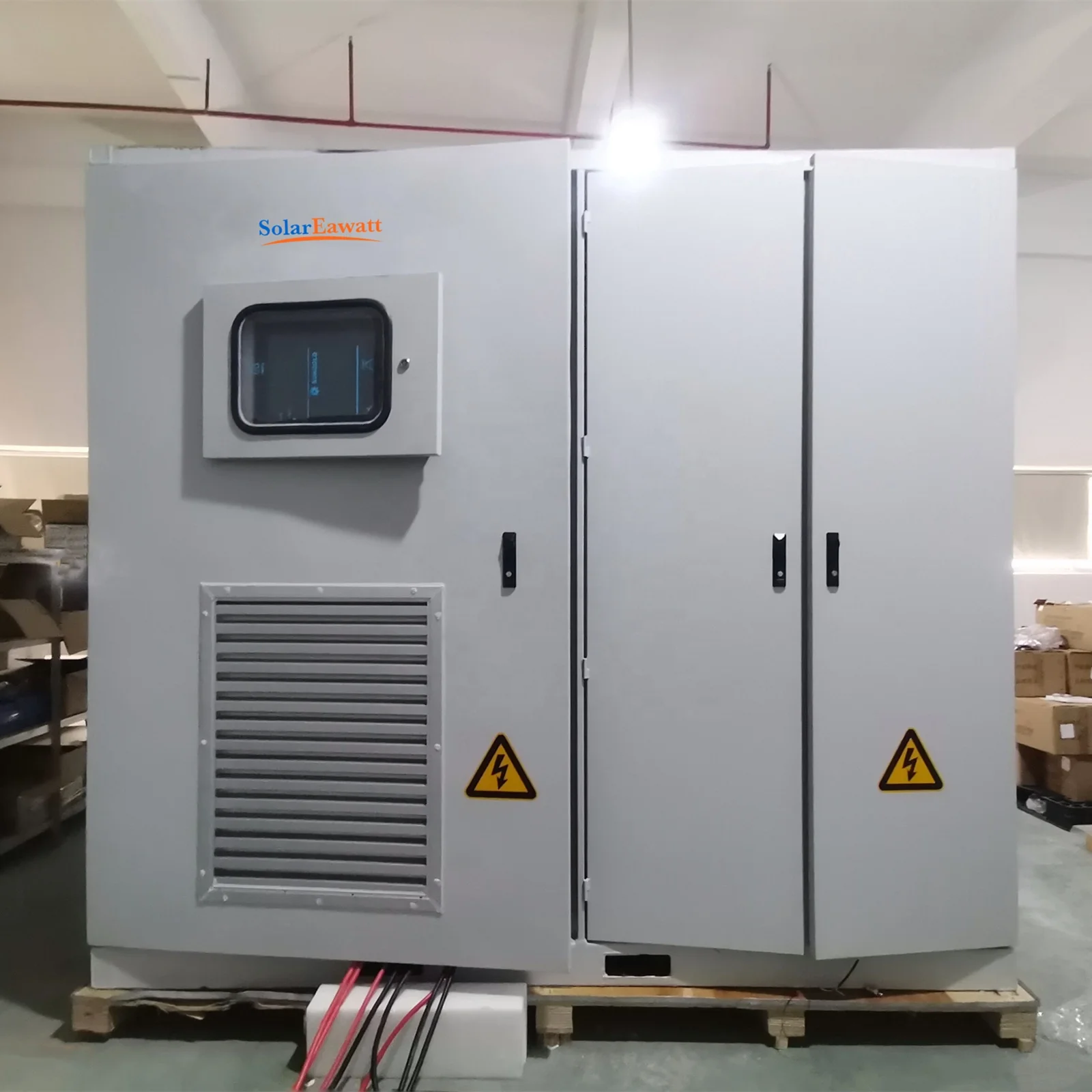

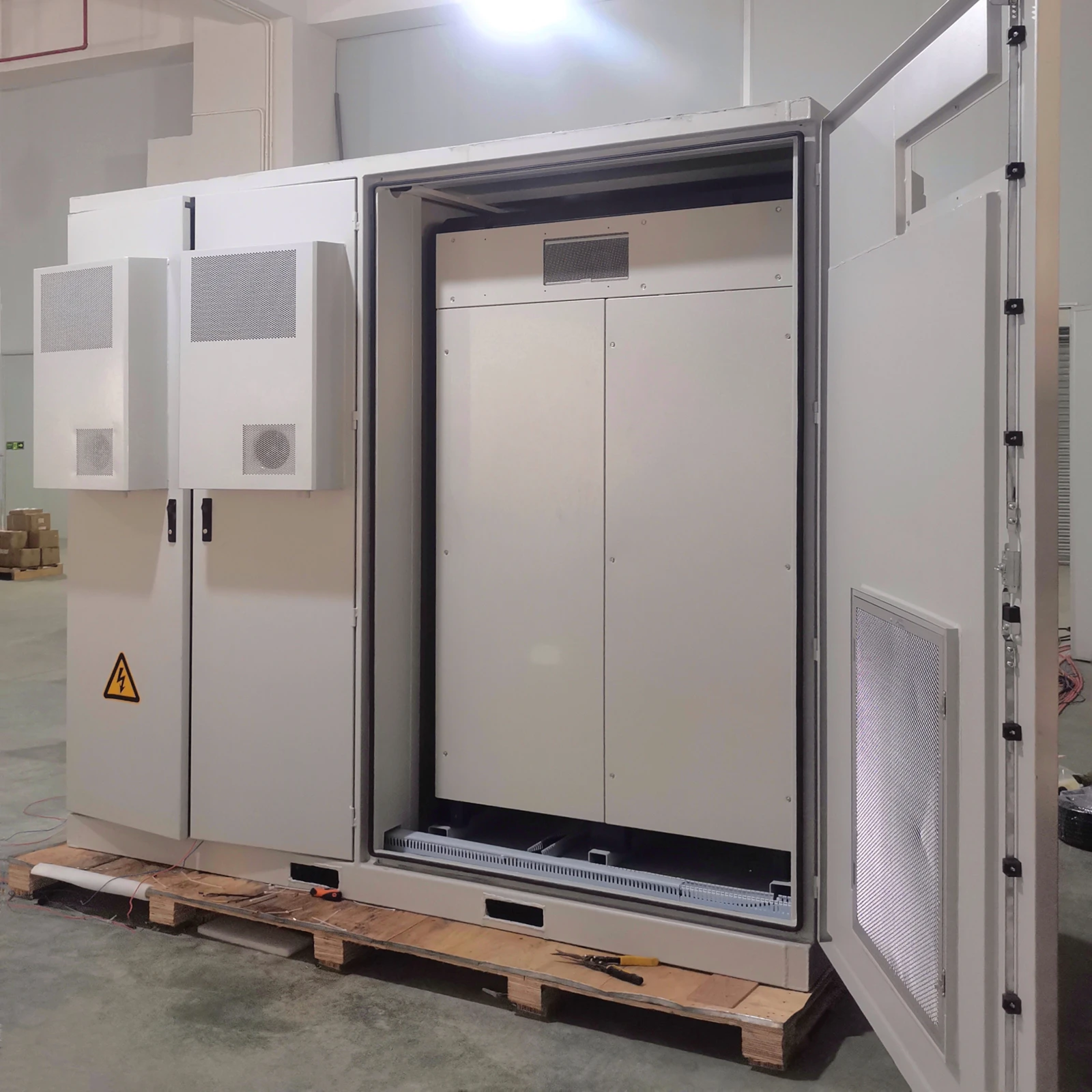

SolarEawatt 737Ah 200kWh ESS Battery Storage BESS High Voltage Energy Storage All in one Machine
- Category: >>>
- Supplier: Yichun Eawatt New Energy Technology Co. LTDYichun LTD
Share on (1600789747853):
Product Overview
Description
VR
➽ Rated Capacity: 737Ah.
➽ Rated Voltage: 535V.
➽ Rated Electric Quantity: 200kWh.
➽ Cycle Life: 6000 Times (20~95%SOC, 25±5℃).
➽ Charging Temperature: 0℃~55℃.
➽ Discharge Temperature: -20℃~55℃.
➽ System Operating Voltage: 460V~570V.
➽ Continuous Charge And Discharge Current; 0.5C/1C.
➽ Battery Cluster Weight: 2200kg.
➽ Rated Voltage: 535V.
➽ Rated Electric Quantity: 200kWh.
➽ Cycle Life: 6000 Times (20~95%SOC, 25±5℃).
➽ Charging Temperature: 0℃~55℃.
➽ Discharge Temperature: -20℃~55℃.
➽ System Operating Voltage: 460V~570V.
➽ Continuous Charge And Discharge Current; 0.5C/1C.
➽ Battery Cluster Weight: 2200kg.
item | value |
Place of Origin | China |
Brand Name | Eawatt |
Model Number | EW-200kWh |
Battery Type | EW-200kWh |
Rated Capacity | 373Ah |
Rated Voltage | 535V |
Rated Electric Quantity | 200kWh |
Cycle Life | 4000 Times (20~95%SOC, 25±5℃) |
Charging Temperature | 0℃~55℃ |
Discharge Temperature | -20℃~55℃ |
System Operating Voltage | 460V-570V |
Continuous Charge And Discharge current | 0.5C/1C |
Battery Cluster Weight | 2200kg |
Product Name | Solar Energy Storage Battery |
★ 200kWh BMS Parameter
➽ Working Power Supply: 24VDC, Range 16V-29V.
➽ Working Energy Consumption: Total Power <80W.
➽ Operating Temperature: -40℃-75℃.
➽ Protection Level: IP53.
➽ CAN Communication Function: CAN 2.0b; External CAN 1 Way; Inside The BMS CAN 1 Way.
➽ IO Control: 6 Channels.
➽ Voltage Sampling: Accuracy ±0.5%, Range 0~4.5V, Sampling Period 360ms; (Total Voltage) Accuracy ±3%, Range 0~800V, Sampling Period 360ms.
➽ Current Sampling: Accuracy ±1%, Range -300A~300A, Sampling Period 20ms.
➽ Temperature Sampling: Accuracy ±1℃, Range -40~120℃, Sampling Period 1s, Sampling Number 3 Per Module.
➽ SOC Calculation Accuracy: 8%.
➽ Safety Management Of Battery Pack: Over-Charge, Over-Discharge, Over-Voltage, Over-Temperature, And Over-Current Protection.
➽ Relay Control: Greater Than 3.65V And Less Than 2.5V Off.
➽ Charge Control: 3.65V Request Stop, Cut Off The Relay; In Case Of Failure (Overcharge, Leakage, Etc.) Request To Stop, The Relay Will Be Automatically Cut Off.
➽ Anti-Interference Performance: Meet The Relevant National Standard: GB/T 17619-1998.
➽ Insulation Detection Function: Including Insulation Detection Function, And Can Dynamically Monitor The Insulation Value Of Battery Pack; When The Insulation Resistance Is Lower Than 100ω/V, A Level 1 Alarm (The Most Serious) Is Generated. When The Insulation Resistance Is Lower Than 300ω/V, A Level-Two Alarm Is Generated. When The Insulation Resistance Is Lower Than 500ω/V, A Level-Three Alarm Is Generated. In Line With The National Standard Insulation Detection Function Gb/ T18384.1 6 Power Battery Requirements.
➽ Working Energy Consumption: Total Power <80W.
➽ Operating Temperature: -40℃-75℃.
➽ Protection Level: IP53.
➽ CAN Communication Function: CAN 2.0b; External CAN 1 Way; Inside The BMS CAN 1 Way.
➽ IO Control: 6 Channels.
➽ Voltage Sampling: Accuracy ±0.5%, Range 0~4.5V, Sampling Period 360ms; (Total Voltage) Accuracy ±3%, Range 0~800V, Sampling Period 360ms.
➽ Current Sampling: Accuracy ±1%, Range -300A~300A, Sampling Period 20ms.
➽ Temperature Sampling: Accuracy ±1℃, Range -40~120℃, Sampling Period 1s, Sampling Number 3 Per Module.
➽ SOC Calculation Accuracy: 8%.
➽ Safety Management Of Battery Pack: Over-Charge, Over-Discharge, Over-Voltage, Over-Temperature, And Over-Current Protection.
➽ Relay Control: Greater Than 3.65V And Less Than 2.5V Off.
➽ Charge Control: 3.65V Request Stop, Cut Off The Relay; In Case Of Failure (Overcharge, Leakage, Etc.) Request To Stop, The Relay Will Be Automatically Cut Off.
➽ Anti-Interference Performance: Meet The Relevant National Standard: GB/T 17619-1998.
➽ Insulation Detection Function: Including Insulation Detection Function, And Can Dynamically Monitor The Insulation Value Of Battery Pack; When The Insulation Resistance Is Lower Than 100ω/V, A Level 1 Alarm (The Most Serious) Is Generated. When The Insulation Resistance Is Lower Than 300ω/V, A Level-Two Alarm Is Generated. When The Insulation Resistance Is Lower Than 500ω/V, A Level-Three Alarm Is Generated. In Line With The National Standard Insulation Detection Function Gb/ T18384.1 6 Power Battery Requirements.
FAQ
1. Q: Why you should choose us?
A: ---More than 20 years Electrical Equipment factory experiences.
---Professional sales team and R & D team.
---Qualified product and competitive price-Delivery in time.
---Sincerely services.
2. Q: How is your after-sale service?
A: ---We provide 2-15years warranty and 1% spare parts for free.
3. Q: What kind of certification you have?
A: ---ISO9001,ISO14001, CE,ROHS,UL,and so on.
---All series product pass different labor testing according to different countries' requirements.
4. Q: Delivery time:
A: ---Standard products could be delivered within 15 days.
5. Q: Can I have a sample order?
A: ---Yes, we welcome sample order to test and check quality.
6. Q: Do you have any MOQ?
A: ---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 PC for sample checking is available.
7. Q: Do you support OEM?
A: ---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
A: ---More than 20 years Electrical Equipment factory experiences.
---Professional sales team and R & D team.
---Qualified product and competitive price-Delivery in time.
---Sincerely services.
2. Q: How is your after-sale service?
A: ---We provide 2-15years warranty and 1% spare parts for free.
3. Q: What kind of certification you have?
A: ---ISO9001,ISO14001, CE,ROHS,UL,and so on.
---All series product pass different labor testing according to different countries' requirements.
4. Q: Delivery time:
A: ---Standard products could be delivered within 15 days.
5. Q: Can I have a sample order?
A: ---Yes, we welcome sample order to test and check quality.
6. Q: Do you have any MOQ?
A: ---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 PC for sample checking is available.
7. Q: Do you support OEM?
A: ---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
