For Jetway NF596 Mini ITX Industrial Motherboard Intel Celeron Braswell N3160/3150 SoC Processor Support HDI, DVI D, LVDS

Product Overview

Description

TEKET INNOVATION founded in year 2003 in Beijing, provides embedded motherboard, industrial PC and related parts (chassis, power supply, RAM, SSD, LCD panel and wireless input device). We also sell VIA / ASUS / ASRock / Gigabyte / MSI industrial motherboards, Intel NUC mini PC and laptop.

Intel,VIA,Asus,Asrock,Gigabyte,MSI and TEKET embedded motherboard Intel,ASUS,Gigabyte,MSI and TEKET mini pc AUO,BOE industrial panel touchscreen and LVDS/eDP cable PC chassis, power supply module, RAM and SSD support Our main target customers are system integrators and equipment manufacturers. In short, we are committed to researching, developing and producing space-saving and energy-saving embedded computer systems, which are usually applied to the fields of embedded industrial automation/control, inquiry machine, VR(virtual reality), medical equipment, education & training, digital signage, digital security & surveillance, soft routing, network security,PFsense,firewall,retail (POS/Kiosk/ATM),HTPC and thin client.

                                                      NF596

- Intel Celeron Braswell N3160/3150 SoC Processor
- Embedded Long-life Series, Lifecycle through Q1'2031
- Supports HDI, DVI-D, LVDS 3 Independent Display
- Dual Gigabit LAN with Enhanced Surge Protection
- Supports 1 * SATA3 6Gb/s
- ECO-design for EuP/ErP



Specification

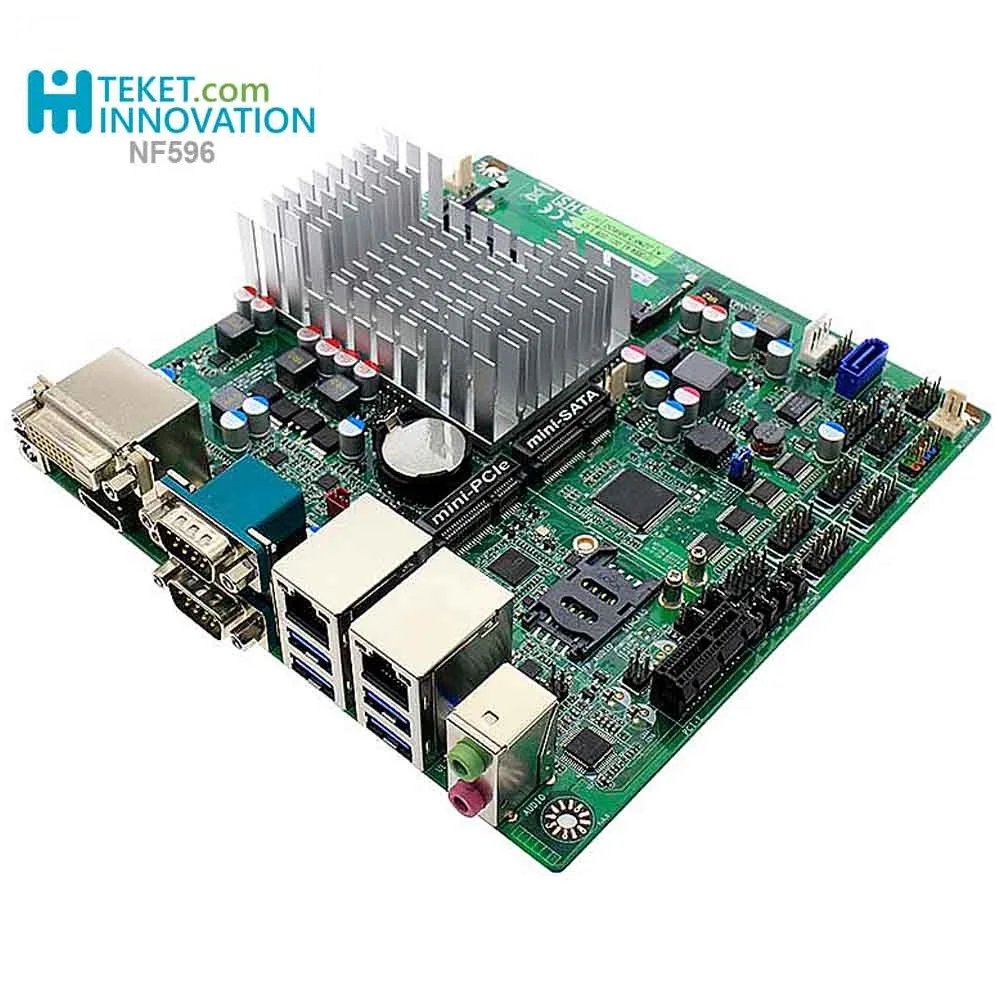

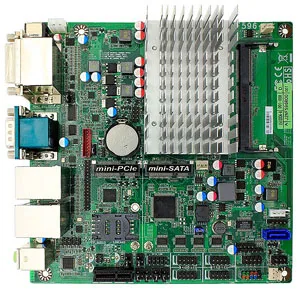

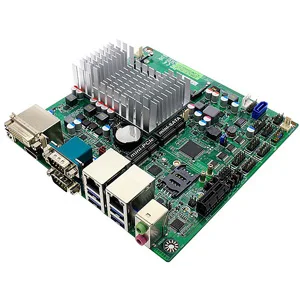

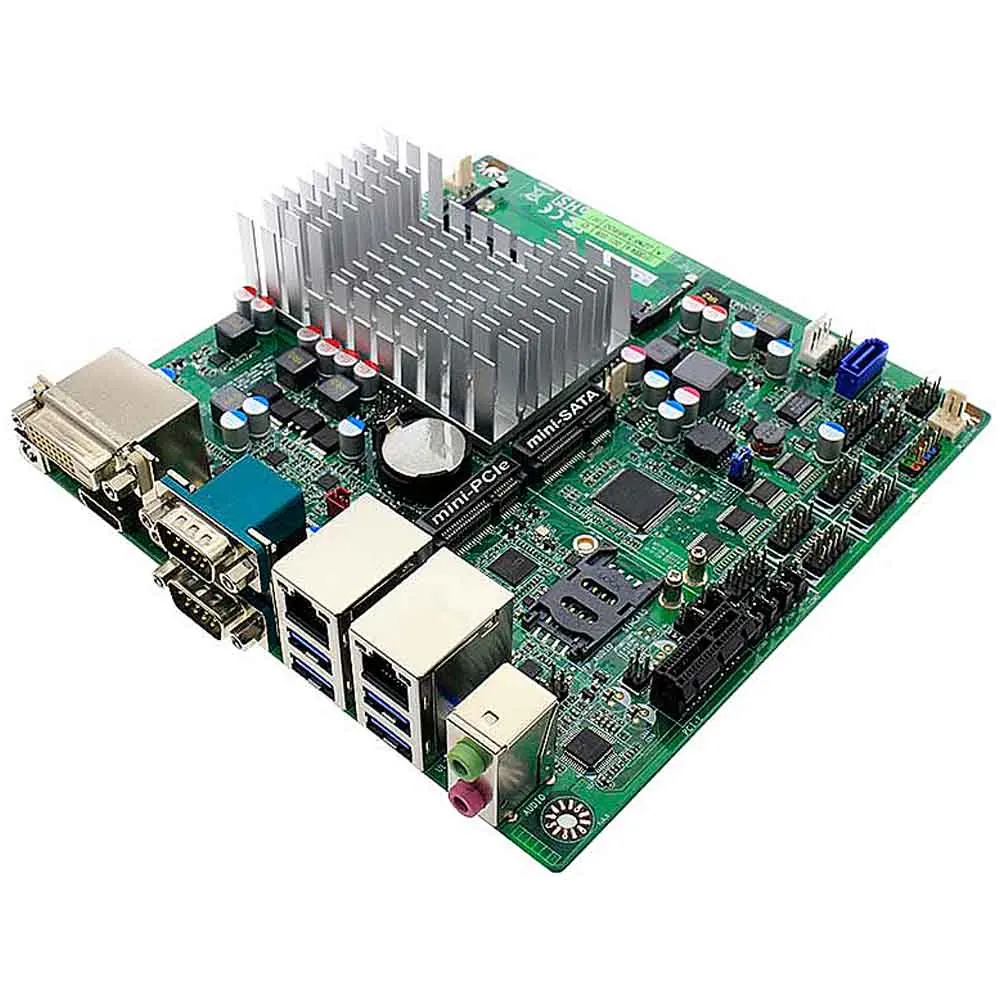

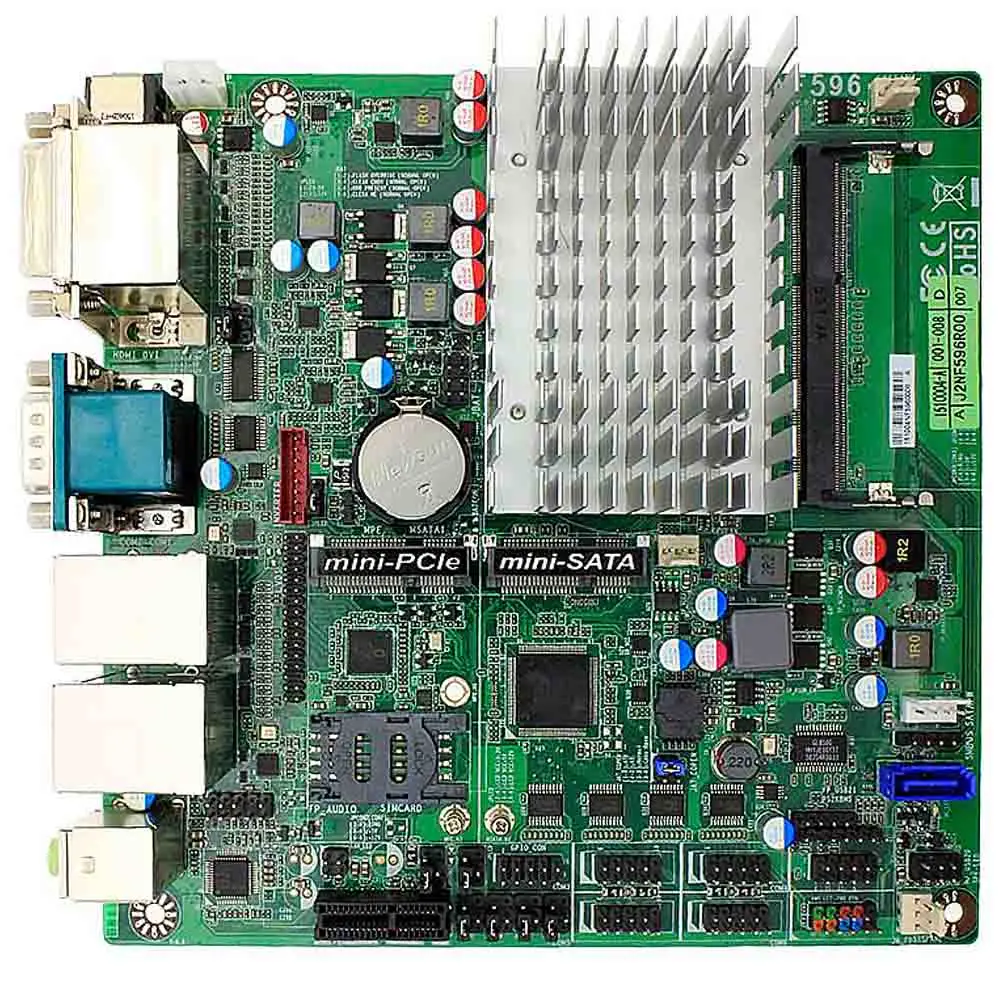

Jetway NF596 Mini-ITX Motherboard
Processor Fanless Intel® Celeron N3160 SoC, 1.60GHz – 2.24GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
Fanless Intel® Celeron N3150 SoC, 1.60GHz – 2.08GHz Burst, Quad-Core, 6W TDP/4W SDP, with AES-NI support
Memory 1 x 204-pin SODIMM DDR3L-1600 Dual Channel 1.35V required (up to 8 GB)
* 1600MHz memory will run at 1600MHz
* 1333MHz memory will run at 1066MHz
* 1066MHz memory not supported
Graphics Intel HD Graphics, 320MHz - 640MHz
Audio Realtek ALC662 HD Audio
Realtek ALC888 HD Audio (Manufacturered after March 2021)
LAN 2 x Realtek RTL8111G Gigabit Ethernet with Enhanced Surge Protection
2 x Realtek RTL8111H Gigabit Ethernet with Enhanced Surge Protection (Manufacturered after March 2021)
Storage 1 x SATA3 6Gb/s Connectors
1 x mSATA slot (Full Size)
Super IO FINTEK F81866A

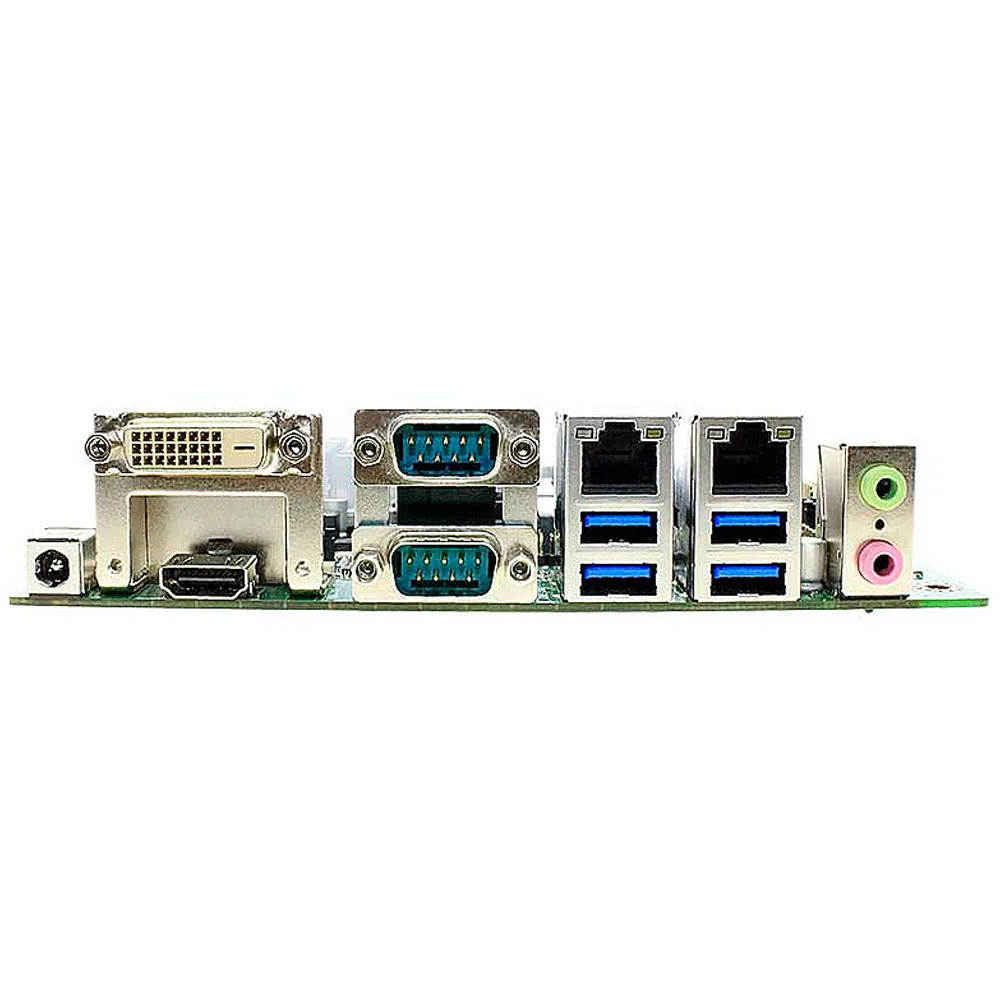

Back Panel Connectors
1 +12V 2.5MM Diameter DC Power Jack
1 DVI-D (2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz)
1 HDI 1.4b (2560 x 1600 @ 60Hz or 3840 x 2160 @ 30Hz)
2 Serial port (1 * RS232/422/485, 1 * RS232)
2 RJ45 LAN (10/100/1000)
4 USB 3.0
1 3.5mm Audio Jacks (Line Out & Mic In)

Onboard I/O Connectors
1 PCI Express x1 Slot
1 Full size mSATA
1 Full size mini PCI-E Slot
1 SATA3 6Gb/s Connectors
2 USB 2.0 Pin Headers for up to 3 additional USB 2.0 Ports
4 Serial Port Headers (RS232, +5V/+12V)
1 24-bits Dual Channel LVDS connector/Inverter
1 GPIO header
1 Chassis Intrusion header
1 AT/ATX Mode jumper
1 PS/2 Mouse/Keyboard header
1 9-pin Audio header (Line Out & MIC)
2 2-pin LAN LED header
1 5-pin SMBUS header
1 Front Panel header
3 Fan headers
1 SIM Card Socket
1 4-pin Power Output (Male)
1 2-pin +12V Alternate Power connector (Molex 5566-2)

Power Supply for NF596
External Power Supply – the board can be powered with a +12V external power supply though a DC connector on the back panel. The rear +12V VDC jack accepts plugs with an inner diameter (ID) of 2.5 mm and an outer diameter (OD) of 5.5 mm, where the inner contact is +12V and the shell is GND.

Internal Power Supply – the board can alternatively be powered via the internal +12V DC 1 x 2 power connector, where pin 1 is GND and pin 2 is +12 VDC.

Caution: There is no isolation circuitry between the external +12V DC jack and the internal 1 x 2 power connector. It is the system integrator's responsibility to ensure no more than one power supply unit is or can be attached to the board at any time and to ensure the external +12V DC jack is covered if the internal 1 x 2 power connector is to be used.

Market Segments Supported
√ Digital Signage
√ Panel PC
√ Industrial Automation/Control
√ All-In-One
√ Retail (POS/Kiosk/ATM)
√ Casino Gaming
√ Thin Client
Environment
Operating Temperature : 0 ~ 60°C
Storage Temperature : -20 ~ 85°C



Ordering Info
Part Number Description
JNF596-3160 Mini-ITX motherboard with Celeron N3160 Quad Core Braswell Processor
JNF596-3150 Mini-ITX motherboard with Celeron N3150 Quad Core Braswell Processor
F04-MB-044-F IO shield for JNF596
G01-SATA-BK-B-2F (Incl) SATA cable
G01-COM9-30A-F (Incl) COM cable 30cm
G01-PW4PS-2S-32F (Incl) Y power cable



OS Support List
Windows Linux
Windows 7 32bit/64bit (USB3.0 driver preload required) CentOS 7.0
Windows 8.1 32bit/64bit (USB3.0 driver preload required) Debian 8.8
Windows 10 32bit/64bit Fedora 25.13
Windows Embedded 7 SP1 32bit/64bit openSUSE 42.3
Windows Embedded 8.1 32bit/64bit Ubuntu 16.10
POSready 7 32bit/64bit pfSense 2.3.2
Windows Server 2008R2 64bit RedHat 7.3
Windows Server 2012R2 64bit
Windows Server 2016 64bit
Windows 10 IoT Enterprise 64bit
