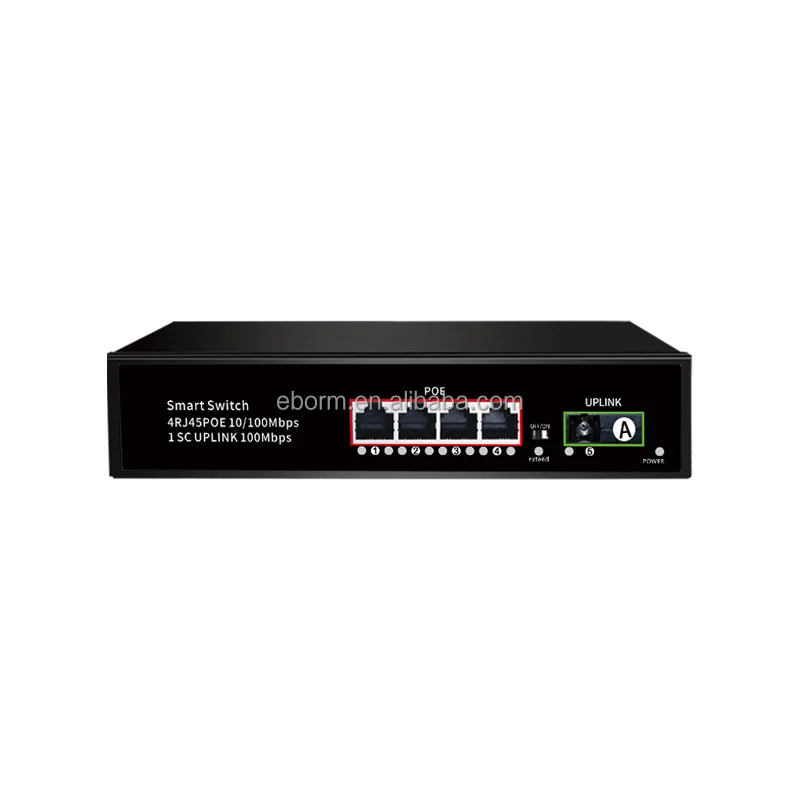

Most popular poe fiber switch fiber poe switch 4 port 10/100m fiber media converter

Product Name

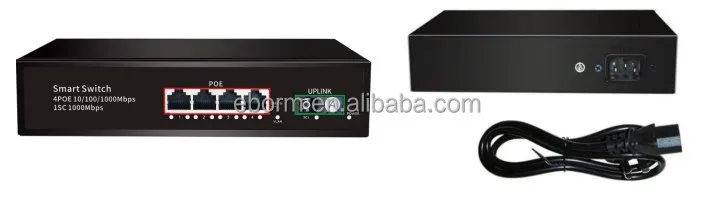

 4 Port 10/100/1000M Fiber Media Converter(4+1)

Product Model

BS-04G1SC

Data Pin

1/2+,3/6-

Power Supply Type

Build in, 1/2+,3/6-

PoE Output Power

15.4W/30W

Connector

RJ45 and SC connector

Network Medium

PSU:Cat5 (UTP) or more,  SC Fiber port:optical fiber cable

Fibeport speed

TX1310NM/RX1550NM

Support Fiber module

Single mode single fiber

Technology

Network Standards

IEEE 802.3i 10BASE-T    IEEE 802.3u 100BASE-TX

IEEE 802.3x Flow Control   IEEE 802.3af Power over Ethernet

PoE power

30W per port(IEEE802.3af/at).

Wiring: Data & power provided over pairs 1/2 and 3/6

Processing types

Store-and-forward

Half-duplex back pressure and IEEE 802.3x full-duplex flow control

Address database Table Size

1K MAC address entry

Buffer memory

48Kb embedded memory per unit

Backboard Bandwidth

10G

Network Latency

Less than 20us for 64 byte frames in store-and-forward mode for 1000Mbps to 1000Mbps transmission

Power

Input

AC 110-240V

PoE power consumption

30W per port(IEEE802.3af/at)

Overload current protection

Present

Mechanical

Casing

Metal

Installation

Desktop/Rack mounting

Interface

LED Indicators

System: Power, PoE Maximum power

Per port: Link, PoE active

Environment specification

Operating temperature

-10-55℃(32-104℉)

Storage temperature

-40-70℃(14-158℉)

Operating humidity

90% maximum relative humidity, non-condensing

Storage humidity

95% maximum relative humidity, non-condensing

Regulatory Approval

ISO

Manufactured in ISO9001 facility

Safety

CE/CCC

Warranty

2 years

Dimensions

202*140*45mm(L*W*H)

Weight

1Kg
