Tilting Machine Vice, QHK Series milling machine vice
- Category: >>>
- Supplier: Zaozhuang DS Machine Tool Co. Ltd.
Share on (1600789916249):
Product Overview
Description
Product Description

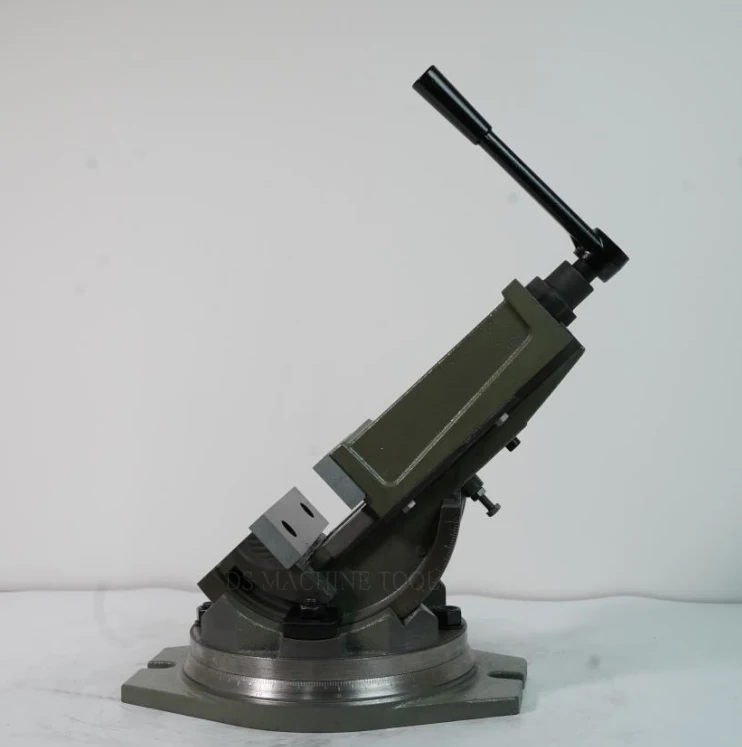

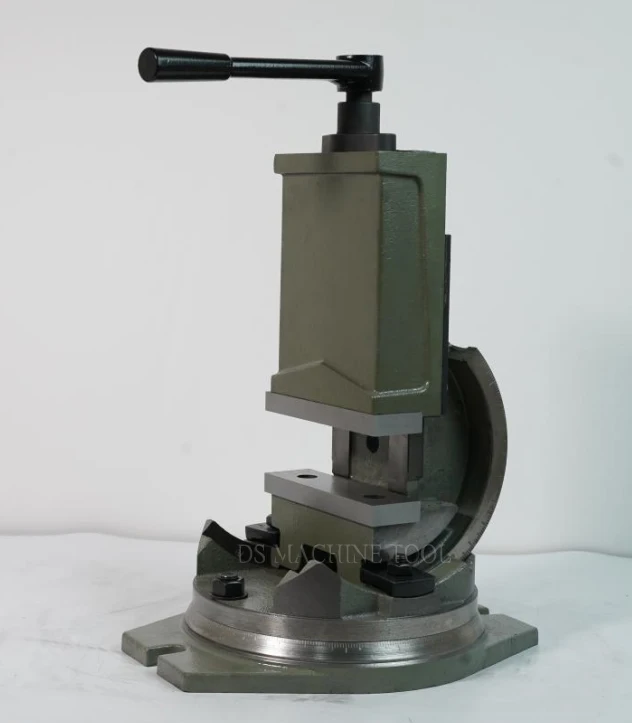

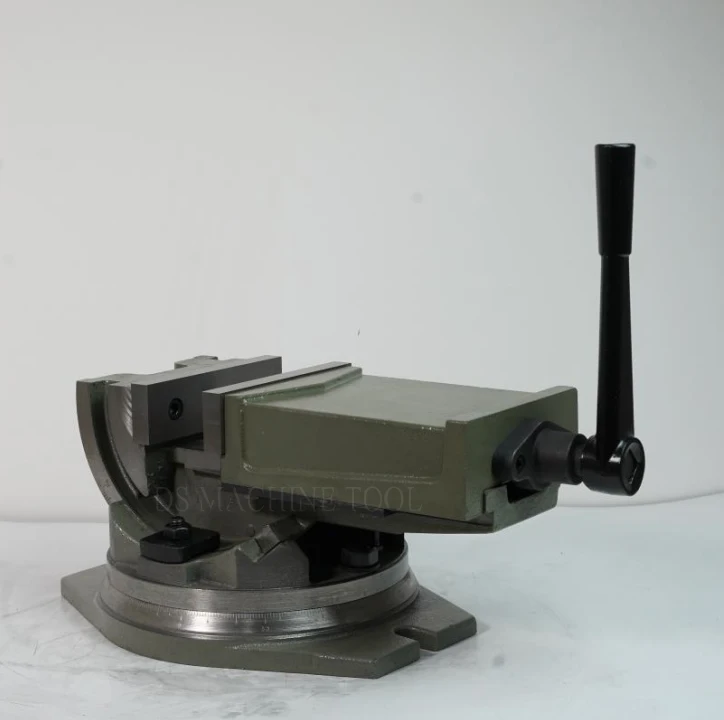

Tilting Machine Vice, QHK Series milling machine vice
Performance and character
1.It is one of main attchments for milling,drilling machine. It adopts the high-quality cast irons.
2.The accuracy of vice (parallelism and squareness) is ≤0.025mm/100mm.
3.The vice can be adjusted and locked at random from the horizontal position to the vertical
position(0°90°)with swivelling base being rotated 360°.
4.It can be widely used for processing all kinds angels of surface, slots and holes.
Swivel type parameter
Model | Width of Jaw(mm) | Height of Jaw(mm) | Total Height(mm) | Max.Opening(mm) | G.W/N.W(kg) | Packing size |
Q41100 | 100 | 41 | 148 | 80 | 18/17 | 35*21*20cm |
Q41125 | 125 | 45 | 152 | 95
| 27/27 | 41*24*18cm |
Q41125L | 125 | 45 | 152 | 130 | 25/24 | 45*24*18cm |
| Q41160 | 160 | 50 | 196 | 125 | 37/36 | 44*26*20cm |

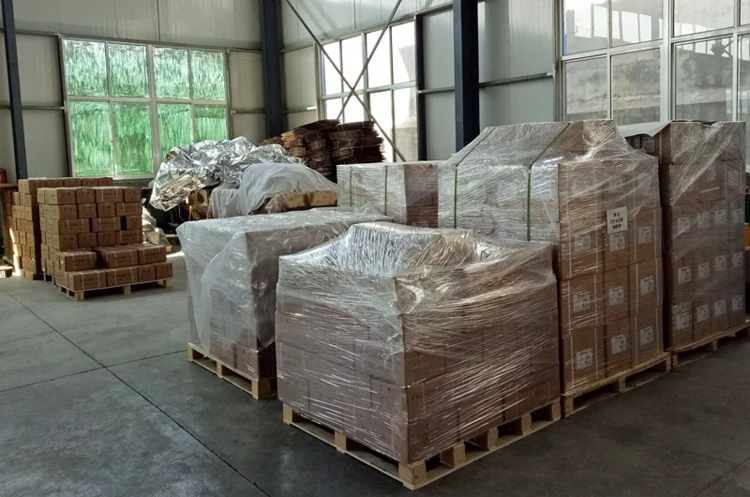

Packing Picture:
Our Advantages:
- Source only the best consumer goods and ensure the highest quality.
- Streamline the buying and payment process, and make it as easy as possible.
- Help the customers all over the world discover products and manufacturers in China.
- The Shortest order processed time and speed delivery
FAQ
Q1. Can I have a sample order?
Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
Low MOQ: 1set for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx or TNT. Airline and sea shipping is also optional.
Q5. How to proceed an order?
Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions. Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6: How to deal with the flaw?
Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
