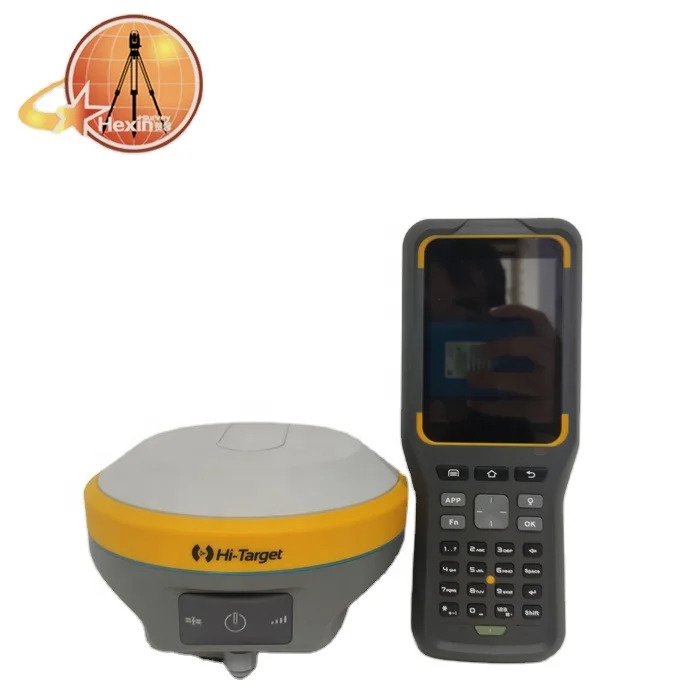

High performance Hi Target V90plus GPS RTK double frequency 800 channels GPS GNSS supports Tilt Survey System
- Category: >>>
- Supplier: Shanghai Hexin Survey Instrument Company Ltd.
Share on (1600789934572):
Product Overview
Description
Products Description
High performance Hi-Target V90plus GPS RTK double frequency 800 channels GPS GNSS supports Tilt Survey System

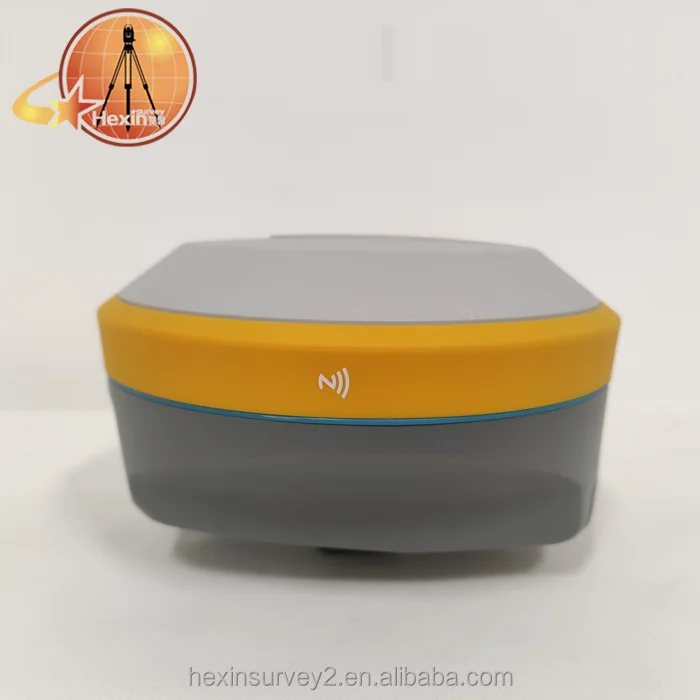

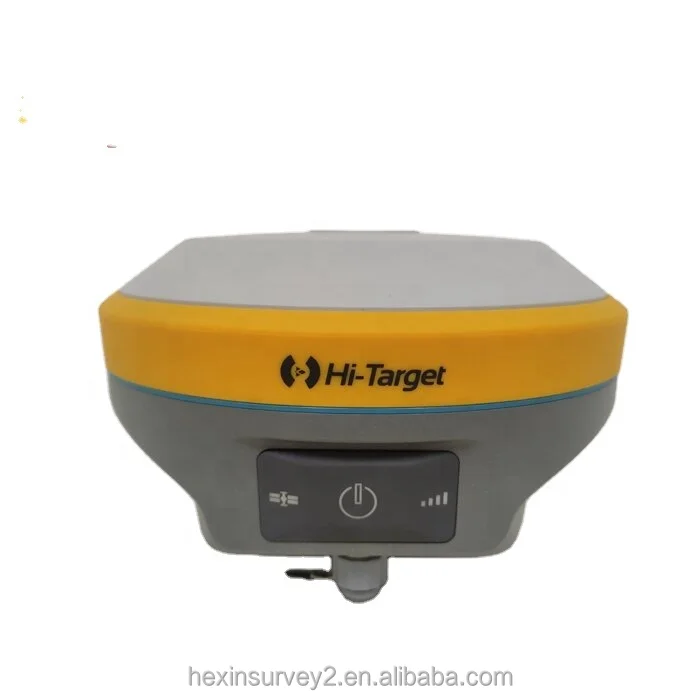

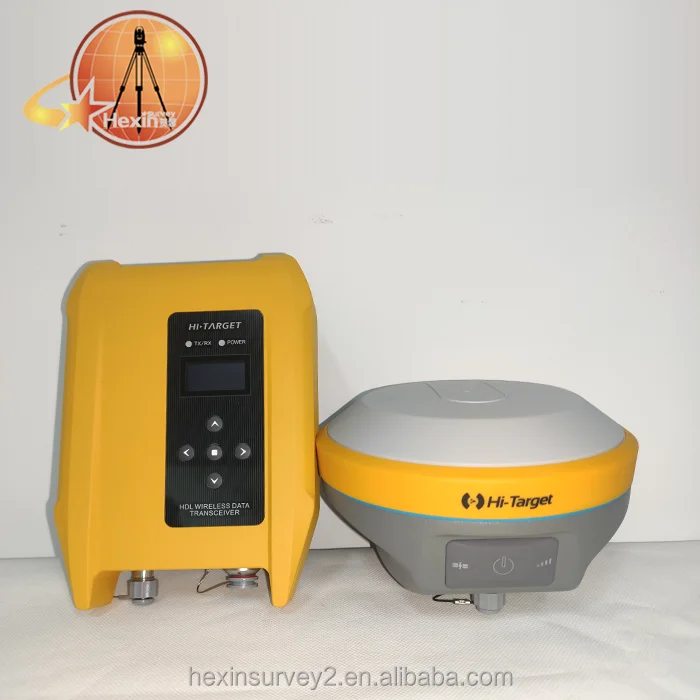

Hi-Target V90 Plus GNSS RTK SYSTEM
With a hi-tech, fully integrated design, the conveniently sized V90 Plus is one of the most flexible choices for any measuring task.
Built-in Linux operating system, pre-loaded multiple smart applications such as tilt surveying, electronic bubble calibration, NFC and voice DIY.
The V90 Plus GNSS system provides surveyor industry-leading GNSS operation.
Key feature
Multi-constellation Tracking
800 tracking channels; NGS approved full-wave GNSS antenna; Supports GPS, GLONASS, GALILEO, BDS, SBAS; Supports a wide range of satellite signals; A large receiving area designed for multipath mitigation; Air dielectric is light and stable.
800 tracking channels; NGS approved full-wave GNSS antenna; Supports GPS, GLONASS, GALILEO, BDS, SBAS; Supports a wide range of satellite signals; A large receiving area designed for multipath mitigation; Air dielectric is light and stable.
Smart Application
Offers tilt survey with a maximum tilt angle of 30 degrees; Supports electronic bubble; Intelligent voice assistance guides field operations. Voice can be DIY; Standard Rinex data and HI-TARGET raw data recorded simultaneously.
Offers tilt survey with a maximum tilt angle of 30 degrees; Supports electronic bubble; Intelligent voice assistance guides field operations. Voice can be DIY; Standard Rinex data and HI-TARGET raw data recorded simultaneously.
Optional Transceiver UHF Radio
The transceiver UHF radio enables switchable working modes between base and rover;
The transceiver UHF radio enables switchable working modes between base and rover;
Three types of internal UHF radio provide different frequencies based on users requirements. The SATEL internal UHF radio is compatible with other radios.
Multi-network Connection
Supports GPRS, GSM and WCDMA; Supports WIFI.
Powerful Battery
Powered by high-capacity (5000mAh) Li-ion battery to ensure full day operation.
Rugged Design
IP67 dustproof and waterproof;
Able to survive a 2-meter natural fall onto concrete.
Supports GPRS, GSM and WCDMA; Supports WIFI.
Powerful Battery
Powered by high-capacity (5000mAh) Li-ion battery to ensure full day operation.
Rugged Design
IP67 dustproof and waterproof;
Able to survive a 2-meter natural fall onto concrete.

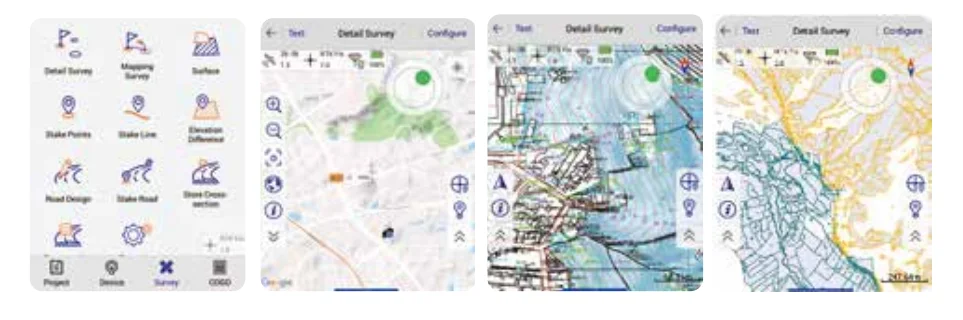

Hi-Survey Road
——Survey Data Collection Software
The Hi-Survey Road is an android software that is designed for all types of land survey and road engineering projects in the field.
It is compatible with Hi-Target professional controllers, android phones, tablets and other third-party android devices. It is a sleek and easy-to-use software that supports the operating of big data with build-in tools.
With customized industrial application solutions, more possibilities are created for users.
It is compatible with Hi-Target professional controllers, android phones, tablets and other third-party android devices. It is a sleek and easy-to-use software that supports the operating of big data with build-in tools.
With customized industrial application solutions, more possibilities are created for users.
KEY FEATURES
1. Various algorithms to achieve high accuracy in corresponding measuring circumstances with a better reliability.
——Tilt survey, quasi-dynamic technology, detail survey, timing static survey, etc.
2. Express interacting functions to greatly improve the work efficiency.
——Cross-projects points selection, QR code scanning, multi-format support, etc.
3. Integrated professional measurement functions for engineering applications.
——Road functions, DTM surface operations, Google online base map, 3rd party rangefinders, etc.
2. Express interacting functions to greatly improve the work efficiency.
——Cross-projects points selection, QR code scanning, multi-format support, etc.
3. Integrated professional measurement functions for engineering applications.
——Road functions, DTM surface operations, Google online base map, 3rd party rangefinders, etc.
Professional Field Controller
KEY FEATURES
1. Ergonomically designed, lighter and easy to hold in hand.
2. Industrial-grade protection, that can withstand tough environments.
3. Convenient wireless data transmission via Blue tooth, Wi-Fi and 4G.
4. Quick charge, with large capacity lithium battery to ensure all day work.
2. Industrial-grade protection, that can withstand tough environments.
3. Convenient wireless data transmission via Blue tooth, Wi-Fi and 4G.
4. Quick charge, with large capacity lithium battery to ensure all day work.
iHand30
The iHand30 is a rugged field controller that is designed for data collection and GNSS device control.
Based on the Android operating system, it is compatible with Hi-Target professional software and third-party Android software.
Combining the physical keyboard with a touchscreen, it can boost efficient field work and provide express solutions for users.
Based on the Android operating system, it is compatible with Hi-Target professional software and third-party Android software.
Combining the physical keyboard with a touchscreen, it can boost efficient field work and provide express solutions for users.
iHand55
The iHand55 Handheld Controller is a professional field controller with a big vision.
More features of the latest Hi-Survey Road Software contribute to achieving high intelligence.
Keeping robust and reliable in fieldwork under any conditions, iHand55 is a perfect choice for your survey work.
iHand30 | iHand55 | |||
Hardware Configuration | ||||
OS | Android 6.0 | Android 10 | ||
Processer | MTK6737, 1.5GHz, 4 core | CPU: 8 core; 2.0 GHZ | ||
Storage | RAM 2G, ROM 16GB(up to 128GB external storage) | 2 GB RAM+16 GB ROM; T-Flash memory card, up to 128GB | ||
Display | 3.7″, 640 x 480, sunlight readable | 5.5’’, bright Outdoor Color capacitive touch screen (with touch pen, can be operated with gloves) | ||
Camera | 8MP, tag available | Built-in 13 million pixel camera | ||
Sensors | G-sensor, E-compass, barometer, light-field sensor, gyro | gravity sensor, compass, light sensor, gyroscope | ||
Flash | Highlight Flash LED flash(support flashlight function) | |||
Input Configuration | Physical full keyboard, number / letter separate, professional custom smart input method | |||
GNSS Features | ||||
GNSS | GPS, GLONASS, AGPS, 20 channels | GNSS antenna, GPS, GLONASS, BDS, AGPS, 20 channels | ||
Update rate | 1Hz | |||
Communication | ||||
Cellular mobile | Dual SIM card, dual stand-by | Dual SIM | ||
Cellular network | 4G (TDD-LTE, FDD-LTE, WCDMA, GPRS) | 4G | ||
Wi-Fi | IEEE 802.11b/g/n, 2.4GHz/5GHz | IEEE 802.11 b/g/n, Wapi, AP | ||
Blue tooth | V2.0/4.0 | Built-in Blue tooth (2.1+4.0) NFC | ||
USB | Type-C, supports OTG | USB, TypeC interface, OTG | ||
NFC | Support | |||
Power Supply | ||||
Battery | Removable 3.7V lithium battery, 5200mAh | 7500 mAh internal | ||
Duration | 15 hours | 14 hours | ||
Quick charge | Within 3 hours | |||
Physical Features | ||||
Weight | 440g(within battery) | 480g(within battery) | ||
Size | 208mm*83mm*24mm | 236 mm*85 mm*25 mm | ||
Operating temperature | -20℃ ~ +60℃ | -20℃ ~ +60℃ | ||
Storage temperature | -30℃ ~ +70℃ | -30℃ ~ +70℃ | ||
Free fall | 1.2m | 1.2m | ||
Water/dustproof | IP67 | |||
Specification
PERFORMANCE SPECIFICATIONS | ||
Satellite Signals Tracked Simultaneously | ||
800 Channels | ||
GPS | Simultaneous L1C/A, L2C, L2E, L5 | |
GLONASS | Simultaneous L1C/A, L1P, L2C/A(GLONASS M only), L2P | |
Galileo | Simultaneous E1 BOC, E5A, E5B, E5AltBOC | |
BDS | B1, B2 | |
SBAS | L1C/A, L5 | |
POSITIONING PERFORMANCE | ||
Hot Start………………Typically<10s | Cold Start………………Typically<15s | |
High-Precision Static | ||
Horizontal | 2.5mm+0.1ppm RMS | |
Vertical | 3.5mm+0.4ppm RMS | |
Static and Fast Static | ||
Horizontal | 2.5mm+0.5ppm RMS | |
Vertical | 5mm+0.5ppm RMS | |
Post Processing Kinematic (PPK / Stop & Go) GNSS Surveying | ||
Horizontal | 8mm+1ppm RMS | |
Vertical | 15mm+1ppm RMS | |
Initialization time | Typically 10 minutes for base while 5 minutes for rover | |
Initialization reliability | Typically> 99.9% | |
Real Time Kinematic (RTK) Surveying | ||
Single Baseline | ||
Horizontal | 8mm+1ppm RMS | |
Vertical | 15mm+1ppm RMS | |
Network RTK | ||
Horizontal | 8mm+0.5ppm RMS | |
Vertical | 15mm+0.5ppm RMS | |
Initialization time | Typically 2-10s | |
Initialization reliability | Typically> 99.99% | |
Code Differential GNSS Positioning | ||
Horizontal | 25cm+1ppm RMS | |
Vertical | 50cm+1ppm RMS | |
SBAS | 0.50m Horizontal, 0.85m Vertical | |
Communication | ||
Network Communication | ||
Fully integrated, fully sealed internal WCDMA, compatible with GPRS, GSM Wifi frequency is 2.4G, supports the standard protocol 802.11 b/g/n. Network RTK(via CORS) range 20-50km. | ||
Hi-Target Advanced Internal UHF Radio | ||
Frequency | 403-473MHz | |
Transmitting power | 1W, 2W, 4W adjustable | |
Transmitting linkrate | 9.6Kbps, 19.2Kbps | |
Supports multiple protocols | ||
Working Range | 3~5km typically, 8-10km optimal | |

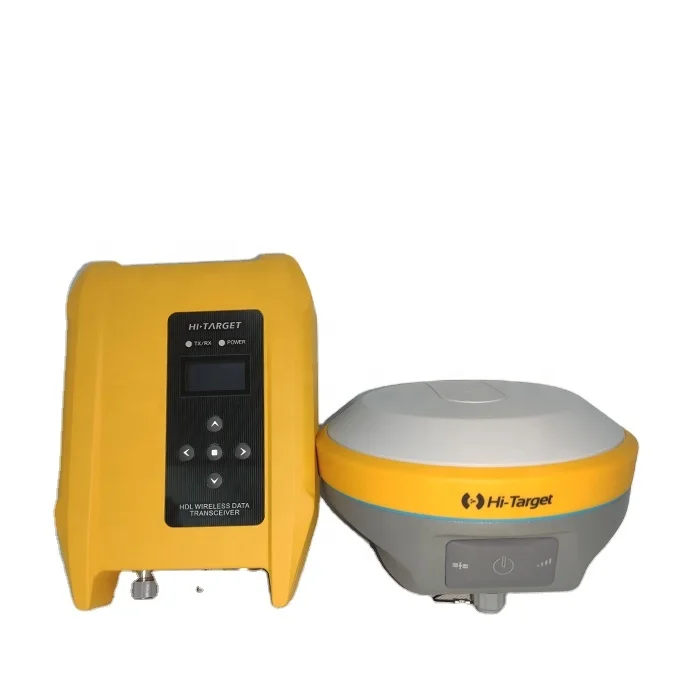

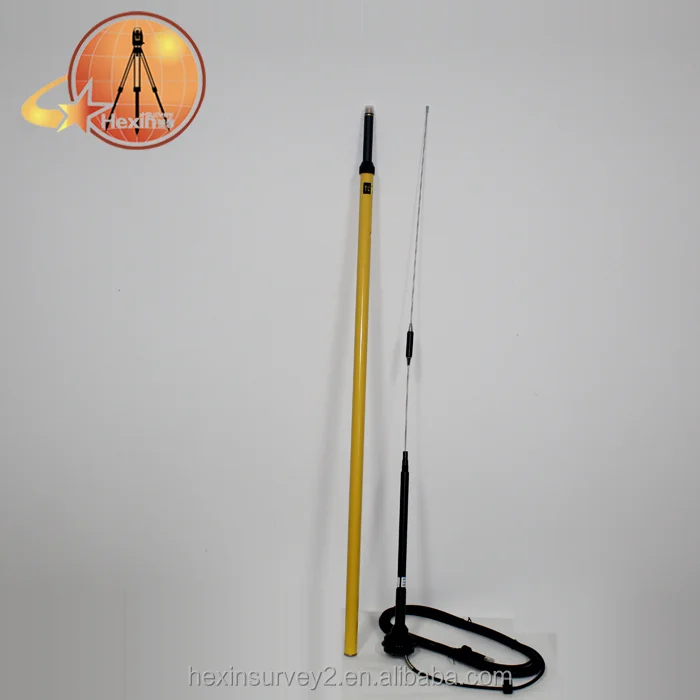

Hi-Target External UHF Radio | ||
Frequency | 460MHz with 116 channels | |
Transmitting power | 5W, 10W, 20W, 30W adjustable | |
Transmitting speed | Up to 19.2Kbps | |
Working Range | 8~10km typically, 15-20km optimal | |
HARDWARE | ||
Physical | ||
Dimensions (W x H) | 153mm x 83mm (6.02inch x 3.27inch) | |
Weight | 950g (2.09lb) without internal battery | |
Operating temperature | -40°c ~+75°c (-40°F-+167°F) | |
Storage temperature | -55°c ~+85°c (-67°F-+185°F) | |
Humidity | 100% condending | |
Water/dustproof | IP67 dustproof, protected from temporary immersion to depth of 1m (3.28ft) | |
Shock and vibration | Designed to survive a 2m(6.56ft) natural fall onto concrete | |
Electrical | ||

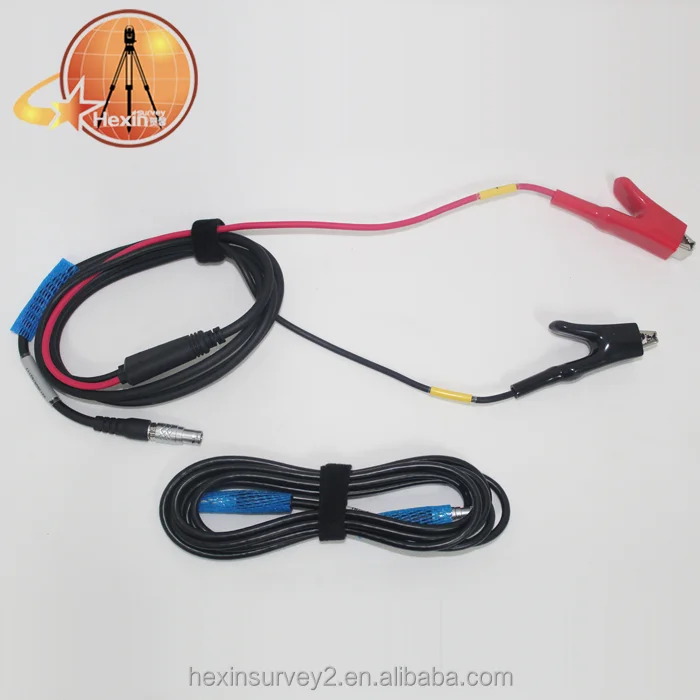

Power 6V to 28V DC external power input Power consumption≤3.5W Automatic switching between internal power and external power Rechargeable, removable 7.4V, 5000mAh Lithium-ion battery in internal battery compartment | ||
Internal Battery Life | ||
Static more than 12 hours RTK rover (UHF/GPRS/3G) 10 hours RTK base more than 8 hours | ||
I/O Interface | ||
Blue tooth, NFC, standard USB 2.0 port, TNC antenna connector RS232 serial port, DC power input(5-pin), MicroSD card port | ||
Tilt Survey System, Electronic Bubble, WebUI | ||
System | ||

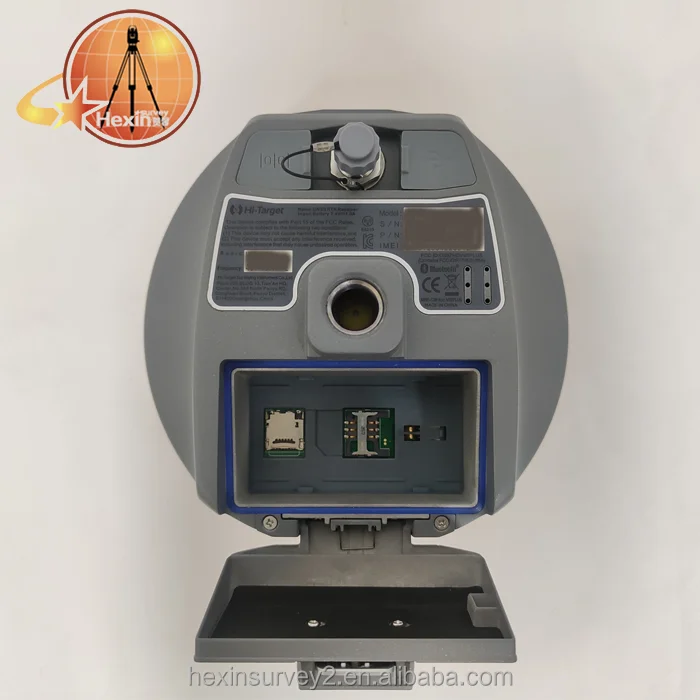

Data storage | 16GB Internal storage+Internal Micro SD Card memory (Support up to 32GB extension) | |
Record GNS and Rinex format simultaneously | ||
Data Formats | ||
(1Hz positioning output, up to 50Hz-depends on installed option) CMR: sCMRx, CMR, CMR+input and output RTCM: RTCM 2.1, 2.2, 2.3, 3.0, 3.1, 3.2 input and output Navigation outputs ASCII: NMEA-0183 GSV, AVR, RMC, HDT, VGK, VHD, ROT, GGK, GGA, GSA, ZDA, VTG, GST, PJT, PJK, BPQ, GLL, GRS, GBS Navigation outputs binary: GSOF | ||

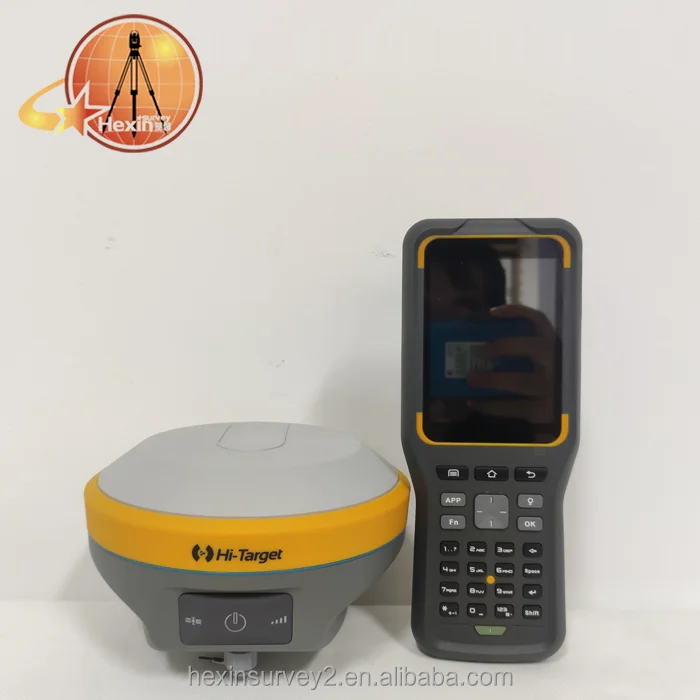

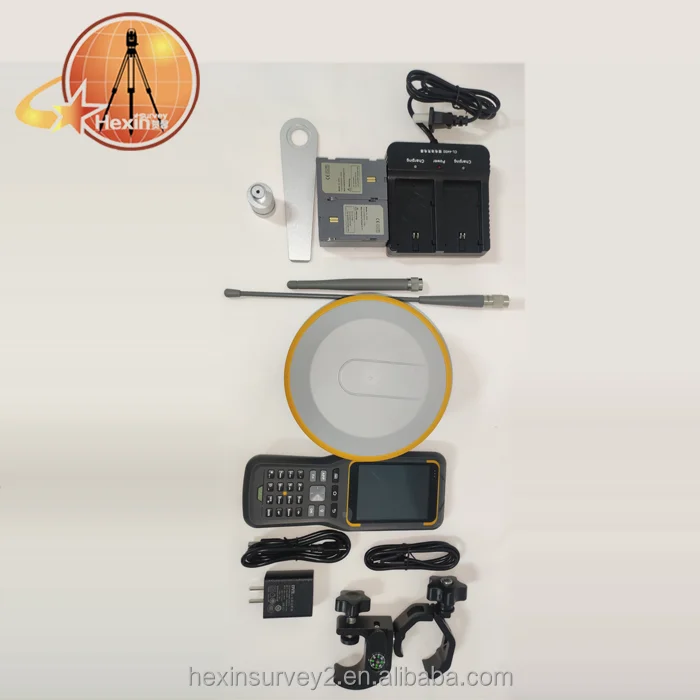

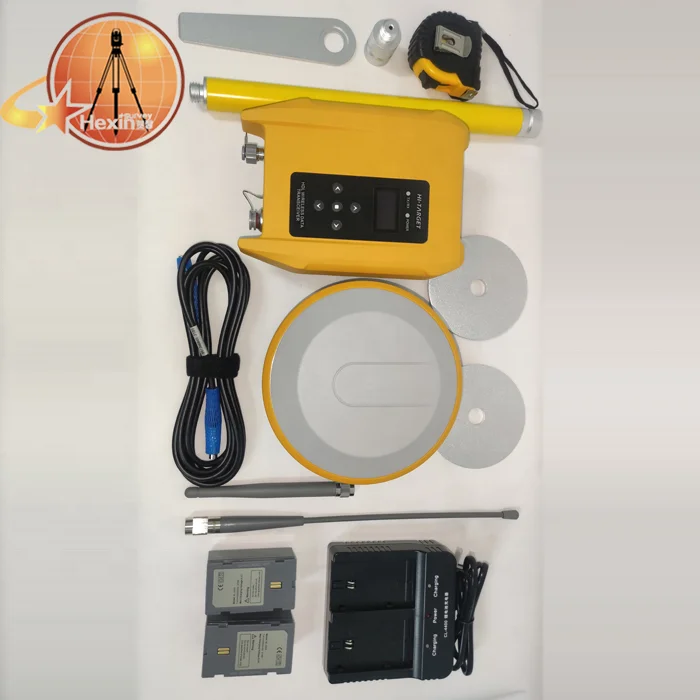

Product Display
Payment & Shipping
Payment:
Generally, we accept Advance T/T , PayPal and West union. If you prefer other payment terms, please let us know.
Shipping:
We have strong cooperation with DHL, TNT, UPS, FEDEX, EMS. You can also choose your own shipping forwarder.

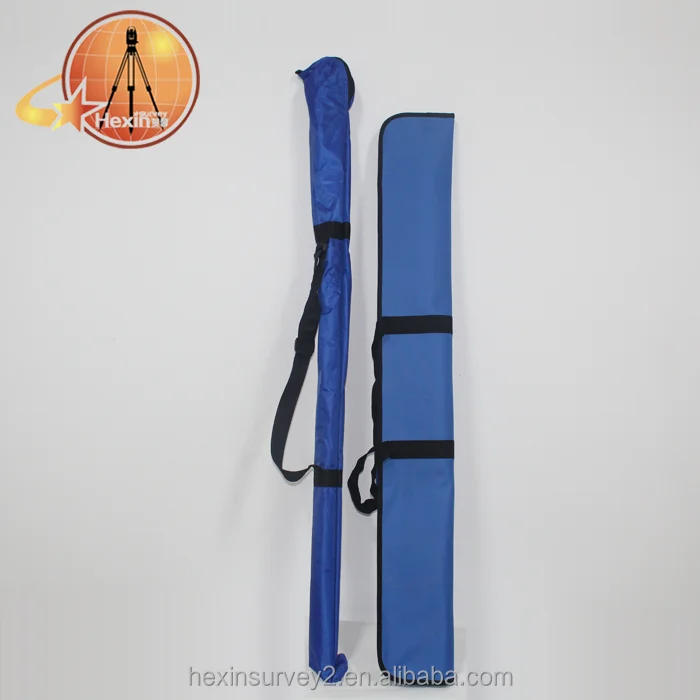

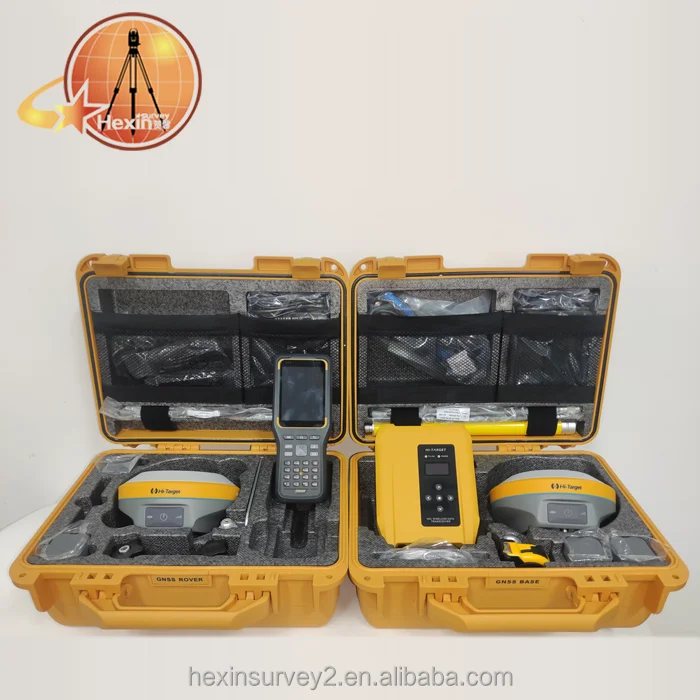

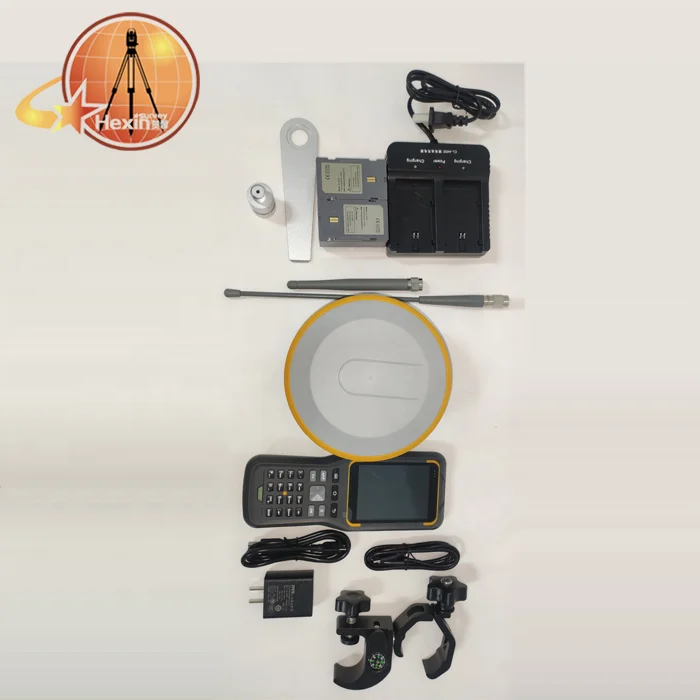

Product packaging
Related products
Company Profile

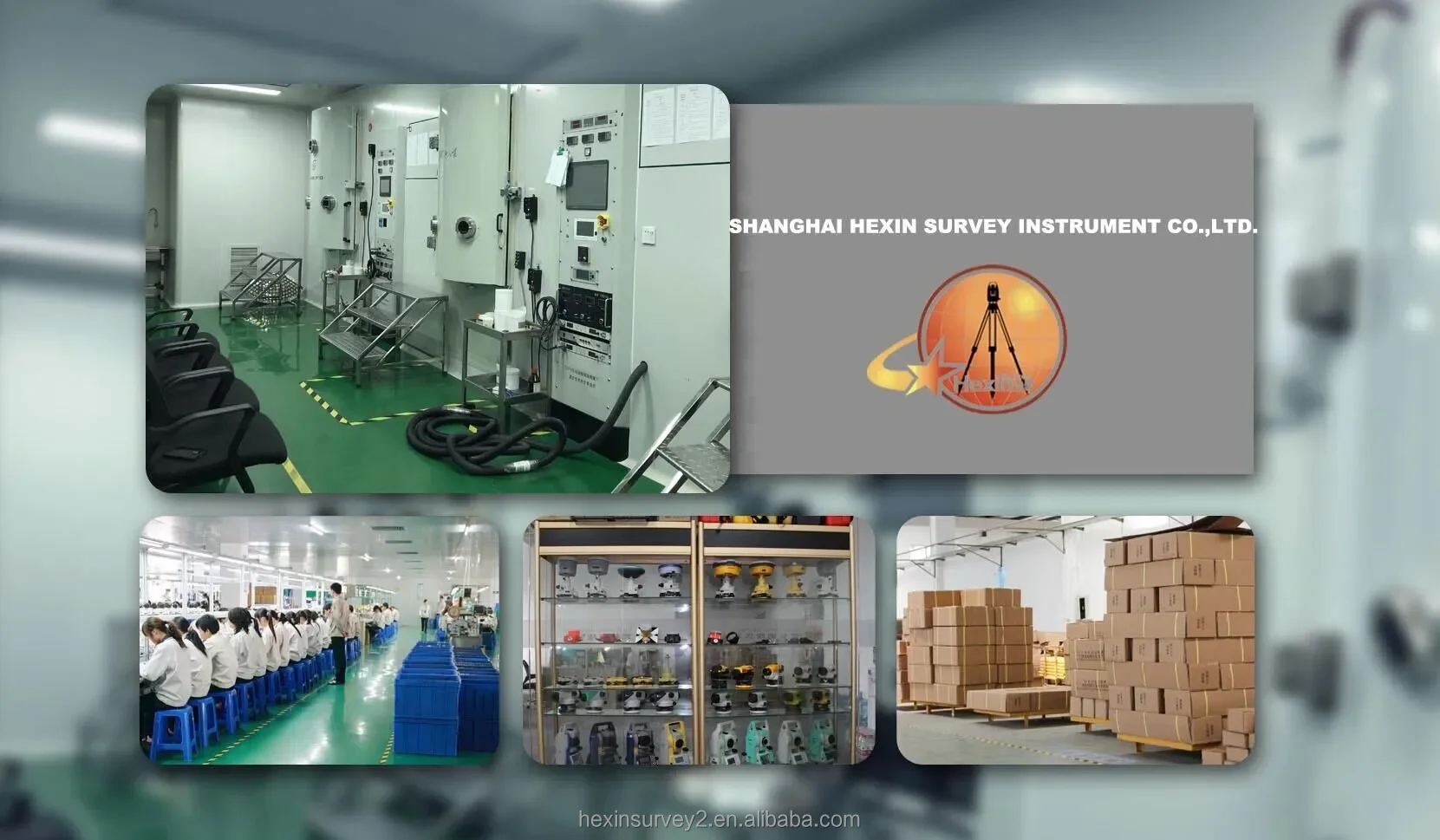

Shanghai Hexin Survey Instrument Co., Ltd. specializes in the R&D and manufacturing and sales of all kinds of surveying products, including total station, electronic theodolite, electronic distance meter, automatic level, laser level, reflector prism, surveying accessory, GPS receiver, mapping software, etc.
