atex LED explosion protection LIGHT easy install led explosion proof industrial lights

Product Overview

Description

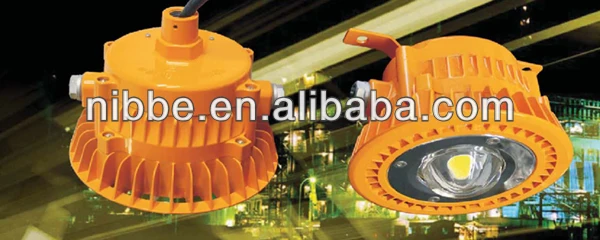

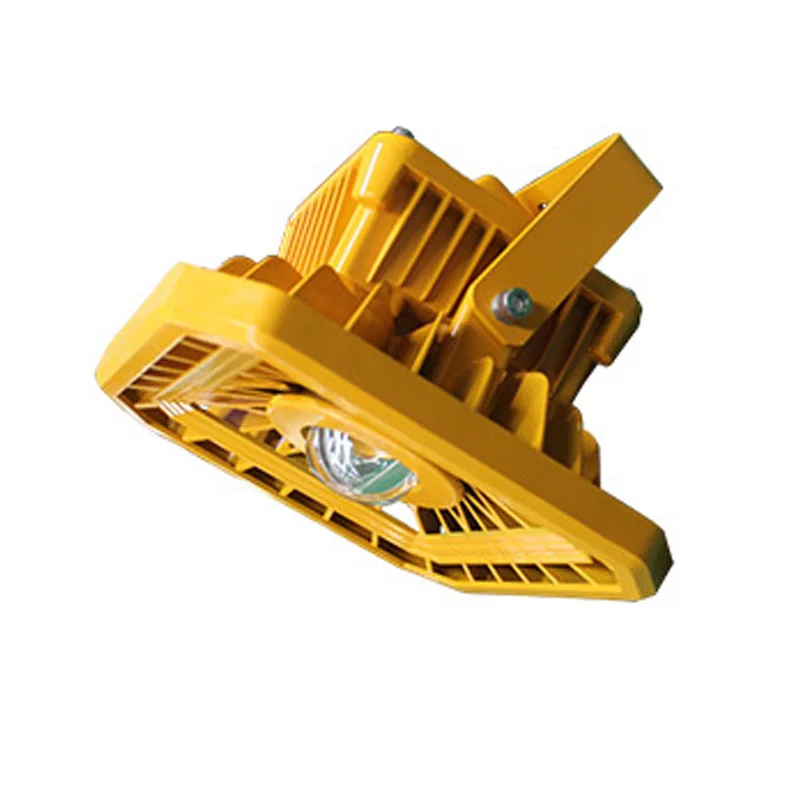

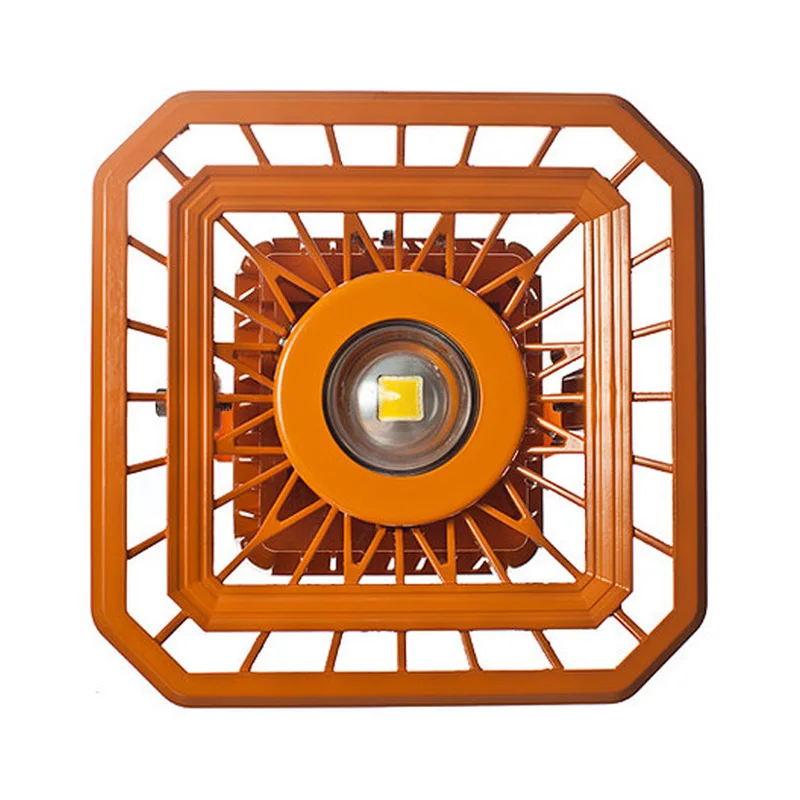

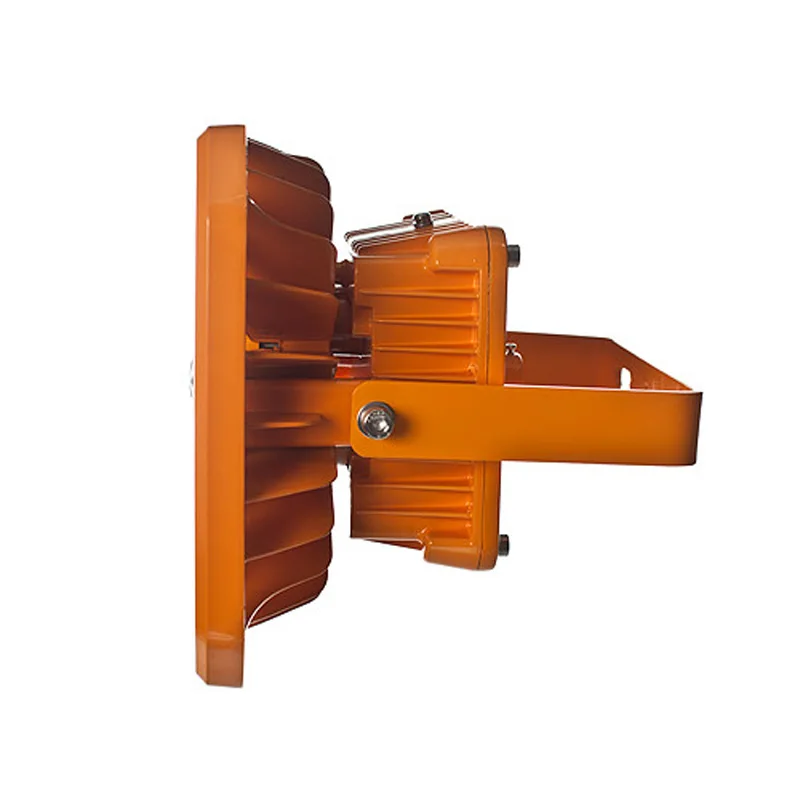

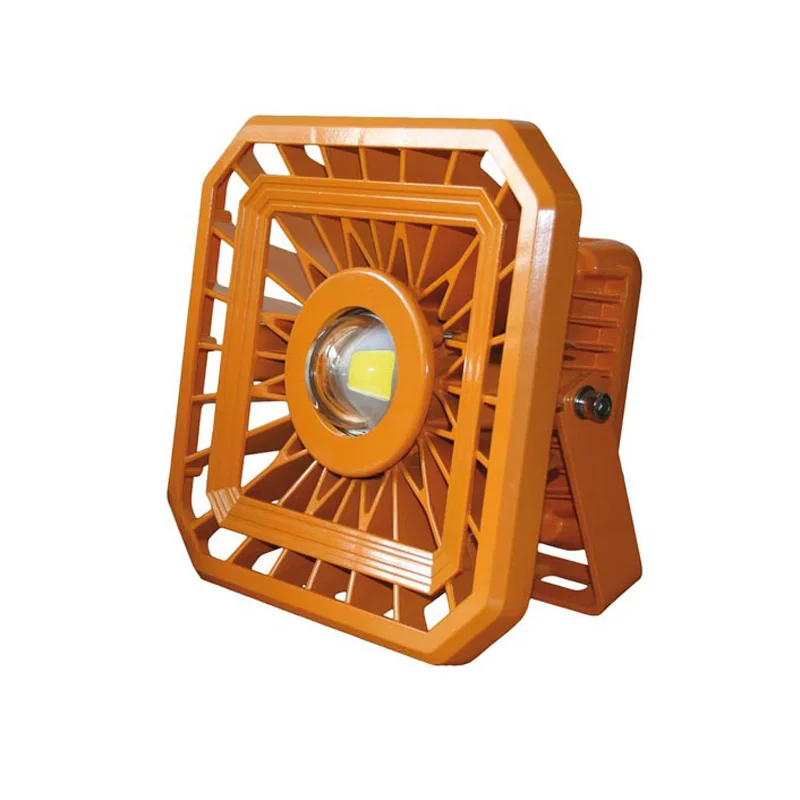

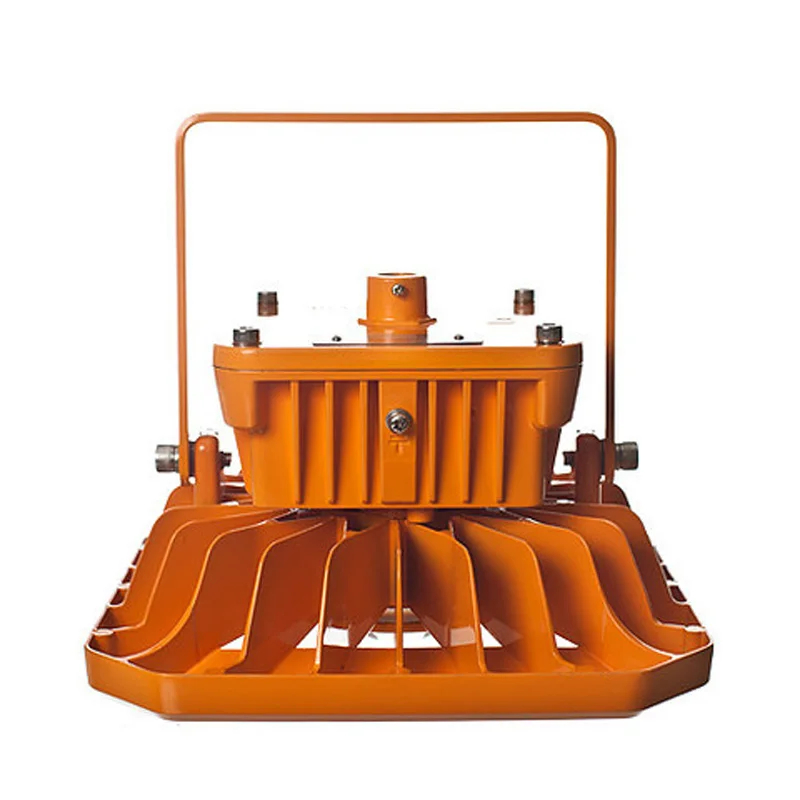

LED explosion protection LIGHT



      Shenzhen Nibbe Optoelectronic Technology Co., Ltd. is a high & new tech enterprise, specialized in developing, producing, and marketing LED explosion-proof lightings, LED tri-proof lightings, LED commercial lightings, explosion-proof electric appliances, lighting fixture installation accessories, and etc. We are the supplier for several famous enterprises, such as SINOPEC, CNPC, CNOOC, and etc. Our products have been exported to Japan, Europe, South America, Middle East, and other more than 20 countries regions.









Features:

1.Patented design for heat dissipation to ensure life of light source up to 50,000 hours.

2.Low power consumption while high light efficiency, power consumption just 20% as much as high pressure sodium lamp, mercury lamp at the same luminous condition, it saves energy more than 75% than that traditional light.

3.Die casting aluminum housing, with anti-static and anti-corrosion coating,high explosion-proof degree of flameproof type; dust-proof, waterproof; lens made of bulletproof PC which is thermal resistance,corrosion resistance, high light transmission.

4.Advanced quadratic light distribution design result in high uniformity of illumination and good lighting quality, clear lighting effect without a double image.

5.Beautiful appearance, several types of installation methods available.







Specifications
Name	explosion protected lamp
Lighting source	Bridgelux COB LED
Parameter	Value
Power Consumption	10W/15W/20W/25W/30W
Input Voltage	95-265V/ 24V DC
Frequency	47-63 Hz
Beam Angle	140°
Explosion-proof Grade	Ex d II C T6
Corrosion-proof Grade	WF2
IP Grade	IP67
Power Factor	>0.90
Total Harmonic Current	<20%
Lamp Efficiency(%)	≥90%
Color Temperature(K)	Warm white:2700-4000K; Pure white: 5000-6500K
Junction Temperature(TJ))	<55°C
Color Rendering Index(CRI)	Ra>70
Light Effect	>80lm/W
Ambient Environment	Temperature: -30°C—55°C; Humidity: 10-90%RH(25°C)
Storage Temperature	-40°C-60°C
Lifespan	>50000Hs
Material	Aluminum Alloy
Cable Entry	Φ8~Φ14mm
Threaded Fitting	G3/4"
Installation Height	2~4m
Net Weight	3Kg





Features:
Adapts high-power LED chip
Can be mounted easily
Environment-friendly
Low discharge
High lighting effect
Less start up time
Maintenance-free
Crystal lens shape decide luminous intensity distribution
Unitary structure
Nice heat radiation effects
Reliable
Shock-proof designs
Corrosion, water and high temperature-resistant
Can be mounted in pedestal or on ceiling
Used as floodlight at various explosive/flammable places, military sites, indoor/outdoor operation and construction sites
Suitable for various harsh environments



LED explosion protection LIGHT





LED explosion protection LIGHT

Application:

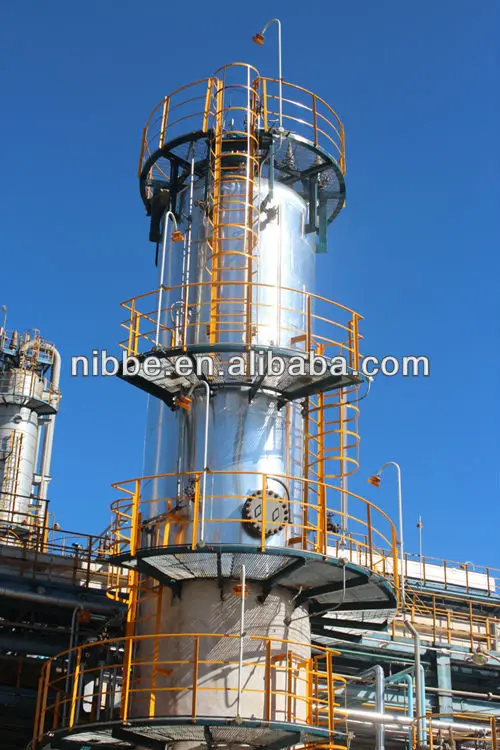

Applied to oil fields, oil refineries, offshore oil platform, power plants, gas stations, oil tanks, wharf, tunnel, pumping station,







substation, the military base,etc. Zone I and Zone ⅡHazardous Locations, Zone 20, Zone 21, Zone 22 and ⅡA, ⅡB, ⅡC explosive gas atmosphere.
