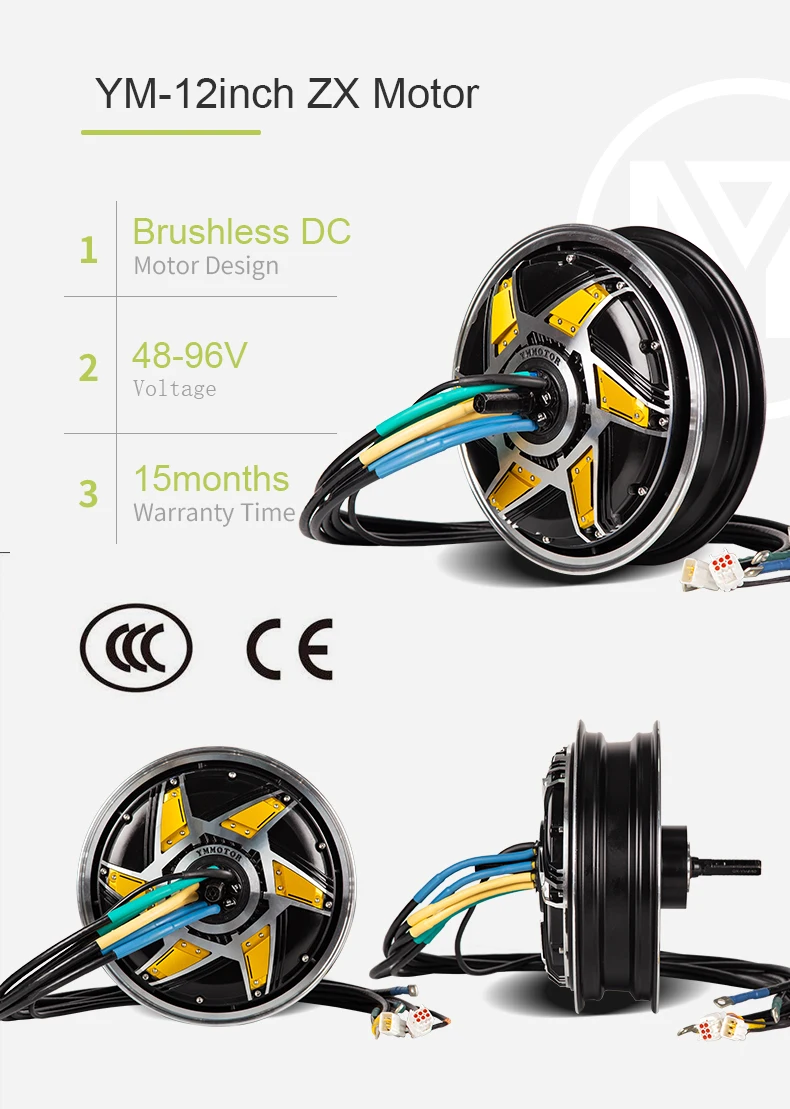

YMMOTOR New Product 12Inch 3000w hub motor kit 72v electric motor for scooter
- Category: Motorcycle Motor >>>
- Supplier: Wuxi,Yuma,Power,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Products Display
Motor Type | Brushless Direct Current Motor(BLDC Motor) |
Axle Configuration | Double |
Wheel Rim | 12 inch |
Max Speed | 80-90km/h |
Voltage | 72V |
Magnet Height | 40mm |
RPM | 800-950 |
Torque | 150N.m |
Hall Sensors | Double Hall |
Hall Sensor Phasing | 120° |
Rated Out Power | 3000W |
Cross Section of Phase Wire | 8mm2 |
Number of Pole Pairs | 24 |
Width Of Rim | 108mm |
Drop-out (Rear Fork width for installation) | 200mm |
Waterproof Grade | IP65 |
Color | Customized |
Package | Carton |
Notice:
Yuma Motor could work 120 ℃ in half an hour without damage.
Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in the 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drops down to 110℃, the controller work again.
More Yuma Motor Information:
Optional Appearance
Motor Details, drawing, performance curve (refer to attachment in PDF).
For more information, please feel free to contact us.
Yuma Motor could work 120 ℃ in half an hour without damage.
Suggestion (Setting of Controller)
When it's 130 ℃ inside of motor (in the 30s), the current should be limited 50%.
When it's 150 ℃, the controller shut down. When it drops down to 110℃, the controller work again.
More Yuma Motor Information:
Optional Appearance
Motor Details, drawing, performance curve (refer to attachment in PDF).
For more information, please feel free to contact us.
